User Manual for TRENDnet TEW-809UB AC1900 Dual-Band Wireless USB Adapter Click to enlarge the picture
Contents of the user manual for the TRENDnet TEW-809UB AC1900 Dual-Band Wireless USB
- Product category: Wireless Adapters & Cards TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Adapters & Cards
 |
User manual for the TRENDnet TEW-809UB AC1900 Dual-Band Wireless USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

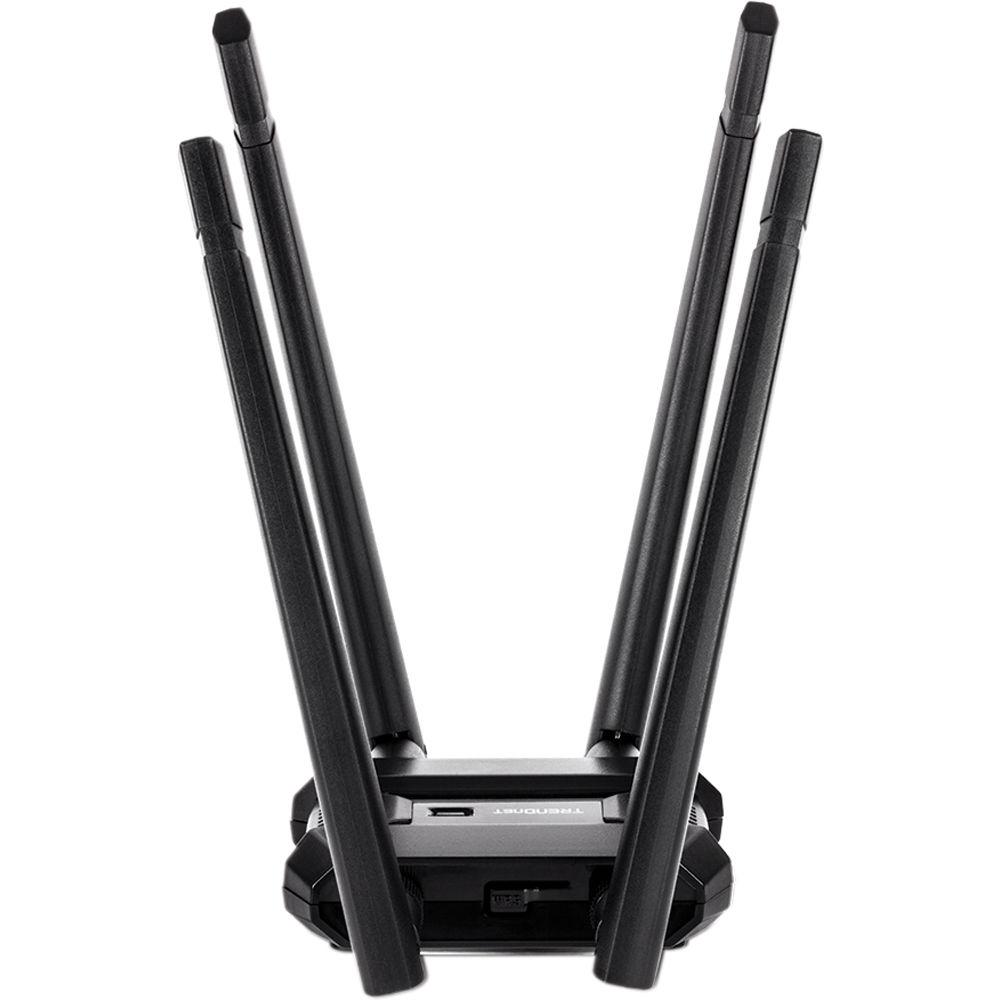

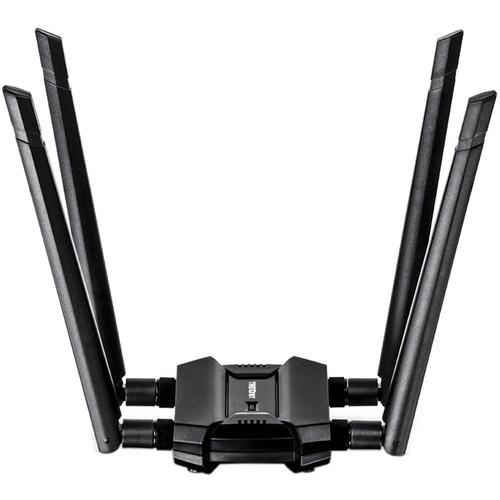

Product description Get connected to a faster network with the TEW-809UB AC1900 Dual-Band Wireless USB Adapter from TRENDnet. This USB adapter provides you with high-performance dual-band connectivity for 4K streaming, online gaming, and faster downloads. It supports 802.11a/b/g/n/ac networking standards and data transfer speeds of up to 1300 Mbps via the 5 GHz band and 600 Mbps via the 2.4 GHz band. Equipped with four high-gain detachable antennas, this adapter also features Beamforming technology, which increases signal strength by directing signals towards the device for a fast and stable connection. After plugging in the device to your system with the included USB cable, install the drivers and it should be ready to go on either Windows or Mac PCs. An LED indicator will notify you when the device is on and functioning. - Easy Setup - Follow the intuitive guided setup to get up and running in minutes
- AC1900 Speeds - Get up to 1300 Mbps via the 5 GHz band or 600 Mbps via the 2.4 GHz band
- Wireless Coverage - Beamforming technology increases signal strength by directing signals towards the device
- LED Indicators - Notifies you when the device is on and operating normally
UPC: 710931160741 In the Box TRENDnet TEW-809UB AC1900 Dual-Band Wireless USB Adapter USB 3.0 Micro-B to Type-A Cable (3') 4 x High-Gain Detachable Dual-Band Antennas Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEW-809UB AC1900 Dual-Band Wireless USB Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TEW-809UB Specs | Standards | IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

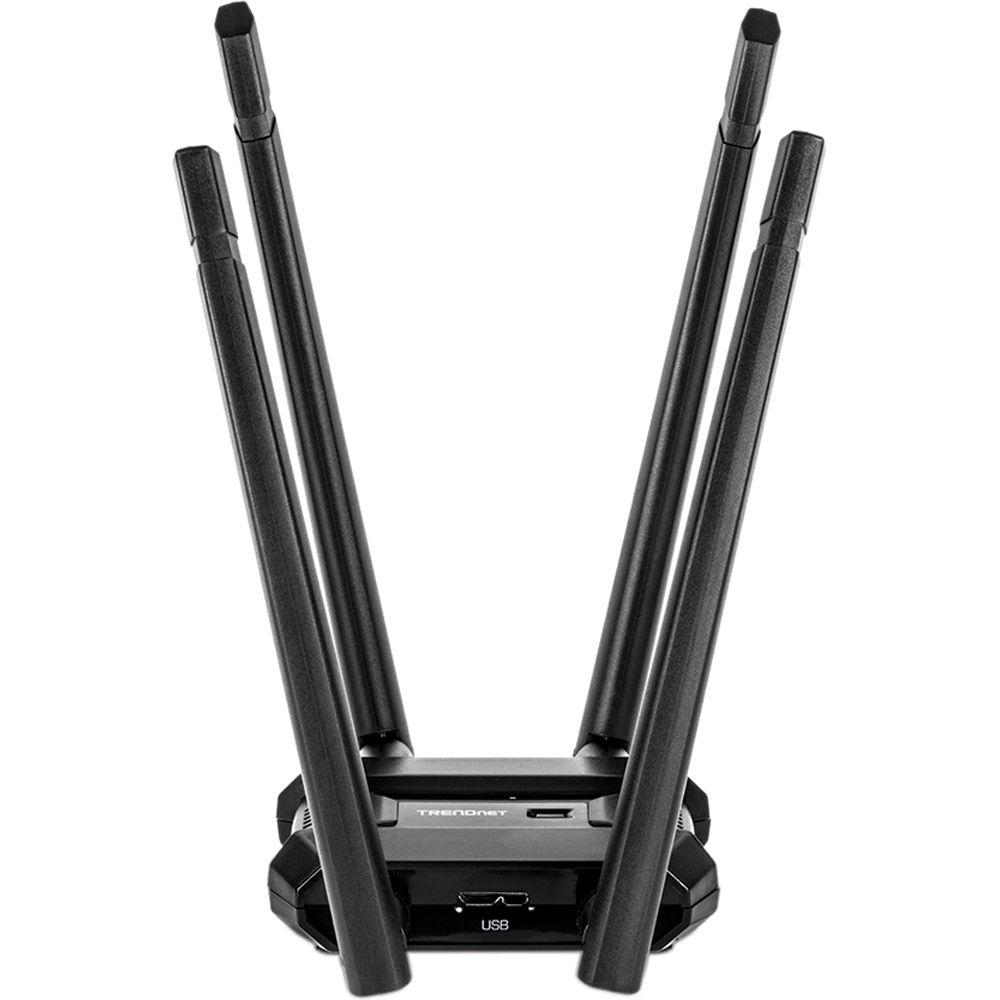

IEEE 802.11ac | | Hardware Interface | USB 3.0 Micro-B port
LED Indicator
WPS Button
4 x RP-SMA female antenna connectors
4 x High-gain detachable dual-band antennas | | Frequencies | 2.4 GHz:
(FCC) 2.412 - 2.462 GHz
(ETSI) 2.412 - 2.472 GHz
5 GHz:
(FCC) 5.150 - 5.250 GHz / 5.745 - 5.825 GHz
(ETSI) 5.150 - 5.250 GHz / 5.500 - 5.700 GHz | | Encryption | WEP, WPA / WPA2-PSK | | Quality of Service | WMM | | Modulation | 802.11b: CCK, DQPSK, DBPSK
802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM
802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM | | Antenna Gain | 2.4 GHz / 5 GHz: 4 x 5 dBi (max.) dual band external/detachable | | Wireless Output Power | FCC: 802.11a: 21 dBm (max.) / ETSI: 18.5 dBm (max.) @ 54 Mbps
FCC: 802.11b: 23 dBm (max.) / ETSI: 17.5 dBm (max.) @ 11 Mbps
FCC: 802.11g: 20 dBm (max.) / ETSI: 17 dBm (max.) @ 54 Mbps
FCC: 802.11n (2.4 GHz): 23 dBm (max.) / ETSI: 17.5 dBm (max.) @ 600 Mbps
FCC: 802.11n (5 GHz): 19.5 dBm (max.) / ETSI: 18 dBm (max.) @ 600 Mbps
FCC: 802.11ac: 20.5 dBm (max.) / ETSI: 17.5 dBm (max.) @ 1300 Mbps | | Receiving Sensitivity | 802.11a: -72 dBm (typical) @ 54 Mbps
802.11b: -84 dBm (typical) @ 11 Mbps
802.11g: -70 dBm (typical) @ 54 Mbps
802.11n (2.4 GHz): -90 dBm (typical) @ 600 Mbps
802.11n (5 GHz): -88 dBm (typical) @ 600 Mbps
802.11ac: -84 dBm (typical) @ 1300 Mbps | | Wireless Channels | 2.4 GHz: (FCC) 1-11, (ETSI) 1-13
5 GHz: (FCC) 36, 40, 44, 48, 149, 153, 157, 161, 165, (ETSI) 36, 40, 44, 48 | | | | Power Type | USB Powered | | Power Consumption | Max 6.6 W | | | | Operating Temperature | 0 - 40°C (32 - 104°F) | | Operating Humidity | Max 80% non-condensing | | | | Certification | CE, FCC | | Compatibility | Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS 10.6 - 10.11 | | Dimensions | 3.35 x 2.95 x 0.79" (85 x 75 x 20 mm) | | Weight | 1.7 oz (48 g) | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.1 x 6.1 x 2.4" |
