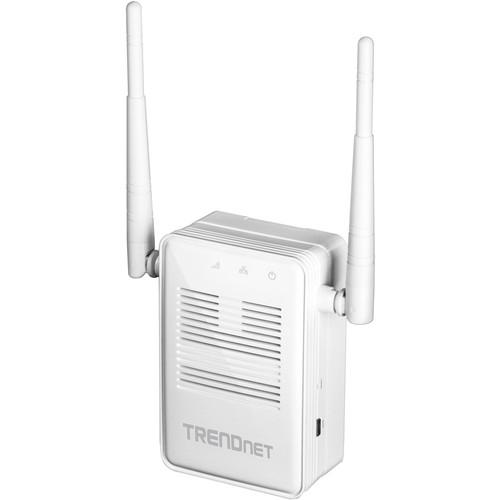

User Manual for TRENDnet TEW-822DRE Wireless-AC1200 Range Extender Click to enlarge the picture
Contents of the user manual for the TRENDnet TEW-822DRE Wireless-AC1200 Range Extender
- Product category: Wireless Range Extenders TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Range Extenders
 |
User manual for the TRENDnet TEW-822DRE Wireless-AC1200 Range Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

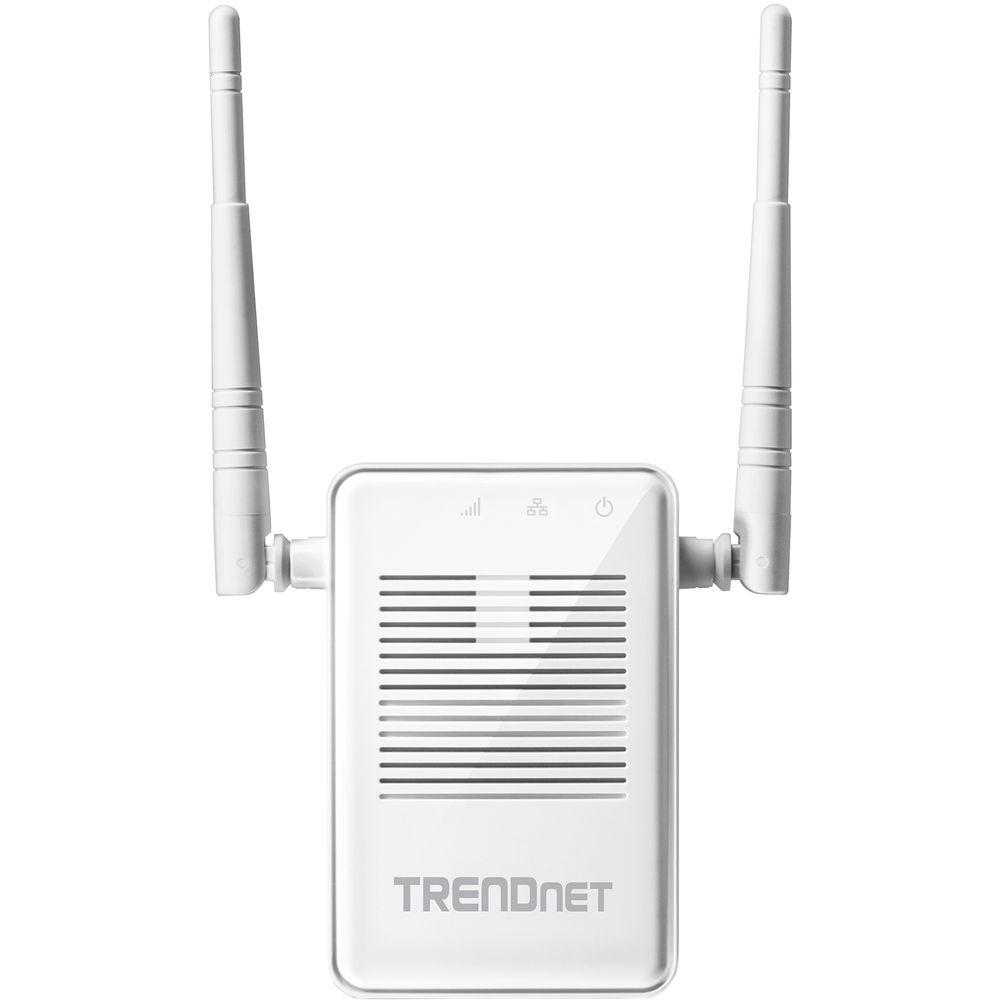

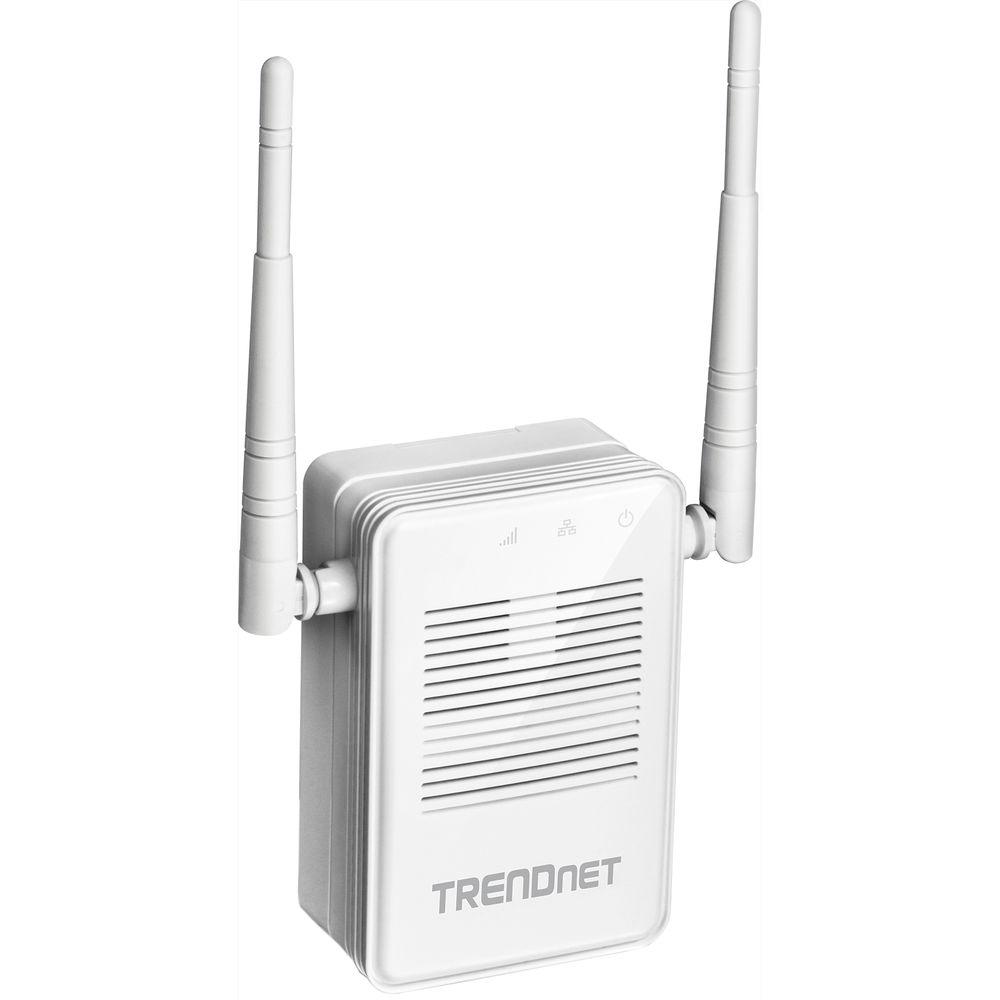

Product description With the TEW-822DRE AC1200 Wi-Fi Range Extender from TRENDnet it is easy to extend the reach of an existing Wi-Fi network. Simply plug this range extender in to an available electrical outlet and the quick setup guide gives you step-by-step instructions on how to configure the device. Once configured the two dual-band antennas provide enhanced wireless network coverage and support both the 2.4 GHz and 5 GHz frequencies as well as offer 802.11ac Wi-Fi network access. Built-in Beamforming technology provides a concentrated wireless signal to connected devices while Wi-Fi encryption ensures each connection is secure and safe from intruders. - Easy Setup
- Quick setup connects to either a Wi-Fi AC or Wi-Fi N network and adopts existing Wi-Fi settings
- AC1200 Dual Band
- Broadcasts concurrent high speed 867 Mbps Wi-Fi AC + 300 Mbps Wi-Fi N networks
- Extreme Coverage
- Adjustable external antennas, high power amplifiers, and multiple antenna technology produces large wireless coverage
- Gigabit Port

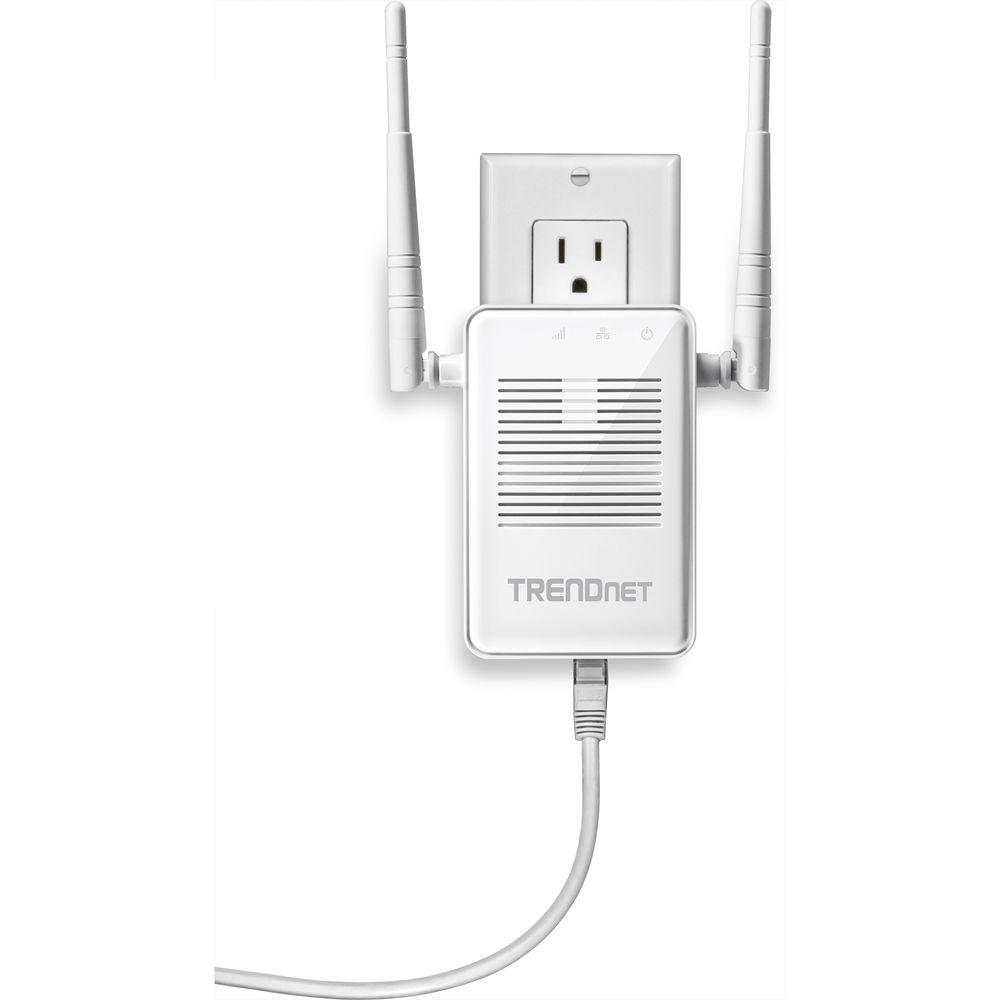

- Gigabit port extends a high performance connection to a wired device
- No Clutter

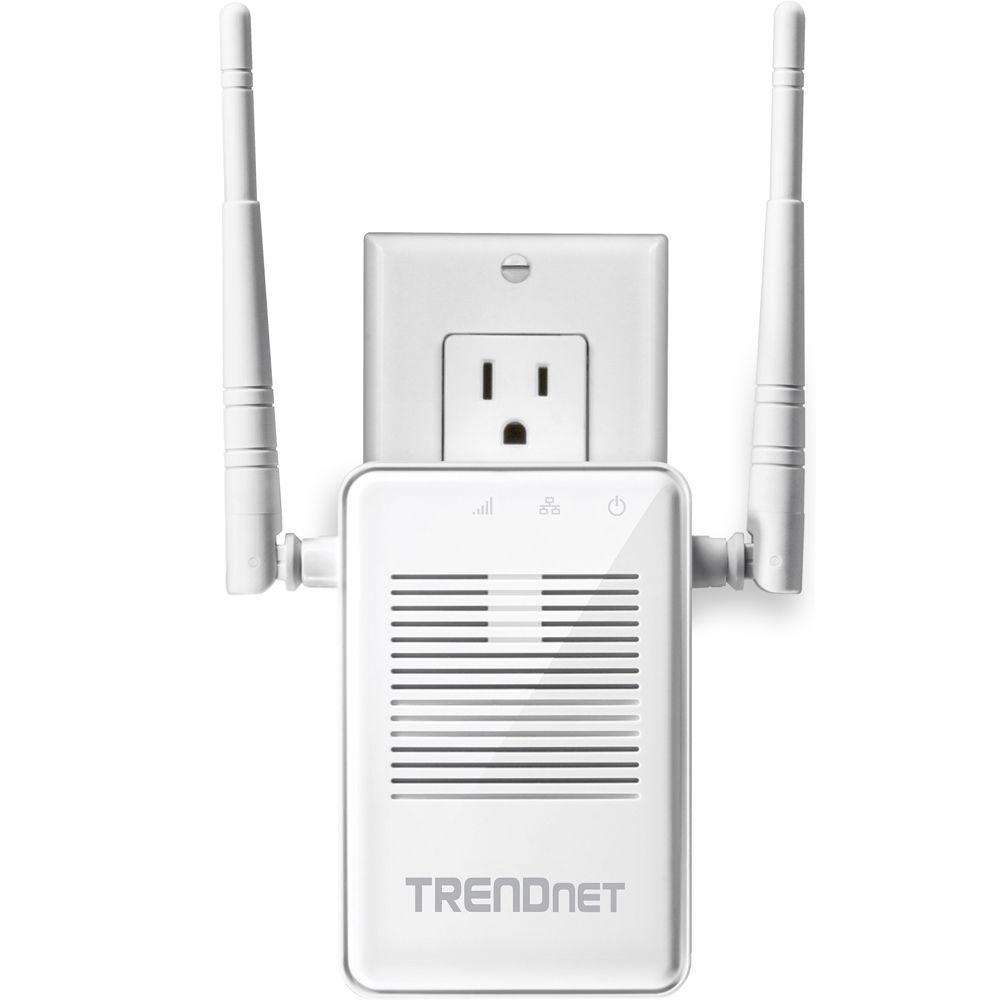

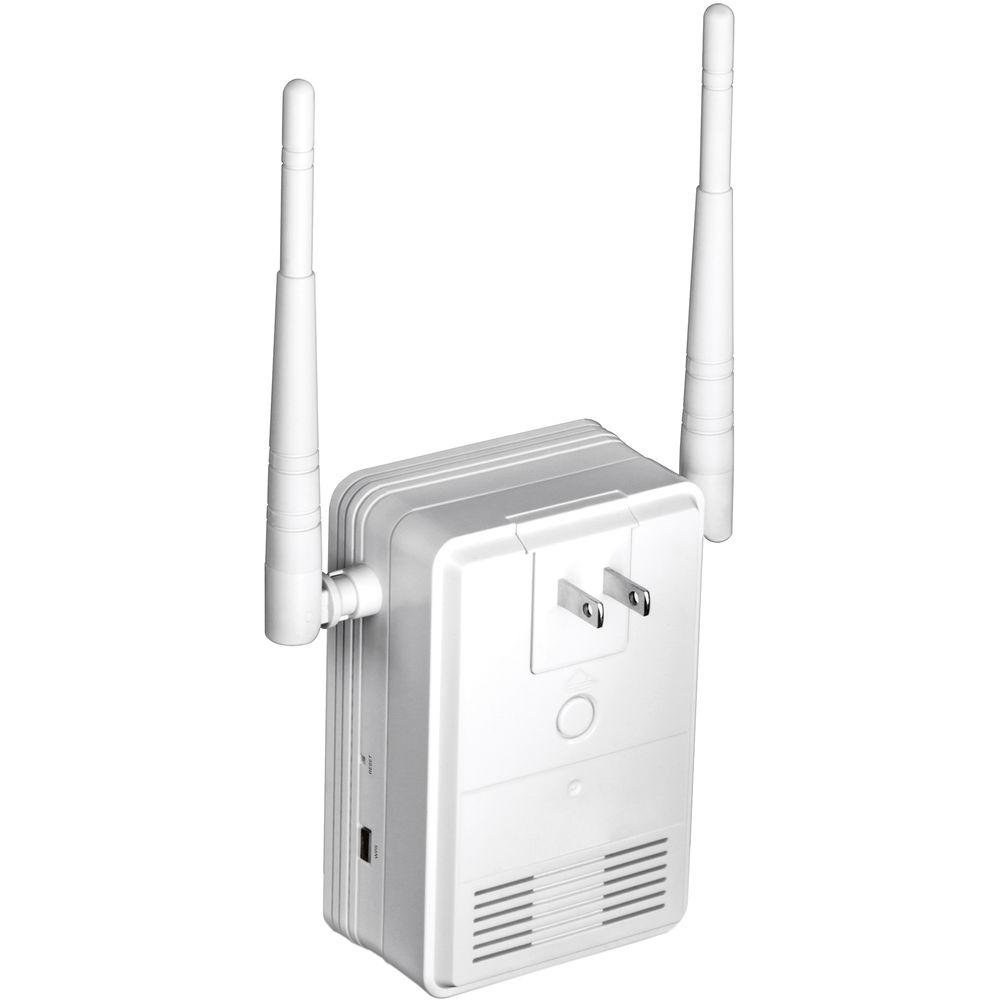

- The extender plugs directly into an outlet
- Operating Modes

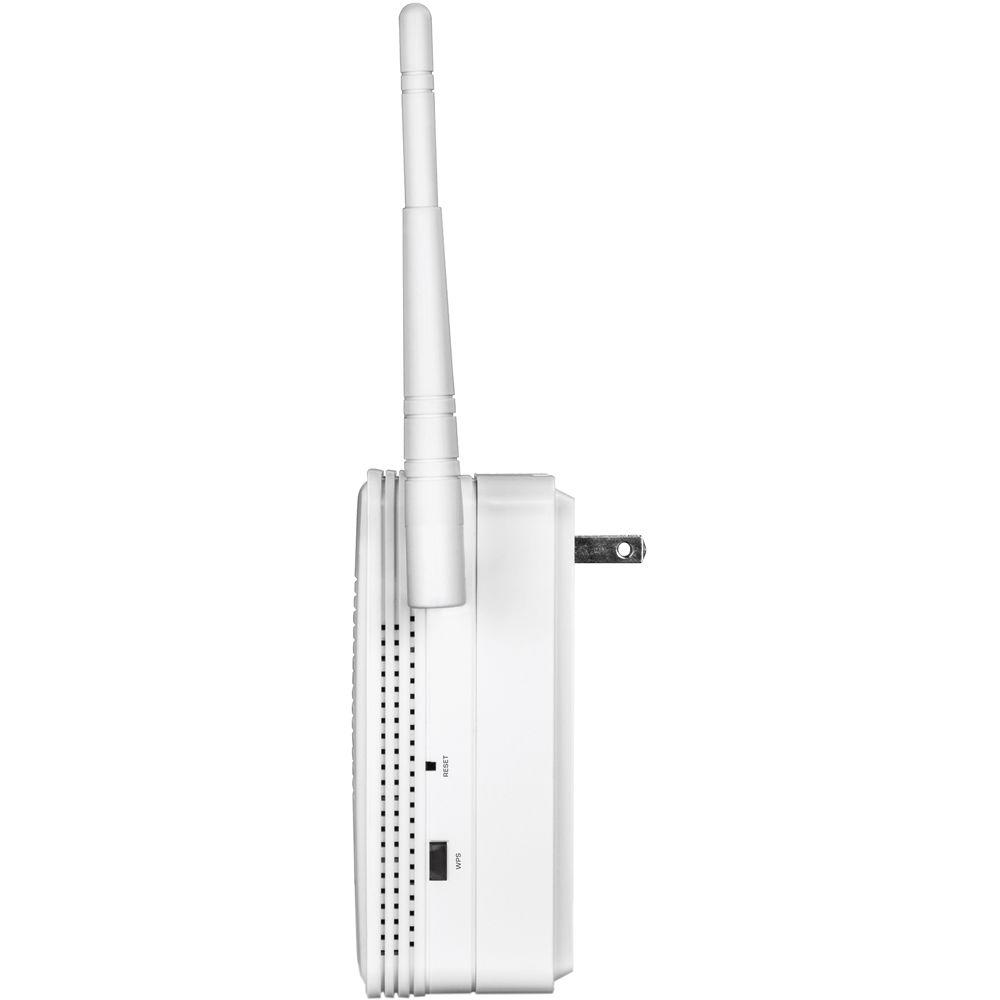

- External switch toggles between Extender (connects to a Wi-Fi network) and Access Point (connects to a wired network) modes
- Compatibility
- Compatible with legacy wireless devices
- Targeted Beamforming
- Increased real-time performance by directing stronger wireless signals to a device's specific location
UPC: 710931130706 In the Box TRENDnet TEW-822DRE Wireless-AC1200 Range Extender Limited 3-Year Warranty Guides & Manuals wbutdwuzev Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TEW-822DRE Wireless-AC1200 Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the TRENDnet TEW-822DRE Wireless-AC1200 Range Extender can be downloaded in PDF format at the link stated below.
Technical parametersTRENDnet TEW-822DRE Specs | Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az
IEEE 802.11a
IEEE 802.11ac (up to 867 Mbps)
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300 Mbps) | | Device Interfaces | Gigabit Ethernet port
WPS Button
AP/Extender/Off switch
LED indicators | | Operation Modes | Range extender (repeater)
Access point | | SSID | Up to 4 additional SSIDs | | Access Control | Wireless Encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
MAC filter
Wireless user number limitation | | Frequency | FCC: 2.412 to 2.462 GHz, 5.180 to 5.240 GHz, 5.745 to 5.825 GHz
ETSI: 2.412 to 2.472 GHz, 5.180 to 5.580 GHz, 5.660 to 5.700 GHz | | Wireless Channels | FCC: 1 - 11, 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)
ETSI: 1 - 13, 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140),149, 153, 157, 161, 165 | | Modulation | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM | | Antenna Gain | 2 x Dipole dual band antennae
5 GHz: 3 dBi
2.4 GHz: 2 dBi | | Wireless Output Power | 802.11a: FCC: 22 dBm (typical), CE: 20 dBm (typical)/-65 dBm (typical) @ 54 Mbps
802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-83 dBm (typical) @ 11 Mbps
802.11g: FCC: 27 dBm (typical), CE: 20 dBm (typical)/-65 dBm (typical) @ 54 Mbps
802.11n: FCC: 27 dBm (typical), CE: 20 dBm (typical)/-61 dBm (typical) @ 300 Mbps
802.11ac: FCC: 26 dBm (typical), CE: 20 dBm (typical)/-51 dBm (typical) @ 867 Mbps | | Features | High power amplifier; MIMO antenna technology; compact form factor; IPv6 (Link local, Static, SLAAC/DHCPv6); beamforming; multiple SSID; DFS channels | | Power | Input: 100 to 240 VAC, 50/60 Hz
Consumption: 8.3 W maximum | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | Maximum 95% non-condensing | | Certifications | CE; FCC; UL; IC | | Dimensions | 5.9 x 5.1 x 2.4" (15.0 x 13.0 x 6.0 cm) | | Weight | 9.3 oz (265.0 g) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.3 x 7.2 x 4.0" |
