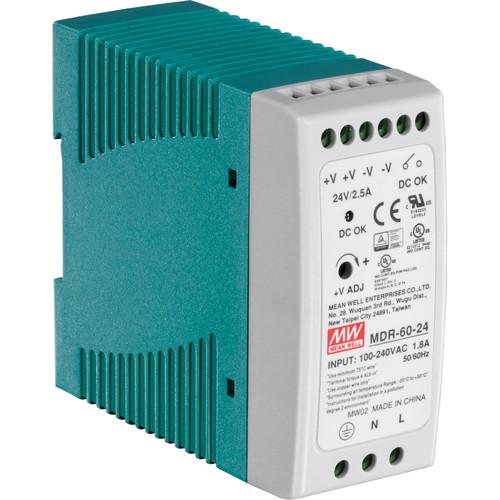

Product description Providing up to 60 watts of power, the TI-M6024 60W Single Output Industrial DIN-Rail Power Supply from TRENDnet is designed to power a variety of devices including switches, network cameras, and Wi-Fi access points. In addition to providing power, this power supply features passive cooling, overload protection, and can withstand temperature extremes from -4 to 158°F. - Provides up to 60 watts (24 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access points.
- Overload/short circuit/over voltage protection
- This power supply undergoes a 100% full-load burn-in test
- Cooling by free air convection

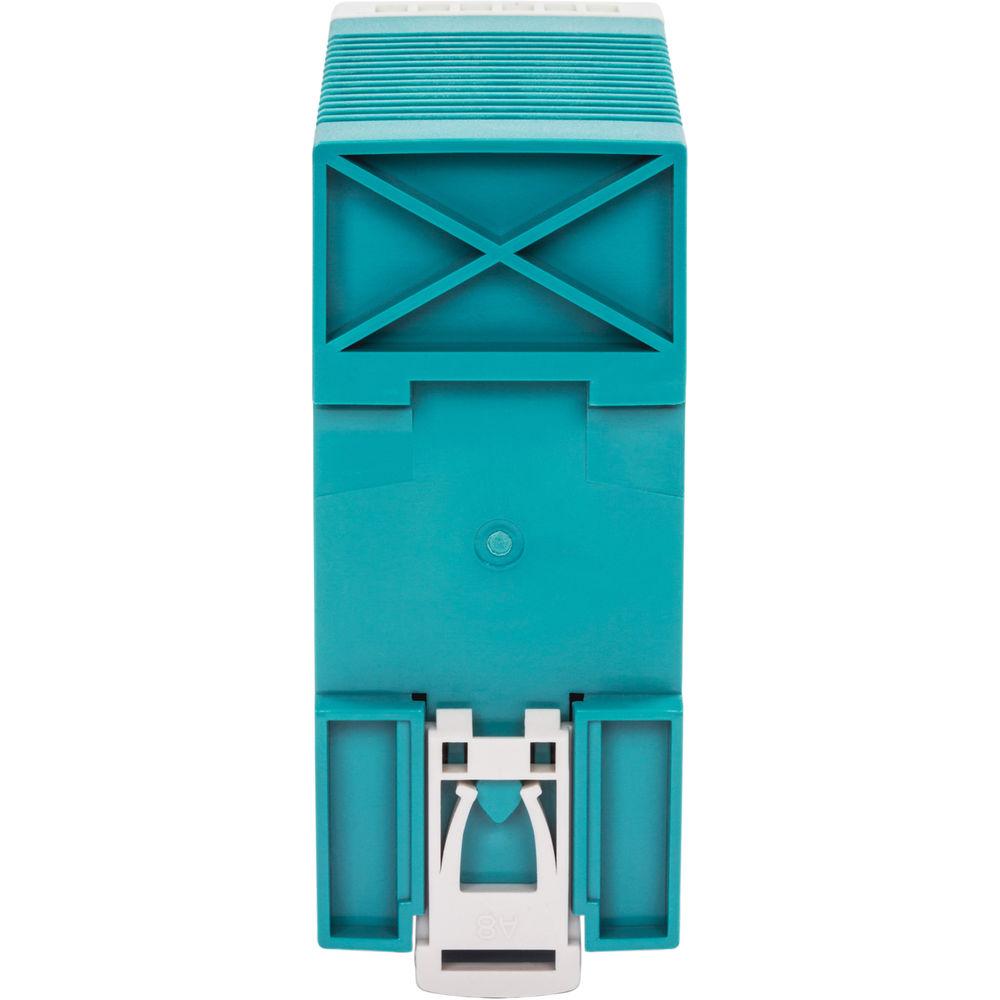

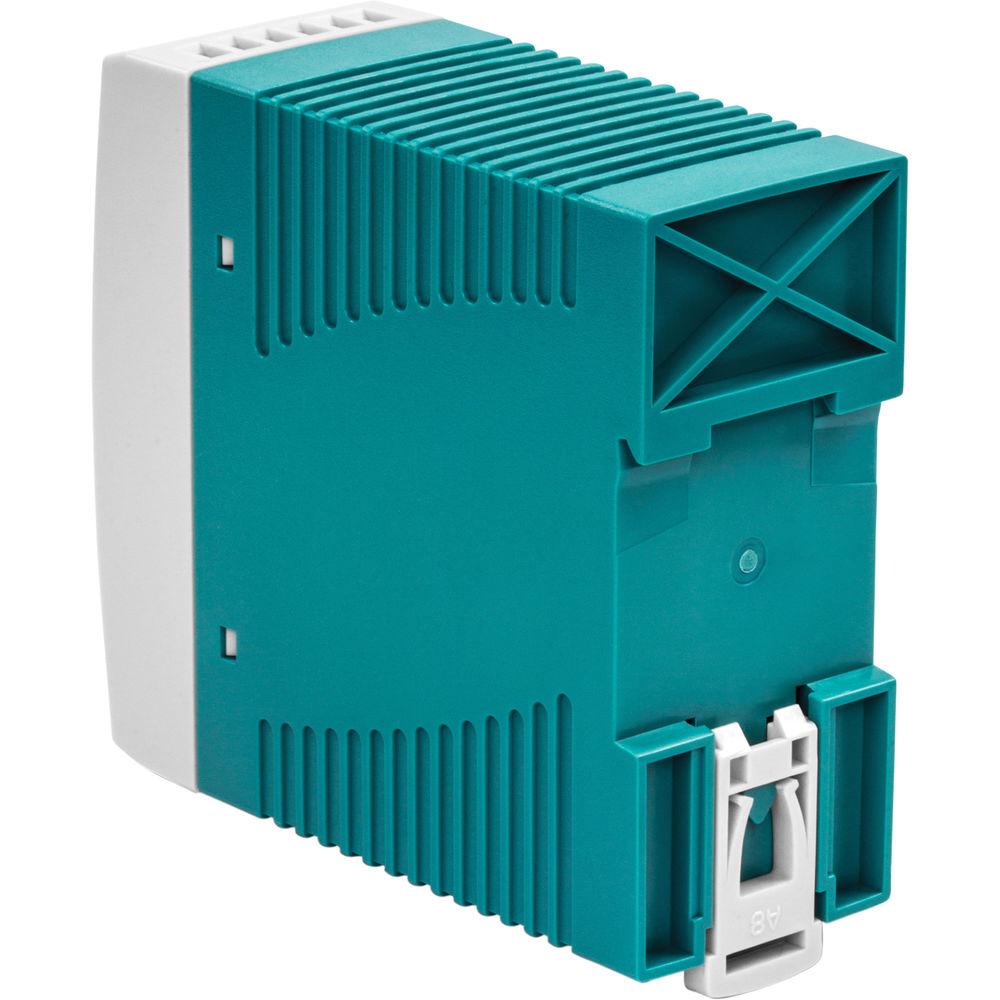

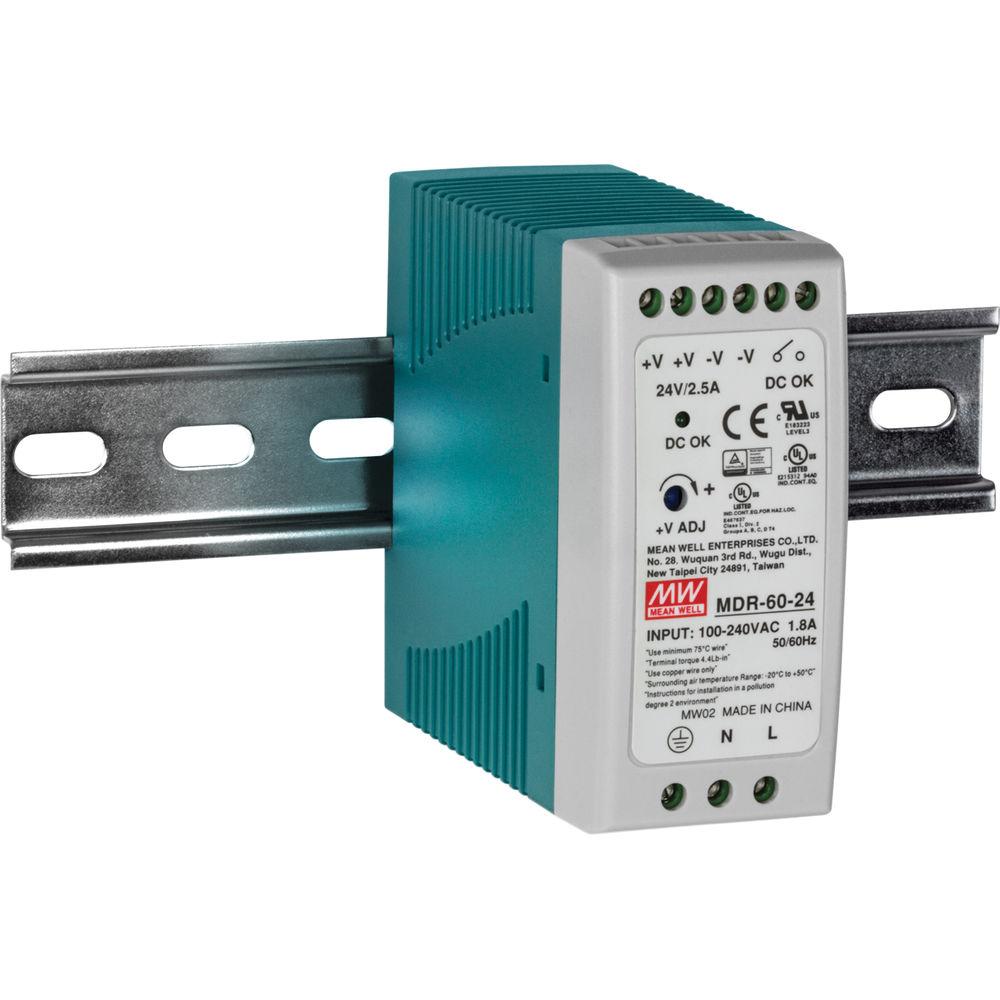

- Metal enclosure with integrated DIN-rail mount
- Rated for an operating temperature range of -4 to 158°F
- Certified for UL 508, UL 60950-1, TUV EN60950-1, and Class I, Div. 2 Group A, B, C, D hazardous locations T4
- Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, and criteria A
- Rated for vibration (IEC 60068-2-6)

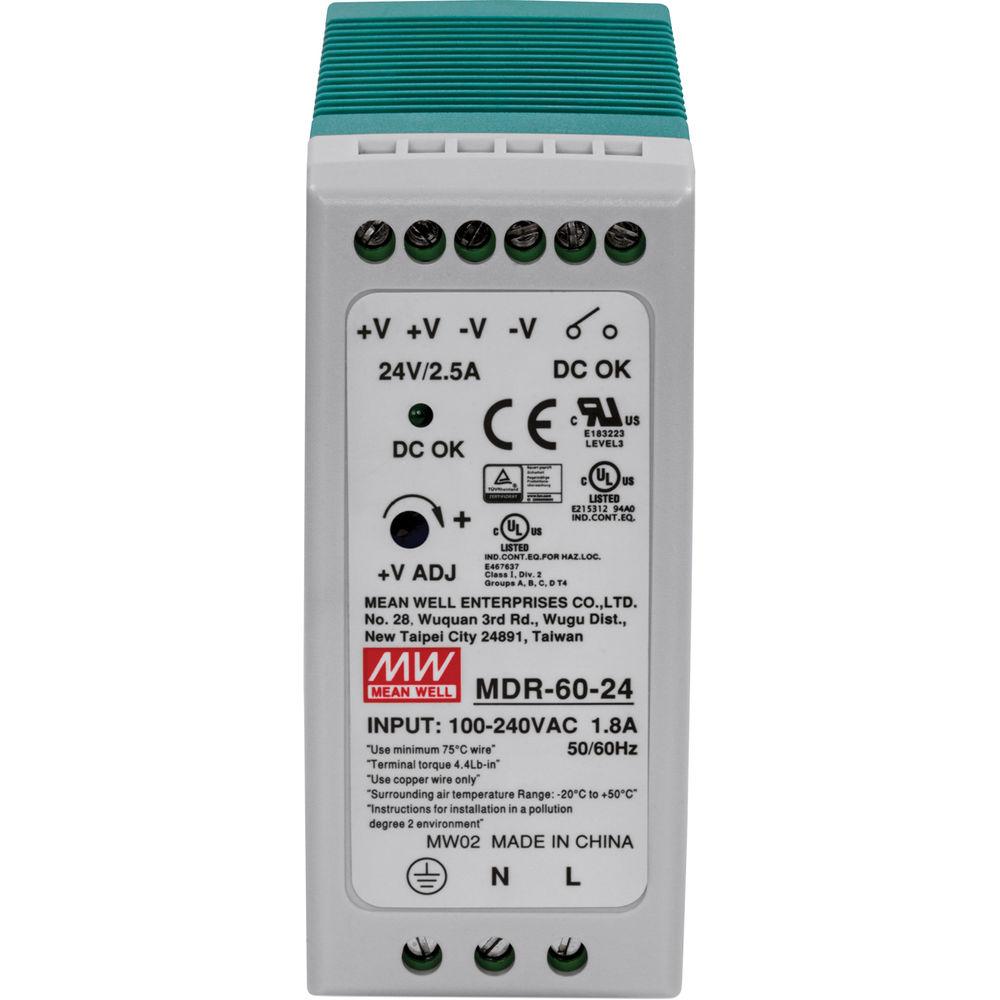

- LED indicator confirms power to the unit
- Short circuit/overload/over voltage protection
- Protection type: shut down and repower
UPC: 710931160376 In the Box TRENDnet TI-M6024 60W Single Output Industrial DIN-Rail Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TI-M6024 60W Single Output Industrial DIN-Rail Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TI-M6024 Specs | Interface | Input: 100-240 VAC, 50/60 Hz, 1.8 A 120-370 V DC
Output: 60 Watts, 24 V, 2.5 A
DIN rail: TS-35/7.5 or 15 | | Housing | Metal case
DIN-rail mount
LED indicator confirms power to the unit | | Temperature & Humidity | Operating Temperature
-4 to 158°F / -20 to 70°C
Operating Humidity
Max. 90% non-condensing | | MTBF | 2,992,000 hours | | Certifications | CE
UL 508
UL 60950-1
CB 60950-1
TUV EN60950-1
Class I, Div. 2 hazardous locations T4 | | Dimensions | 1.6 x 3.9 x 3.5" / 40 x 100 x 90 mm | | Weight | 10.6 oz / 300 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.6 x 4.2 x 1.8" |
