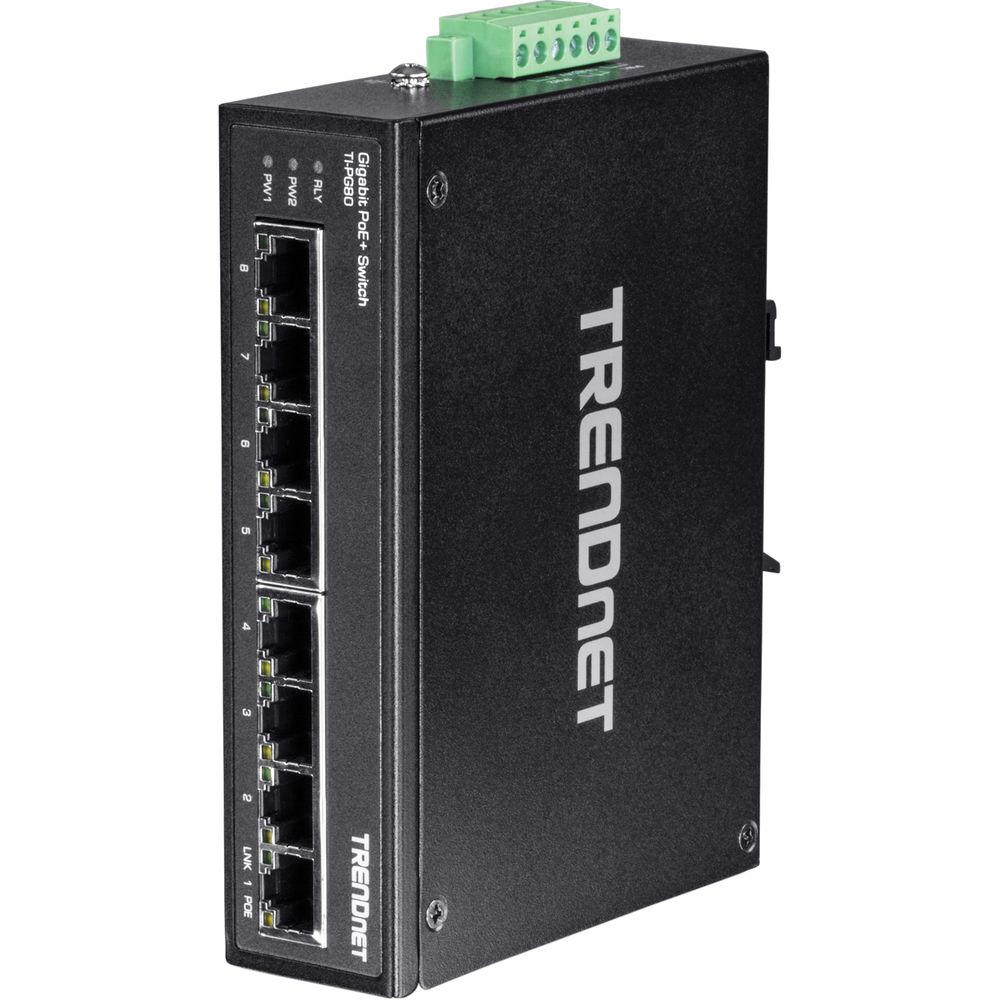

Product description Designed for extreme industrial environments, the TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch from TRENDnet features a hardened IP30-rated metal enclosure with the ability to withstand extreme temperatures from -40 to 167°F. This rail switch features eight Gigabit Ethernet ports, a 6-pin removable terminal block, LED indicators, and a grounding point. Once installed, the switch features a 200-watt PoE+ power budget and a 16 Gbps switching capacity to ensure sufficient bandwidth and PoE power is allocated to each network port. The TI-PG80 DIN-Rail Switch includes both rail- and wall-mount hardware for easy installation. Dual redundant power inputs make it easy to set up an alternate power source while the built-in alarm alerts you when the primary power source fails. - Full PoE+ Power Budget
- Supplies up to 30 Watts of PoE/PoE+ power per port (802.3at/802.3af) with an up to 200-Watt PoE power budget
- Network Ports
- 8 x Gigabit PoE+ Ethernet ports
- DIN-Rail / Wall Mounts
- IP30-rated metal enclosure with included DIN-rail and wall-mount hardware
- Switching Capacity
- 16 Gbps switching capacity
- Redundant Power
- Dual redundant power inputs with overload current protection (power supply sold separately: model TI-S24048)
- Alarm Output
- Alarm output triggered by power failure of primary and/or redundant power
- Jumbo Frame
- Sends larger packets, or Jumbo Frames (up to 9 KB), for increased performance
- Extreme Temperatures
- Hardened switch is rated for an operating temperature range of -40 to 167°F
- Electro Magnetic Compliance
- Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards
- Certifications
- Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)
- Shock and Vibration Resistant
- Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- Grounding Point
- Grounding point protects equipment from external electrical surges
- Additional Features
-
- Auto-negotiation
- Auto store and forward authentication
- Automatic address learning and address aging
- ESD 8 KV and surge 6 KV protection

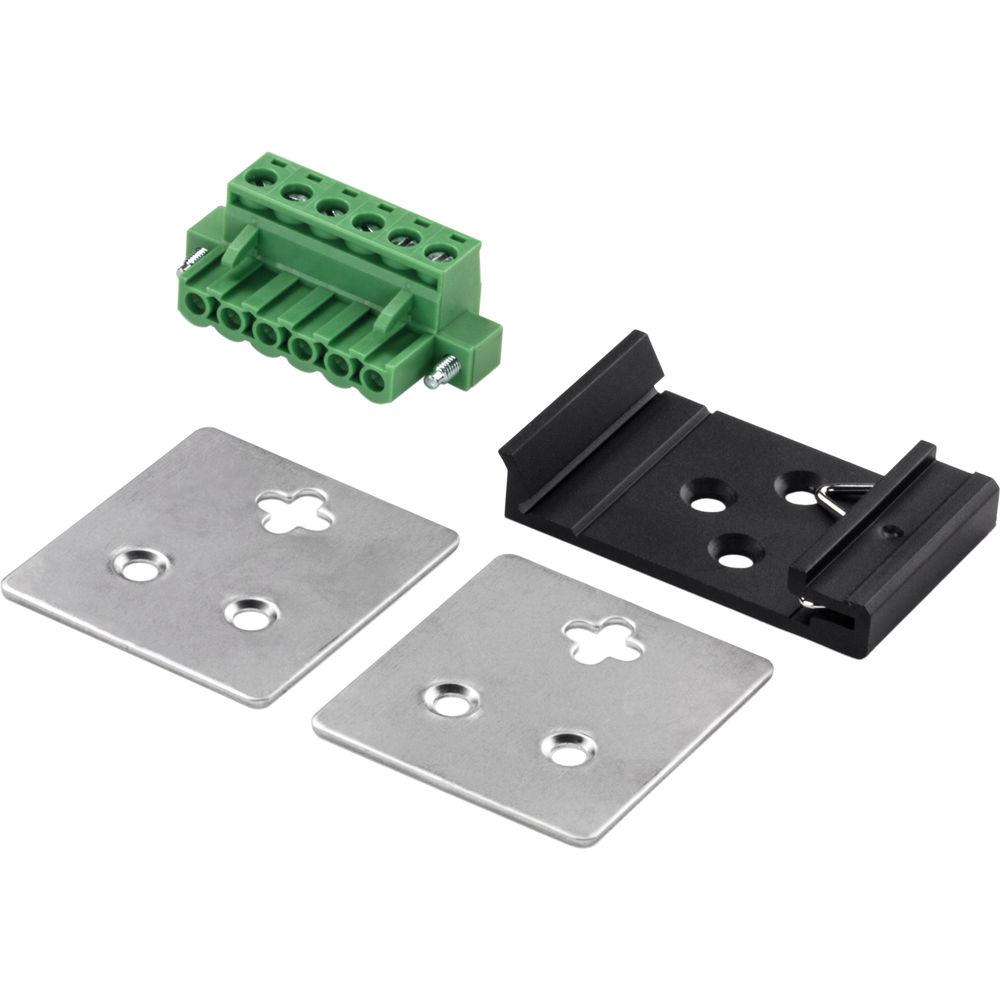

UPC: 710931160352 In the Box TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE+ DIN-Rail Switch Removable Terminal Block DIN-Rail / Wall Mount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TI-PG80 8-Port Hardened Industrial Gigabit POE DIN-Rail Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TI-PG80 Specs | Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
IEEE 802.3af PoE
IEEE 802.3at PoE+ | | Device Interface | 8 x Gigabit PoE+ ports
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point | | Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex) | | Performance | Data RAM Buffer: 1024 KB
Switching Fabric: 16 Gbps
MAC Address Table: 8 K entries
Jumbo Frame: 9 KB
Forwarding Rate: 11.9 Mpps (64-byte packet size) | | Power | Input: 48 - 56 V DC
Compatible Power Supply: TI-S24048 (sold separately)
Consumption: Max. 5.76 Watts (without PD) | | PoE | PoE Budget: 200 Watts
Pin 1,2 for power+ and pin 3,6 for power- (mode A) | | Terminal Block | Redundant power inputs, alarm relay contact, 6 pin
Wire range: 0.34 mm2 to 2.5 mm2
Solid wire (AWG): 12-24/14-22
Stranded wire (AWG): 12-24/14-22
Torque: 5 lb. - In / 0.5 Nm / 0.56 Nm
Wire strip length: 7-8 mm | | Relay Mode | Alarm Relay Contact
Relay outputs with current carrying capacity of 1 A, 24 V DC
Open circuit mode when two power sources are connected
Short circuit mode when only one power source is connected | | Power Consumption | Max. 5.76 Watts (without PoE) | | MTBF | 510,304 hours | | Housing | IP30 metal case
DIN-rail mount
Wall mount
Grounding point
8 KV ESD protection
6 KV surge protection | | Temperature & Humidity | Operating Temperature
-40 to 167° F / -40 to 75°C
Operating Humidity
Max. 95% non-condensing | | Certifications | CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6) | | Dimensions | 5.6 x 4.1 x 1.4" / 143 x 104 x 36 mm | | Weight | 1.22 lb / 554 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.583 x 6.614 x 2.677" |
