User Manual for TRENDnet TK-1603R 16-Port Rack Mount USB KVM Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TK-1603R 16-Port Rack Mount USB
- Product category: KVM Switches TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet KVM Switches
 |
User manual for the TRENDnet TK-1603R 16-Port Rack Mount USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

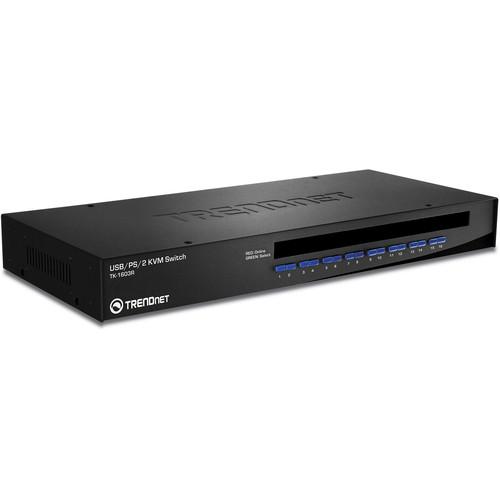

Product description Multi-Monitors: Maximizing Multitasking Read More Connect and access multiple computers and servers with the TK-1603R 16-Port Rack Mount USB KVM Switch from TRENDnet. Plug in a mouse, keyboard and monitor and begin switching between connected computers or servers using the designated Hot-Key or the push button controls to select devices manually. The included auto scan feature can be programmed using the hot-key to cycle between connections every 10 to 100 seconds. Setup and configuration is simple with plug and play functionality as well as support for Windows, Linux, and Mac computers. You can also see the status of each connected computer via LED indicators located on the front of the KVM switch. - Controls up to 16 computers or servers
- Supports both USB and PS/2 interface for console port
- Supports Windows, Linux, Mac and more
- High video quality- up to 2048 x 1536 VGA resolution
- Firmware upgradeable via PC port
- Auto-Scan and LED display for monitored PCs
- Keyboard status restored when switching between PCs

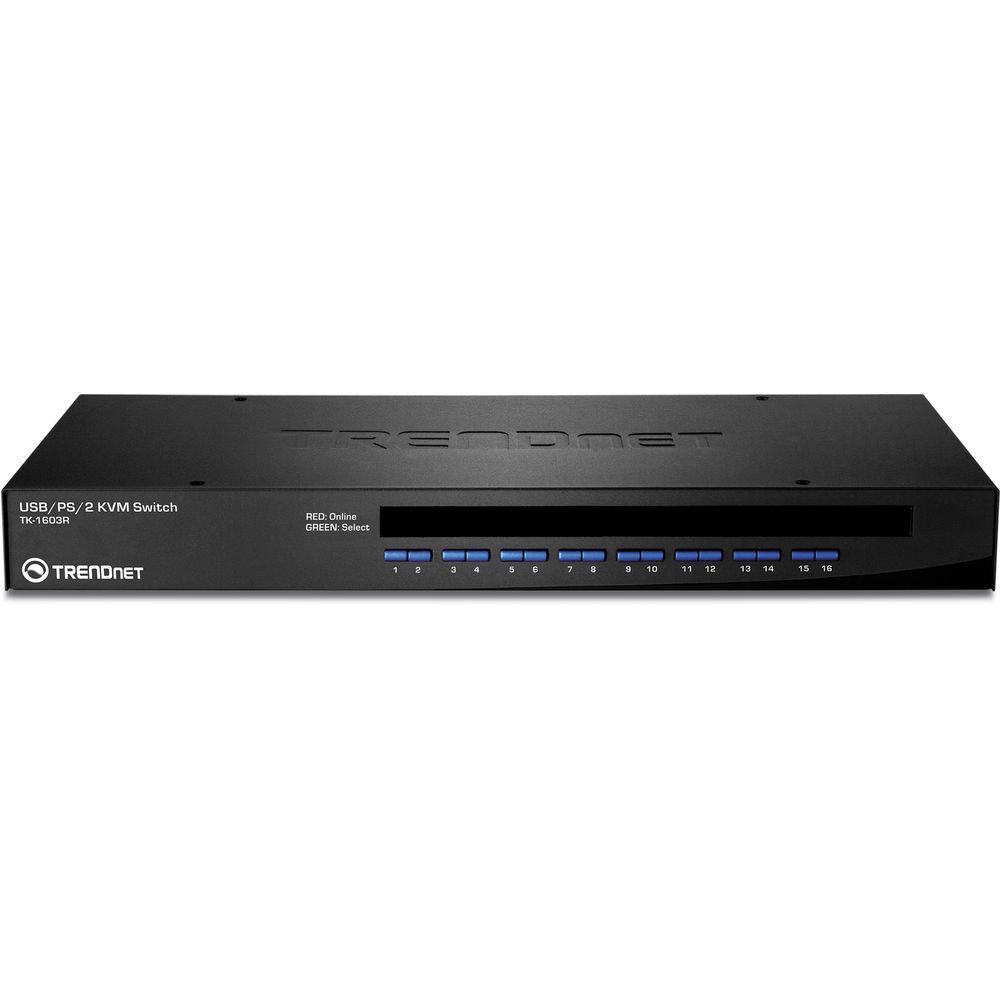

- LEDs display for easy status monitoring
- Beeping sound for port switching confirmation
- Hotkey or push button switching
- Plug & Play and hot-pluggable
- Standard 19" (1U) rack mount design
UPC: 710931304329 In the Box TRENDnet TK-1603R 16-Port Rack Mount USB KVM Switch Power Adapter (9 V DC, 1 A) Rack Mount Kit Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TK-1603R 16-Port Rack Mount USB KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

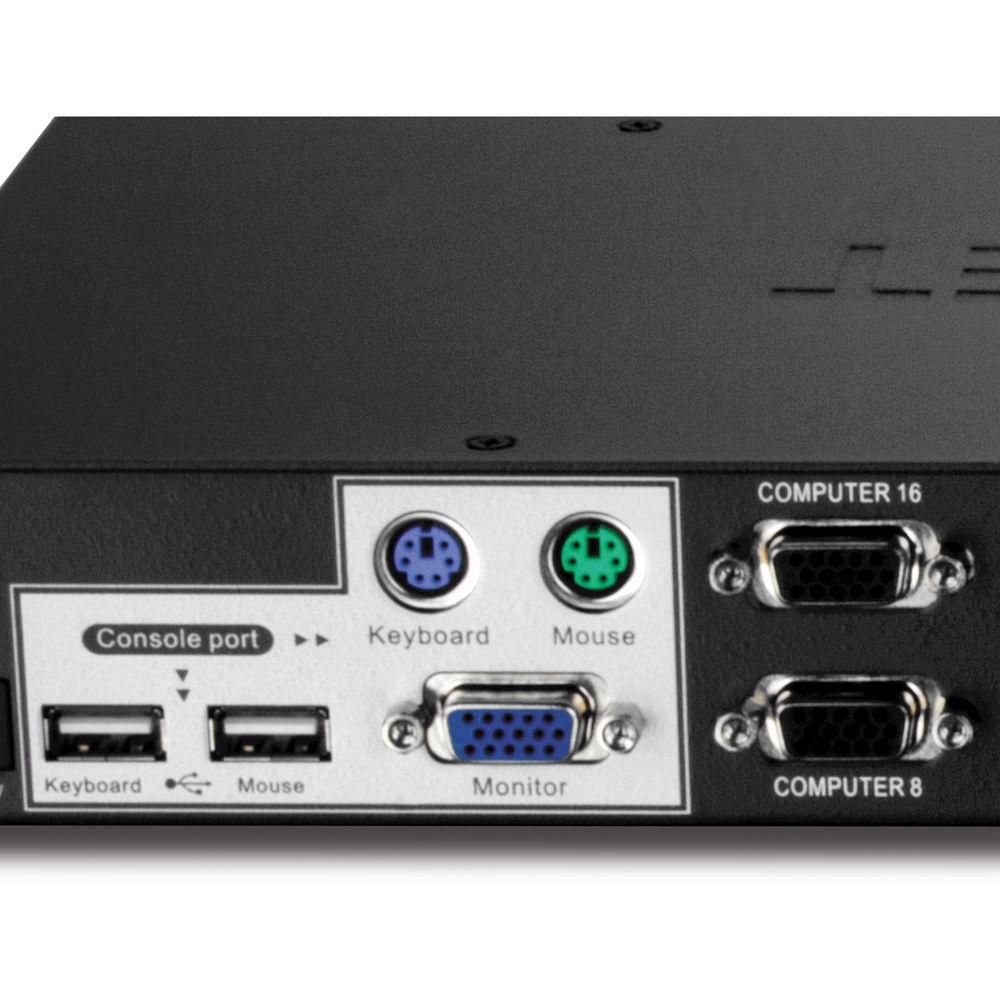

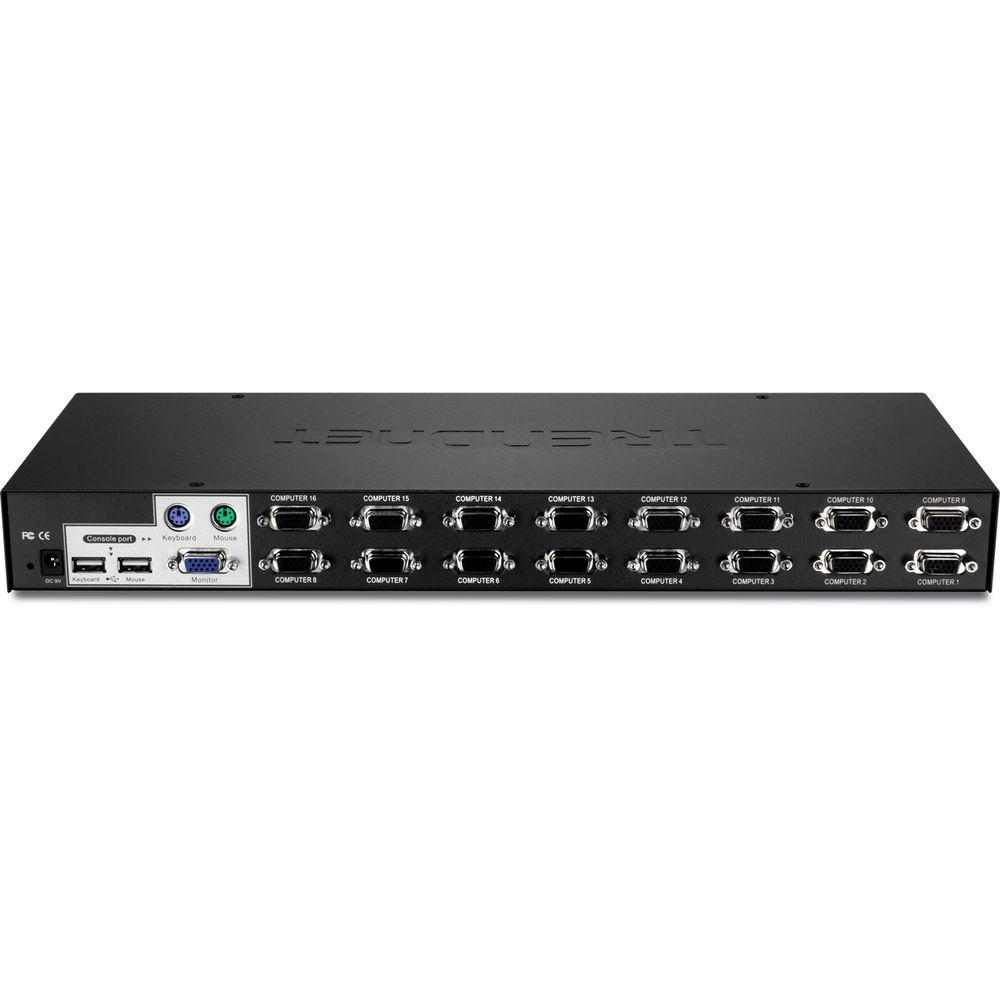

Technical parametersTRENDnet TK-1603R Specs | Connections | 16 x computers or servers | | Standard | USB 1.1 compliant | | PC Ports | 16 x VGA HDB 15-pin (female) | | Console Ports | 1 x USB (Type A) / PS/2 (6-pin mini-DIN) mouse
1 x USB (Type A) / PS/2 (6-pin mini-DIN) keyboard
1 x VGA HDB 15-pin (female) | | Supported OS | Windows, Linux, Mac | | PC Selection | Hot-key or push buttons | | Auto Scan Interval | 10-100 seconds (programmable through hot-key) | | LEDs | On-line (red)
Select (green) | | Keyboard Status | Saved & restored | | Power Adapter | Input: 100~240 VAC, 50/60 Hz
Output: 9 V DC 1 A external power adapter | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | Maximum 80% non-condensing | | Certification | CE, FCC | | Dimensions | 16.0 x 6.5 x 1.8" / 407 x 165 x 45 mm | | Weight | 4.50 lb / 2.04 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 17.8 x 11.7 x 3.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
