User Manual for TRENDnet TK-214i 2-Port DVI USB KVM Switch Kit with Audio Click to enlarge the picture
Contents of the user manual for the TRENDnet TK-214i 2-Port DVI USB KVM
- Product category: KVM Switches TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet KVM Switches
|
User manual for the TRENDnet TK-214i 2-Port DVI USB KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

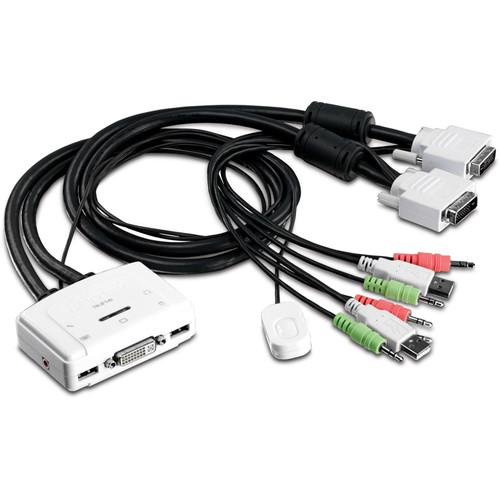

Product description Multi-Monitors: Maximizing Multitasking Read More With the TK-214i 2-Port DVI USB KVM Switch Kit with Audio from TRENDnet you can control two computers using a single keyboard, mouse, and monitor. This KVM switch comes equipped with two sets of combination cables each featuring DVI, USB, audio, and microphone ports. These connectors ensure you can utilize all aspects of your connected Windows, Mac, or Linux based PC. The console side of the KVM switch features one DVI port for a monitor, two USB ports for your mouse and keyboard, one 3.5mm audio port, and one 3.5mm microphone port. On the console itself you will find a push button switch making it easy to flip back and forth between connected PCs. - Console-side hardware
- 1 x DVI port
2 x USB 2.0 Type A port
1 x 3.5 mm audio port
1 x 3.5 mm microphone port
LED display for easy computer monitoring
Push button switch with a 4.8 ft / 1.45 m extension cable - Computer-Side Hardware
- 2 sets of 2.6 ft / 80 cm built-in combination cables with DVI, USB, audio, and microphone ports
Other Features - Use one keyboard, monitor, and mouse to control two computers
- Audio support for speakers and microphone
- Works with most standard USB mouse and keyboard designs
- Support video quality of up to 1920 x 1200 resolution
- Supports Windows, Linux, and Mac operating systems
- Hot-Plug feature: Add a computer or remove the connected computer for maintenance without powering down the KVM Switch
- Keyboard status restored when switching between computers
- Install the included KVM switcher software in order to program Hot-Keys and Auto-Scan intervals
- Plug-and-play with no software download required
- No power required, this device is powered by the computer's USB port
UPC: 710931304480 In the Box TRENDnet TK-214i 2-Port DVI USB KVM Switch Kit with Audio CD-ROM (Utility and User's Guide) Limited 2-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TK-214i 2-Port DVI USB KVM Switch Kit with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TK-214I Specs | Controls | 2 computers | | Cable | 2 Sets of USB, DVI, audio, and microphone combination cables 2.6 ft / 80 cm | | Connectors | Computer Connectors
2 x USB Type A (male)
2 x DVI-I (male)
2 x 3.5mm audio plug
2 x 3.5mm microphone plug
Console Connectors
1 x DVI port (female)
2 x USB type A port (female)
1 x 3.5mm audio port
1 x 3.5mm mic. port | | Port Selection | Push button switch: Windows, Mac and Linux
Hot Keys Command: Windows, Linux
KVM Switcher Software: Windows and Mac 10.4 or higher | | Supported OS | Windows 8, 7, Vista, XP, Server 2003, 2000, 98 | | Video Resolution Supported | DVI-I 1920 x 1200 | | Power Type | USB bus powered | | LEDs | Computer 1 or Computer 2 status indicator | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -4 to 140°F / -20 to 60°C
Humidity: Max. 90% non-condensing | | Certifications | CE, FCC | | Dimensions | 3.5 x 2.5 x 1.0" / 89 x 64 x 25 mm | | Weight | 15.2 oz / 431 g | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 10.7 x 5.4 x 2.7" |
