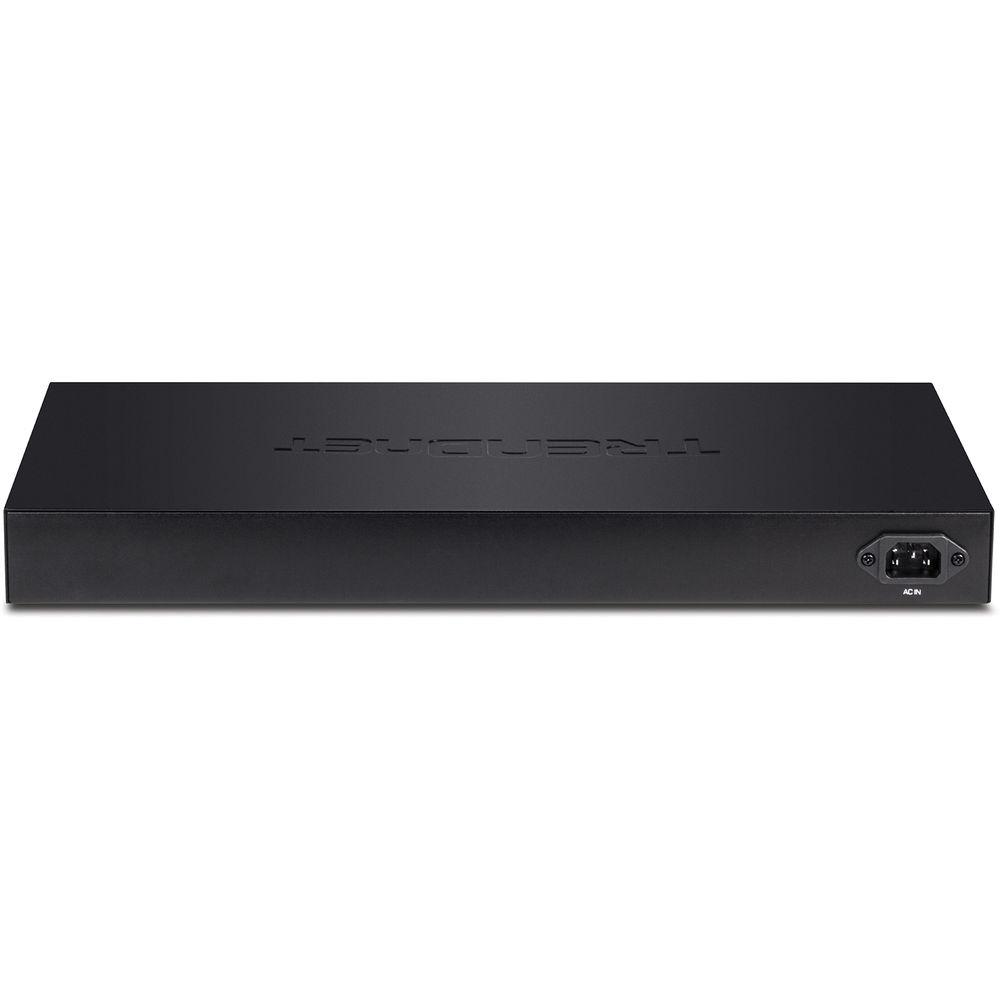

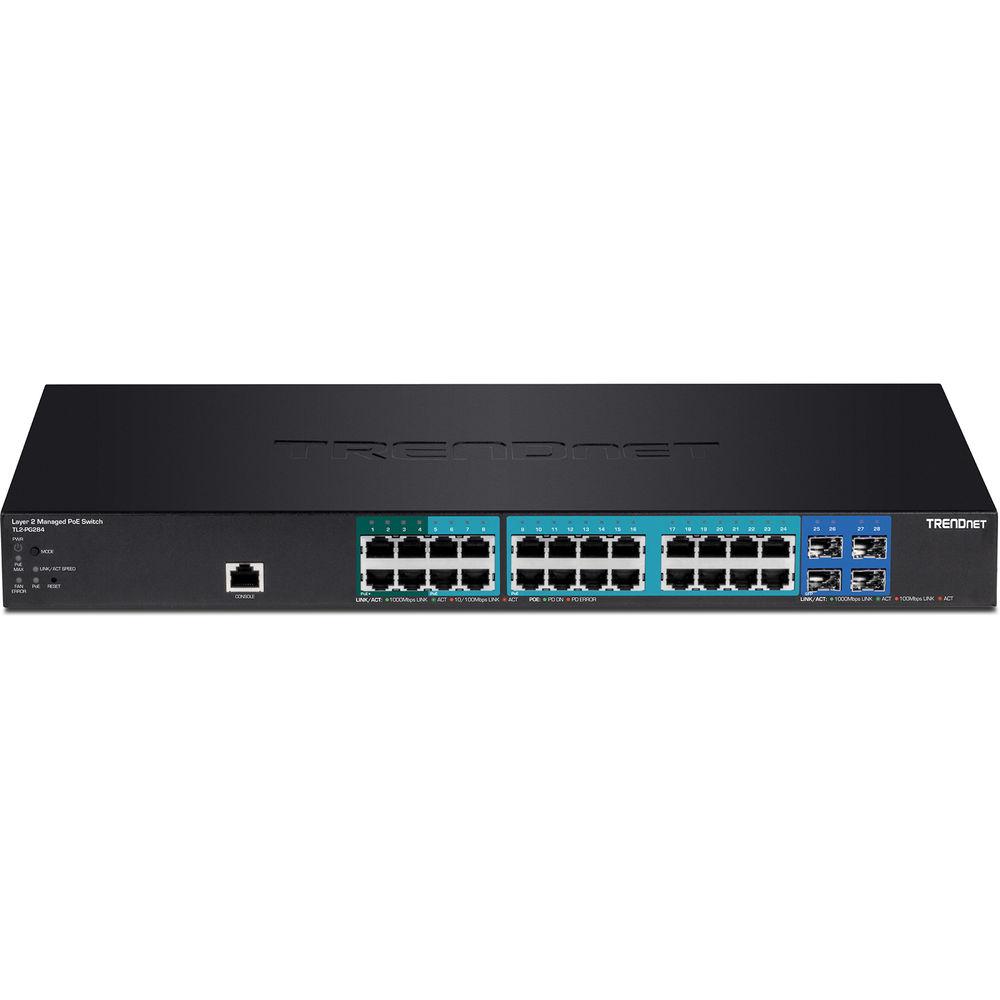

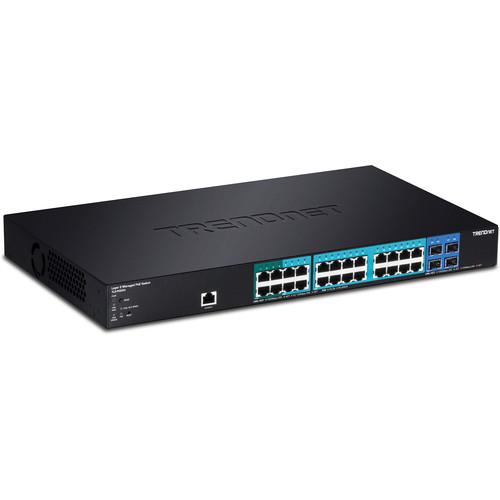

User Manual for TRENDnet TL2-PG284 28-Port Gigabit Poe Managed Layer 2 Switch with 4 SFP Slots Click to enlarge the picture
Contents of the user manual for the TRENDnet TL2-PG284 28-Port Gigabit Poe Managed
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TL2-PG284 28-Port Gigabit Poe Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description Manage the TL2-PG284 28-Port Gigabit Poe+ Managed Layer 2 Switch with 4 SFP Slots from TRENDnet using a command line interface to oversee the various operations carried out by this switch. The TL2-PG284 features SNMP, 802.1X, RSTP, and MSTP support giving network administrators the ability to manage a variety of protocols and network configurations. Additional features include port trunking, mirroring, IGMP, static and dynamic VLAN, and RMON to manage user access privileges as well as remote access through the switch. Additionally, bandwidth can be managed using built-in QoS functionality to ensure each networked device has the necessary bandwidth to operate effectively.
Installation of the rack mountable TL2-PG284 Switch is simple as it features 20 Gigabit PoE ports, 4 Gigabit PoE+ ports, 4 SFP slots, and 1 console port offering a wealth of connectivity options. Once configured, the switch supports a 56 Gb/s switching capacity, 1MB RAM buffer, 16K MAC address table, 10KB jumbo frame, and a forwarding rate of 41.7 Mp/s. Connected devices can draw power directly from this PoE compatible switch as it comes equipped with a 185 W PoE power budget supporting both 802.3at and 802.3af PoE network standards. - Hardware Design
- Provides 20 x Gigabit PoE ports, 4 x Gigabit PoE+ ports, 4 x SFP slots, a console port, and includes rack mount brackets
- Smart Fan
- Smart fan saves energy by varying fan speed and use based on cooling needs
- IPv6 Ready
- This switch supports IPv6 configuration and IPv6 neighbor discovery
- Traffic Management
- A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling
- Troubleshooting
- Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting
- Access Controls
- Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls
- Monitoring
- RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
In the Box TRENDnet TL2-PG284 28-Port Gigabit Poe+ Managed Layer 2 Switch with 4 SFP Slots CD-ROM (Utility & User's Guide) Power Cord RJ-45 to RS-232 Console Cable Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TL2-PG284 28-Port Gigabit Poe Managed Layer 2 Switch with 4 SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TL2-PG284 Specs | Standards | IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af (15.4 Watts / port)
IEEE 802.3at (30 Watts / port)
IEEE 802.3az | | Device Interface | 4 x Gigabit PoE+ ports
20 x Gigabit PoE ports
4 x Gigabit SFP slots
1 x Console Port
LED Indicators (LED display mode button: toggles Link / Activity or PoE)
Reset Button | | Data Transfer Rate | Ethernet: 10 Mb/s (half duplex), 20 Mb/s (full duplex)
Fast Ethernet: 100 Mb/s (half duplex), 200 Mb/s (full duplex)
Gigabit Ethernet: 2000 Mb/s (full duplex) | | Performance | Switch fabric: 56 Gb/s
RAM buffer: 1 MB
MAC Address Table: 16 K entries
Jumbo Frames: 10 KB
HOL Blocking Prevention
Forwarding rate: 41.7 Mp/s (64-byte packet size) | | Management | CLI (Console / Telnet / SSHv2)
HTTP / HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable / disable 802.3az Power Saving
LLDP
Virtual Cable Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration | | MIB | MIB II RFC 1213
Bridge MIB RFC 1493
Bridge MIB Extension RFC 2674
SNMPv2 MIB RFC 1907
Ethernet Interface MIB RFC 1643
Ethernet -like MIB RFC 2863
Interface Group MIB RFC 2233
MIB Traps Convention RFC 1215
RMON MIB RFC 1757, RFC 2819
802.1p MIB RFC 2674
RADIUS Client Authentication MIB RFC 2618
LLDP-MIB IEEE 802.1ab
Ping MIB RFC 2925, RFC 4560 | | Spanning Tree | IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol) | | Link Aggregation | Static Link Aggregation
802.3ad Dynamic LACP | | Quality of Service (QoS) | 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) | | VLAN | Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs) | | Multicast | IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries
MLD Snooping v1, v2 | | Port Mirroring | RX, TX, or Both
One to one
Many to one | | Access Control | 802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS) | | ACL IPv4 L2-L4 and IPv6 | MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP / UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only) | | Management Utility | Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003 / 2008 Server | | Special Features | PoE+ ports | | Power | Input: 100 - 240 V AC, 50/60 Hz, internal power supply
Consumption: 240.2 W (max.) | | PoE | PoE budget: 185 W
802.3at: Up to 30 W per port (ports 1-4)
802.3af: Up to 15.4 W per port (ports 5-24)
Mode A: Pins 1,2 for power(+) and pins 3,6 for power(-)
PD auto classification
Over current / short circuit protection | | Acoustics | Quantity: 3
Noise Level: 54 dB(A) (max.) | | MTBF | 257,362 hours | | Temperature & Humidity | Operating Temperature: 32 to 113°F / 0 to 45°C
Operating Humidity: Max. 90% non-condensing | | Certifications | CE, FCC, UL | | Dimensions | 17.30 x 9.84 x 1.75" / 440.00 x 250.00 x 44.45 mm | | Weight | 8.40 lb / 3.81 kg |
