User Manual for TRENDnet TPE-1020WS v1.0R 10-Port Gigabit Web Smart PoE Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-1020WS v1.0R 10-Port Gigabit Web
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-1020WS v1.0R 10-Port Gigabit Web contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

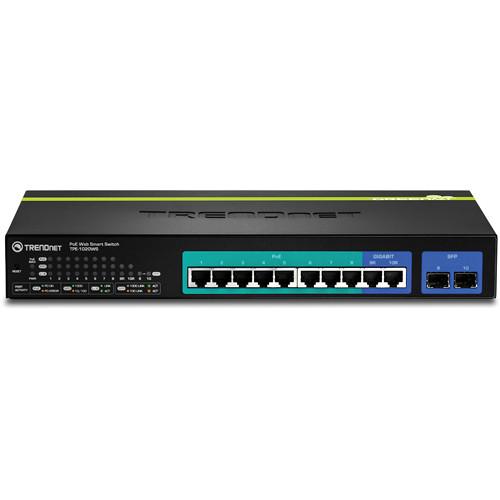

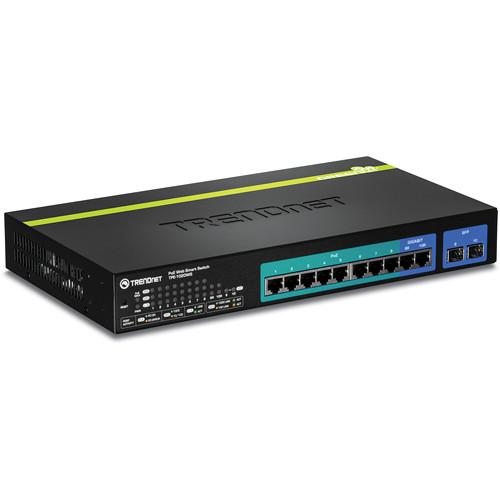

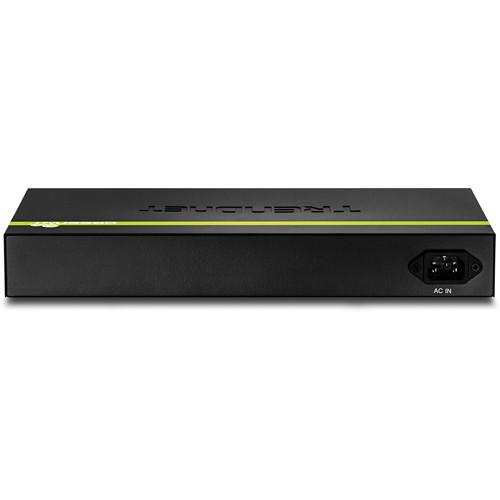

Product description The TPE-1020WS v1.0R 10-Port Gigabit Web Smart PoE+ Switch from Trendnet delivers a 20Gb/s switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy-saving with GREENnet technology, and monitoring features at a reduced cost. This device has a broad range of network configurations supported by 802.3ad link aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and Quality of Service (QoS) queue scheduling. Real-time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting. - Hardware Design
- The fanless rackmountable housing features eight Gigabit PoE+ ports (automatically supplies PoE+ (30W) and PoE (15W)) and two Gigabit Ethernet uplink ports shared with two SFP slots
- IPv6 Ready
- This switch supports IPv6 configuration and neighbor IPv6 network support
- Traffic Management
- A broad range of network configurations are supported by 802.3ad link aggregation, asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and Quality of Service (QoS) queue scheduling
- Troubleshooting
- Real-time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting
- Security
- Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered security controls
- Monitoring
- RMON, SNMP, SNMP trap, and port-mirroring support administrator monitoring solutions
- Energy Savings
- The GREENnet technology helps to save energy up to 70%
UPC: 710931160079 In the Box TRENDnet TPE-1020WS v1.0R 10-Port Gigabit Web Smart PoE+ Switch CD-ROM (Utility and User's Guide) 6' (1.8m) Power Cord Rackmount Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-1020WS v1.0R 10-Port Gigabit Web Smart PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-1020WS Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping
Link Aggregation
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 16K | | Multicast Groups | 256 | | VLAN Groups | 256 | | VLAN IDs | 4094 | | | | Security Features | DHCP Snooping
DoS Attack Prevention
RADIUS Authentication | | | | RFC | RFC 1213
RFC 1493
RFC 2674
RFC 1907
RFC 1643
RFC 2863
RFC 2233
RFC 1215
RFC 1757
RFC 2819
RFC 2674
RFC 2618
RFC 2925
RFC 4560 | | Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 14.8 Mpps | | Switching Bandwidth | 20 Gb/s | | Packet Buffer | 8 Mb | | | | OS Compatibility | Windows XP or Later | | | | Power Draw | 92.3 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 75 W | | | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Operating Humidity | 90% | | | | Cooling System | Passive | | Dimensions | 13 x 7.2 x 1.7" / 33 x 18.2 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 6.35 lb | | Box Dimensions (LxWxH) | 15.6 x 11.1 x 3.3" |
