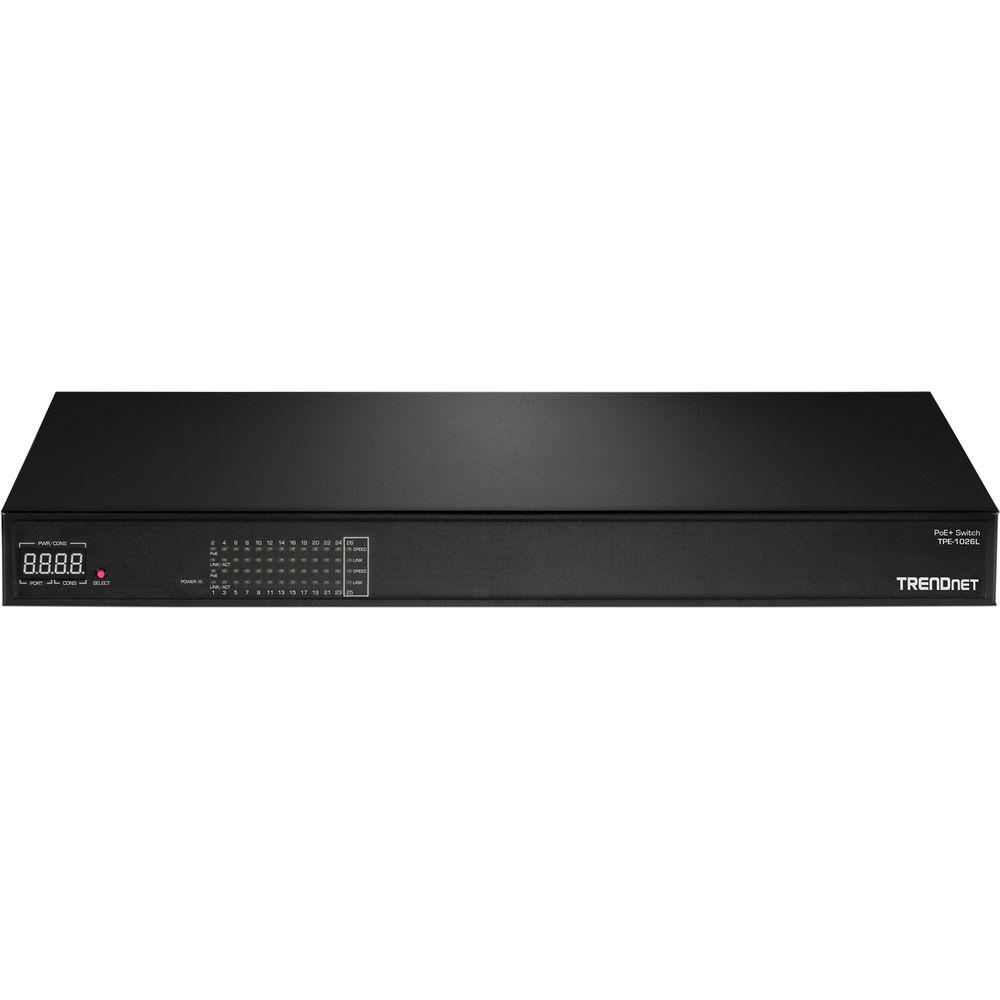

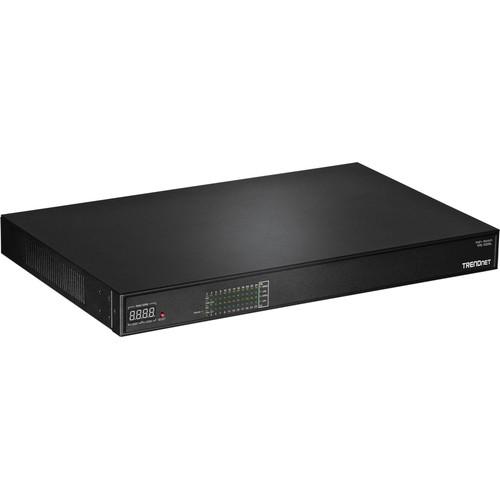

User Manual for TRENDnet TPE-1026L 24-Port 10 100 Mbps 400 Watt AV PoE Switch with 2 SFP Slots Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-1026L 24-Port 10 100 Mbps
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-1026L 24-Port 10 100 Mbps contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

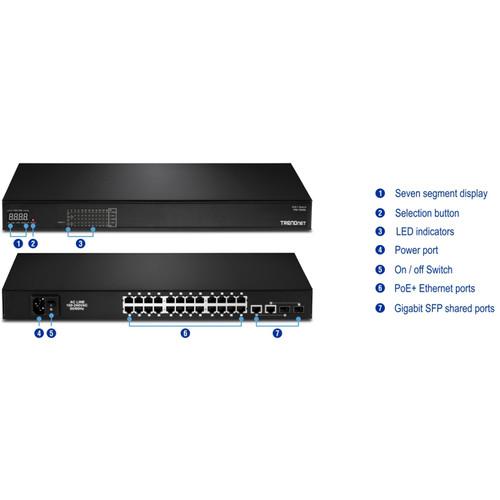

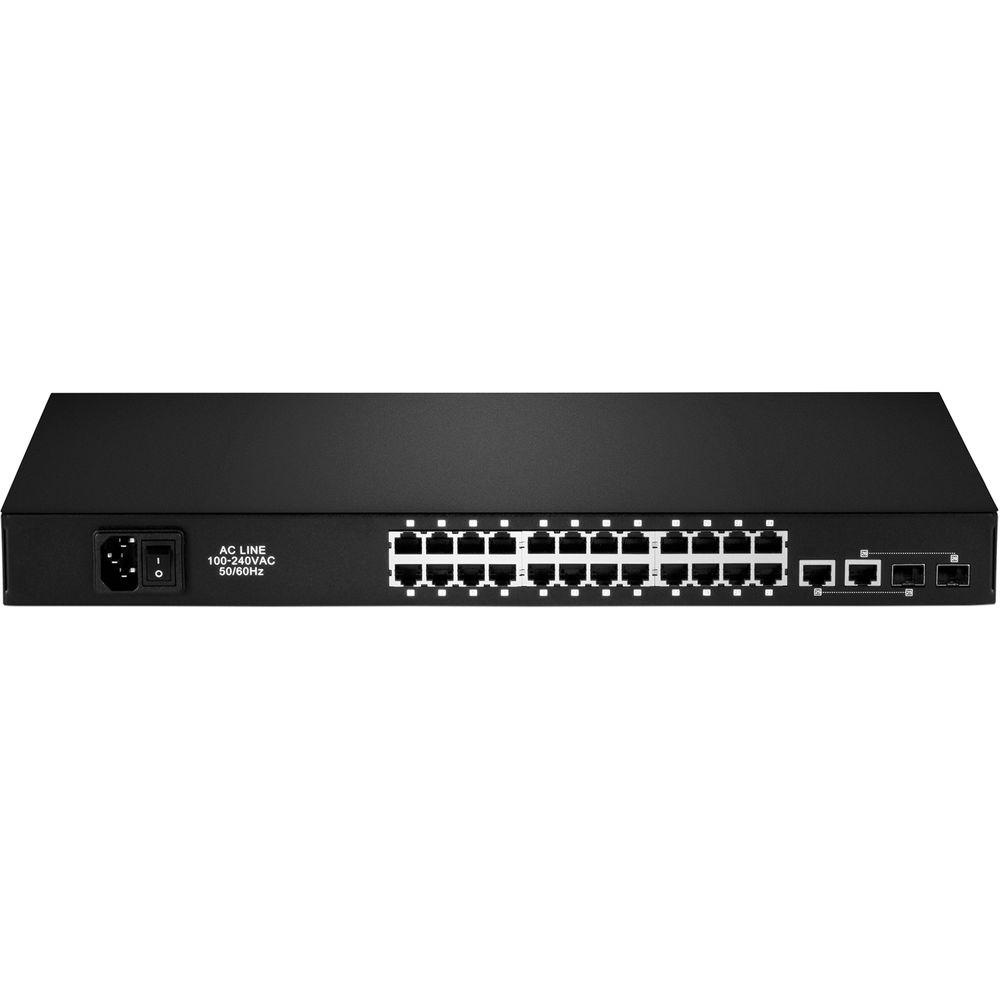

Product description With a total power budget of 400 Watts, the TPE-1026L 24-Port 10/100 Mbps 400 Watt AV PoE+ Switch from TRENDnet is designed to support a variety of PoE compatible devices such as IP cameras, VoIP equipment, and more. The TPE-1026L comes equipped with 24 Fast Ethernet ports along with a switching capacity of 8.8 Gbps ensuring each port has sufficient bandwidth to handle a variety of applications. In addition to the built-in Ethernet ports, this switch features 2 SPF shared ports designed to support enhanced fiber connectivity for tasks such as interconnecting multiple switches. Installation of this PoE+ switch has also been simplified thanks to the included rack mount brackets. Once installed, the front-panel 4-digit seven-segment LED display depicts the status of each port. - Rear panel Ethernet ports and front panel LEDs easily integrate with your existing audio & video (AV) rack solution
- View total power, available power, and power-per-port
- Up to 400 Watt power budget
- Standard 19" 1U design (brackets included)
In the Box TRENDnet TPE-1026L 24-Port 10/100 Mbps 400 Watt AV PoE+ Switch with 2 SFP Slots Rack Mount Kit Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-1026L 24-Port 10 100 Mbps 400 Watt AV PoE Switch with 2 SFP Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-1026L Specs | | | Ports | 22 x 10/100 Mb/s Ethernet (RJ45)
2 x 10/100 Mb/s Combo (Ethernet/SFP) | | | | MAC Address Table Size | 4K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 6.5 Mpps | | Switching Bandwidth | 8.8 Gb/s | | Packet Buffer | 400 Kb | | | | Power Draw | 7.0 W (Active) | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 400 W | | PoE per Port | 30 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | | | Dimensions | 17.3 x 11 x 1.7" / 44 x 28 x 4.4 cm | | Weight | 8 lb / 4 kg |
