User Manual for TRENDnet TPE-115GI Gigabit PoE Injector Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-115GI Gigabit PoE Injector
- Product category: Power over Ethernet (PoE) TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Power over Ethernet (PoE)
 |
User manual for the TRENDnet TPE-115GI Gigabit PoE Injector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

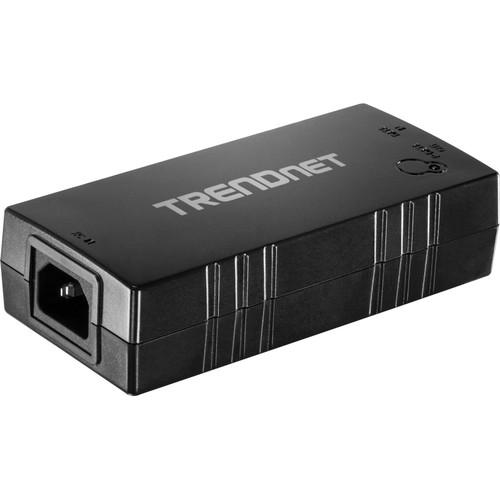

Product description Power a variety of PoE-compatible devices with the TPE-115GI Gigabit PoE+ Injector from TRENDnet. This PoE+ injector supports both the 802.3at and 802.3af PoE network standards transmitting up to 30 watts of power to distances up to 328'. -
- IEEE 802.3at PoE+ compliant (30 watts)
- Backward compatible with IEEE 802.3af PoE (15 watt) devices
- Automatically supplies 15 (PoE) or 30 (PoE+) watts of power to a device
- Integrated power supply
- Network devices to distances of up to 328'

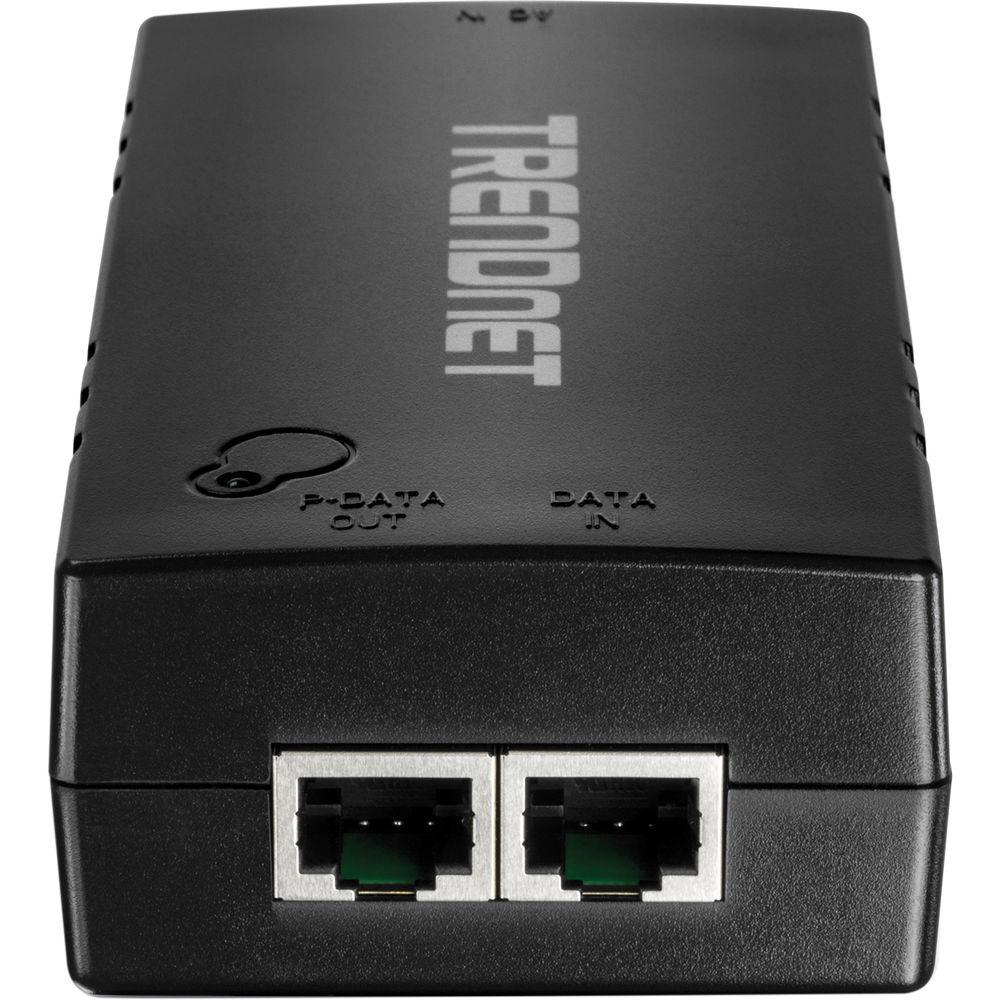

- 1 x 10/100/1000 Mbps Auto-MDIX data in port
- 1 x 10/100/1000 Mbps PoE+ Auto-MDIX data out port

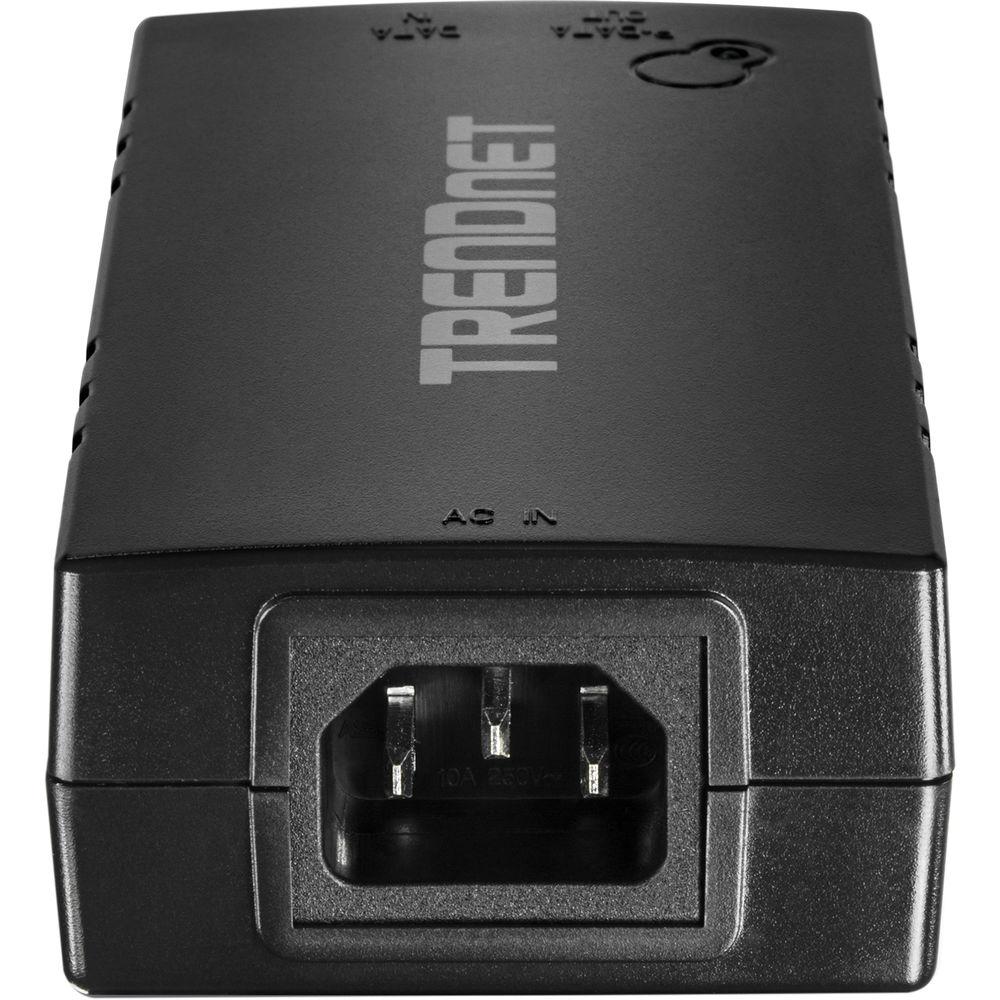

- Power port with LED indicator
- Install a PoE+ or POE device where a power outlet is not available
- Reduce installation and network equipment costs
- Safeguards network devices with short circuit protection
UPC: 710931160024 In the Box TRENDnet TPE-115GI Gigabit PoE+ Injector Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-115GI Gigabit PoE Injector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-115GI Specs | Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus (PoE+) | | Network Media | 10 Mbps: UTP/STP Cat 5 and 5e up to 328' / 100 meters
100 Mbps: UTP/STP Cat 5 and 5e up to 328' / 100 meters
Gigabit: UTP/STP Cat 5e and 6 up to 328' / 100 meters | | Ports | 1 x 10/100/1000 Mbps data in
1 x 10/100/1000 Mbps power and out | | PoE | PoE Delivery
Pair 1: Pin 1, 2
Pair 2: Pin 3, 6 | | Power Input | 100-240 V, 50/60 Hz, 0.65 A max. | | Power Consumption | Max. 30 W | | Operating Temperature | 14 to 113°F / -10 to 45°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity (Non-Condensing) | Max. 95% | | Certification | CE, FCC | | Dimensions | 5.2 x 2.5 x 1.4" / 133 x 63 x 35 mm | | Weight | 5.7 oz / 162 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.8 x 5.6 x 2.6" |
