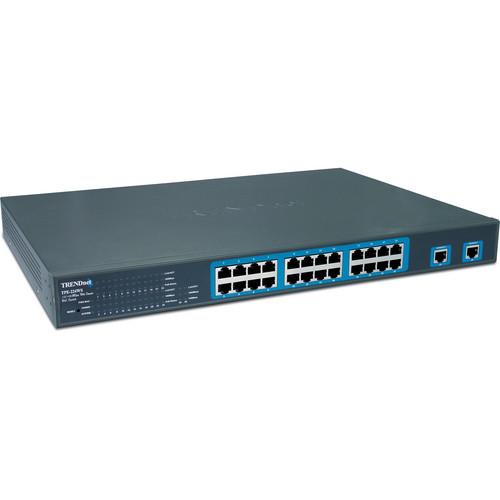

Product description With 24 Fast Ethernet ports and 4 Gigabit ports (2 of which are Mini-GBIC slots), the TPE-224WS 24-Port 10/100Mb/s Web Smart PoE Switch with Gigabit Ports & Mini-GBIC Slots from TRENDnet is capable of handling a large amount of network traffic. In addition to enhanced network connectivity, this TRENDnet switch supports 802.3af PoE technology to deliver power over Ethernet cabling to devices such as VoIP phones, IP cameras, access points, and much more. Once installed, administrators can take advantage of a 12.8 Gbps switching capacity, an 8K MAC address table, 9.5 Mpps forwarding rate, and 128 KBytes of RAM to ensure network traffic flows smoothly. Additionally, this switch comes equipped with a variety of diagnostic LED indicators to depict the status of the unit, ports, and PoE status. - 24x 10/100 Mb/s Auto-MDIX Fast Ethernet PoE RJ-45 ports
- 4x 10/100/1000 Mb/s Auto-MDIX Gigabit ports
- 2x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports)
- 12.8 Gb/s switching capacity
- IEEE 802.3af Power over Ethernet (PoE) compliant
- PoE power of up to 15.4 watts for each PoE port
- Maximum PoE power of up to 170 watts for all PoE ports
- IEEE 802.3x Full Duplex Flow Control and Back Pressure
- IEEE 802.1D Spanning Tree Protocol IEEE 802.1p QoS
- IEEE 802.1X Authentication and SNMP v1 support
- Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
- Supports Auto-recognition of PoE Powered Device (PD) signature
- Full Wire-Speed Non-Blocking reception and transmission
- Store and Forward switching method
- Integrated address look-up engine with an 8K absolute MAC address table
- Supports 128KBytes RAM for data buffering
- Easy configuration via Web browser
- Front panel diagnostic LEDs
- Standard 1U (19") rack mount size (rack mount kit included)
UPC: 710931505047 In the Box TRENDnet TPE-224WS 24-Port 10/100Mb/s Web Smart PoE Switch with Gigabit Ports & Mini-GBIC Slots Power Cord Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-224WS 24-Port 10 100Mb s Web Smart PoE Switch with Gigabit Ports & Mini-GBIC Slots in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-224WS Specs | | | Ports | 24 x 10/100 Mb/s Ethernet (RJ45) PoE (Type 1)
2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) | | | | Supported Protocols | Auto-MDIX/MDI | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1d, 802.1p, 802.1q, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3u, 802.3x, 802.3z | | | | Switching Bandwidth | 12.8 Gb/s | | Packet Buffer | 128 Kb | | | | Power Draw | 196.5 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 170 W | | Power Supply Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Storage Humidity | 5 to 90% | | | | Dimensions | 17.3 x 12 x 1.7" / 44 x 30.5 x 4.4 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 22.0 x 12.2 x 3.9" |
