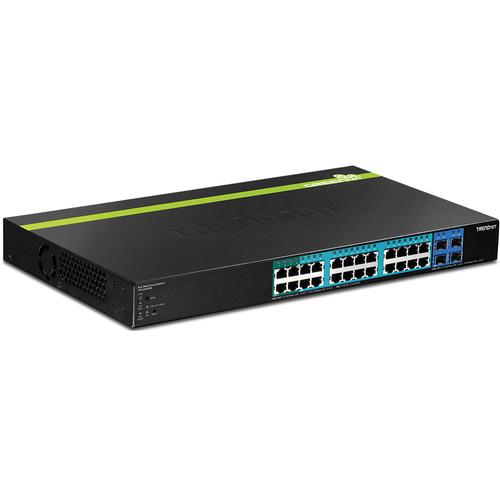

User Manual for TRENDnet TPE-2840WS 28-Port Gigabit Web Smart PoE Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-2840WS 28-Port Gigabit Web Smart
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-2840WS 28-Port Gigabit Web Smart contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

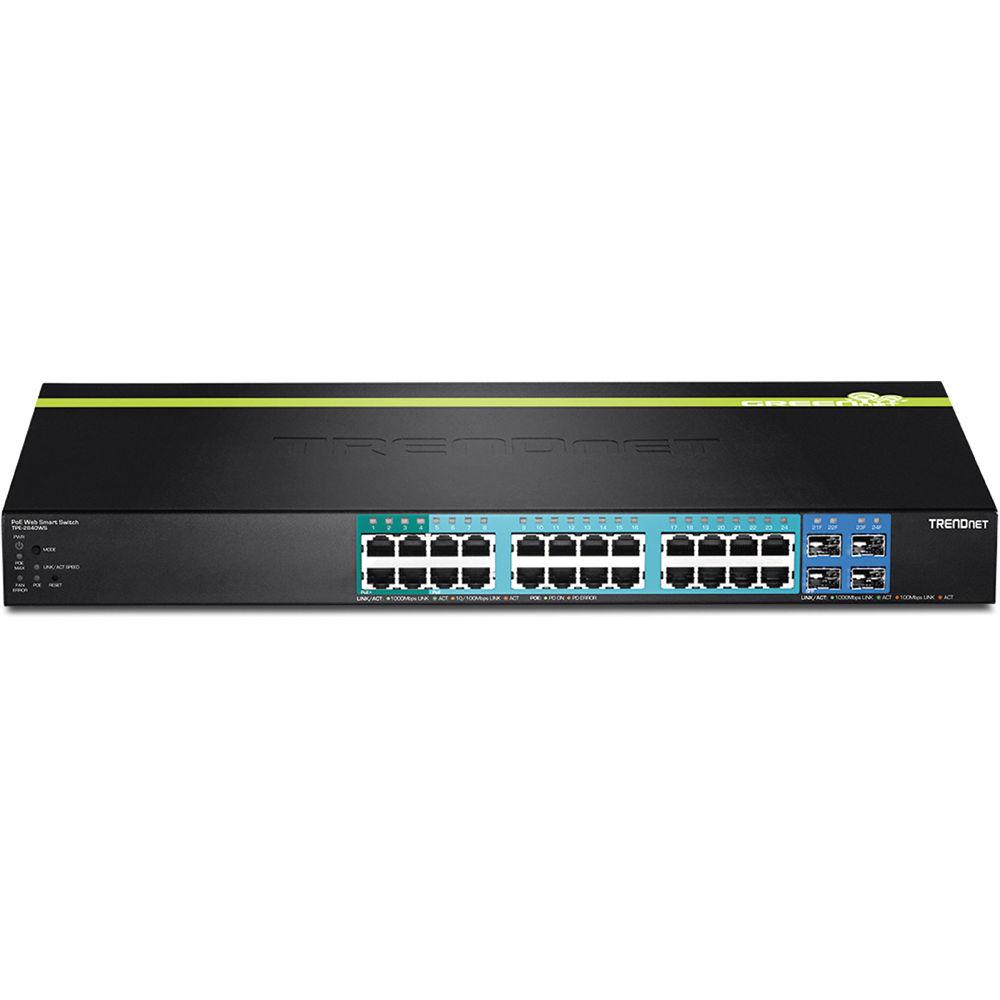

Product description The TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch from TRENDnet offers 4 x Gigabit PoE+ ports (Ports 1-4 802.3at), 20 x Gigabit PoE ports (Ports 5-24 802.3af), 4 x SFP slots, and a PoE Power budget of 185 Watts. This IPv6 ready switch offers advanced traffic management, troubleshooting, access control, energy saving GREENnet, and monitoring features at a reduced cost. - Hardware Design
- Provides 4 x Gigabit PoE+ ports (Ports 1-4 802.3at), 20 x Gigabit PoE ports (Ports 5-24 802.3af), 4 x SFP slots, a PoE Power budget of 185 Watts, and includes rackmount brackets.
- Smart Fan
- Smart fan saves energy by varying fan speed and use based on cooling needs.
- IPv6 Ready
- This switch supports IPv6 configuration and IPv6 neighbor discovery.
- Traffic Management
- A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, Private VLAN, Bandwidth Controls, GVRP, IGMP v1-v3, 802.1p Class of Service (CoS), Spanning Tree (STP, RSTP, and MSTP), and QoS queue scheduling.
- Troubleshooting
- Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aid in rapid troubleshooting.
- Access Control
- Features such as ACL, SSL, MAC/port filtering, Denial of Service controls, 802.1X, TACACS+, and RADIUS are compatible with layered network access controls.
- Monitoring
- RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions.
UPC: 710931160208 In the Box TRENDnet TPE-2840WS 28-Port Gigabit Web Smart PoE+ Switch CD-ROM (Utility & User's Guide) Power Cord (6 ft / 1.8 m) Rack Mount Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-2840WS 28-Port Gigabit Web Smart PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-2840WS Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
20 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE (Type 1)
4 x SFP | | | | Supported Protocols | Head-of-Line (HOL) Blocking
IGMP Snooping
Link Aggregation
Port Mirroring | | Queuing | Strict Priority, Weighted Round Robin (WRR) | | MAC Address Table Size | 16K | | Multicast Groups | 256 | | VLAN Groups | 256 | | VLAN IDs | 4094 | | | | Security Features | DHCP Snooping
DoS Attack Prevention
RADIUS Authentication | | | | RFC | RFC 1213
RFC 1493
RFC 2674
RFC 1907
RFC 1643
RFC 2863
RFC 2233
RFC 1215
RFC 1757
RFC 2819
RFC 2674
RFC 2618
RFC 2925
RFC 4560 | | Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z | | | | Forwarding Rate | 41.7 Mpps | | Switching Bandwidth | 56 Gb/s | | Packet Buffer | 1 MB | | | | OS Compatibility | Windows XP or Later | | | | Power Draw | 240.2 W (Active) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 185 W | | | | Operating Temperature | 23 to 122°F / -5 to 50°C | | Operating Humidity | 90% | | Noise Level | 54.0 dB | | | | Mean Time Between Failures (MTBF) | 257,362 Hours | | Dimensions | 17.3 x 9.8 x 1.7" / 44 x 25 x 4.4 cm | | Weight | 8 lb / 4 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 4.0" |
