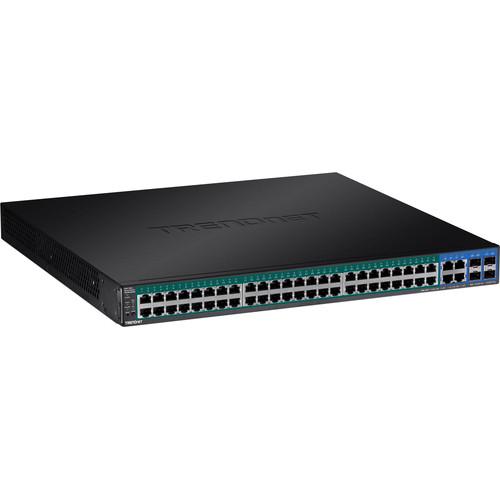

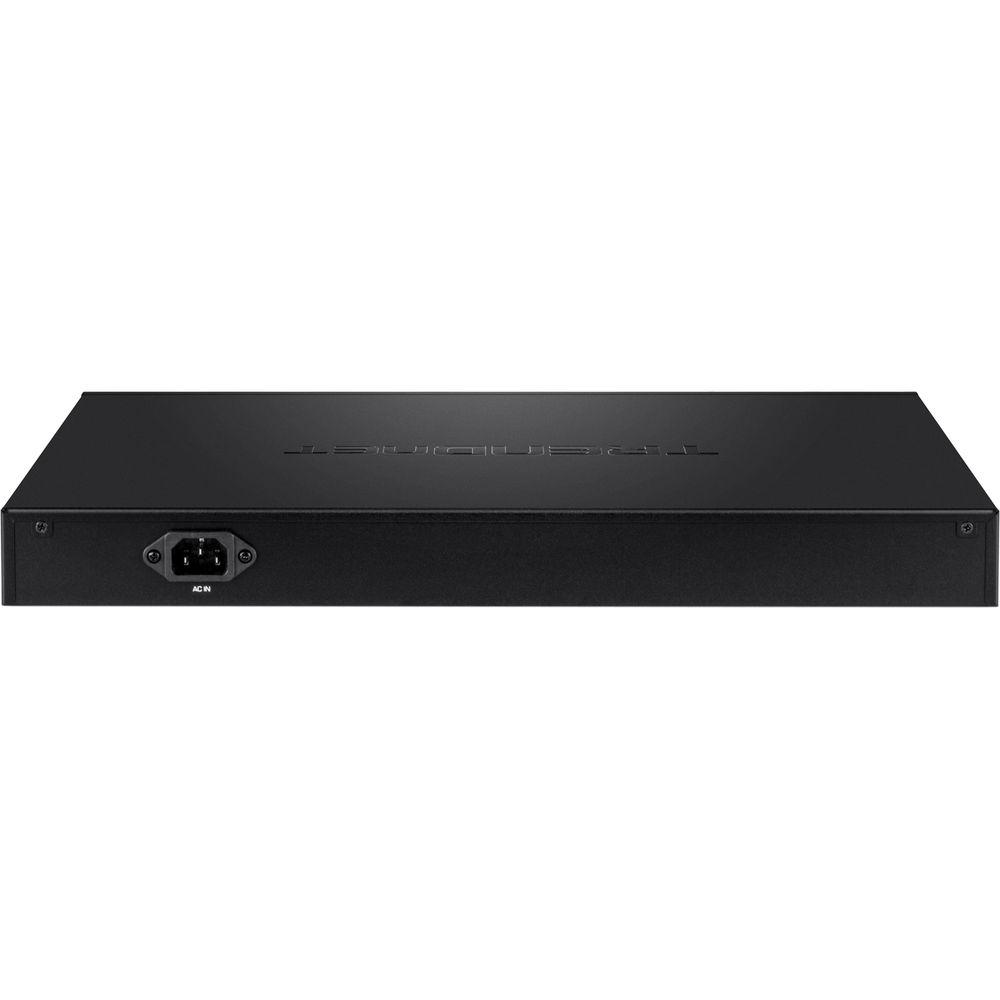

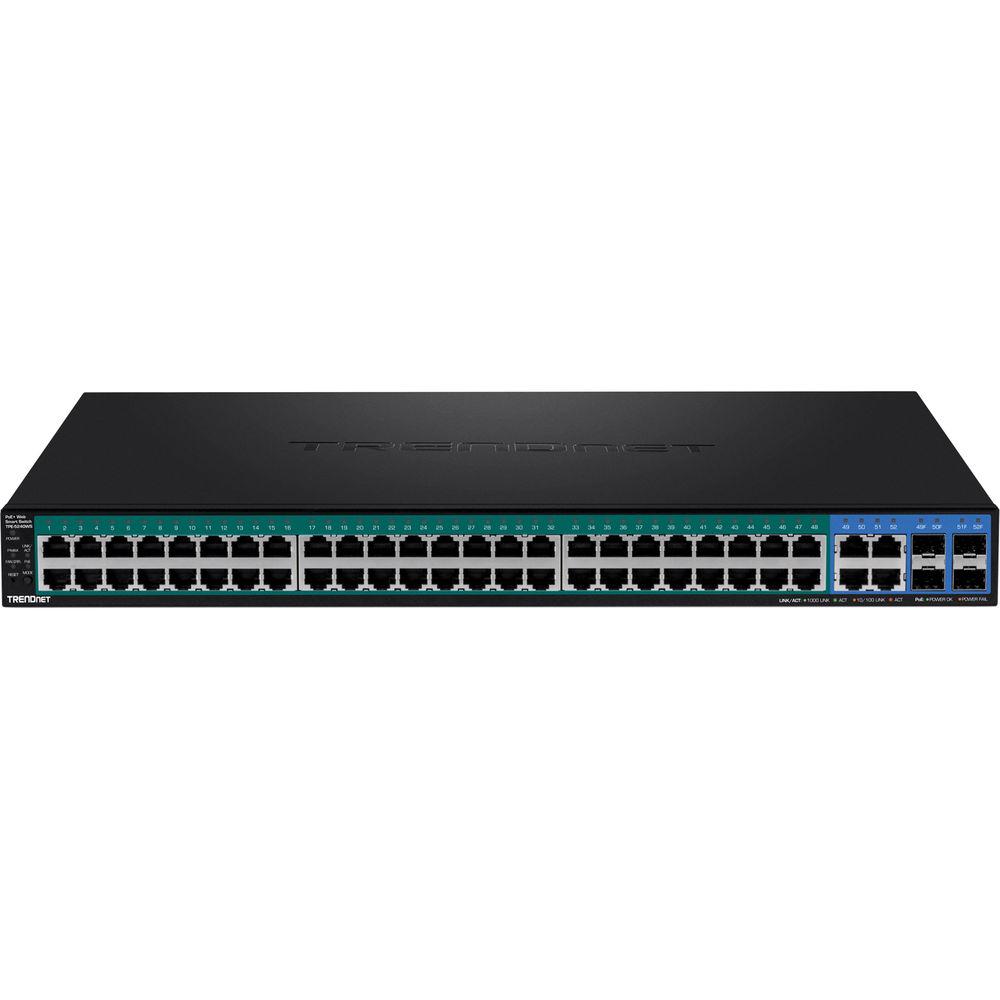

User Manual for TRENDnet TPE-5240WS 52 Port Gigabit Managed Web Smart PoE Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-5240WS 52 Port Gigabit Managed
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-5240WS 52 Port Gigabit Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description Manage multiple VLANs with the TPE-5240WS 52 Port Gigabit Managed Web Smart PoE+ Switch from TRENDnet, as it supports up to 256 VLAN groups, private VLANs, and voice VLANs.
This TRENDnet Web Smart Switch comes equipped with a total of 52 network ports, 48 of which are standard Gigabit Ethernet PoE+ ports and 4 that are shared RJ45/SFP Gigabit network ports. In addition to the number of network ports, this switch supports a 104 Gbps switching capacity, a 1.5 MB RAM buffer, a 16K MAC address table, and a 77.4 Mpps forwarding rate for optimal network performance. Once configured, network administrators can easily manage connected devices and other network resources including the ability to control bandwidth on a per port basis, configure both private and voice VLANs, and more all through the web-based management interface. - Web Smart Management
- Provides an easy-to-use web-based interface for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment
- Integration Flexibility
- Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration
- PoE Power
- Supplies up to 30W of PoE+ power per port with a total power budget of 370W
- Hardware Design
- Provides 48 gigabit (RJ-45) ports, 4 shared gigabit ports (RJ-45 or SFP), a 104 Gbps switching capacity, a built-in power supply, and rackmount brackets
- IPv6 Ready
- This switch supports IPv6 configuration and IPv6 neighbor discovery
- Traffic Management
- A broad range of network configurations are supported by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, RSTP, MSTP, Loopback Detection, GVRP, 802.1p Class of Service (CoS), port bandwidth management, and QoS queue scheduling
- Troubleshooting
- A convenient cable diagnostic test and traffic statistics aid in network troubleshooting
- Access Control
- Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls
- Monitoring
- RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions
- Power Saving
- Enhanced power saving capabilities with support for the 802.3az network standard
UPC: 710931161144 In the Box TRENDnet TPE-5240WS 52 Port Gigabit Managed Web Smart PoE+ Switch Power Cord Rackmount Kit Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-5240WS 52 Port Gigabit Managed Web Smart PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-5240WS Specs | Standards | IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at | | Device Interface | 48 x Gigabit PoE+ ports
4 x Shared Gigabit ports (RJ-45/SFP)
LED indicators | | Data Transfer Rate | Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet
2000 Mbps (full duplex) | | Performance | Switch Fabric
104 Gbps
RAM Buffer
1.5 MB
MAC Address Table
16 K entries
Jumbo Frames
10 KB
HOL Blocking Prevention
Forwarding Rate
77.4 Mpps (64-byte packet size) | | Management | HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration | | MIB | IP FORWARD TABLE MIB RFC 1354
RMON MIB RFC 1271
IPV4 MIB RFC 1213
IPV6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1AB
IGMP SNOOPING MIB RFC 2933
MLD SNOOPING MIB RFC 3019
PRIVATE VLAN MIB IEEE 802.1Q
DHCPSNOOP MIB RFC 2026
QOS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
BANDWIDTH CTRL MIB
LBD MIB
MIRROR MIB
IPV6 NEIGHBOR MIB
SNTP MIB
STORM CTRL MIB
STATISTICS MIB
Tool MIB
VOICE VLAN MIB
DOS MIB | | Spanning Tree | IEEE 802.1D STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol) | | Link Aggregation | Static Link Aggregation
802.3ad Dynamic LACP | | Quality of Service (QoS) | 802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) | | VLAN | Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs) | | Multicast | IGMP Snooping v1, v2, v3 (per VLAN)
Static Multicast Address
Up to 256 multicast entries | | Port Mirroring | RX, TX, or Both
One to one | | Encryption | 802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS) | | ACL IPv4 L2-L4 and IPv6 | MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only) | | Compatibility | Optional Software Utility: Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server | | Power | Input
100 - 240V AC, 50/60 Hz, internal power supply
Consumption
479 W (max.)
Power Budget
370 W | | Fans | 3 | | Acoustics | 52.4 dBA (max.) | | MTBF | 239,897 hours | | Temperature & Humidity | Operating Temperature
23 to 122°F (-5 to 50°C)
Operating Humidity
Max. 95% non-condensing | | Certifications | CE, FCC | | Dimensions | 17.30 x 17.00 x 1.74" (440 x 210 x 44 mm) | | Weight | 13.5 lb (6.12 kg) | | | | Package Weight | 17.8 lb | | Box Dimensions (LxWxH) | 21.2 x 20.5 x 4.1" |
