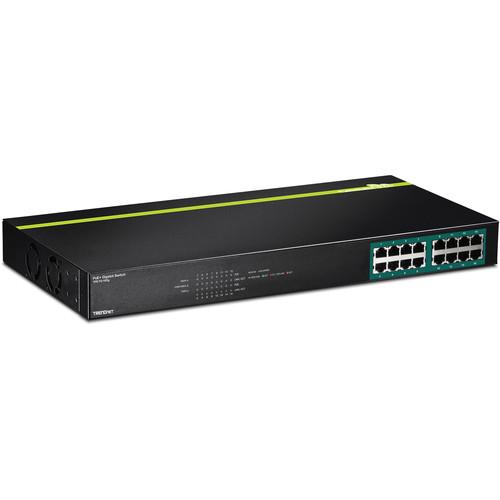

User Manual for TRENDnet TPE-TG160G 16 Port Gigabit PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-TG160G 16 Port Gigabit PoE
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-TG160G 16 Port Gigabit PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description With a 246-watt PoE power budget, the TPE-TG160G 16 Port Gigabit PoE+ Managed Switch from TRENDnet is designed to supply your power-hungry PoE devices with the juice they need to operate effectively and efficiently. Each of the sixteen ports found on this switch support both the 802.3at and 802.3af PoE network standards and feature dedicated network status LED indicators. Once installed, this switch features a 32 Gb/s switching capacity, a 23.8 Mpps forwarding rate, a 512 KB data RAM buffer, and a 10 KB Jumbo Frame all designed to ensure this switch operates smoothly even under the most demanding network conditions. Furthermore, this TRENDnet switch supports GREENnet energy-saving technology and a rack-mountable design for easy integration into existing network configurations. -
- Supplies up to 30 watts of power per port with a 246 watt PoE budget
- Sixteen Gigabit PoE+ ports
- 32 Gb/s switching capacity
- Sends Jumbo Frames (up to 10 KB) for increased performance
- Embedded GREENnet technology reduces power consumption
- Rack mountable metal enclosure with included mounting kit
- LED indicators convey port status
UPC: 710931160277 In the Box TRENDnet TPE-TG160G 16 Port Gigabit PoE+ Managed Switch Rackmount Kit Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-TG160G 16 Port Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-TG160G Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ | | | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Forwarding Rate | 23.8 Mpps | | Switching Bandwidth | 32 Gb/s | | | | RAM Buffer | 512 KB per Device | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | Certifications | CE, FCC, as per Manufacturer | | | | Dimensions | 17.3 x 8.3 x 1.7" / 43.94 x 21.08 x 4.32 cm | | Weight | 6.8 lb / 3.1 kg | | | | Package Weight | 8.6 lb | | Box Dimensions (LxWxH) | 22.0 x 12.0 x 3.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
