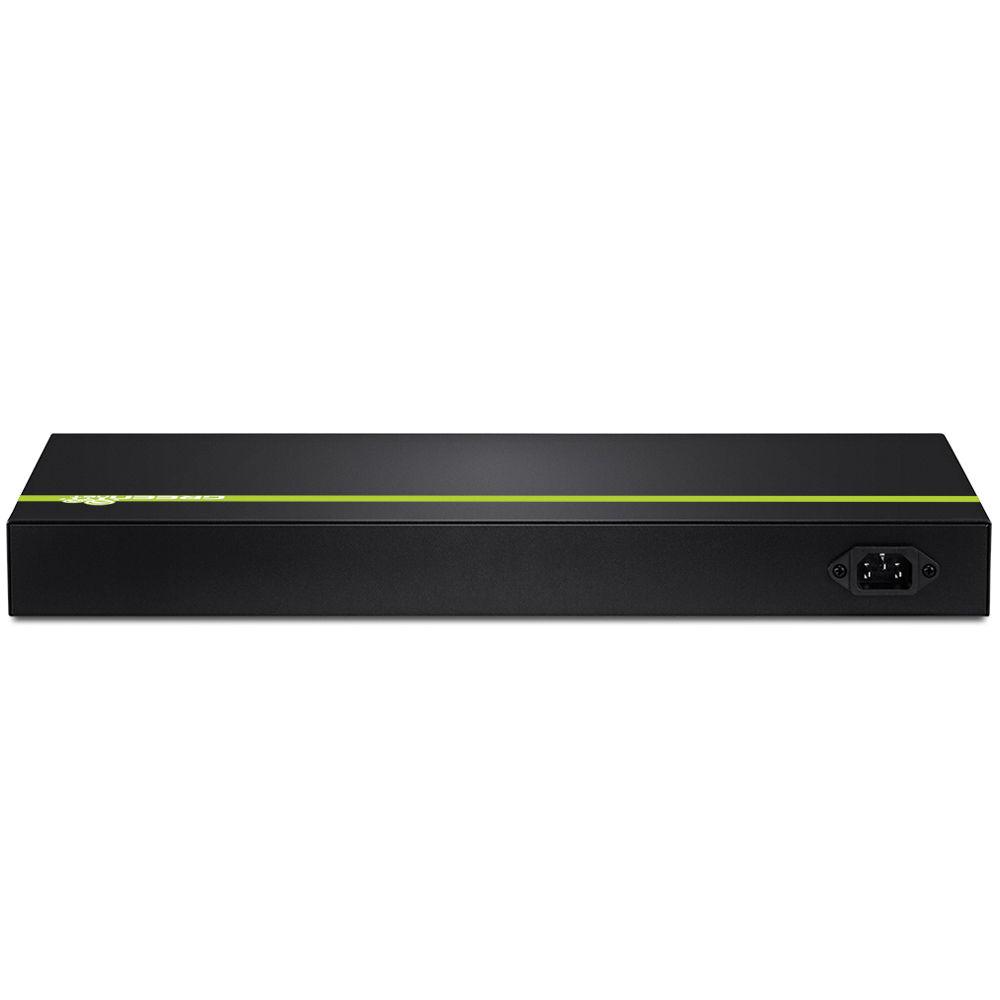

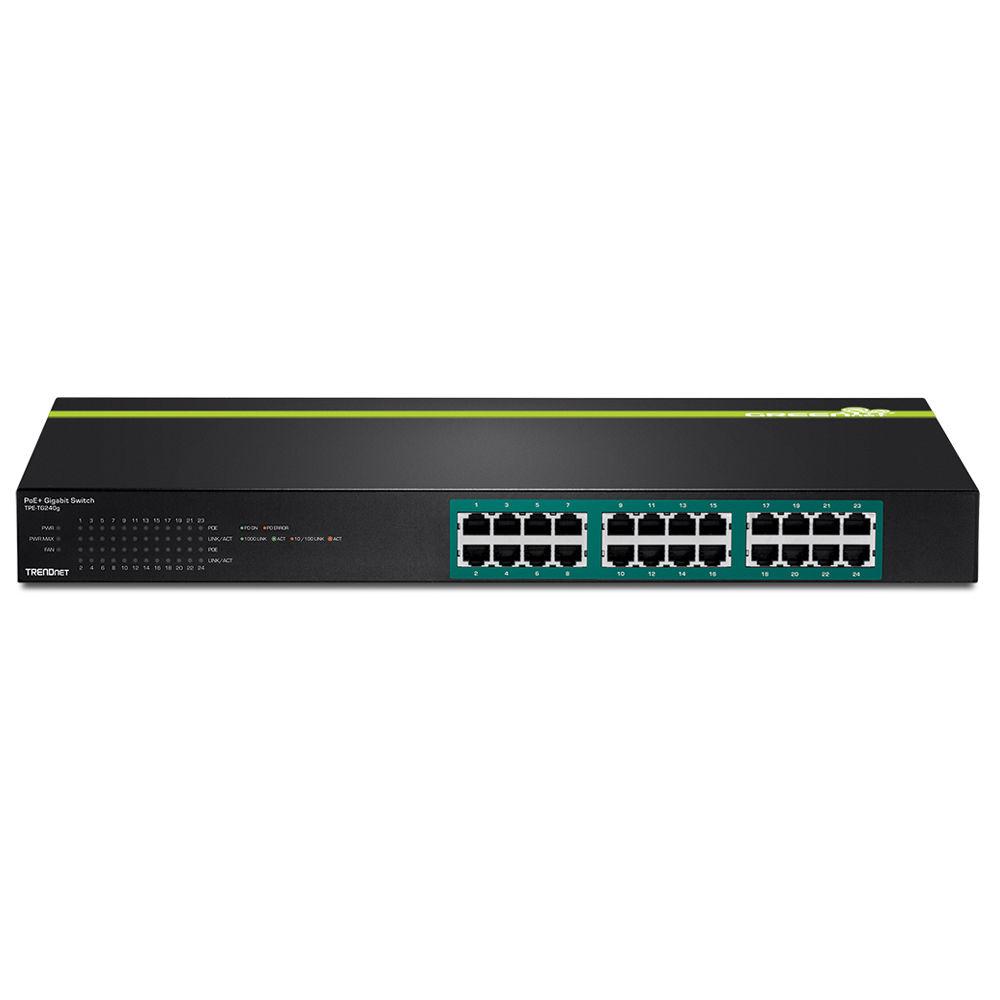

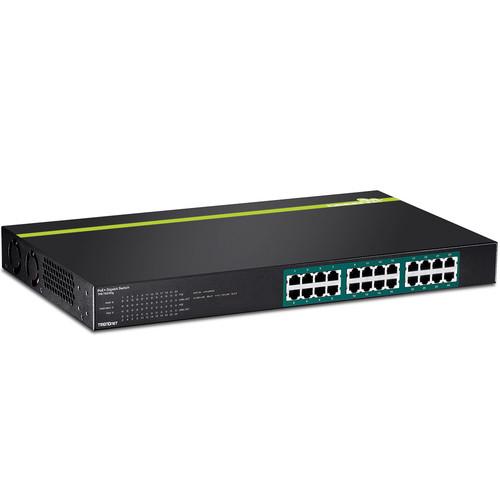

User Manual for TRENDnet TPE-TG240G 24-Port Gigabit PoE Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-TG240G 24-Port Gigabit PoE Switch
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-TG240G 24-Port Gigabit PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The TPE-TG240G 24-Port Gigabit PoE+ Switch from TRENDnet offers users 24 x Gigabit PoE/PoE+ ports, a 48 Gbps switching capacity, and a PoE power budget of 370W. It supports IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af, 802.3at, and 802.3az standards and Ethernet data transfer rates of 10 Mbps (half duplex) and 20 Mbps (full duplex), Fast Ethernet data transfer rates of 100 Mbps (half duplex) and 200 Mbps (full duplex), and Gigabit data transfer rates up to 2,000 Mbps (full duplex). Jumbo Frame technology also allows users to send larger packets, or jumbo frames up to 10KB for increased performance.
The TPE-TG240G allows for an easy and convenient network configuration and users can take advantage of a variety of features that make this switch easy to setup and manage. Initially, the Plug and Play functionality gets you going with minimal setup needed. Once plugged in you can then take advantage of the Power over Ethernet capabilities of this switch. Power over Ethernet, or PoE, enables you to run power through the Ethernet cabling to compatible devices, such as wireless access points, Internet cameras, VoIP telephony systems, and more, eliminating the need for additional power sources. This switch recognizes non-PoE, PoE, and PoE+ devices and will automatically supply the required amount of power. PoE devices receive up to 15.4W, while PoE+ devices receive up to 30W.
The full duplex ports found on this switch help to enable consistent data transfer. Full duplex ports allow for simultaneous data transfer that not only increases data speeds, but also increases efficiency, as data no longer has to wait to be transferred. This TRENDnet switch also gives you more ports, thus allowing for increased connections. With an enhanced switching capacity, you will have the expanded ability to transfer more data faster.
With integrated LED indicators, you no longer need to delve into the configuration settings of the switch to display its various aspects. The on-off switch allows for increased power efficiency, making it simple to turn off the switch when not in use. If you have non-PoE devices connected to the switch, the switch automatically recognizes them, cutting the power to those devices to conserve power. The TPE-TG240G operates using 110 - 240 VAC at 50/60 Hz and 0.75A. It includes a power cord and a rack mount kit. - Power Over Ethernet
- Power over Ethernet, or PoE technology, describes a system to pass electrical power safely, along with data, over Ethernet cabling. The TrendNet PoE switch allows for Power Over Ethernet capability, which in turn helps to reduce equipment cost by delivering data and power over existing network cables. By providing power over Ethernet cabling you now have the ability to utilize various components such as IP security cameras, network routers, network webcams, wireless access points, remote point of sale kiosks and a variety of devices compatible with power over Ethernet.
- 10/100/1000 Mbps Full Duplex PoE Ports
- The 10/100Mbps full duplex PoE ports found on the TrendNet Switch work by making simultaneous use of two physical pairs of twisted cable inside the jacket, wherein one pair is used for receiving packets while the other is used for sending packets. This effectively makes the cable itself a collision-free environment and doubles the maximum data capacity that can be supported by the connection. Some of the benefits of utilizing a full duplex configuration include increased efficiency, availability of full data capacity in both directions, and the eliminated need for nodes having to wait until others complete their transmission.
- Plug and Play
- Plug and play is a term used to describe the characteristics of a variety of computer devices and peripherals. The TrendNet Switch can be referred to as a plug and play device as there is minimal configuration necessary to get the device up and running.
- Diagnostic LEDs
- With diagnostic LEDs you have the ability to see the status of the network. With LEDs displaying power, link/activity, and PoE/status you no longer have to dig into the configuration settings of the switch to see just how well the switch is performing.
UPC: 710931160291 In the Box TRENDnet TPE-TG240G 24-Port Gigabit PoE+ Switch Power Cord Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-TG240G 24-Port Gigabit PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-TG240G Specs | | | Ports | 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2) | | | | Jumbo Frames Support | 10,000 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Forwarding Rate | 35.7 Mpps | | Switching Bandwidth | 48 Gb/s | | Packet Buffer | 512 Kb | | | | Power Draw | 36.00 W (Active) | | Current | 1 A | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 370 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | | | Dimensions | 17.3 x 9.8 x 1.7" / 44 x 25 x 4.4 cm | | Weight | 8 lb / 4 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 20.1 x 14.0 x 3.5" |
