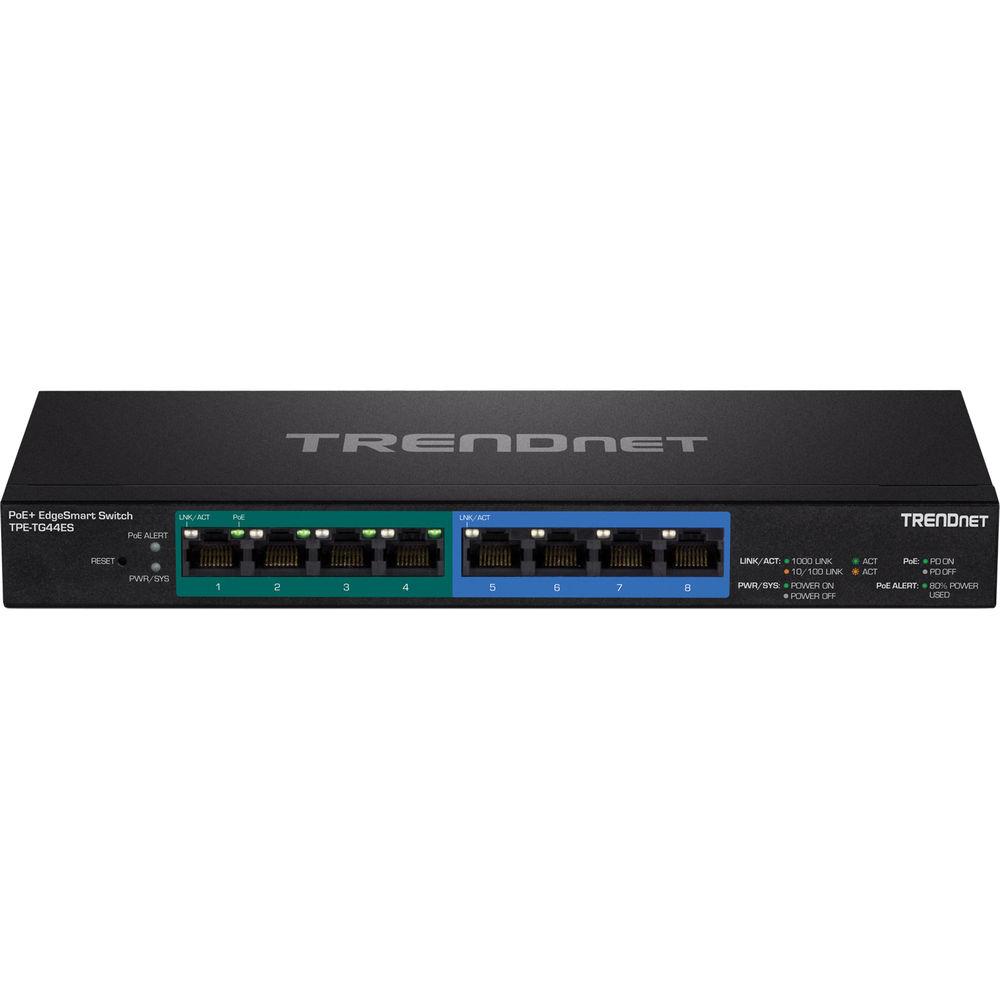

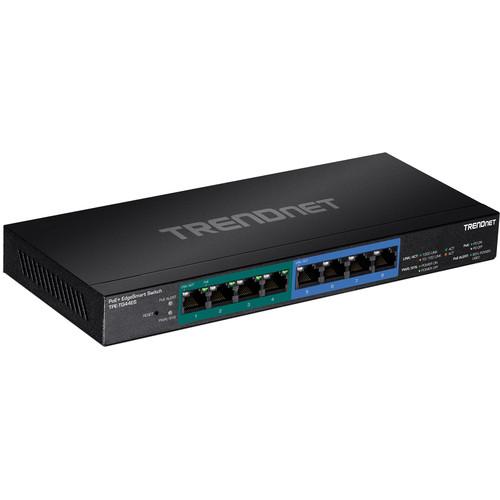

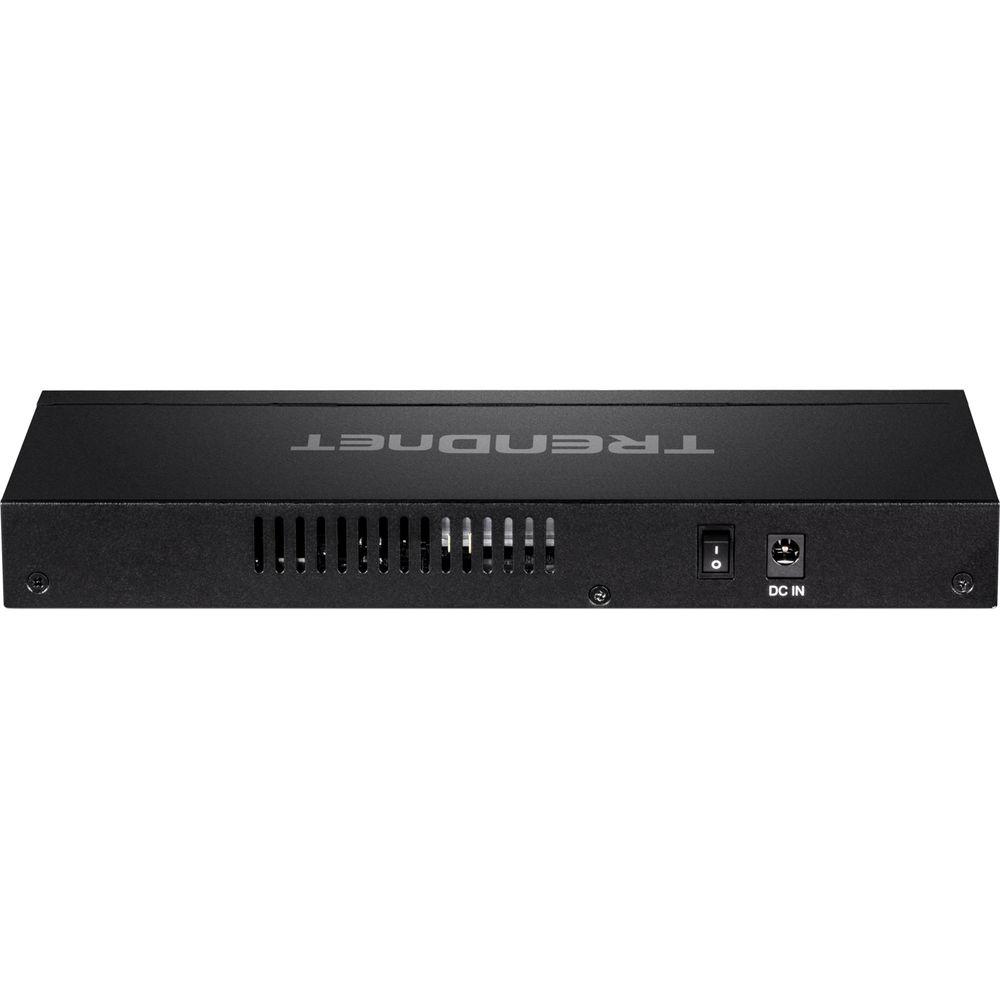

User Manual for TRENDnet TPE-TG44ES EdgeSmart 8-Port Gigabit PoE Managed Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-TG44ES EdgeSmart 8-Port Gigabit PoE
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-TG44ES EdgeSmart 8-Port Gigabit PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description With the TPE-TG44ES EdgeSmart 8-Port Gigabit PoE+ Managed Switch from TRENDnet, network admins can take advantage of four Gigabit Ethernet ports and four Gigabit Ethernet ports with PoE+ support.
The built-in PoE+ ports provide power to IP phones, access points, IP cameras, and other PoE-compatible devices directly through the network, eliminating the need for power adapters. This network switch comes equipped with a 16 Gb/s switching capacity along with a 11.9 Mpps forwarding rate, 4K MAC address table, and 9KB jumbo frames to ensure connected clients receive optimal network performance. The TPE-TG44ES switch supports LACP, VLAN, QoS, and IGMP snooping along with bandwidth control per port, all in a durable metal housing. -
- Four gigabit PoE+ ports and four gigabit ports provides a 16 Gb/s switching capacity
- Supplies up to 30 W of PoE+ power per PoE port with a 60 W power budget
- With a compact and lightweight housing design this switch is well-suited for desktop installations. Its fanless design is perfect for quiet environments that require silent operation
- A broad range of network configurations are supported by: 802.3ad link aggregation, 802.1Q VLAN, bandwidth controls, IGMP, loopback detection, port mirroring and 802.1p (QoS)
- Traffic statistics and a convenient cable diagnostic test aid in network troubleshooting
- Compact wall mountable metal housing
- LED indicators convey port status
UPC: 710931161120 In the Box TRENDnet TPE-TG44ES EdgeSmart 8-Port Gigabit PoE+ Managed Switch Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-TG44ES EdgeSmart 8-Port Gigabit PoE Managed Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-TG44ES Specs | Standards | IEEE 802.1p
IEEE 802.1Q
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af (15.4 Watts/port)
IEEE 802.3at (30 Watts/port)
IEEE 802.3az | | Device Interface | 4 x Gigabit PoE+ ports (1-4)
4 x Gigabit ports (5-8)
LED indicators
Reset button | | Data Transfer Rate | Ethernet: 10 Mb/s (half duplex), 20 Mb/s (full duplex)
Fast Ethernet: 100 Mb/s (half duplex), 200 Mb/s (full duplex)
Gigabit Ethernet: 2000 Mb/s (full duplex) | | Performance | Switch Fabric: 16 Gbps
RAM Buffer: 192 kg
MAC Address Table: 4K entries
Jumbo Frames: 9 Kbytes
Forwarding rate: 11.9 Mpps (64-byte packet size) | | Management | HTTP Web based GUI
Backup/Restore configuration
Upgrade firmware | | Link Aggregation | 802.3ad Dynamic LACP | | Quality of Service (QoS) | Port-based QoS
802.1p Class of Service (CoS)
Bandwidth Control/Rate Limiting per port (Min. Limit: 512 Kb/s)
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) | | VLAN | Port-based VLAN
802.1Q Tagged VLAN
Up to 32 VLAN groups, ID Range 1-4094 | | Multicast | IGMP Snooping v1/2/3
Block unknown multicast source
Up to 128 multicast entries | | Port Mirroring | One to one
Many to one
Access Control
Trusted Host/IP Access List | | Storm Control | Broadcast (Min. Limit: 512 Kb/s)
Multicast (Min. Limit: 512 Kb/s)
Destination Lookup Failure (DLF) (Min. Limit: 512 Kb/s)
Loopback detection | | Power | Input: 100 - 240 VAC, 50/60 Hz; 2.5 A
Output: 55 DC, 1.3 external power adapter
Consumption: 65.28 W (max.) | | PoE | PoE Budget: 60 W
802.3at: Up to 30 W per port (ports 1-4)
Mode A: Pins 1,2 for power (+) and pins 3,6 for power (-)
PD auto classification
Over current/short circuit protection | | Fan | Fanless design | | MTBF | 1,089,244 hours | | Temperature & Humidity | Operating Temperature
32 to 122°F / 0 to 50°C
Operating Humidity
Max. 95% non-condensing | | Certifications | CE, FCC | | Dimensions | 9.45 x 4.10 x 1.06" / 240 x 105 x 27 mm | | Weight | 20.3 oz / 576 g | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 10.2 x 5.2 x 3.2" |
