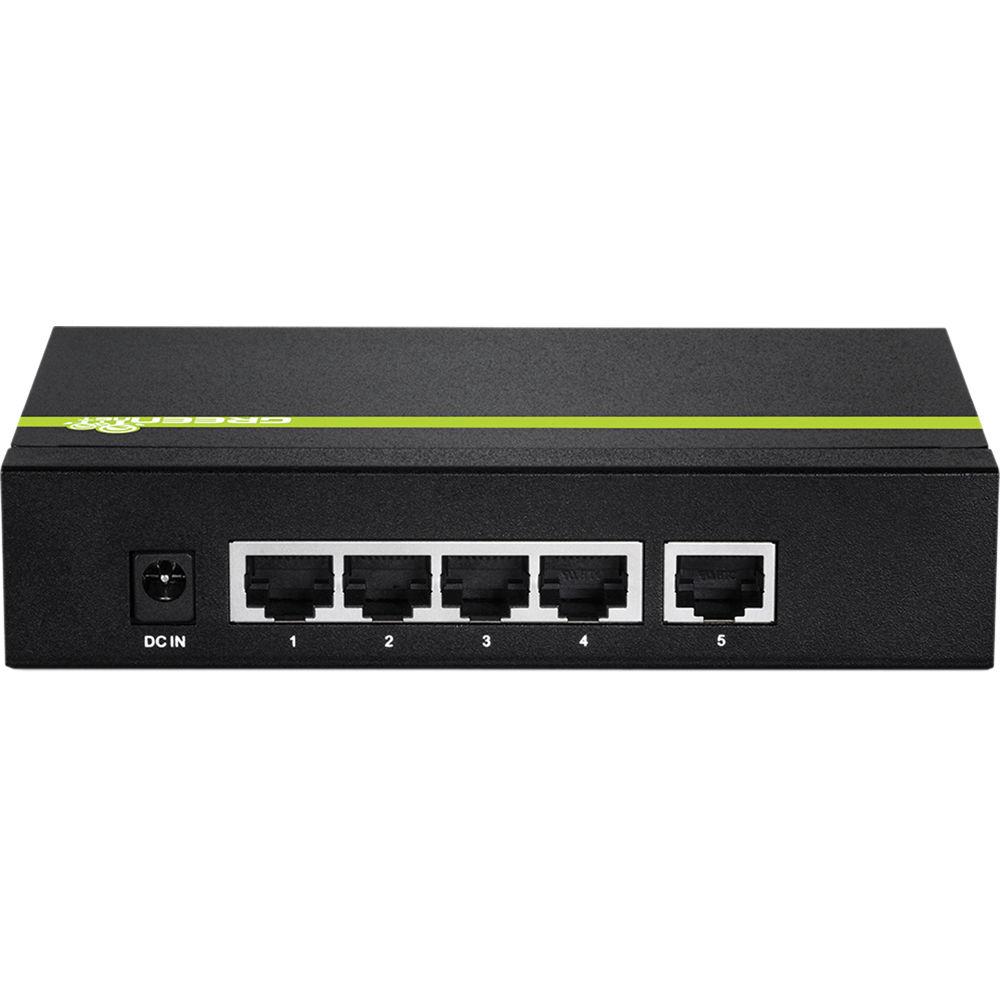

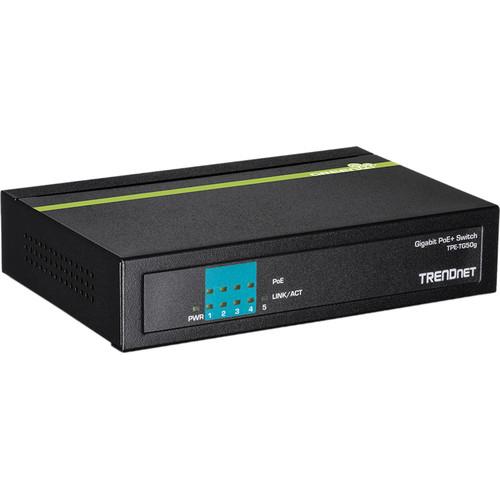

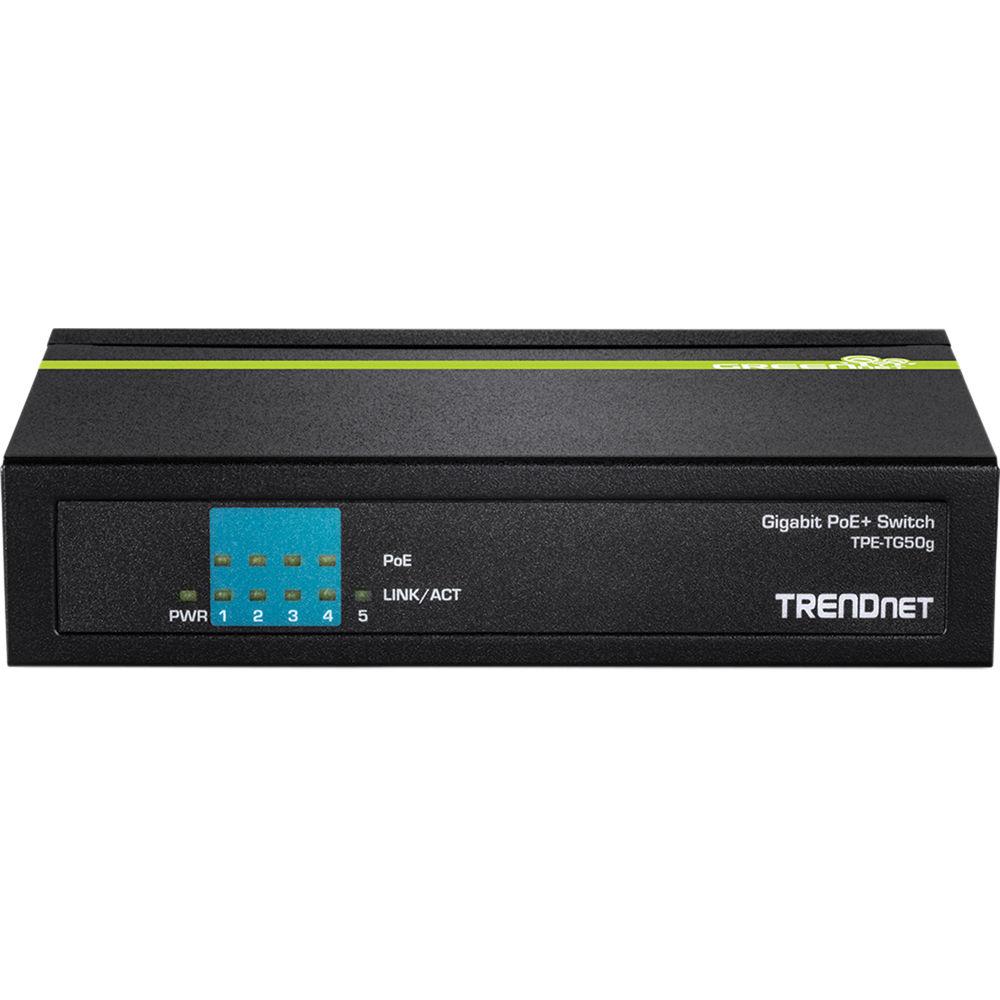

User Manual for TRENDnet TPE-TG50G 5-Port Gigabit PoE Switch Click to enlarge the picture
Contents of the user manual for the TRENDnet TPE-TG50G 5-Port Gigabit PoE Switch
- Product category: Network Switches, Bridges & Hubs TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Network Switches, Bridges & Hubs
 |
User manual for the TRENDnet TPE-TG50G 5-Port Gigabit PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description With 30 watts of PoE power per port and a 31-watt power budget, the TPE-TG50G 5-Port Gigabit PoE+ Switch from TRENDnet is capable of handling various PoE compatible devices such as IP cameras and VoIP equipment. Users benefit from four Gigabit PoE+ ports and a single Gigabit port to connect Ethernet enabled devices to the network. Once configured, this switch offers a 10 Gbps switching capacity, a 96 KB data RAM buffer, 1 K MAC address table, and a forwarding rate of up to 7.44 Mpps to ensure optimal network performance. - PoE+
- Supplies up to 30 watts of PoE power per port with a 31 watt PoE budget
- Ports
- 4 x Gigabit PoE+ ports and 1 x Gigabit port
- Switching Capacity
- 10 Gbps switching capacity
- Jumbo Frame
- Sends larger packets, or Jumbo Frames (up to 9 KB) for increased performance
- Energy Savings
- Embedded GREENnet technology reduces power consumption by up to 70%
- Housing
- Rugged metal enclosure
- LED Indicators
- LED indicators convey port status
UPC: 710931160154 In the Box TRENDnet TPE-TG50G 5-Port Gigabit PoE+ Switch Power Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-TG50G 5-Port Gigabit PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-TG50G Specs | | | Ports | 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 1K | | | | Supported IEEE Standards | 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x | | | | Forwarding Rate | 7.44 Mpps | | Switching Bandwidth | 10 Gb/s | | Packet Buffer | 96 Kb | | | | Power Draw | 36.00 W (Active) | | Current | 1 A | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | PoE Power Budget | 31 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 90% | | | | Dimensions | 5.6 x 3.7 x 1.2" / 14.2 x 9.5 x 3 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 8.7 x 6.3 x 3.7" |
