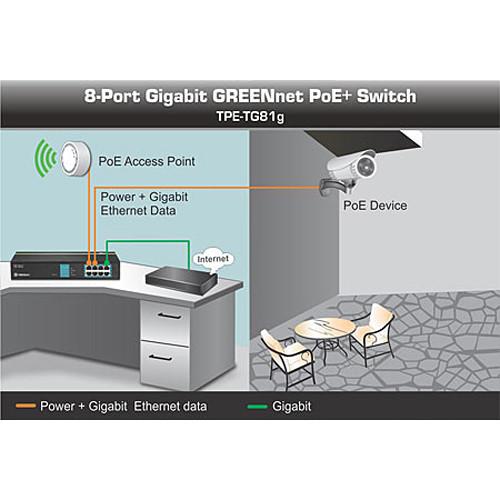

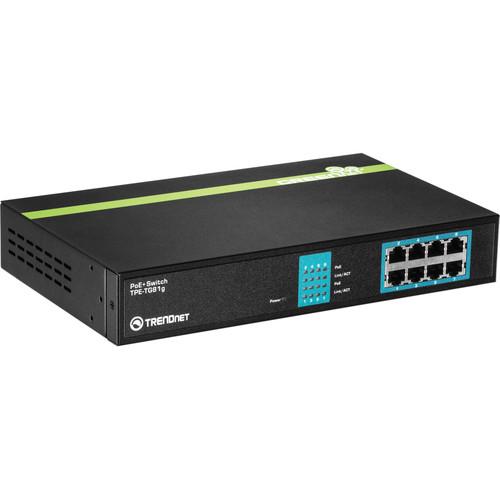

Product description Power up to eight PoE-compatible network devices using the TPE-TG81G 8-Port Gigabit PoE+ Unmanaged Switch from TRENDnet. This network switch supports both the 802.3at and 802.3af PoE standards, providing up to 30W of PoE power per port to run devices such as IP cameras, access points, VoIP equipment, and more. In addition to PoE compliance, this switch features eight Gigabit Ethernet ports with a total switching capacity of 16 Gb/s, a 2K MAC address table, and a 96 Kbyte data RAM buffer to ensure connected devices receive optimal network performance. Additionally, this TRENDnet switch comes equipped with LED indicators, allowing you to see the power, PoE, and link/activity status of each port. -
- IEEE 802.3at and IEEE 802.3af PoE-compliant
- Supports PoE Class 2 (7 watts), 3 (15.4 watts), and 4 (30 watts)
- 8 x Gigabit Auto-MDIX PoE / PoE+ ports
- Internal power supply
- Up to 75% GREENnet energy savings
- Provides up to 30 watts for PoE+ (3 ports max.)
- Provides up to 15.4 watts for PoE
- Automatically detects the PoE class level of a powered device
- 16 Gb/s switching fabric
- Forwarding Rate: 1000 Mb/s / 1,488,000 pps; 100 Mb/s / 148,800 pps; 10 Mb/s / 14,880 pps

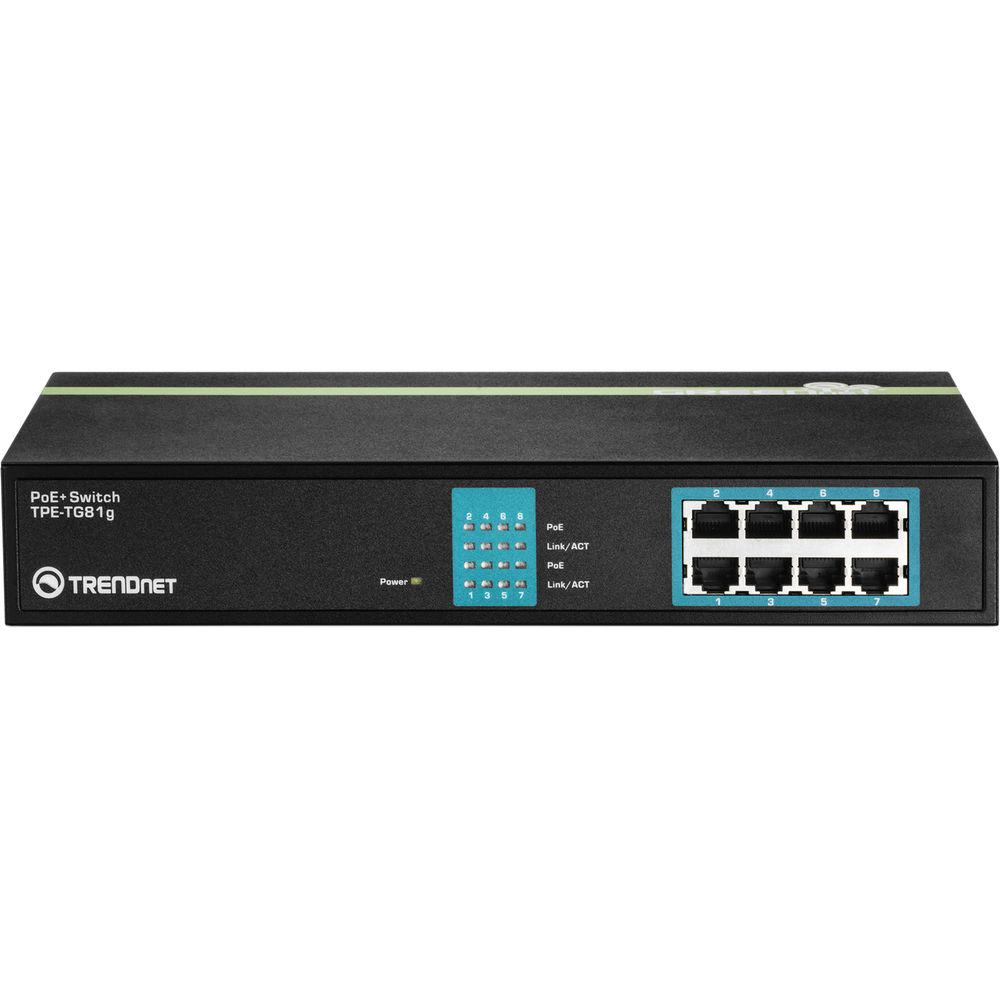

- Status LEDs: System Power, PoE, 1000 Mb/s, and Link / Activity
- 2K Mac address entries
- 96-Kbyte memory buffer
- Full wire-speed non-blocking reception and transmission
- Store-and-forward switching method
- Back pressure Flow Control for Half-Duplex mode
- IEEE 802.3x Flow Control for Full-Duplex mode
- Power saving technology powers down unused ports even when a connected device is in standby mode
- Jumbo Frame support up to 9 Kbytes
- Plug-and-Play
- Sturdy rack-mountable metal case
UPC: 710931160055 In the Box TRENDnet TPE-TG81G 8-Port Gigabit PoE+ Unmanaged Switch Power Cord Rackmount Brackets Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-TG81G 8-Port Gigabit PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-TG81G Specs | Standards | IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet | | Ports | 8 x Gigabit Auto-MDIX PoE / PoE+ RJ-45 ports | | Data Transfer Rate | Ethernet: 10/20 Mb/s (Half / Full Duplex)
Fast Ethernet: 100/200 Mb/s (Half / Full Duplex)

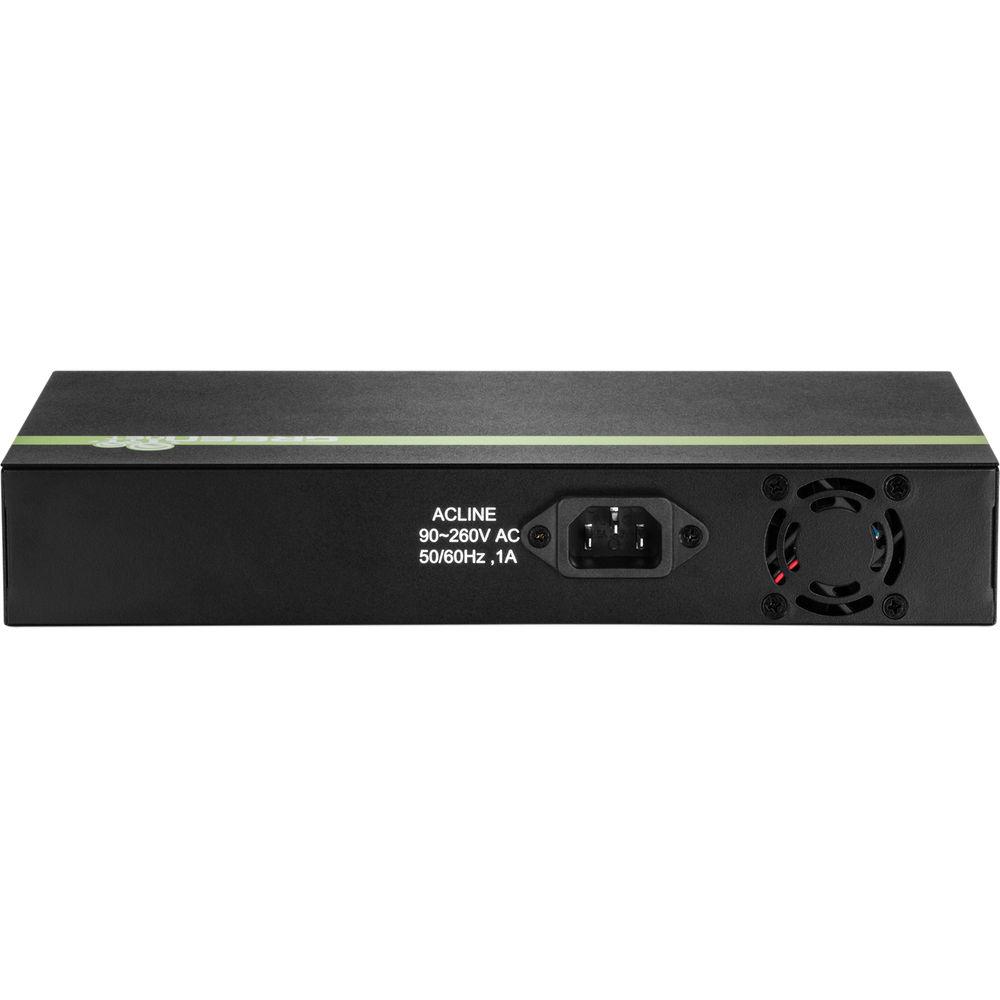

Gigabit: 2000 Mb/s (Full Duplex) | | Forwarding Rate | Gigabit / 1,488,000 pps, 100 Mb/s / 148,800 pps, 10 Mb/s / 14,880 pps | | Memory Buffer | 96 Kbytes | | Address Table Size | 2 K MAC entries | | Switch Fabric | 16 Gbps | | Power | 90-260 V, 50/60 Hz, 1 A | | Diagnostic LEDs | Power, PoE, Link / Activity | | Power Consumption | Min: 8 Watts (standby)
Max: 122 Watts
PoE Max: 105 Watts (7 x 15-Watt PoE devices connected or 3 x 30-Watt PoE+ devices connected) | | Temperature & Humidity | Operating Temperature
32 to 113°F / 0 to 45°C
Storage Temperature
-4 to 194°F / -20 to 90°C
Humidity
Max. 90% (non-condensing) | | Certifications | CE, FCC | | Dimensions | 10.5 x 6.3 x 1.7" / 266 x 160 x 44 mm | | Weight | 3.00 lb / 1.36 kg | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 13.1 x 9.7 x 2.8" |
