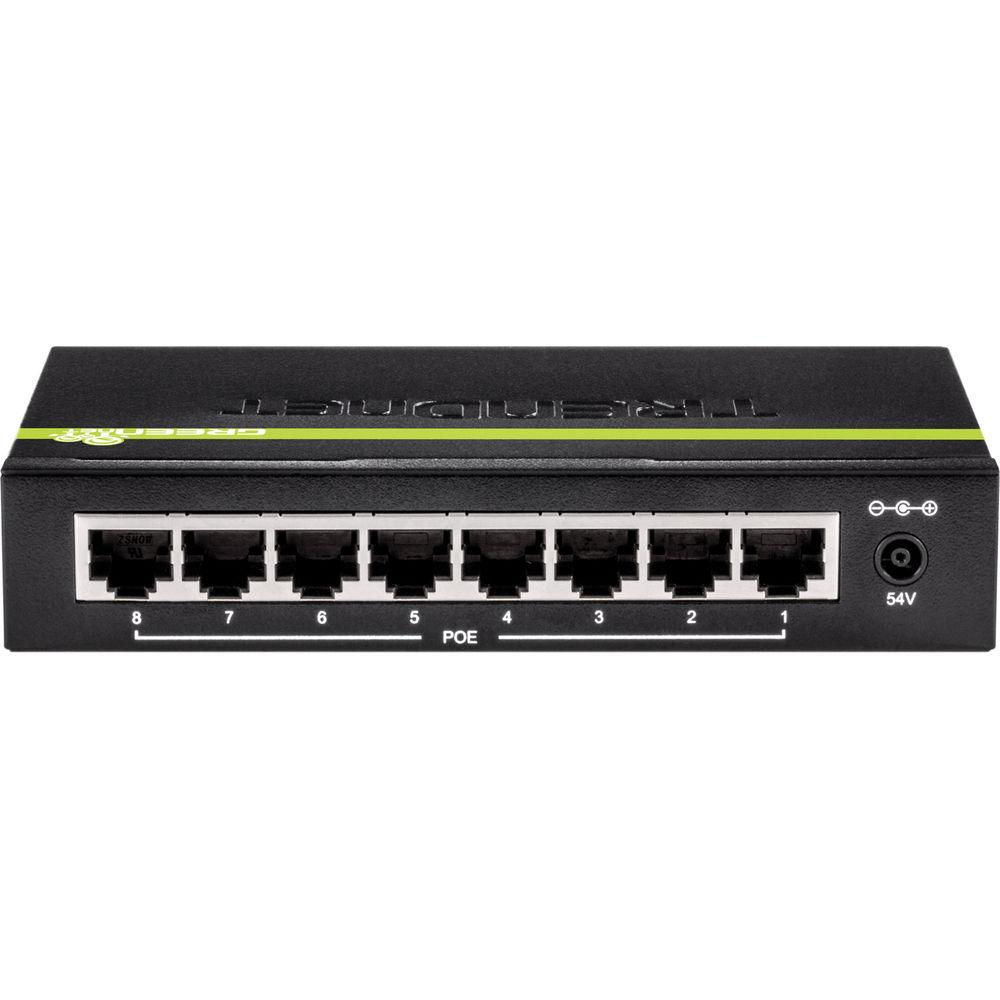

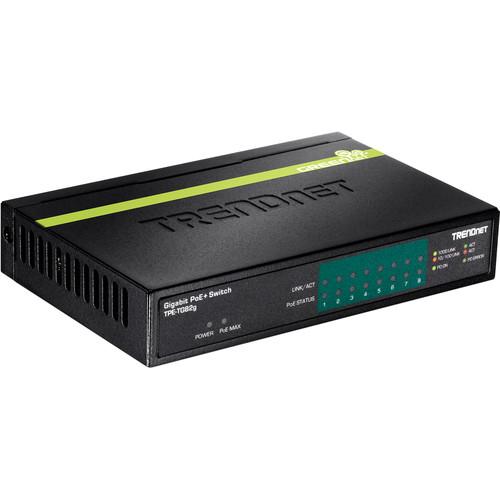

Product description Deliver both data and power over existing Ethernet cables with the TPE-TG82G 8-Port Gigabit PoE+ Unmanaged Switch from TRENDnet. This PoE+ switch comes equipped with eight Gigabit PoE-compliant ports, each supporting up to 30W of power with a total power budget of 61W to power devices such as IP cameras, IP phones, and other PoE-compliant devices. The TPE-TG82G features a 16 Gbps switching capacity and supports Jumbo Frames up to 9KB for enhanced networking performance. Additionally, the switch comes with a sturdy metal housing and supports enhanced energy savings thanks to built-in GREENnet technology. -
- With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
- Supplies up to 30W of PoE+ power per port with a total power budget of 61W. Supports both PoE (802.3af) and PoE+ (802.3at) devices
- Eight Gigabit PoE+ ports
- 16 Gbps switching capacity
- Sends larger packets, or Jumbo Frames (up to 9 KB) for increased performance
- Embedded GREENnet technology reduces power consumption
- Sturdy metal housing

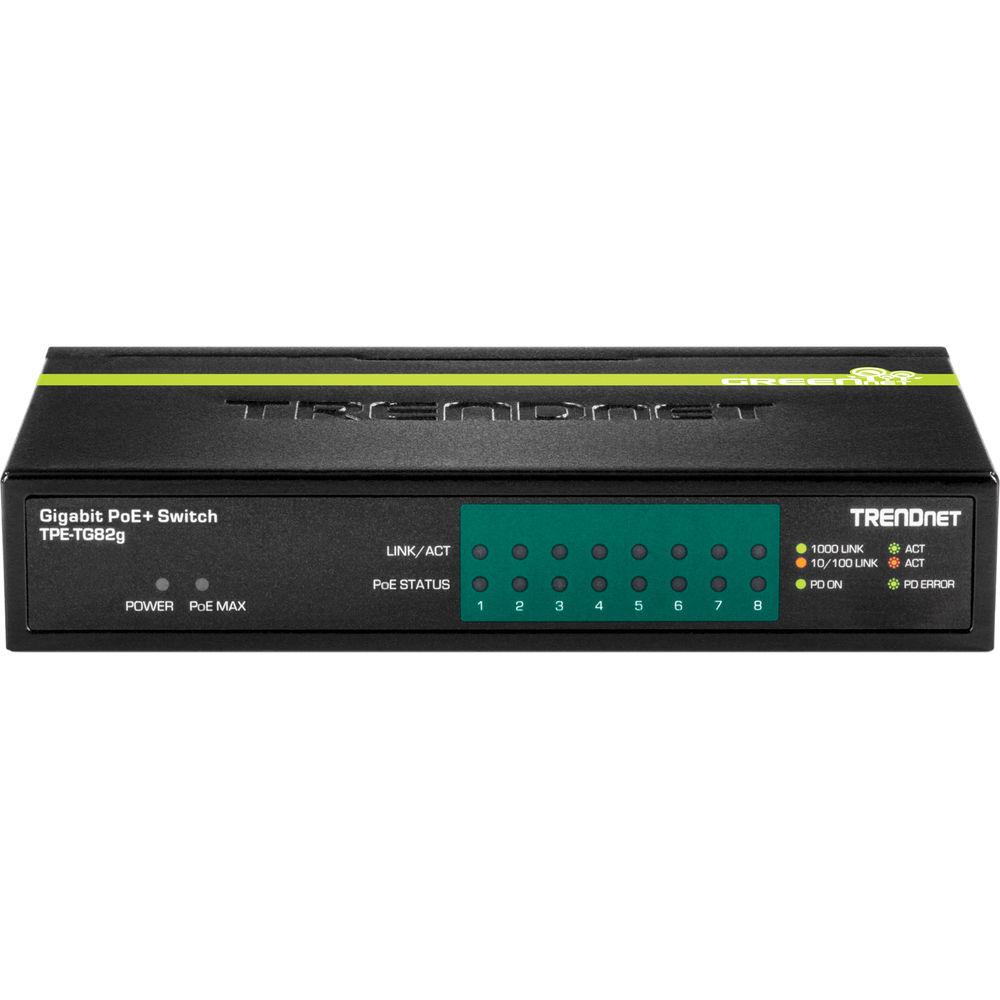

- LED indicators convey port status

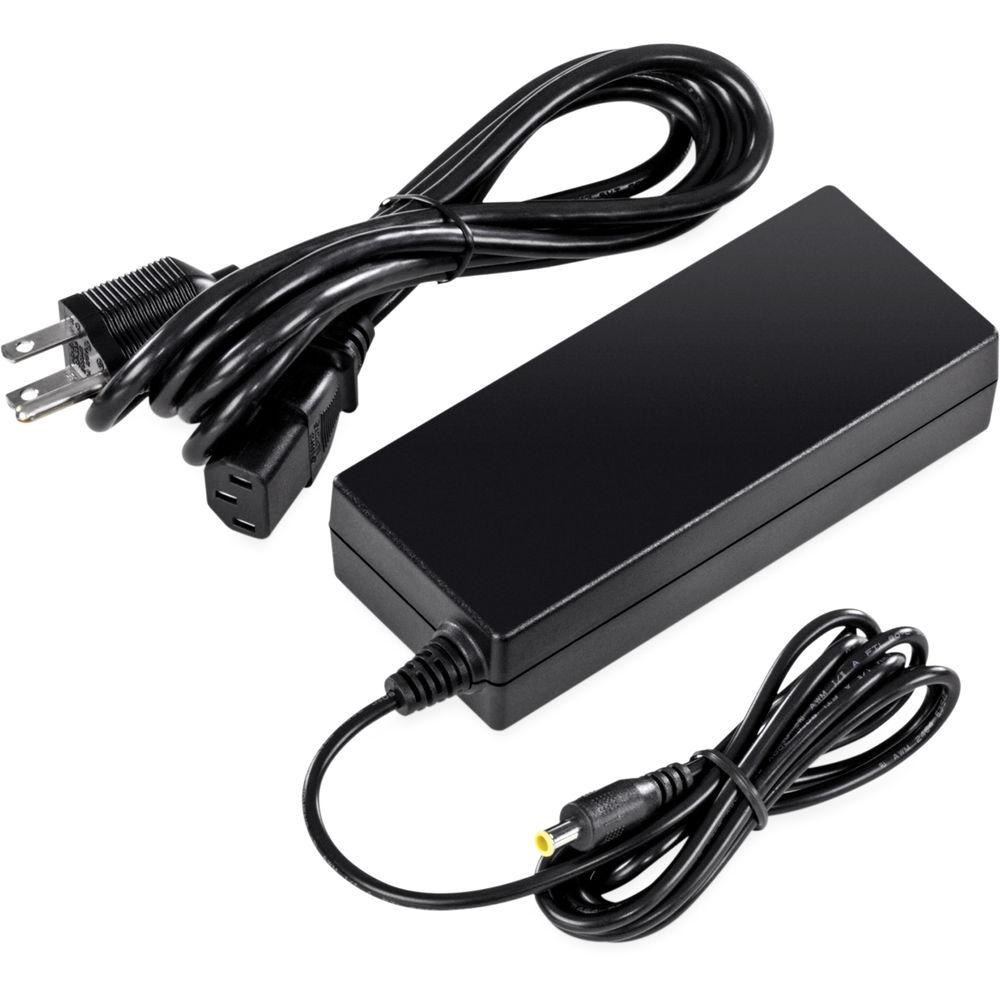

UPC: 710931161083 In the Box TRENDnet TPE-TG82G 8-Port Gigabit PoE+ Unmanaged Switch Power Brick Power Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPE-TG82G 8-Port Gigabit PoE Unmanaged Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPE-TG82G Specs | Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
IEEE 802.1p | | Device Interface | 8 x Gigabit PoE/PoE+ ports
LED indicators | | Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit: 2000 Mbps (full duplex) | | Performance | Data RAM Buffer: 128 KB
Switch Fabric: 16 Gbps
MAC Address Table: 8 K entries
Forwarding Rate: 11.9 Mpps (64-byte packet size)
Jumbo Frame: 9 K | | Power | Input: 110-240 VAC, 50/60 Hz 1.2 A
Output: 54 VDC, 1.67 A
Consumption: 36 Watts (max.) | | PoE | PoE budget: 61 W
Pin 3,6 for power+ and pin 1,2 for power- (mode B) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
Max. 90% non-condensing | | Certifications | CE, FCC | | Dimensions | 5.9 x 3.7 x 1.2" / 150 x 95 x 30 mm | | Weight | 14 oz / 400 g | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.921 x 6.772 x 2.835" |
