User Manual for TRENDnet TPL-406E2K 500Mbps Compact Powerline AV Adapter Kit Click to enlarge the picture
Contents of the user manual for the TRENDnet TPL-406E2K 500Mbps Compact Powerline AV
- Product category: Powerline Networking TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Powerline Networking
 |
User manual for the TRENDnet TPL-406E2K 500Mbps Compact Powerline AV contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

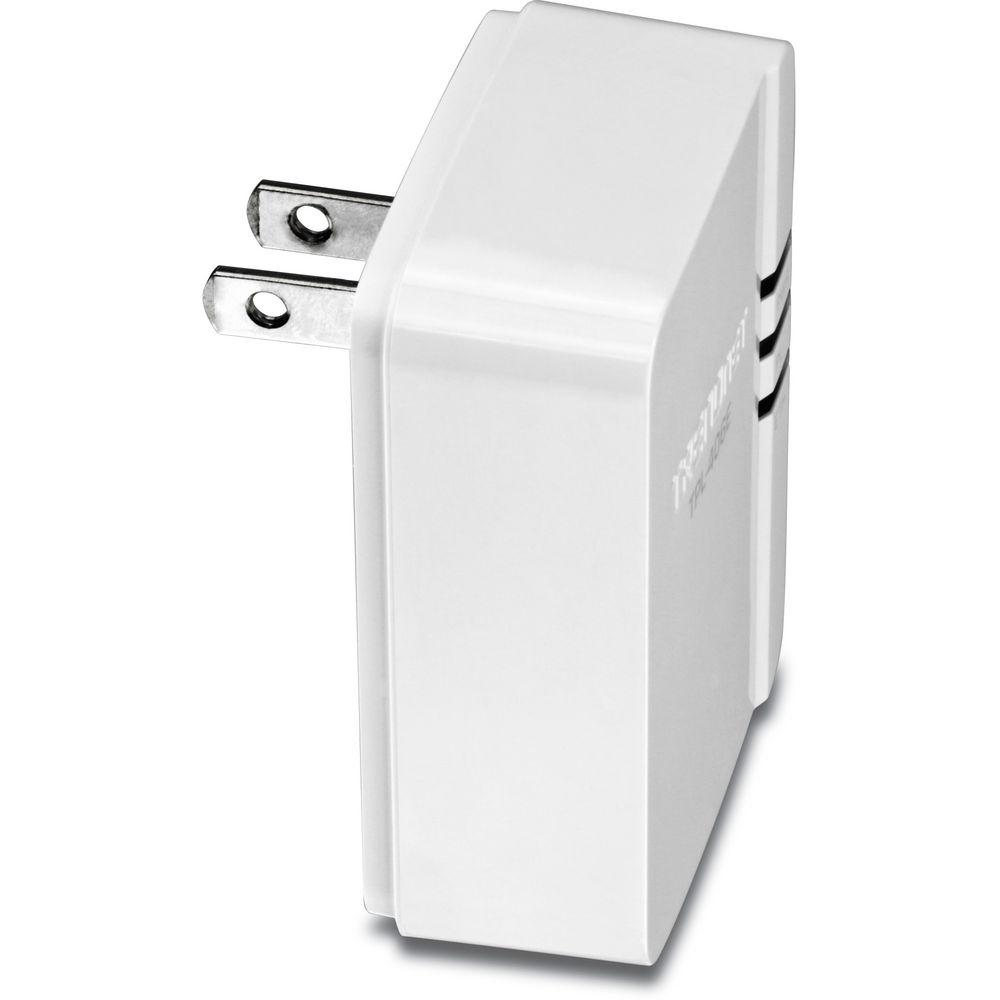

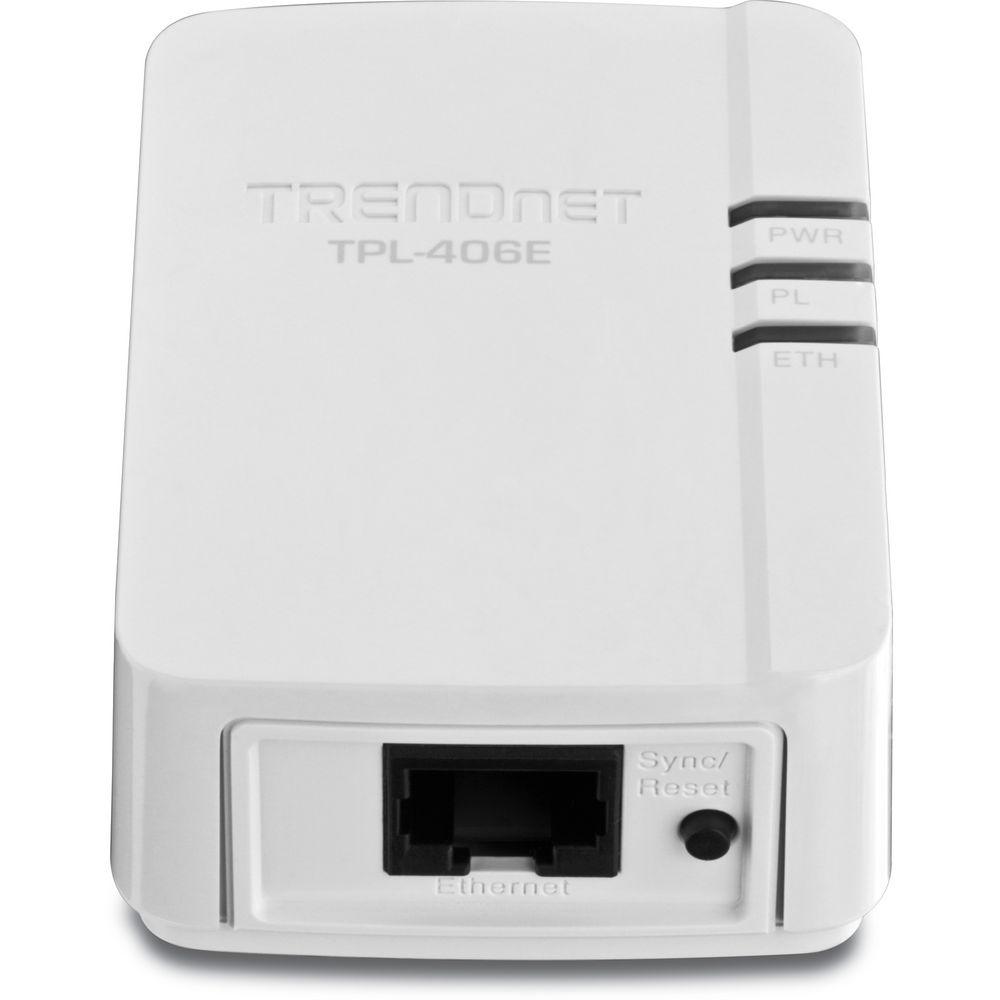

Product description With the TPL-406E2K 500Mbps Compact Powerline AV Adapter Kit from TRENDnet you can use any electrical outlet to create a secure high speed network. This Powerline AV Adapter Kit comes equipped with two adapters giving you everything you need to get started with powerline networking. Connect the first adapter to your network and plug the second adapter into any outlet on your electrical system for instant high speed network access. The compact form factor saves space around crowded electrical outlets. This adapter automatically connects to other TRENDnet Powerline AV adapters with no installation required.
Use up to 8 adapters to network devices in different rooms without running new cabling. Power Save mode reduces power consumption by 80%. Quality of Service (QoS) technology prioritizes video, audio, and online gaming. LED displays convey device status for easy troubleshooting. Advanced 128-bit AES encryption secures your network. This adapter is ideal for use in buildings that interfere with wireless networking signals. - Compliant with IEE 1901 and HomePlug AV standards
- High speed networking over an existing electrical system
- Adapter automatically connect using an encrypted powerline signal
- One-touch Sync button networks changes encryption keys
- Connect one 500Mbps Powerline AV Adapter to the Internet and then plug in up to 7 additional 500Mbps Powerline AV adapters for instant connectivity 1
Please Note: •Maximum of 8 adapters (nodes) recommended for streaming video across your network
•500Mbps is the maximum theoretical Powerline data rate; actual throughput will vary depending on environment. close - Share data intensive files, play games, download music and more at faster data transfer rates
- Advanced 128-bit AES encryption to ensure total network security
- Supports up to 16 IGMP based IPTV streams 2
Please Note: 500Mbps is the maximum theoretical powerline data rate, actual throughput will vary depending on the environment close - Power Save mode reduces electrical consumption by up to 80%
- Neighbor network support for up to 4 overlapping networks
- Network signal transmits up to 984 ft / 300 meters
- Auto QoS support through traffic classification and multiple priority queuing

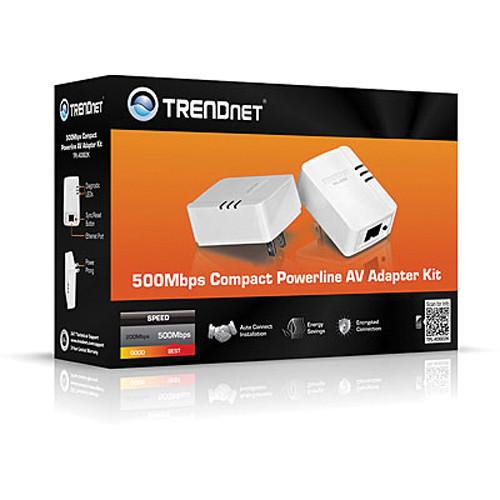

UPC: 710931506587 In the Box TRENDnet TPL-406E2K 500Mbps Compact Powerline AV Adapter Kit 2 x TPL-406E 500Mbps Compact Powerline AV Adapter Quick Installation Guide CD-ROM (Utility & User's Guide) 2 x Network Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPL-406E2K 500Mbps Compact Powerline AV Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPL-406E2K Specs | Maximum Data Rate | 500 Mb/s | | Number of Ethernet Ports | 1 | | Ethernet Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 1901 | | Ethernet Speed | 10/100 Mb/s | | Powerline Technology | HomePlug AV | | Powerline Frequency Band | 2 to 68 MHz | | Protocol | TDMA, CSMA/CA | | Modulation Technology | QAM, BPSK, QPSK, OFDM, ROBO Carrier | | Maximum Networking Distance | 984' / 300 m | | Plug Type | US (3-Pin) | | Maximum Nodes | 8 | | Auto-MDIX Support | Yes | | Encryption | 128-Bit AES | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Active Power Consumption | 2.2 W | | Standby Power Consumption | 0.5 W | | Operating System Support | Windows | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | 14 to 131°F / -10 to 55°C | | Dimensions (W x H x D) | 2.8 x 2.0 x 1.7" / 71.0 x 50.8 x 43.2 mm | | Weight | 1.8 oz / 51.0 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 8.2 x 5.5 x 2.7" |
