User Manual for TRENDnet TPL-422E2K Powerline 1300 AV2 Adapter Kit Click to enlarge the picture
Contents of the user manual for the TRENDnet TPL-422E2K Powerline 1300 AV2 Adapter
- Product category: Powerline Networking TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Powerline Networking
 |
User manual for the TRENDnet TPL-422E2K Powerline 1300 AV2 Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

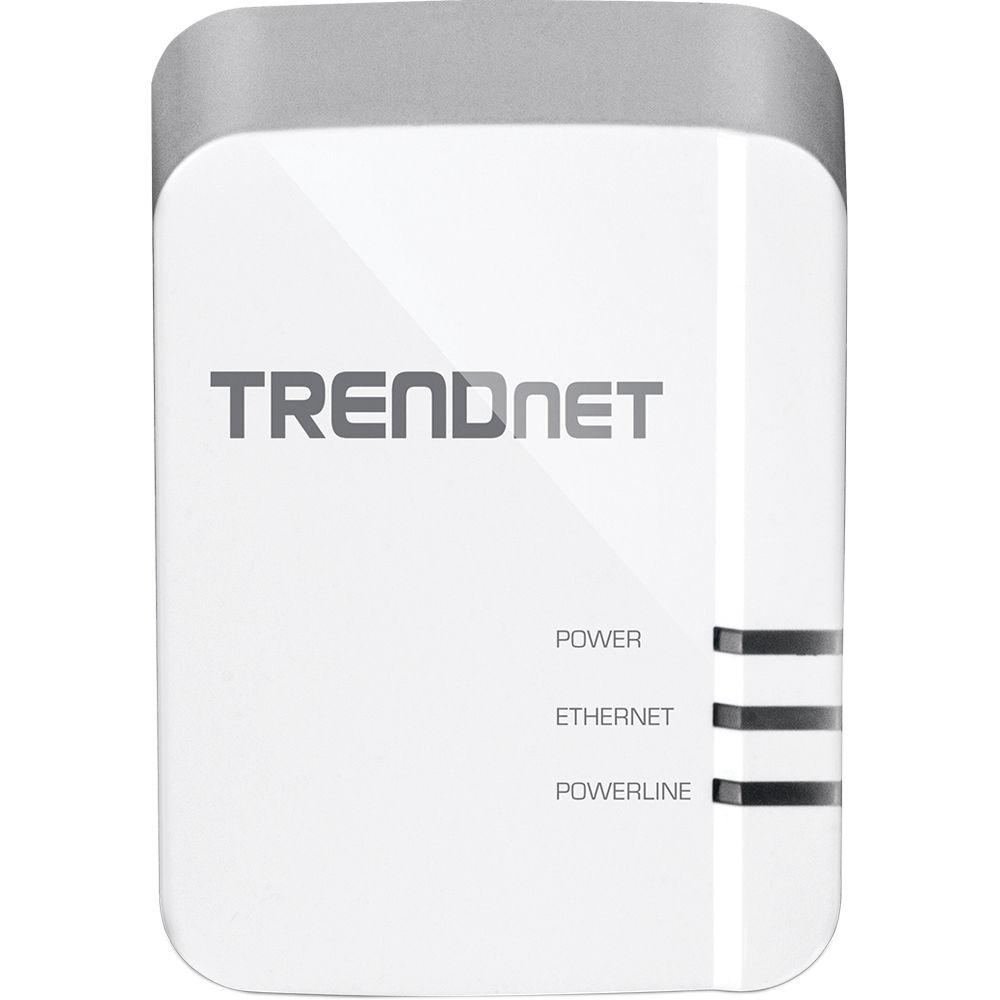

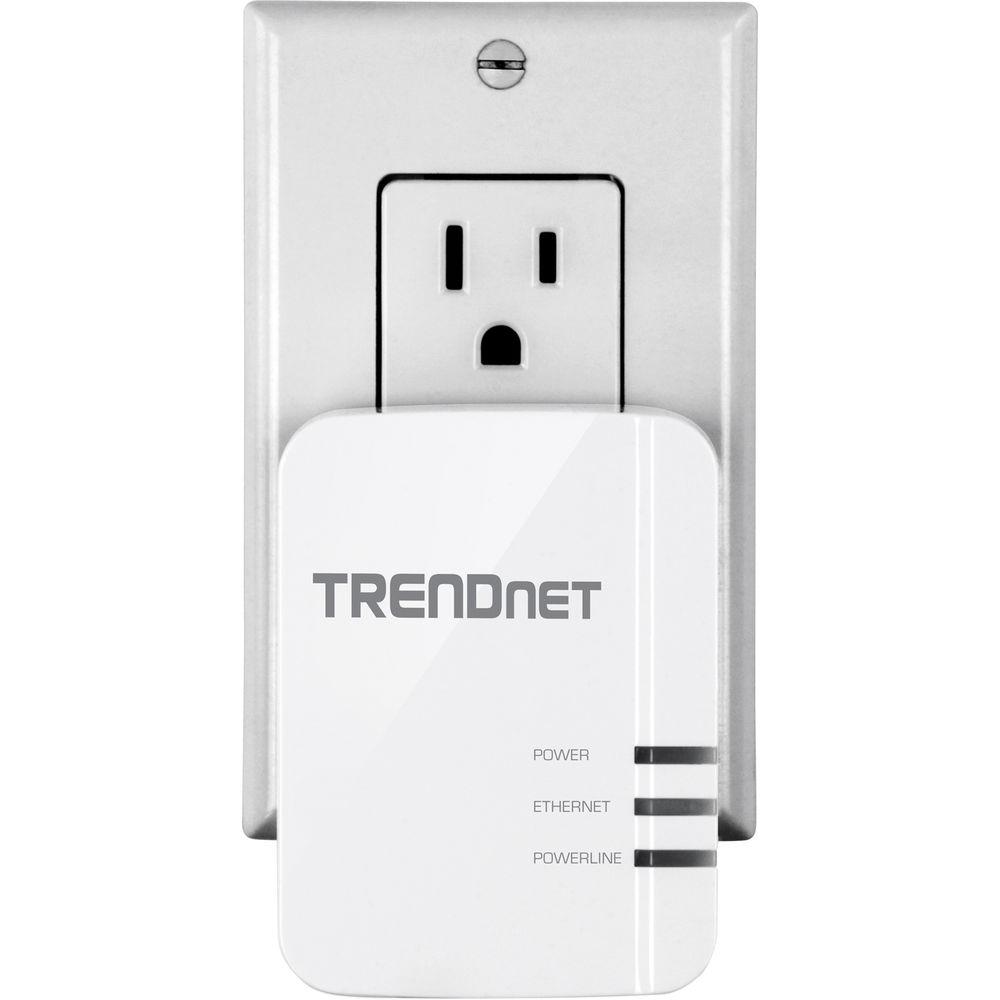

Product description Expand the reach of your network using the powerlines right inside your walls with the TPL-422E2K Powerline 1300 AV2 Adapter Kit from TRENDnet. This kit consists of two TPK-422E powerline adapters giving you the tools needed to set up your own powerline network. If two adapters aren't enough, this kit supports a total of eight powerline nodes and a maximum networking distance of up to 984' to cover nearly any space.
Whether you are using two or eight adapters, this powerline kit supports the IEEE 1901 and 1905.1 network standards for data transfer rates of up to 1300 Mb/s via the single Gigabit Ethernet port found on each adapter. Installation is simple, thanks to the dedicated sync button. Once synced, your network connection is protected using 128-bit AES encryption while MIMO and beamforming technologies ensure you receive a reliable and stable powerline network connection. -

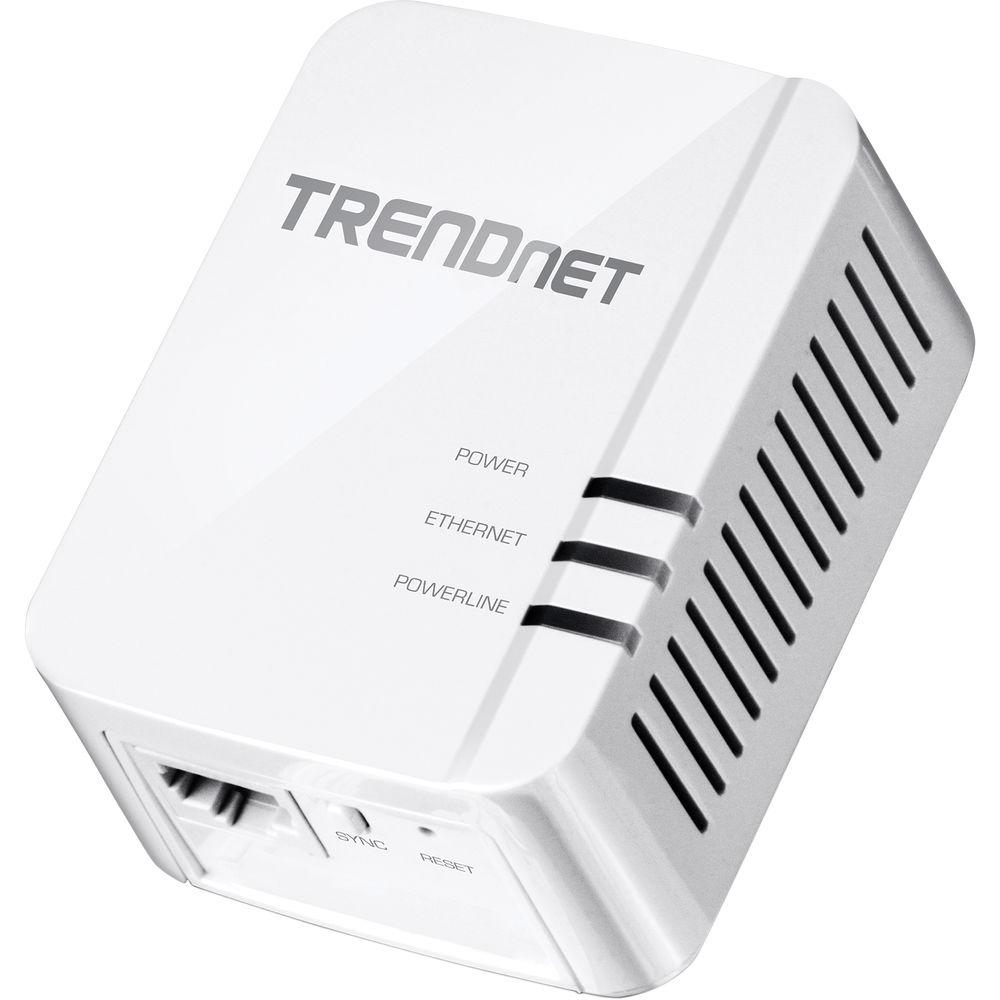

- Press the Sync button to change existing Powerline encryption keys
- Powerline 1300 technology delivers fast and stable networking to seamlessly connect devices and stream 4K video
- Gigabit port for computers, smart TVs, or other network-enabled devices
- Cross compatible with Powerline 1200, 600, 500, and 200 adapters

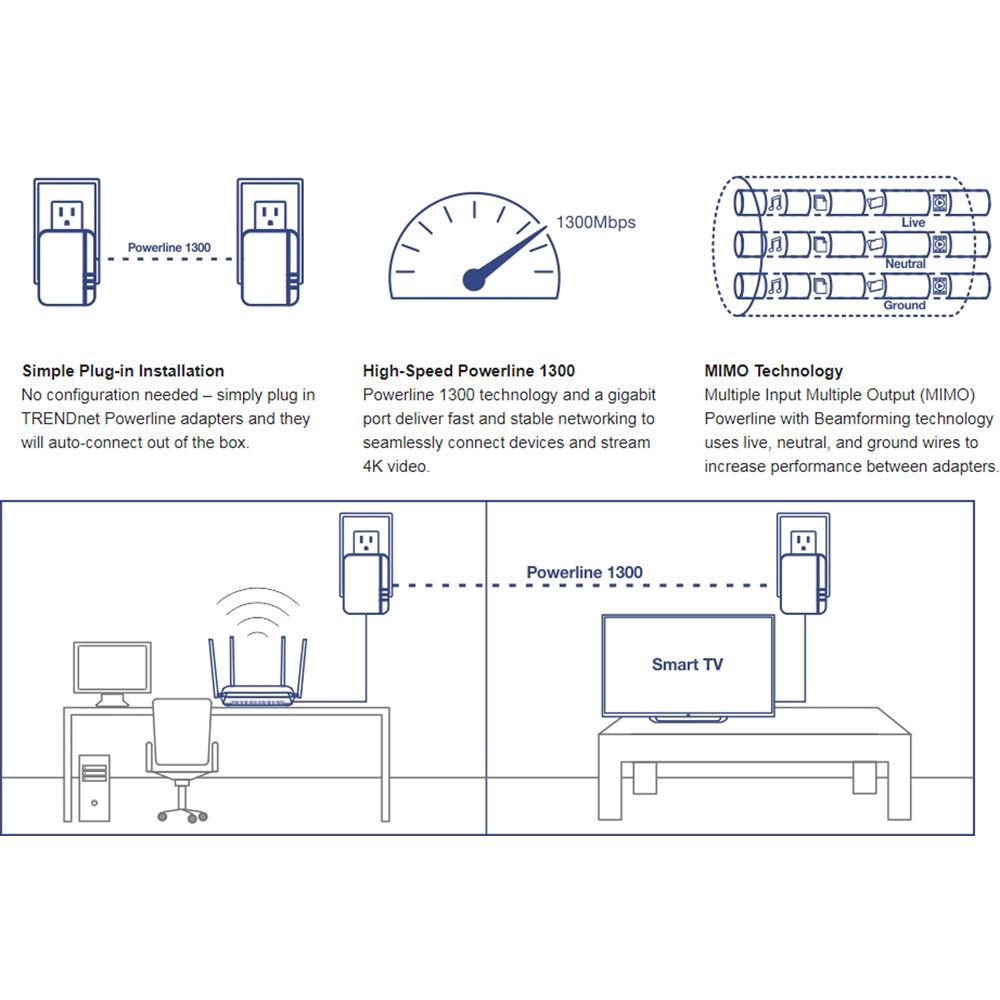

- Multiple Input Multiple Output (MIMO) Powerline with Beamforming technology uses live, neutral, and ground wires to increase performance between adapters.
- Use up to 8 adapters on a single Powerline network
- TRENDnet adapters auto-connect out of the box
- Powerline communication is protected with 128-bit AES encryption
UPC: 710931150490 In the Box TRENDnet TPL-422E2K Powerline 1300 AV2 Adapter Kit 2 x Network Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPL-422E2K Powerline 1300 AV2 Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet Powerline 1300 AV2 Specs | Maximum Data Rate | 1300 Mb/s | | Number of Ethernet Ports | 1 | | Ethernet Standards | IEEE 1901, IEEE 1905.1, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | | Ethernet Speed | 10/100/1000 Mb/s | | Powerline Technology | HomePlug 1.0 | | Powerline Frequency Band | 2 to 68 MHz | | Protocol | CSMA/CA | | Modulation Technology | QAM, BPSK, QPSK, OFDM, ROBO Carrier | | Maximum Networking Distance | 984.25' / 300 m | | Plug Type | US (3-Pin) | | AC Pass-Through | No | | Wi-Fi Standards | None | | Maximum Nodes | 8 | | Encryption | 128-Bit AES | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Active Power Consumption | 4 W | | Operating System Support | Windows | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 90% | | Dimensions (W x H x D) | 2.3 x 3.0 x 2.6" / 5.8 x 7.6 x 6.6 cm | | Weight | 3.8 oz / 108 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 7.5 x 5.5 x 3.5" |
