User Manual for TRENDnet TPL-423E2K Powerline 1300 AV2 Adapter Kit with Built-In Outlet Click to enlarge the picture
Contents of the user manual for the TRENDnet TPL-423E2K Powerline 1300 AV2 Adapter
- Product category: Powerline Networking TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Powerline Networking
 |
User manual for the TRENDnet TPL-423E2K Powerline 1300 AV2 Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

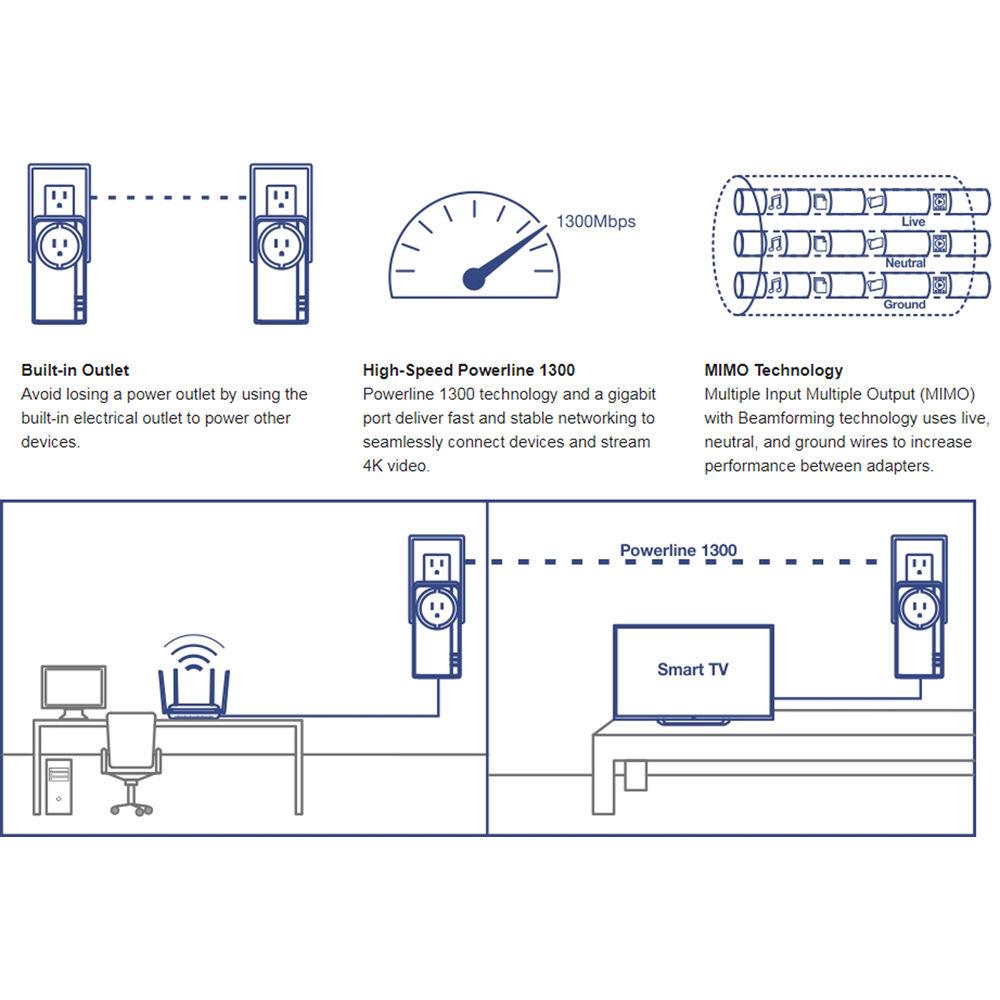

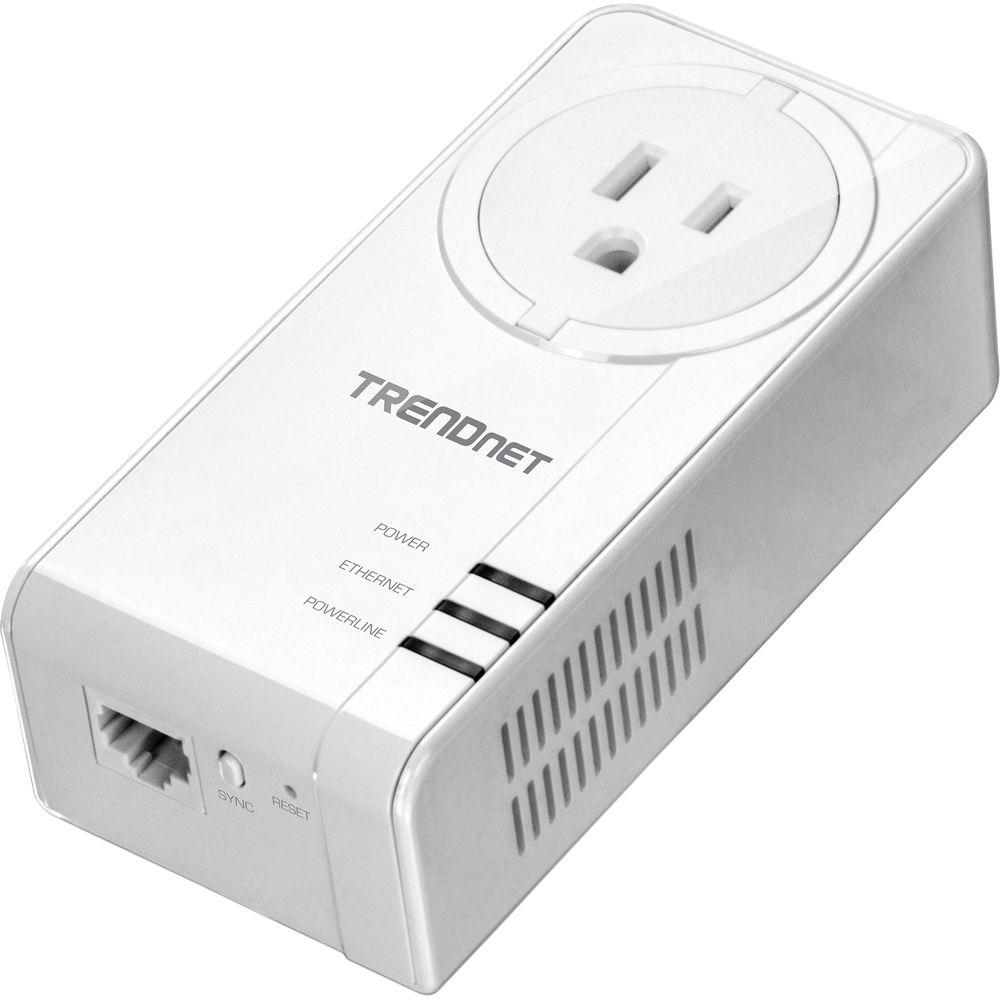

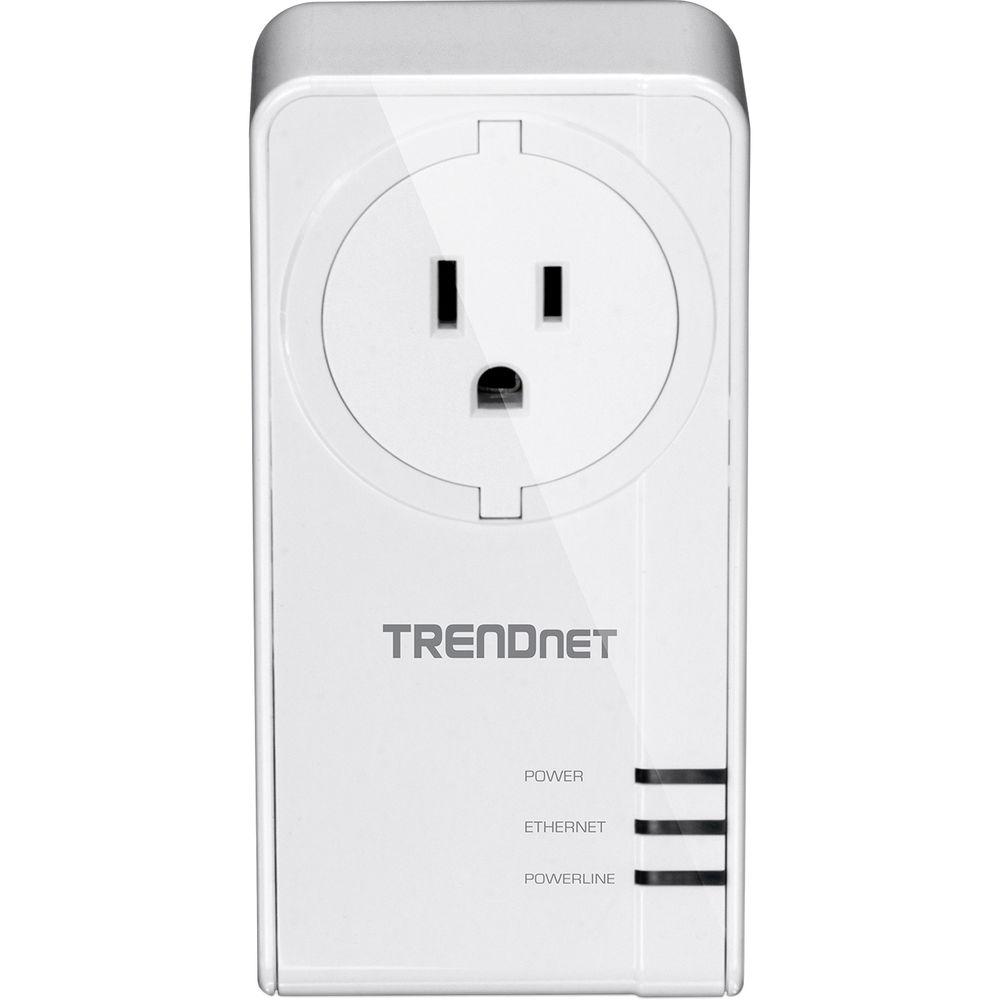

Product description Expand your networking using your home's electrical outlets with the TPL-423E2K Powerline 1300 AV2 Adapter Kit with Built-In Outlet from TRENDnet. This Powerline networking kit comes with two adapters' each equipped with a built-in electrical outlet. Setup is simple, thanks to the dedicated sync button making it easy to connect the two adapters to one another. Once configured, these network adapters use the electrical wiring to transmit data at speeds of up to 1300 Mb/s, thanks in large part to MIMO and beamforming technologies built right into each adapter. Want to expand your Powerline network? You can, as this kit supports a total of eight adapters on the network, and they are cross-compatible with 1200, 600, 250, and 200 Powerline adapters. -
- Includes two TPL-423E adapters
- Powerline 1300 networking over existing electrical lines
- Powerline noise filter minimizes interference from powered devices

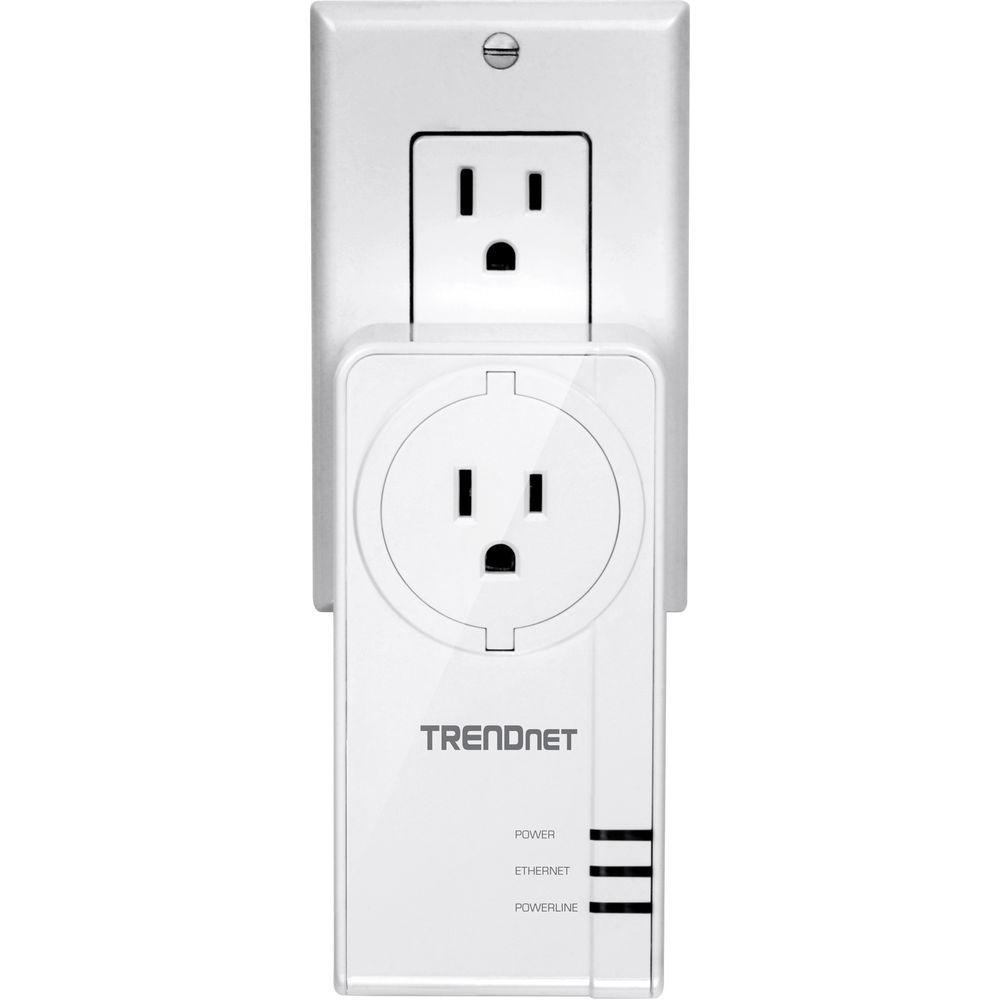

- Built-in electrical outlet
- Enhanced Powerline performance and range from MIMO with Beamforming technology
- Encrypted TRENDnet adapters auto-connect out of the box
- Gigabit port for high-speed connectivity
- Powerline range up to 984' (300 m)
- Two Powerline adapters are required to start a network
- Cross compatible with Powerline 1200, 600, 500, and 200 adapters
UPC: 710931150513 In the Box TRENDnet TPL-423E2K Powerline 1300 AV2 Adapter Kit with Built-In Outlet 2 x Network Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPL-423E2K Powerline 1300 AV2 Adapter Kit with Built-In Outlet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet Powerline 1300 AV2 Specs | Maximum Data Rate | 1300 Mb/s | | Number of Ethernet Ports | 1 | | Ethernet Standards | IEEE 1901, IEEE 1905.1, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x | | Ethernet Speed | 10/100/1000 Mb/s | | Powerline Frequency Band | 2 to 68 MHz | | Protocol | CSMA/CA | | Modulation Technology | QAM, BPSK, QPSK, OFDM, ROBO Carrier | | Maximum Networking Distance | 980' / 298.704 m | | Plug Type | US (3-Pin) | | AC Pass-Through | Yes | | Wi-Fi Standards | None | | Maximum Nodes | 8 | | Encryption | 128-Bit AES | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Active Power Consumption | 4 W | | Standby Power Consumption | 0.5 W | | Current | 10 A | | Operating System Support | Windows | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 0 to 90% | | Dimensions (W x H x D) | 4.7 x 2.4 x 2.6" / 11.9 x 6.1 x 6.6 cm | | Weight | 6.2 oz / 175.8 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 8.0 x 6.5 x 3.5" |
