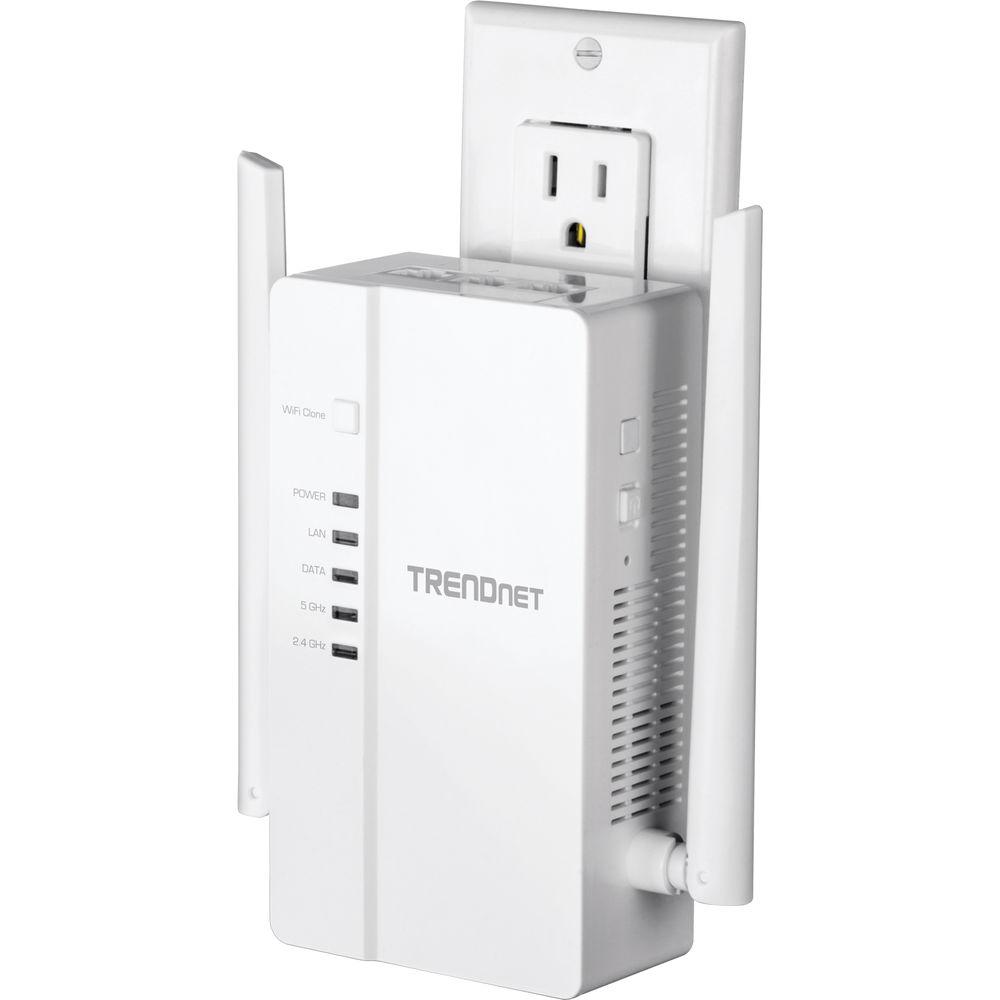

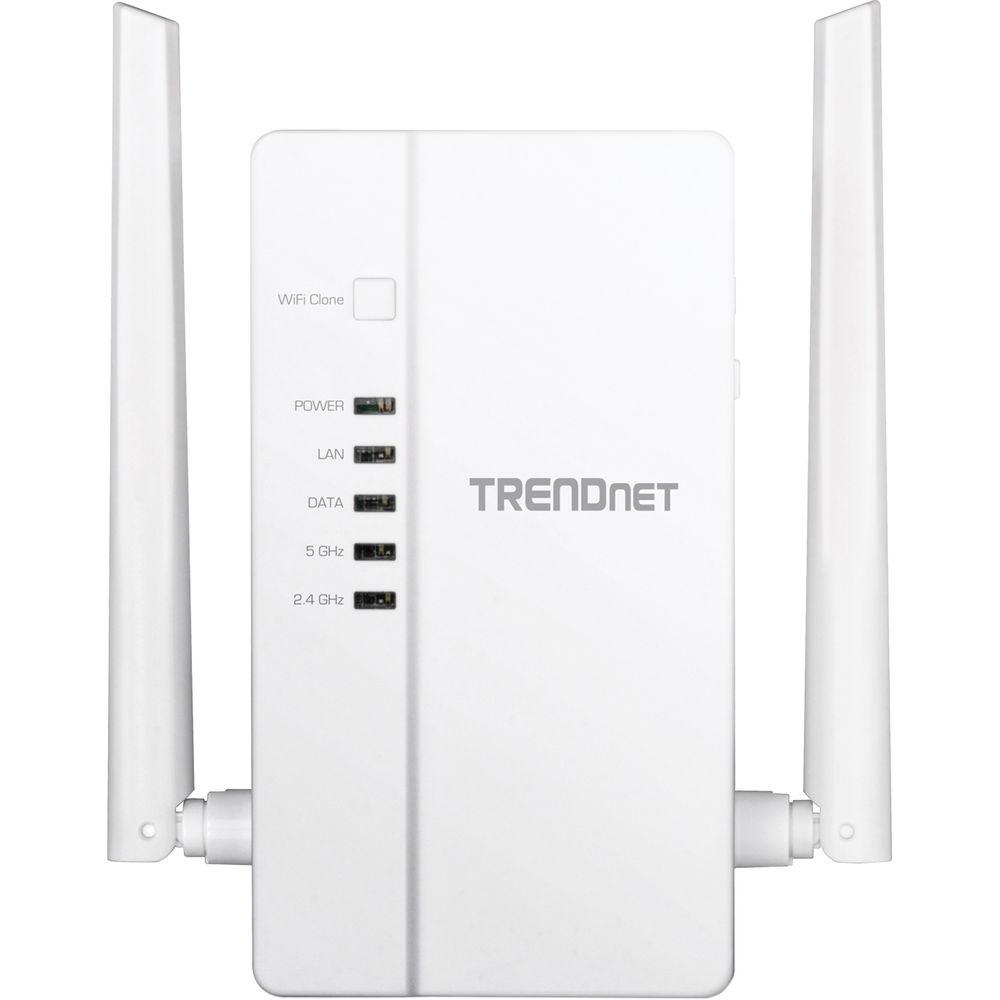

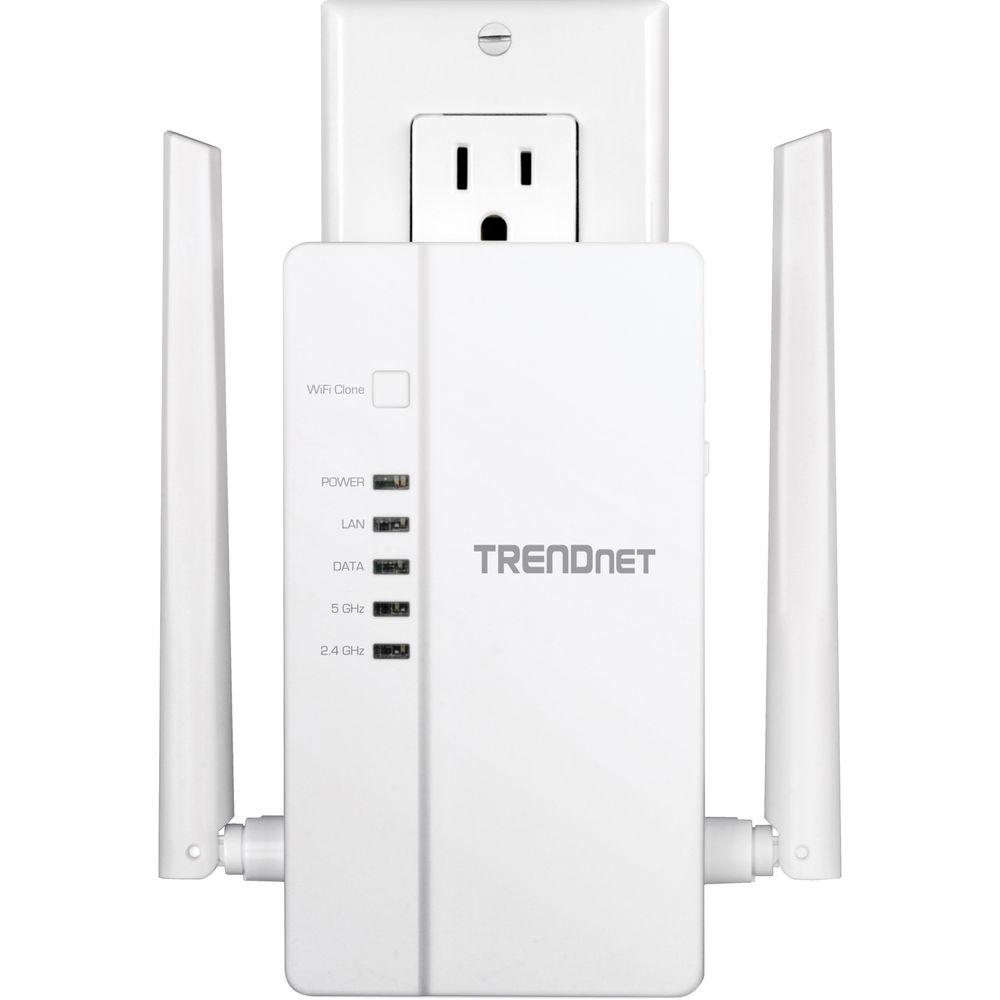

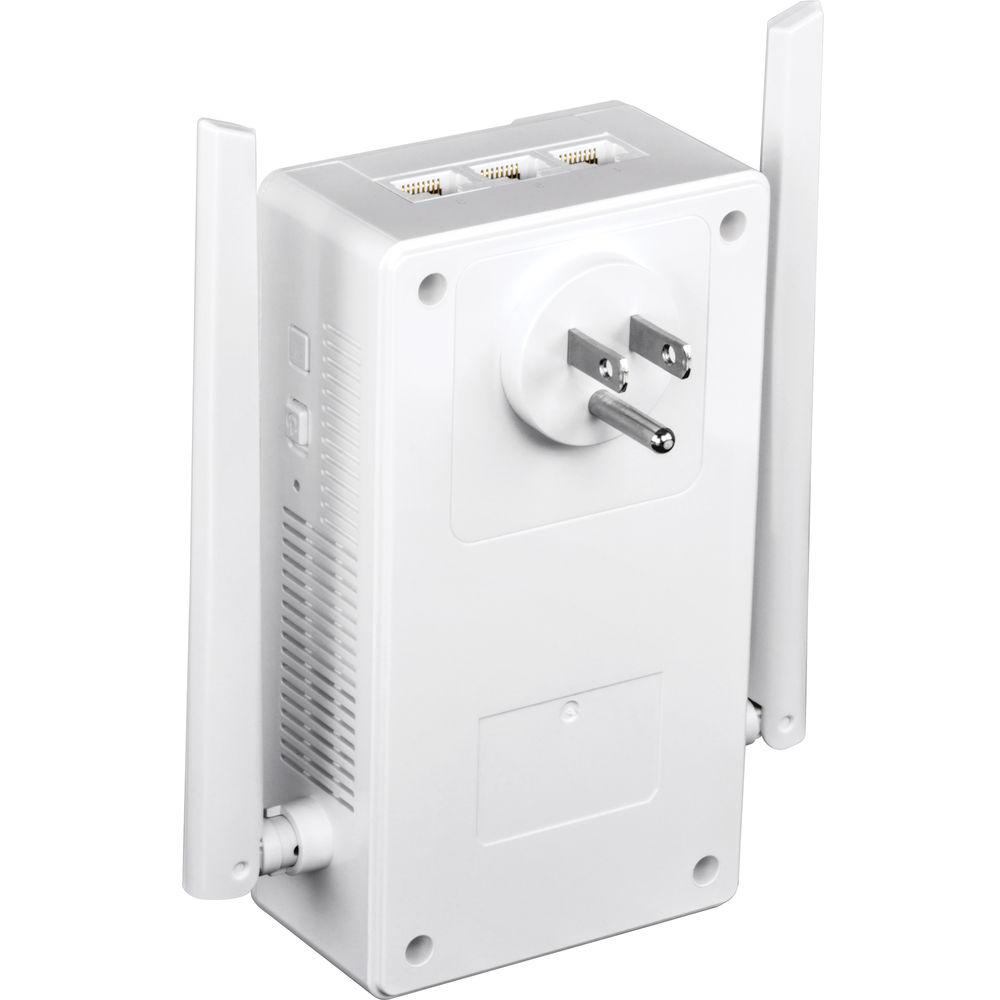

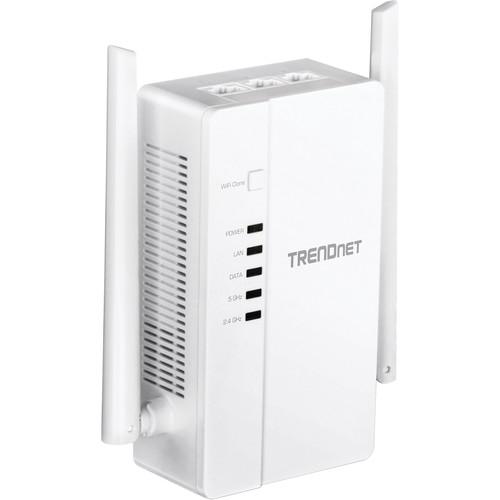

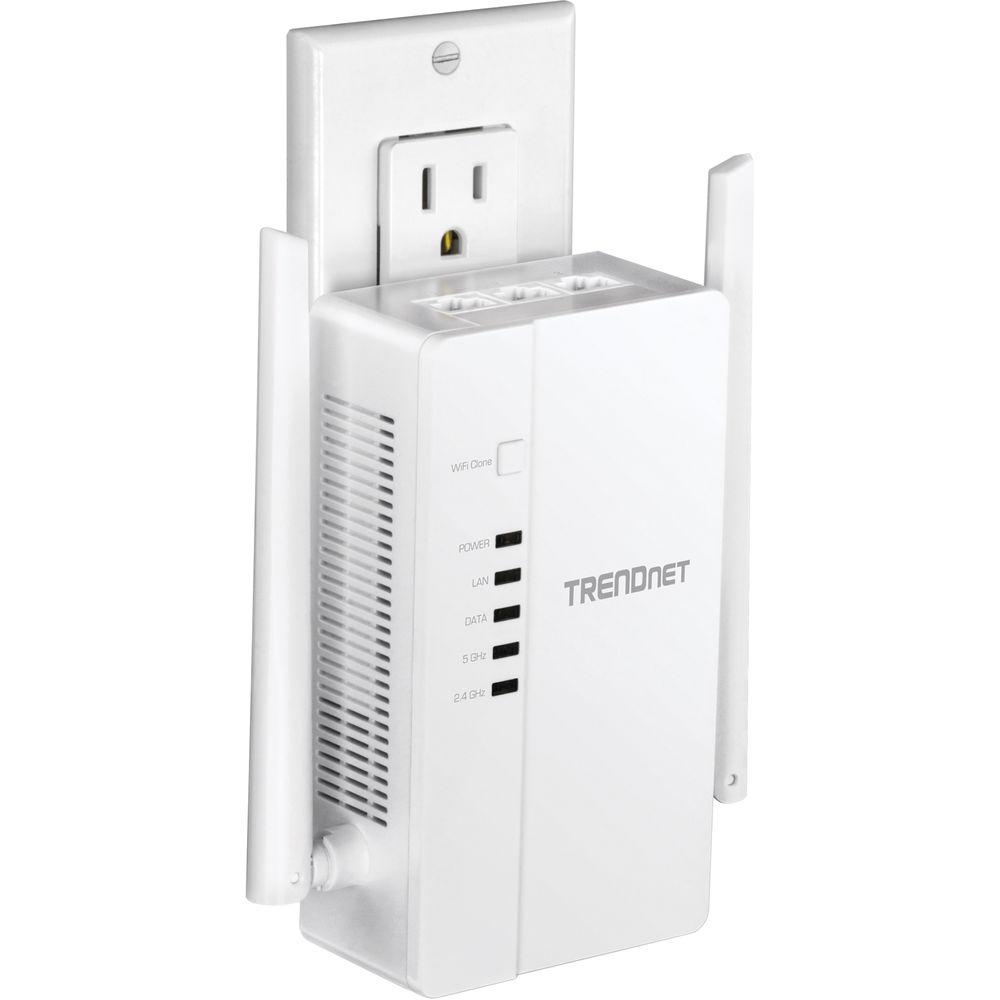

User Manual for TRENDnet TPL-430AP Wi-Fi Everywhere Powerline 1200 AV2 Access Point Click to enlarge the picture
Contents of the user manual for the TRENDnet TPL-430AP Wi-Fi Everywhere Powerline 1200
- Product category: Wireless Access Points TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Access Points
 |
User manual for the TRENDnet TPL-430AP Wi-Fi Everywhere Powerline 1200 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

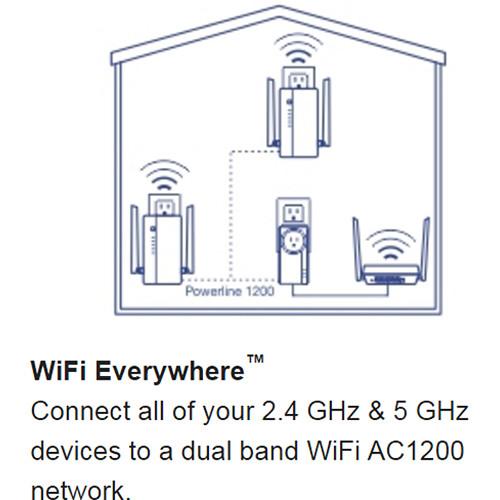

Product description With the TPL-430AP Wi-Fi Everywhere Powerline 1200 AV2 Access Point from TRENDnet you can take advantage of enhanced powerline networking capabilities supporting data transfer rates of up to 1200 Mbps. This easy-to-install access point features auto-connect functionality making it easy to configure the TPL-430AP to work with an existing powerline network setup.
Once configured, this access point supports 802.11ac Wi-Fi and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1200 Mbps. In addition to enhanced wireless transfer rates, Wi-Fi clients can also take advantage of both MIMO and beamforming technologies, ensuring wireless connections are both stable and reliable. Along with wireless connectivity, this access point comes equipped with three Gigabit Ethernet ports for a reliable wired connection. - Powerline
-
- Press the Sync button to change existing Powerline encryption keys
- Powerline networking over existing electrical lines uses all three electrical wires (live, neutral, and ground) to achieve faster throughput speeds

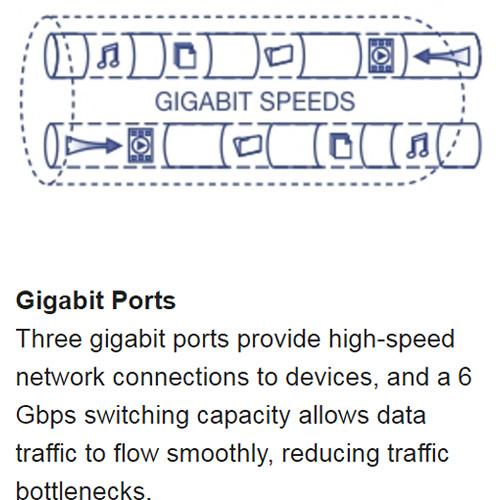

- Three convenient gigabit ports to hardwire computers, smart TVs, or other network enabled devices
- Backward compatible with Powerline 600, 500, and 200 adapters
- Enhanced performance and range
- Use up to 8 adapters on a single Powerline network
- TRENDnet adapters auto-connect out of the box
- The adapter is pre-encrypted for your convenience
- Wireless
-
- AC1200: concurrent 867 Mbps Wi-Fi AC + 300 Mbps Wi-Fi N bands
- Expand your wireless coverage with MIMO antenna technology
- For your convenience, the wireless is pre-encrypted with a unique password

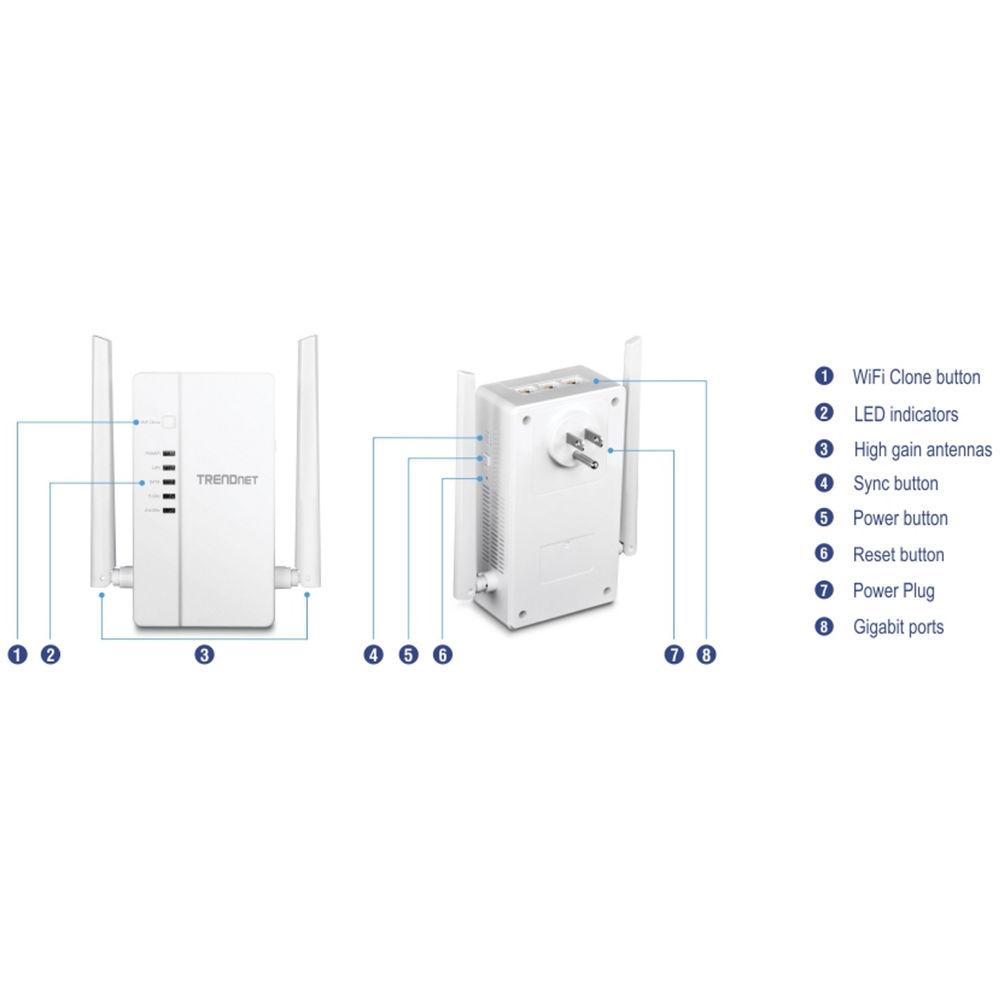

- Use your router's WPS button and the TPL-430AP's Wi-Fi Clone button to conveniently copy your existing wireless network name and password for quick network integration
- Additional Features
-
- Auto-connects to other TRENDnet Powerline adapters
- Additional Ethernet ports for wired connectivity
- Automatically clones the SSID and password of your Wi-Fi network
- IPv6 support
- QoS Management
- IGMP / MLDv2 Streams
UPC: 710931150421 In the Box TRENDnet TPL-430AP Wi-Fi Everywhere Powerline 1200 AV2 Access Point Network Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPL-430AP Wi-Fi Everywhere Powerline 1200 AV2 Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPL-430AP Specs | Maximum Data Rate | 1200 Mb/s | | Number of Ethernet Ports | 3 | | Ethernet Standards | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x | | Ethernet Speed | 10/100/1000 Mb/s | | Powerline Frequency Band | 2 to 67 MHz | | Protocol | CSMA/CA | | Modulation Technology | QAM, BPSK, QPSK, OFDM, ROBO Carrier | | Maximum Networking Distance | 984.25' / 300 m | | Plug Type | US (3-Pin) | | AC Pass-Through | No | | Wi-Fi Standards | IEEE 802.11ac | | Wi-Fi Bands | 2.4 GHz, 5 GHz | | Maximum Nodes | 8 | | Encryption | 128-Bit AES | | Wireless Security | WPA-PSK | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.2 A | | Active Power Consumption | 12 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Dimensions (W x H x D) | 10.0 x 5.1 x 3.0" / 25.4 x 13.0 x 7.6 cm | | Weight | 11.7 oz / 331.7 g | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.9 x 7.9 x 4.0" |
