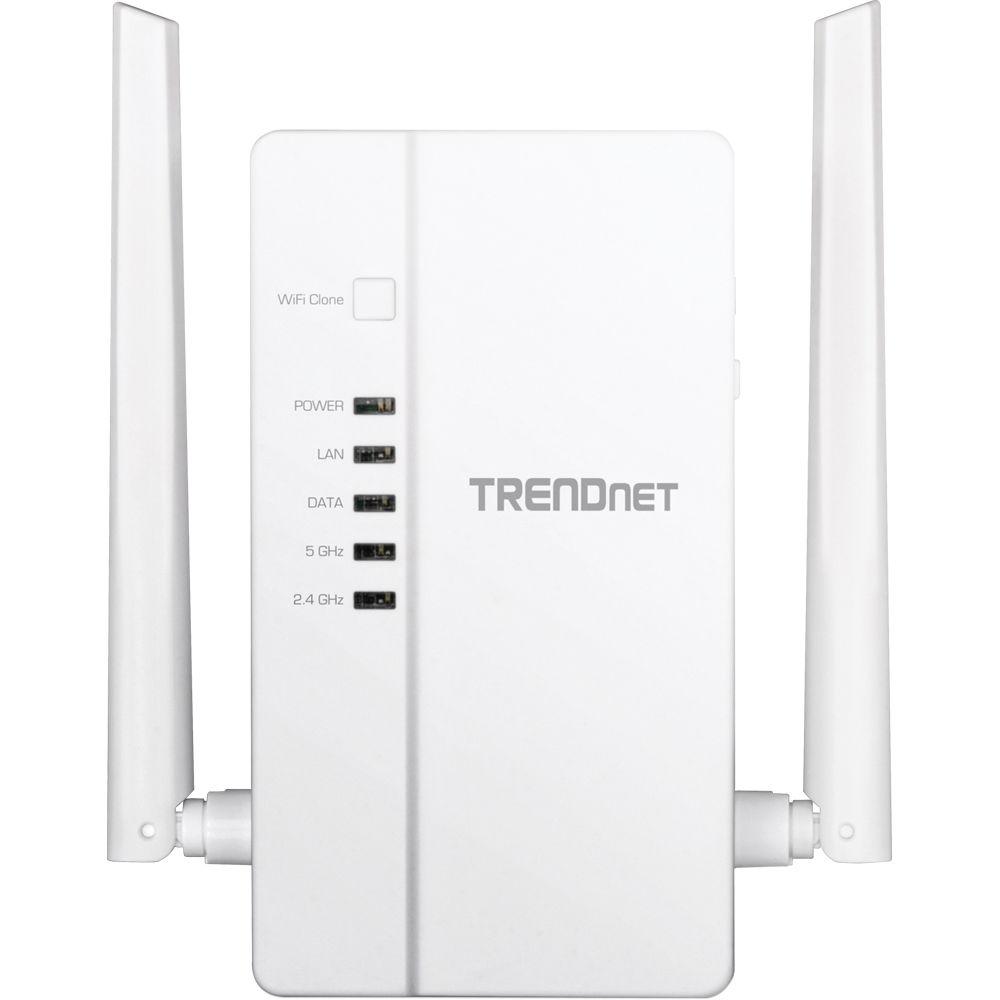

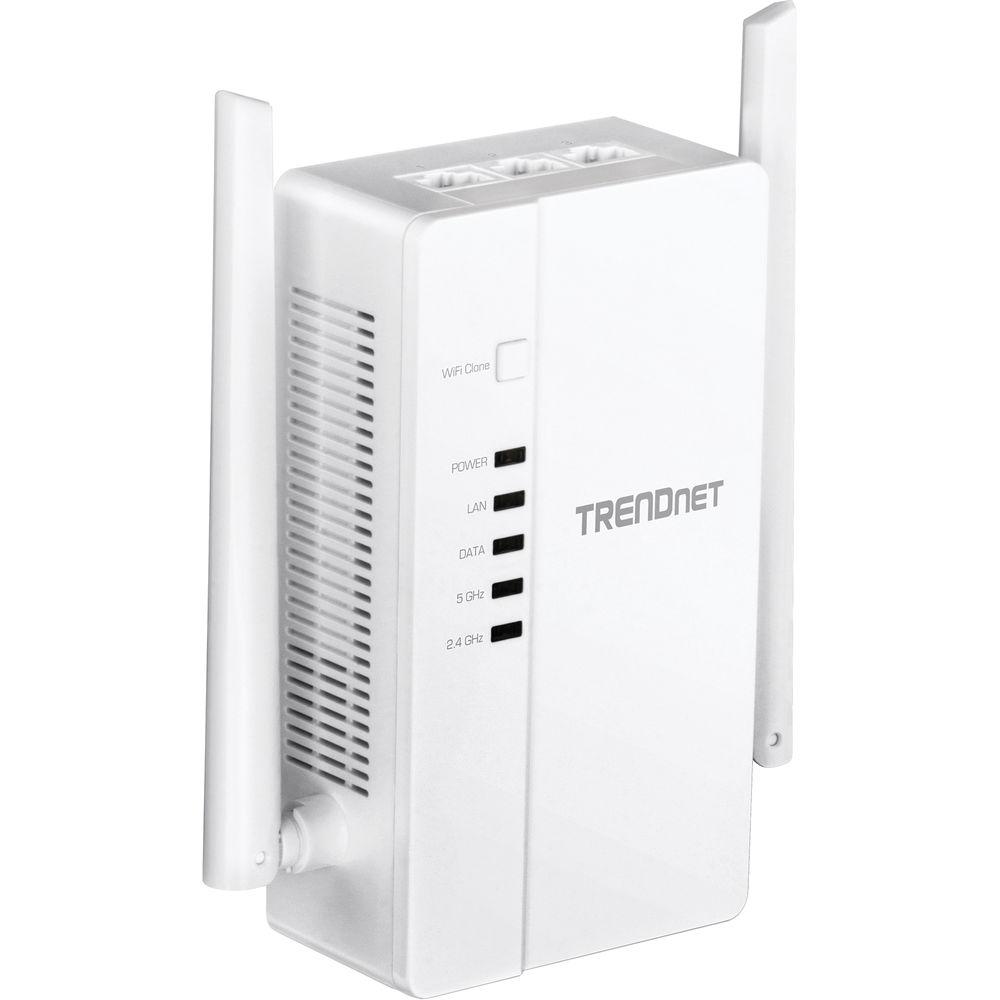

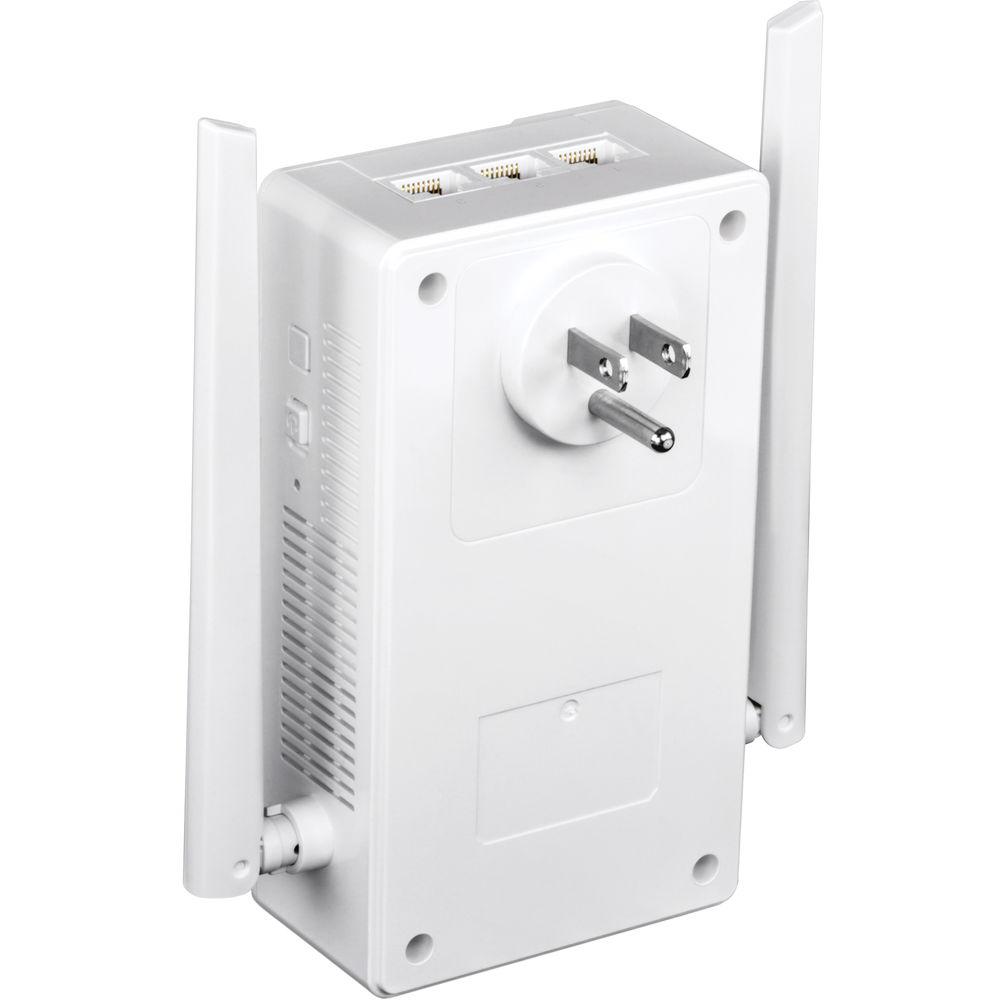

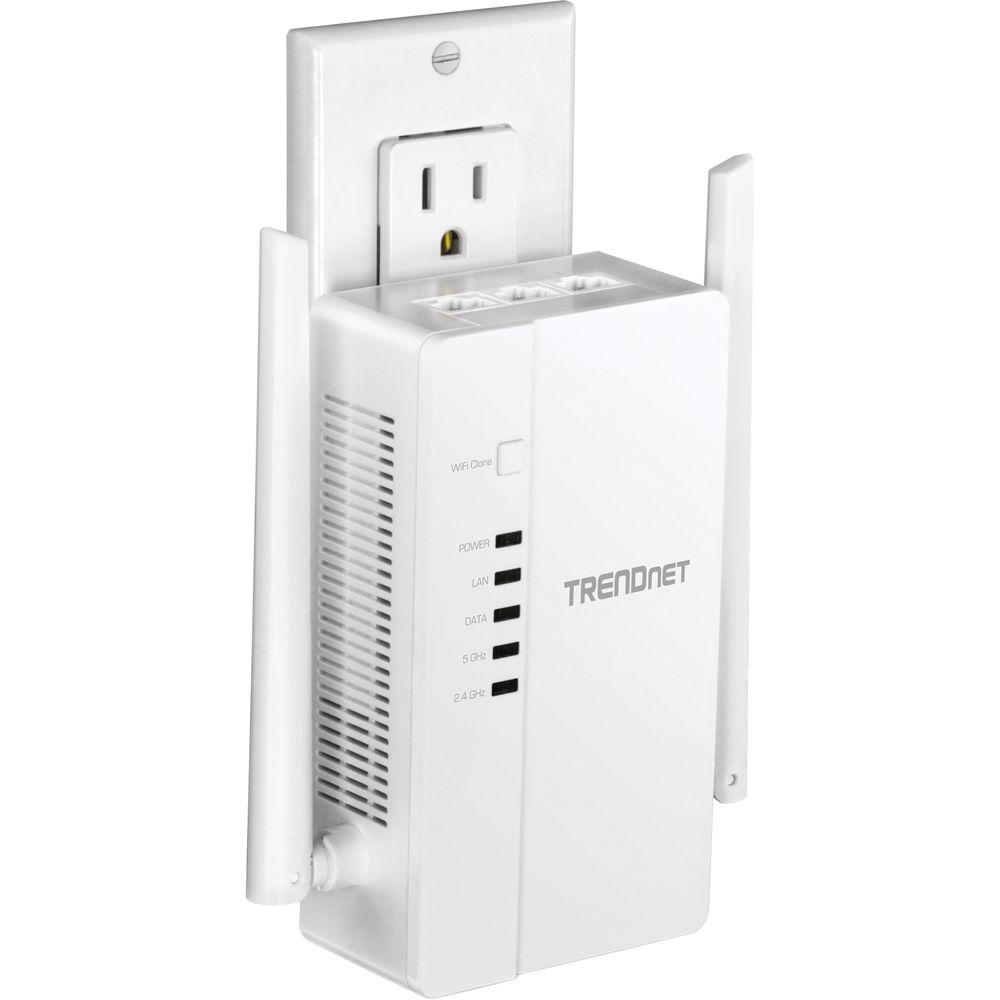

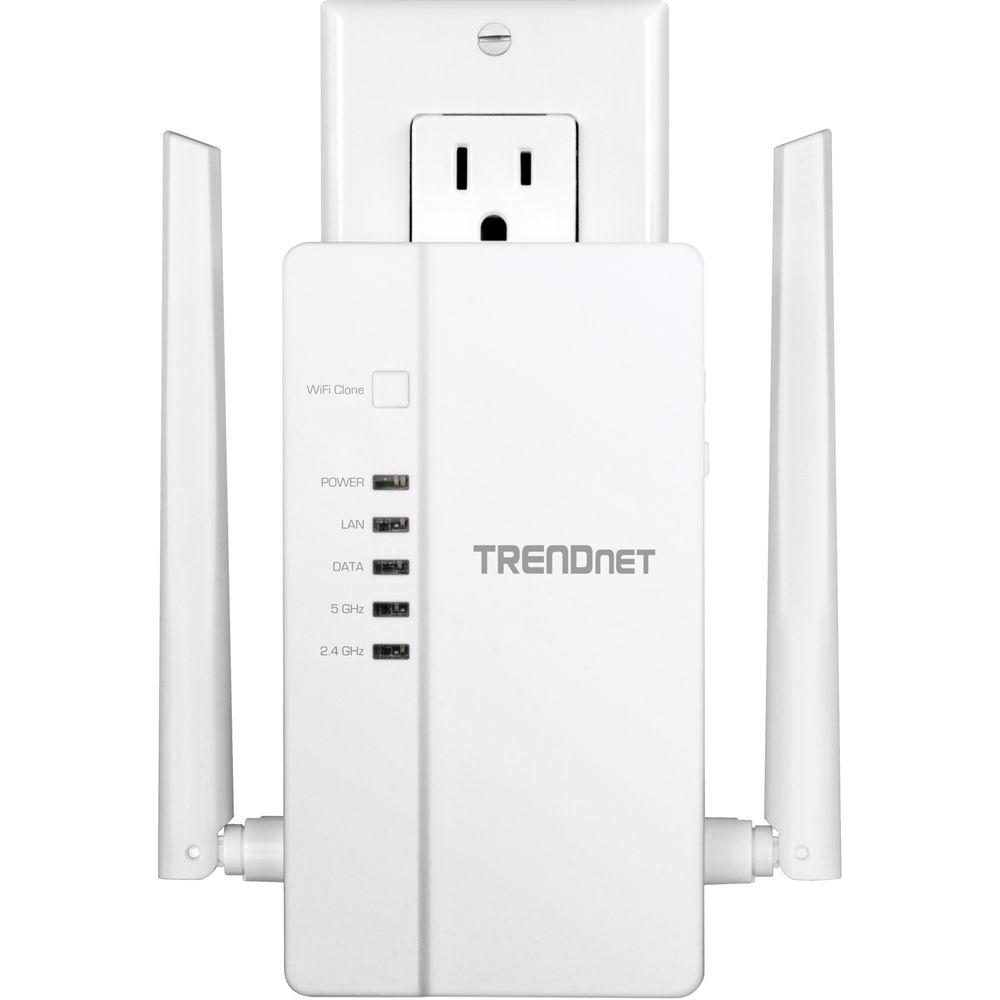

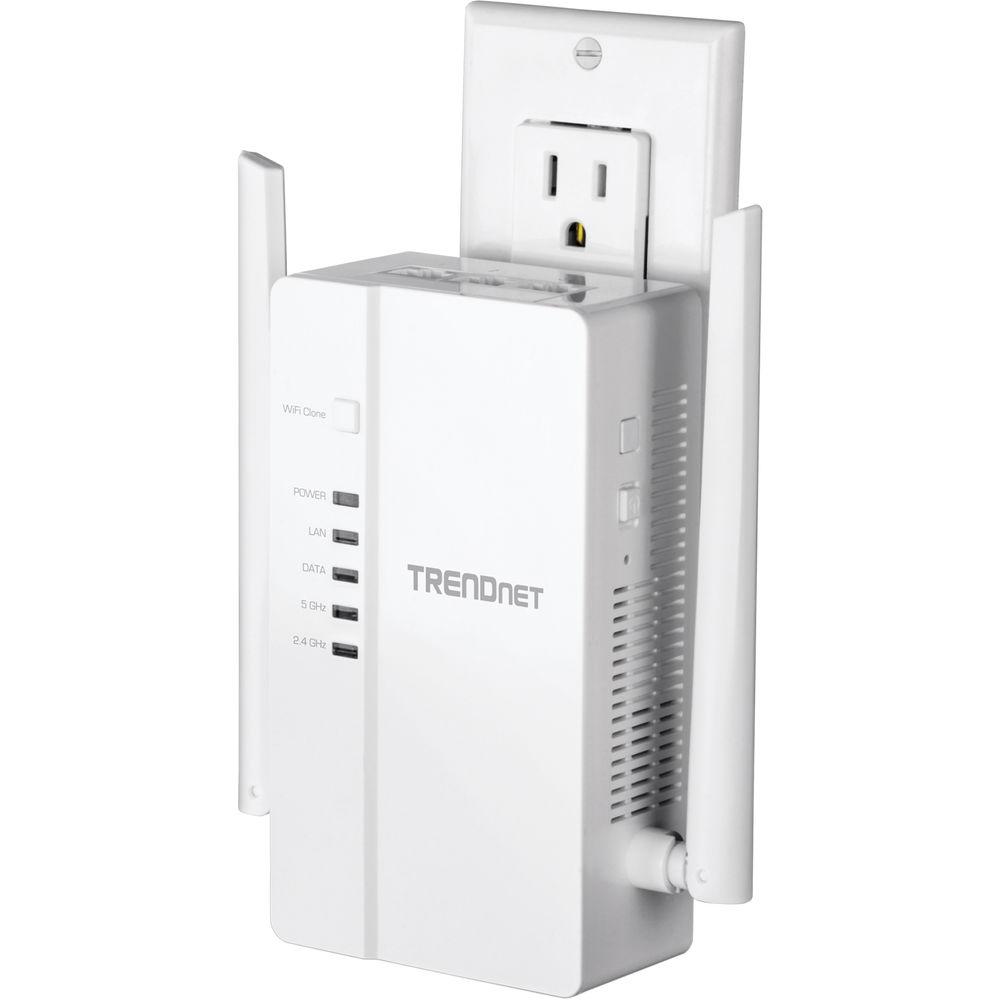

User Manual for TRENDnet TPL-430APK Wi-Fi Everywhere Powerline 1200 AV2 Wireless Kit Click to enlarge the picture
Contents of the user manual for the TRENDnet TPL-430APK Wi-Fi Everywhere Powerline 1200
- Product category: Powerline Networking TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Powerline Networking
 |
User manual for the TRENDnet TPL-430APK Wi-Fi Everywhere Powerline 1200 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description With the TPL-430APK Wi-Fi Everywhere Powerline 1200 AV2 Wireless Kit from TRENDnet you have everything you need to expand your network to areas previously outside the reach of your existing Wi-Fi network.

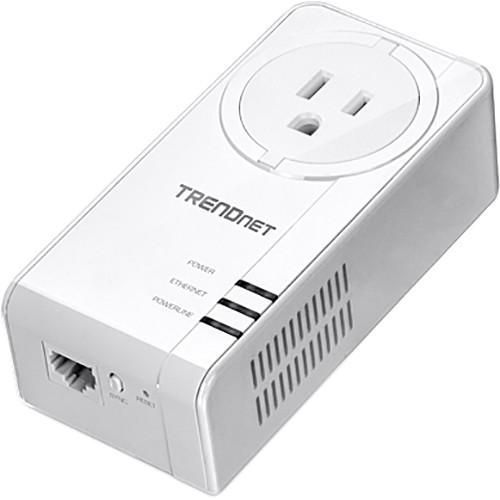

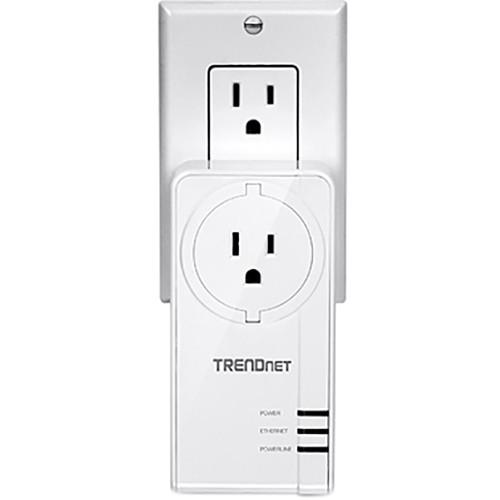

The included TPL-421E Powerline 1200 AV2 Adapter comes equipped with a built-in outlet allowing you to plug electrical devices into the outlet occupied by the adapter. With auto-connect technology this adapter is virtually plug-and-play and it comes pre-encrypted eliminating the need to set security protocols. Simply attach the adapter to your network via the Gigabit Ethernet port and plug it in to a nearby electrical outlet to take advantage of data transfer rates of up to 1200 Mb/s at distances up to 980'.
Plug in the TPL-430AP Wi-Fi Everywhere Powerline 1200 AV2 Access Point on the same electrical circuit to take advantage of enhanced powerline networking capabilities including data transfer rates of up to 1200 Mb/s. This easy-to-install access point features auto-connect functionality making it easy to configure the TPL-430AP to work with an existing powerline network setup.

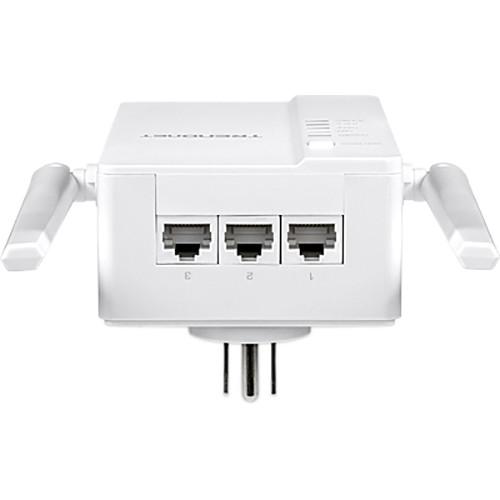

Once configured, this access point supports 802.11ac Wi-Fi and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1200 Mb/s. In addition to enhanced wireless transfer rates, Wi-Fi clients can also take advantage of both MIMO and beamforming technologies, ensuring wireless connections are both stable and reliable. Along with wireless connectivity, this access point comes equipped with three Gigabit Ethernet ports for a reliable wired connection. -
- Powerline 1200 networking over existing electrical lines
- Powerline kit includes TPL-421E and TPL-430AP
- TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
- Enhanced Powerline performance and range from MIMO with Beamforming technology
- Easy installation - TRENDnet adapters auto-connect out of the box
- Pre-encrypted for your convenience
- Powerline range of up to 984' over existing electrical lines
- Wi-Fi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
UPC: 710931150452 In the Box TRENDnet TPL-430APK Wi-Fi Everywhere Powerline 1200 AV2 Wireless Kit 2 x Network Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TPL-430APK Wi-Fi Everywhere Powerline 1200 AV2 Wireless Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TPL-430APK Specs | | | Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300Mb/s)
IEEE 802.11ac (up to 866Mb/s)
IEEE 1901 | | Device Interface | 3 x Gigabit LAN ports
Wi-Fi Clone button
Reset button
Sync button
Power switch
LED indicators
Power Plug: North America Type B (NEMA 5-15) | | Frequency Band | 2 - 67 MHz | | Modulation | OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
CSMA/CA | | Networking Distance | Powerline: Up to 980' / 300 m linear distance over electrical power lines | | Encryption | Wireless: WPA2-PSK
Powerline: 128-bit AES (Advanced Encryption Standard) | | Nodes | Up to 8 (max.) | | Overlapping Powerline Networks | Up to 4 (per electrical system) | | Antenna Gain | 2.4 GHz: 2 x 3.31 dBi
5 GHz: 2 x 4.51 dBi | | Wireless Output Power/Receiving Sensitivity | 802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54 Mb/s
802.11b: 20 dBm (typical) / -88 dBm (typical) @ 11 Mb/s
802.11g: 15 dBm (typical) / -76 dBm (typical) @ 54 Mb/s
802.11n (2.4 GHz): 13 dBm (typical) / -73 dBm (typical) @ 300 Mb/s
802.11n (5 GHz): 16 dBm (typical) / -70 dBm (typical) @ 300 Mb/s
802.11ac (5 GHz): 15 dBm (typical) / -60 dBm (typical) @ 866 Mb/s | | Power | Input: 100 to 240 VAC, 50 - 60 Hz, 0.2 A
Active Mode Consumption: 12 W (max.) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
Max. 90% non-condensing | | Certifications | CE, FCC, IC, UL | | Dimensions | 10.04 x 5.11 x 2.95" / 255 x 130 x 75 mm | | Weight | 11.7 oz / 332 g | | | | Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 1901 | | Device Interfaces | Ethernet port
Sync / reset button
Status LEDs
Power Plug: North America Type B (NEMA 5-15) | | Frequency Bands | 2 - 68 MHz | | Data PHY Rate | Up to 1200 Mb/s | | Networking Distance | Up to 980' / 300 m linear distance over electrical power lines | | Security | 128-Bit AES (Advanced Encryption Standard) | | Nodes | Up to 8 (max.) | | Overlapping Powerline Networks | Up to 4 (per electrical system) | | Current | 110 VAC, 20 A (max.)
220 VAC, 16 A (max.) | | Power | Input: 100 to 240 VAC, 50/60 Hz
Consumption
Active Mode: 2.7 W (max.)
Standby Mode: 0.34 W (max.) | | Temperature & Humidity | Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
Max. 90% non-condensing | | Certifications | CE, FCC, UL | | Dimensions | 2.4 x 4.8 x 2.6" / 61 x 123 x 65 mm | | Weight | 3.7 oz / 104 g | | | | Package Weight | 2.43 lb | | Box Dimensions (LxWxH) | 17.0 x 9.6 x 4.0" |
