User Manual for TRENDnet TU3-DS2 Universal USB 3.0 Docking Station Click to enlarge the picture
Contents of the user manual for the TRENDnet TU3-DS2 Universal USB 3.0 Docking
- Product category: Docking Stations & Port Replicators TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Docking Stations & Port Replicators
 |
User manual for the TRENDnet TU3-DS2 Universal USB 3.0 Docking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|

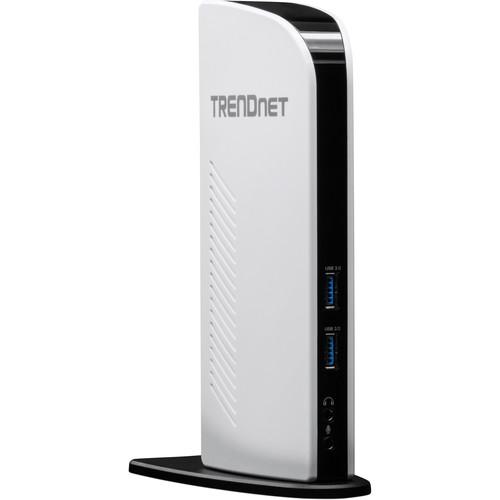

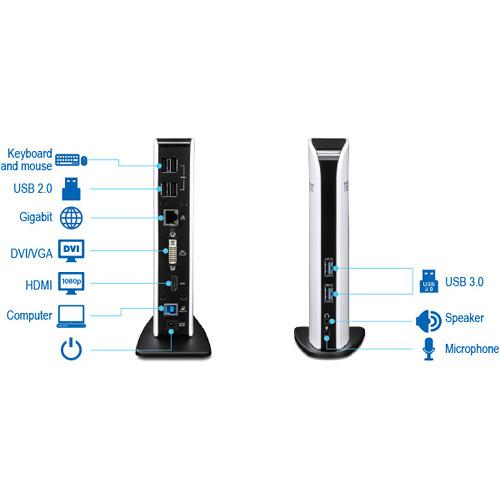

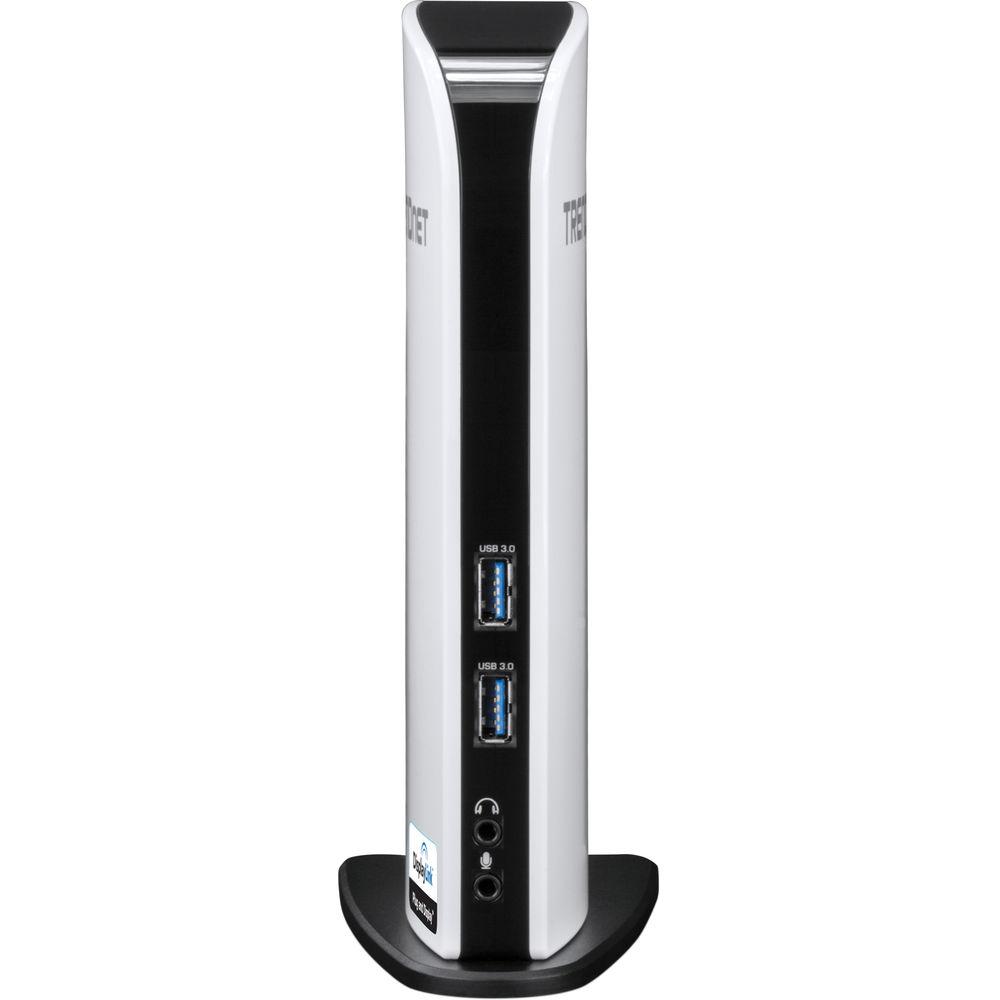

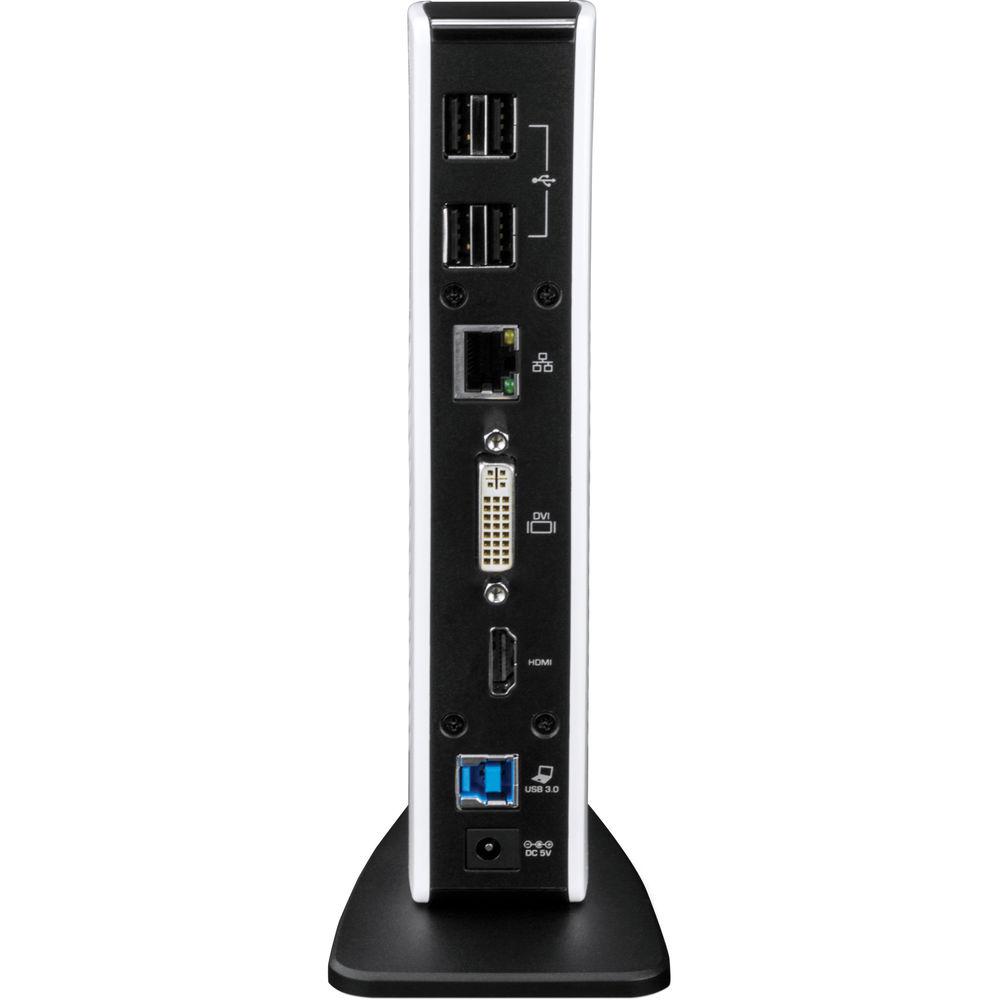

Product description Turn your Windows- or Mac-based laptop computer into a fully functional workstation with the TU3-DS2 Universal USB 3.0 Docking Station from TRENDnet. This docking station features a plethora of ports designed to support a variety of monitors and computer peripherals. On the back, you will find four USB 2.0 ports to connect devices like your mouse and keyboard. Beneath that is a single Gigabit Ethernet network port, a DVI/VGA input, an HDMI input, and a USB 3.0 computer connection port. On the front side of this docking station, you will find dual USB 3.0 ports and two 3.5 mm audio jacks, one for a speaker and another for your microphone. -
- Build your ideal workstation by connecting all devices to the TU3-DS2. Quickly dock your computer by simply connecting with the included high-speed USB 3.0 cable

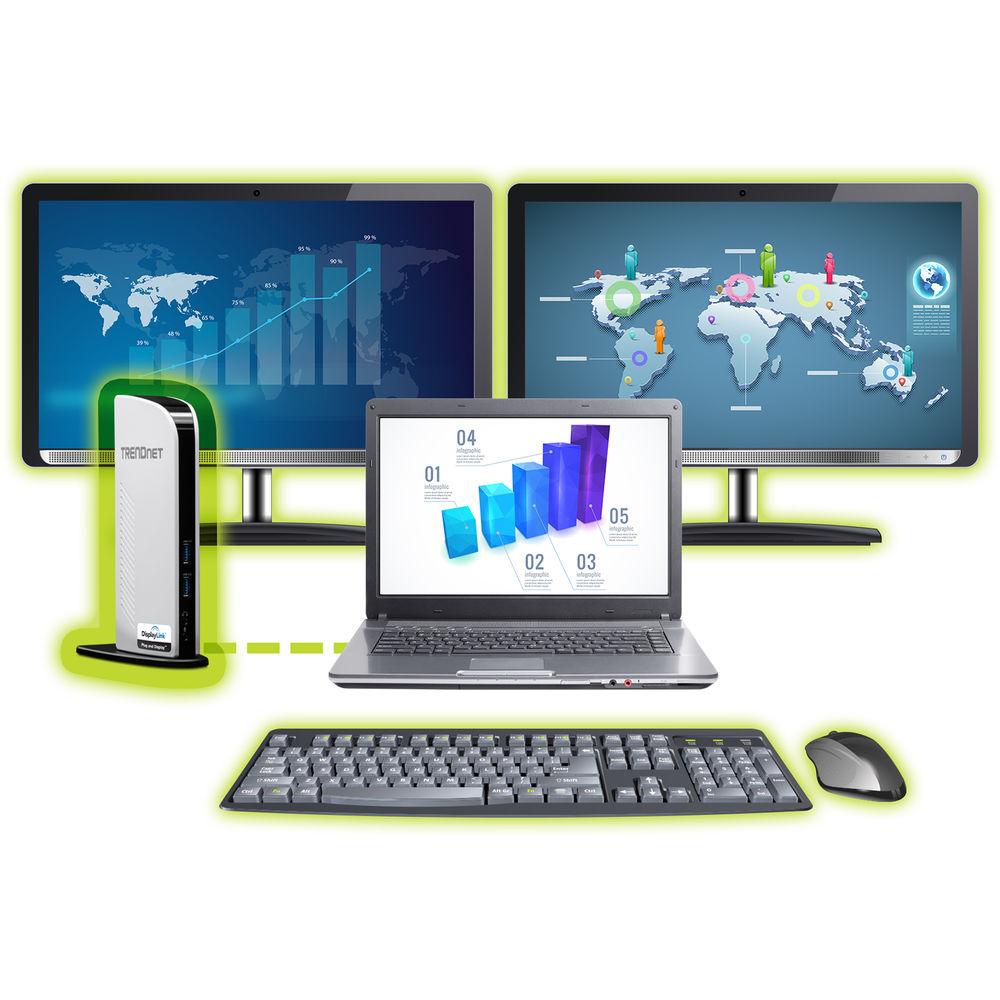

- Add two 1080p HD displays to your workstation for a total of up to 3 displays (includes your computer's display). Connect an HDMI and DVI display to the TU3-DS2 and set your computer to extend mode
- Full 5.1 audio channel support is provided to the connected HDMI display. Analog audio headphone ports on the front of the docking station override HDMI display audio.
- Connect USB 3.0 devices (ex: storage, flash drives, etc…) to the two 5 Gb/s USB 3.0 ports. Network other USB devices to the four USB 2.0 ports (ex: keyboard, mouse, printer, scanner, etc.)
- Connect to the network with a high-performance Gigabit network port
- Compatible with Windows and Mac operating systems
- Vertical space saving design connects all workstation peripherals using a small desktop footprint
UPC: 710931180046 In the Box TRENDnet TU3-DS2 Universal USB 3.0 Docking Station Power Adapter VGA to DVI Adapter USB 3.0 Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TU3-DS2 Universal USB 3.0 Docking Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TU3-DS2 Specs | Standards | DVI HDDE
HDMI 1.3
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az
USB 2.0
USB 3.0 | | Interface | 1 x HDMI 30-pin female
1 x DVI 30-pin female
1 x VGA to DVI adapter
1 x Gigabit Ethernet port
1 x Type B USB 3.0 port (computer connection)
2 x Type A USB 3.0 ports
4 x Type A USB 2.0 ports
1 x 3.5 mm microphone jack
1 x 3.5 mm speaker jack
LED indicators | | Monitor | HDMI: Max. QXGA 2048 x 1536 resolution (supports full 1080p)
DVI: Max. 2048 x 1152 resolution
16-bit and 32-bit true color support | | Audio | 2.0 Channel (audio ports)
5.1 Channel (over HDMI) | | Temperature & Humidity | Operating Temperature: 32 to 104°F / 0 to 40°C
Operating Humidity: Max. 90% non-condensing | | Power | Input: 100 to 240 VAC, 50/60 Hz, 0.8 A
Output: 5 VDC, 4 A external power adapter
Consumption: 18.2 W (max.) | | Certifications | CE, FCC | | Dimensions | 7.7 x 3.0 x 2.8" / 195 x 80 x 70 mm | | Weight | 12.8 oz / 364 g | | | | Package Weight | 2.2 lb | | Box Dimensions (LxWxH) | 11.0 x 7.5 x 4.5" |
