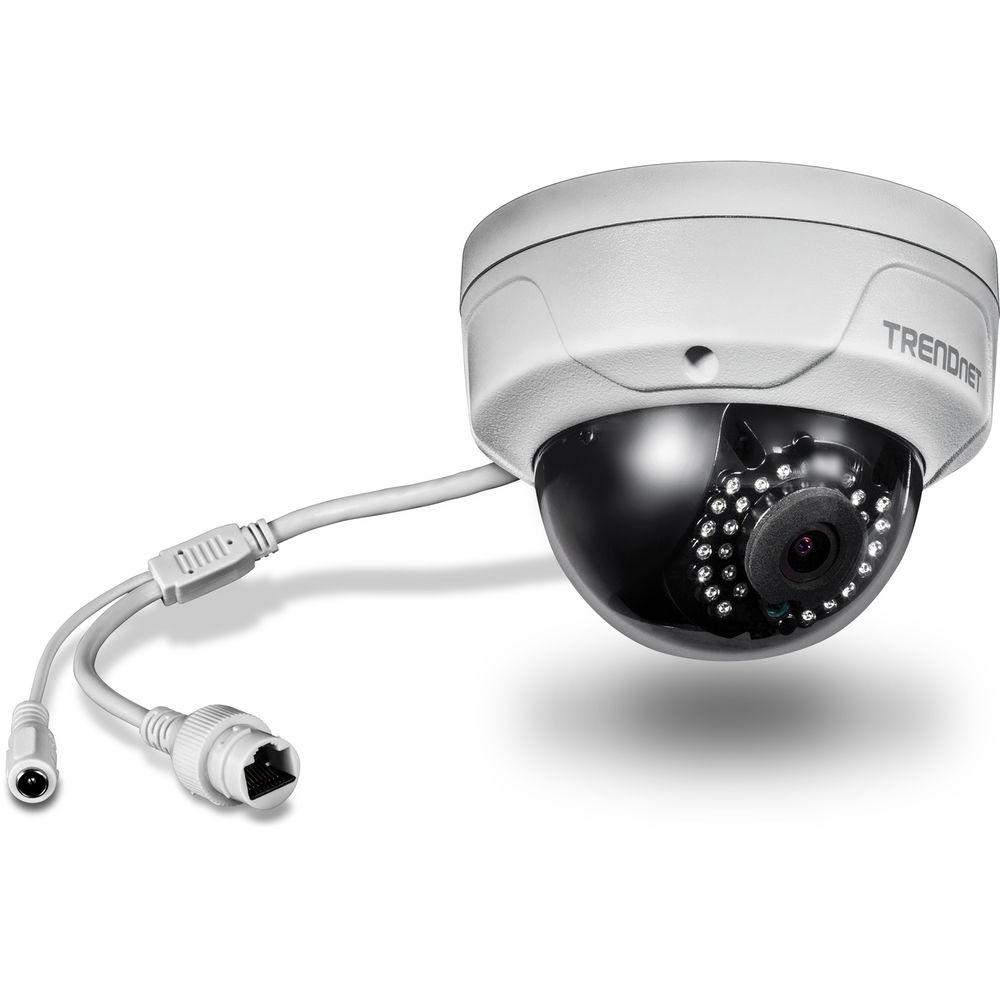

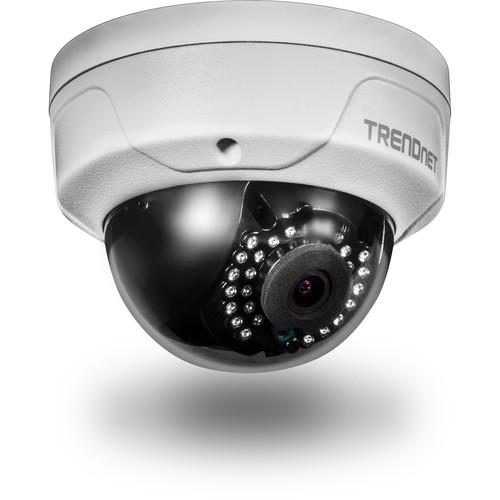

Product description Able to operate in extreme weather conditions, the TV-IP315PI 4MP Outdoor Network Dome Camera with Night Vision from TRENDnet features a 4MP 1/3" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at up to 20 fps. An IR cut filter and IR LEDs allow this camera to produce clear images in complete darkness from up to 98' away. A wide 98° diagonal field of view is possible thanks to the 4mm fixed lens. Digital noise reduction (3D-DNR) and up to 120 dB wide dynamic range further help the camera produce clear images in varying lighting conditions.
The included software helps you manage up to 32 TRENDnet cameras (available separately), while the free apps for iOS and Android provide a quick and easy way to monitor connected cameras. The camera is enclosed in an IP66- and IK10-rated housing for protection against dust, water, and impact. ONVIF compliance allows this camera to be used with a wide range of other surveillance products. Power can be supplied through the RJ45 Ethernet port via PoE or through the standard power jack with a power supply (available separately). - 4MP 1/3" progressive scan CMOS sensor captures up to 2688 x 1520 resolution at 20 fps and 1920 x 1080 resolution at 30 fps
- 4mm fixed lens with a 98° field of view
- Adjustable mounting bracket allows for positioning to fit your needs
- IR cut filter with Smart IR and IR LEDs allow the camera to see at night from up to 98' away
- 3D-DNR and WDR help produce accurate and clear images in changing and varying lighting conditions
- TRENDnetView Pro software and TRENDnet IPView App for remote and mobile viewing and control
- IP66- and IK10-rated housing for outdoor use
- Other Features
- • Multi-language interface
• IP address filtering
• QoS traffic prioritization
• Time, date, and text overlay
• Adjustable image settings (brightness, contrast, saturation, hue, sharpness, smart IR, exposure time (1/3 to 1/100,000s), scan rate, mirror, flip, WDR, back light compensation, white balance, digital noise reduction)
• WDR enhances video quality in high contrast daytime lighting
• Digital Noise Reduction enhances night vision quality
• Recording to computer, NAS, SMB/CIFS share, or through software
• Scheduled recording for continuous and motion detection
• Motion detection fields for defining custom motion detection areas, motion sensitivity, and dynamic motion analysis
• Privacy masks for defining custom privacy areas
• Video tamper detection sends out email notifications if the viewing field darkens suddenly
• Video playback interface to play back recorded video from remote storage
• Alert messages for storage full, storage error, and illegal login
• Real time snapshot, motion detection with schedule, video tamper detection with schedule
• Supports select dynamic DNS services
• Maximum 32 user accounts
• Supports remote management UPC: 710931110869 In the Box TRENDnet TV-IP315PI 4MP Outdoor Network Dome Camera with Night Vision Software CD Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TV-IP315PI 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TV-IP315PI Specs | Focal Length | 4mm fixed | | Aperture | f/2.0 | | Focal Depth | 20 cm | | Image Sensor | 4 MP 1/3" progressive scan CMOS sensor | | Field of View | Horizontal: 83°
Vertical: 45°
Diagonal: 98° | | Minimum Illumination | 0.01 lux (IR off), 0 lux (IR on) | | Shutter Speed | 1/3 to 100,000 s | | Night Vision | IR cut filter | | IR LED Range | Up to 98' (30 m) | | Resolution | H.264/H.264+: 2688 x 1520 up to 20 fps, 1920 x 1080 up to 30 fps
MJPEG: 640 x 360 up to 30 fps | | Network Interface | RJ45 10/100 Mbps Ethernet | | Network Protocols | IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
IPv4, IPv6, UDP, TCP, ICMP, ONVIF Profile S and G, PSIA, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3), NFS, SMB/CIFS, HTTP, HTTPS, PPPoE, UPnP, Bonjour, RTSP, RTP, RTCP, SSL | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 95% maximum, non-condensing | | Power Input | 802.3af PoE | | Power Consumption | 5 W maximum | | Power Supply | Optional:
Input: 100-240 VAC, 50/60 Hz, 0.5 A
Output: 12 VDC, 1 A
5.5 mm barrel connector
TRENDnet power adapter model 12VDC1A (available separately) | | Software | TRENDnetView Pro Software:
Supports up to 32 TRENDnet cameras
Multiple language support
Set recording options (motion detection, schedule, event trigger)
Search and playback
Custom viewing modes and options
Compatibility: Windows 10, 8.1, 8, 7, Vista, XP, Windows Server 2003, 2008, 2012 | | Mobile App | TRENDnet IPView App
iOS and Android
Live viewing and snapshots | | Dimensions | 4.3 x 4.3 x 3.5" (11 x 11 x 9 mm) | | Weight | 1.05 lb (476 g) | | | | Package Weight | 1.72 lb | | Box Dimensions (LxWxH) | 5.45 x 5.4 x 4.5" |
