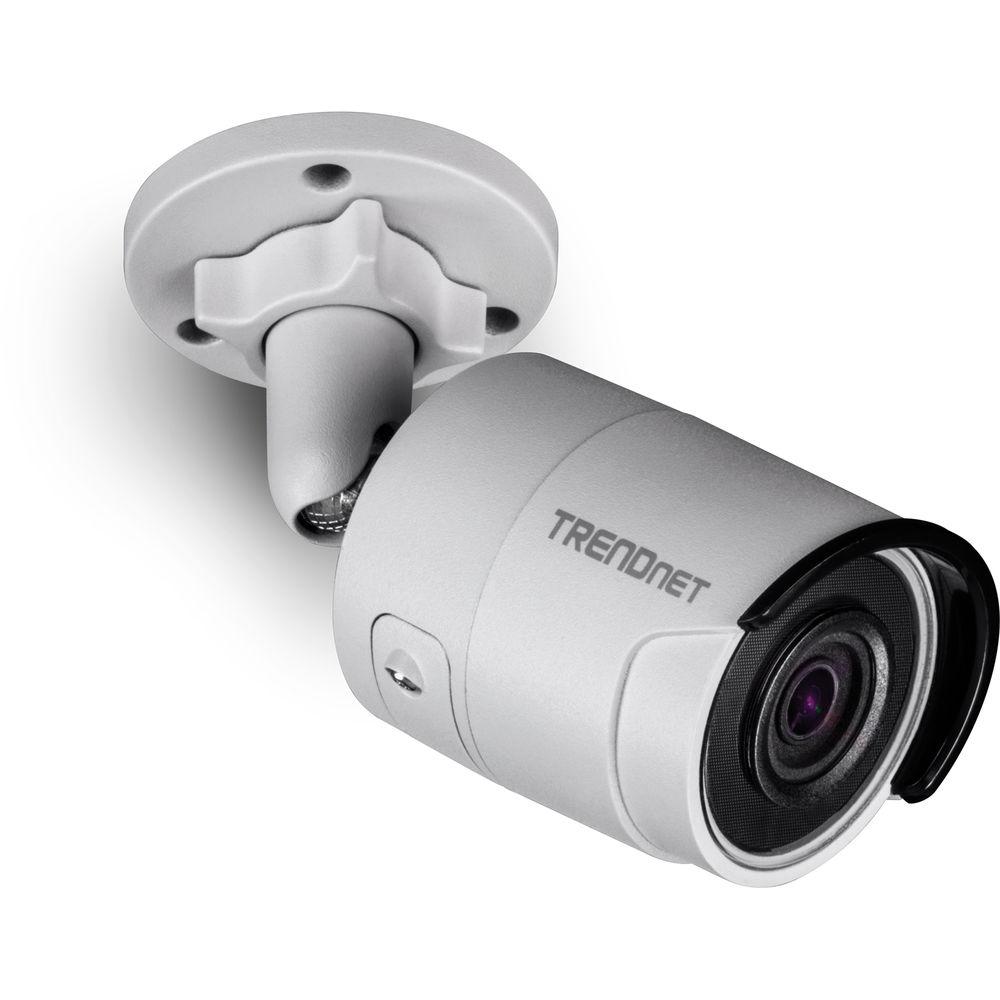

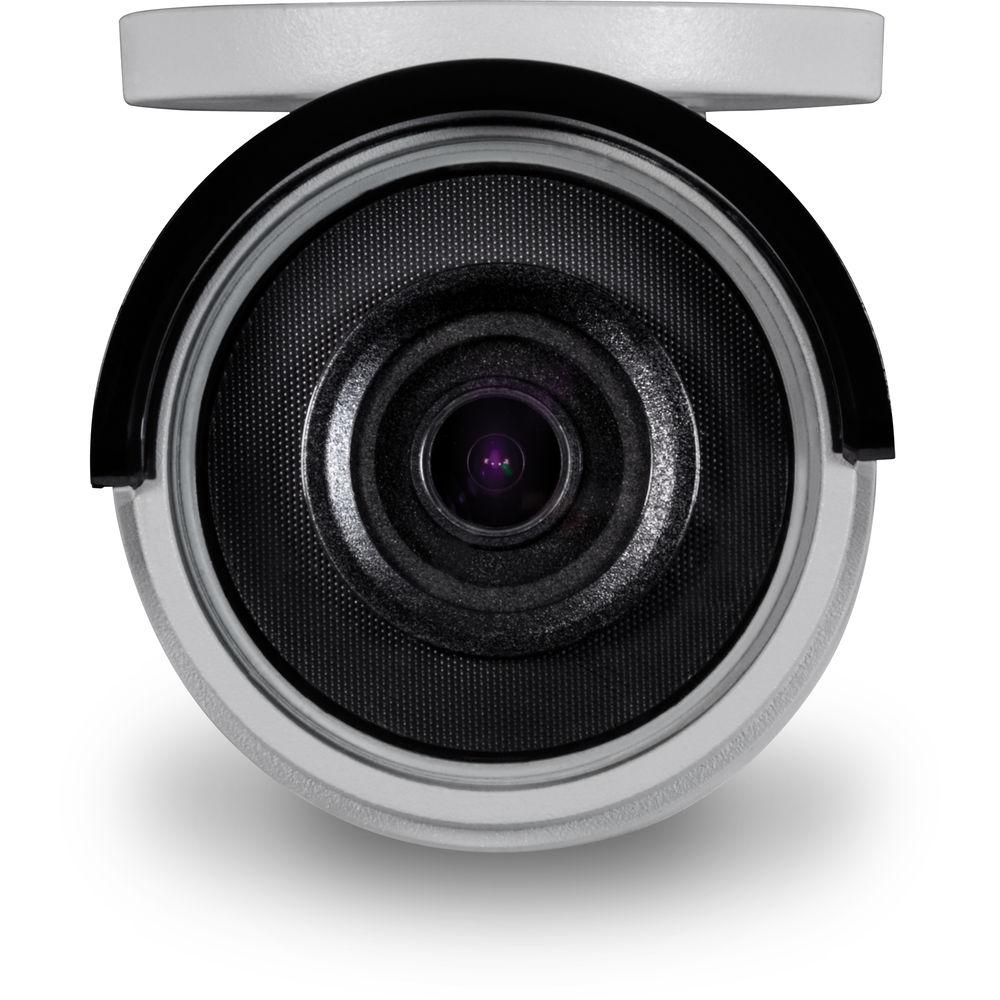

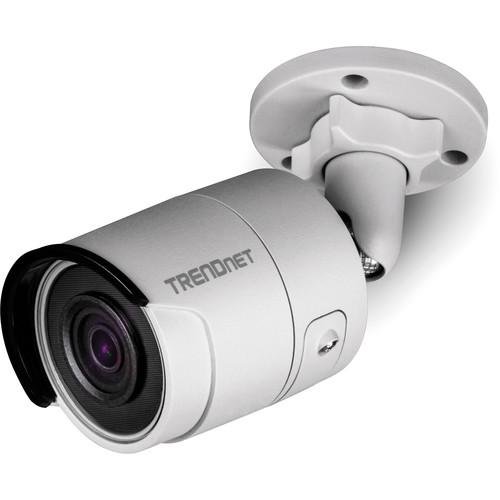

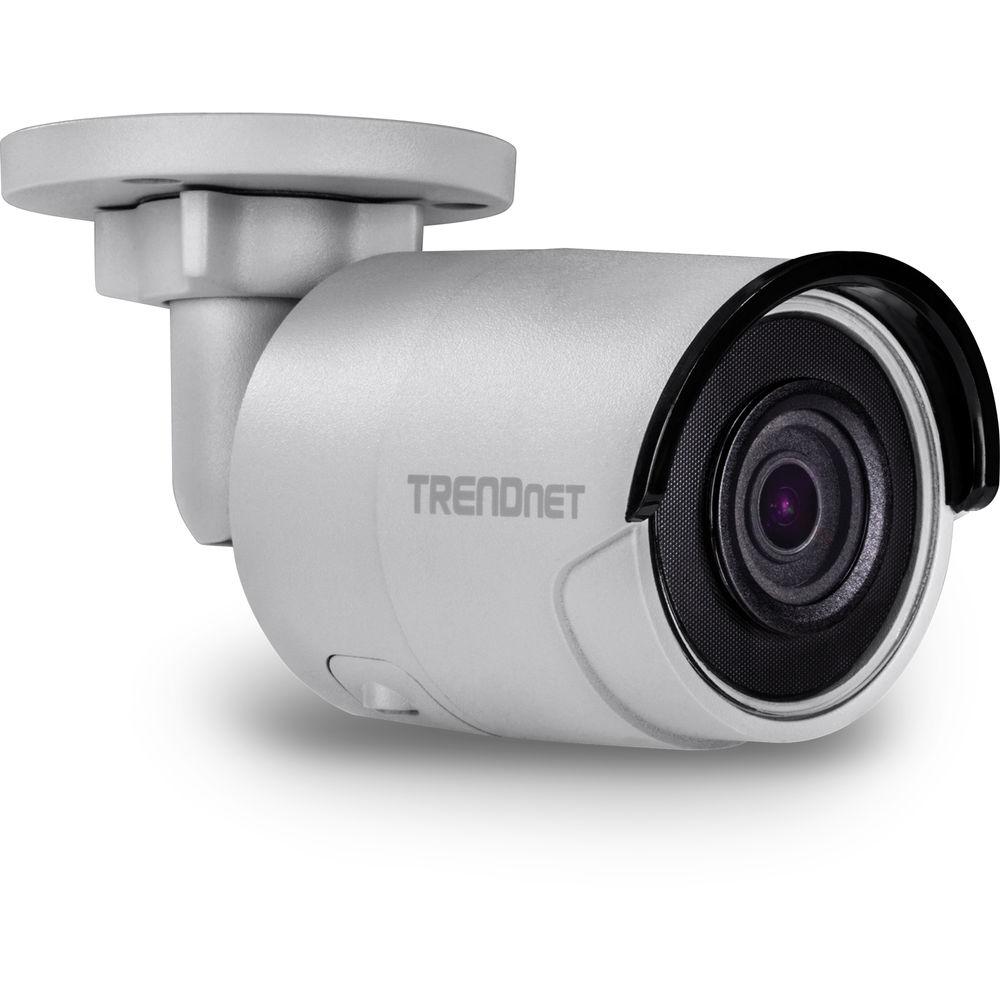

User Manual for TRENDnet TV-IP316PI 5MP Outdoor Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the TRENDnet TV-IP316PI 5MP Outdoor Network Bullet
- Product category: Wired IP Cameras TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wired IP Cameras
 |
User manual for the TRENDnet TV-IP316PI 5MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description The TV-IP316PI 5MP Outdoor Network Bullet Camera with Night Vision from TRENDnet has a 1/2.9" CMOS sensor to capture 2560 x 1920 resolution video at 20 fps. Smart IR LEDs deliver a night vision range up to 98'. The 2.8mm fixed lens provides an 81° horizontal field of view. A built-in microSD slot supports cards up to 128GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transmitting data and power over one cable.
This camera is ONVIF-compliant for Profiles S & G, making it compatible with a wide range of surveillance products. Free apps for iOS and Android devices enable remote viewing of live video, and gives you the ability to take snapshots and zoom in. The camera's enclosure is IP67-rated for outdoor use. - PoE or VDC power (power supply available separately)
- H.265+, H.265, H.264+, H.264, and MJPEG compression
- Camera pivots 0 to 360° horizontally, and 0 to 90° vertically
- Motion detection for up to three areas
- Custom schedules using continuous (24/7) and event based recording modes
- 120 dB wide dynamic range
- Image settings include brightness, contrast, saturation, sharpness, exposure time, image gain, day/night switch, Smart IR, BLC, WDR, white balance, digital noise reduction, mirror, rotate, scene mode, video standard
- Advanced in-camera archived video review functionality
- Time, date, and text overlay
- Compatible with Chrome, Firefox, Internet Explorer, and Safari browsers
- Compliant standards include ONVIF Profiles S & G, PSIA, CGI, and ISAPI
- Hardware standards include IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3af
- TRENDnetVIEW EVO software supports up to 32 cameras (available separately)
- Fully adjustable integrated mounting base
- IP67-rated enclosure that is suitable for outdoor use
UPC: 710931111149 In the Box TRENDnet TV-IP316PI 5MP Outdoor Network Bullet Camera with Night Vision Weather Seal Camera Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TV-IP316PI 5MP Outdoor Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TV-IP316PI Specs | | | Sensor | 5 MP 1/2.9" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.2 | | Zoom | Digital: 4x | | Lens Field of View | Horizontal: 81° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.01 Lux
B&W: 0 Lux | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 90° | | | | Streaming Resolution | 2944 x 1656 at 20 fps
1280 x 720 at 30 fps
640 x 360 at 30 fps | | Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | CIFS/SMB, DDNS, DHCP, FTP, HTTP, , IPv4/v6, LLTD, NFS, NTP, ONVIF Profile G, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S & G, PSIA, CGI, ISAPI | | Analytics | Motion detection, tamper detection | | Event Trigger | Yes | | Event Action | Recording, Notification | | | | Windows OS Support | Windows 8.1, 10, Server 2008, Server 2012 | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 98' / 29.87 m | | Video Management Software | TRENDnetVIEW EVO | | Supported Languages | English
French
German
Portuguese
Spanish | | Internal Storage | None | | External Storage Options | NAS | | Power Source | DC, PoE 802.3af (15 W) 12 VDC power adapter available separately | | Power Consumption | 7 W 7 W max for PoE | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | Dimensions |
