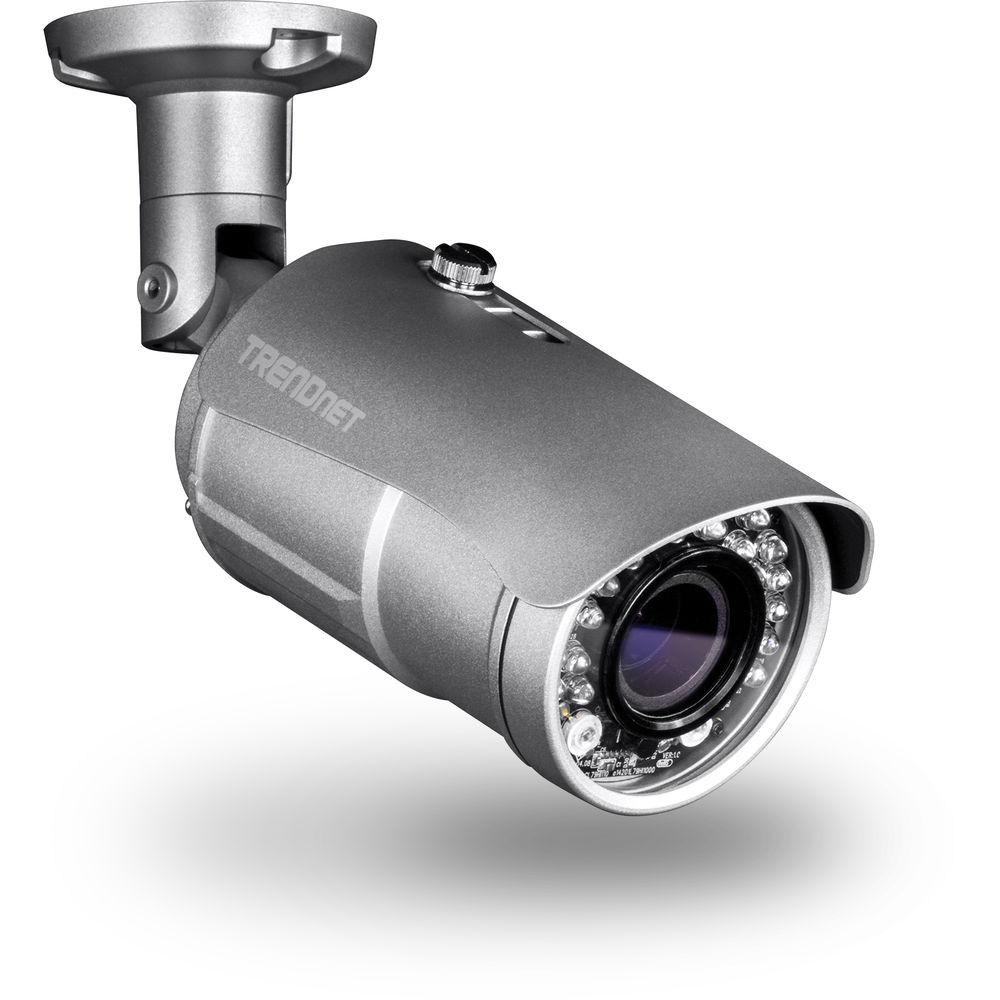

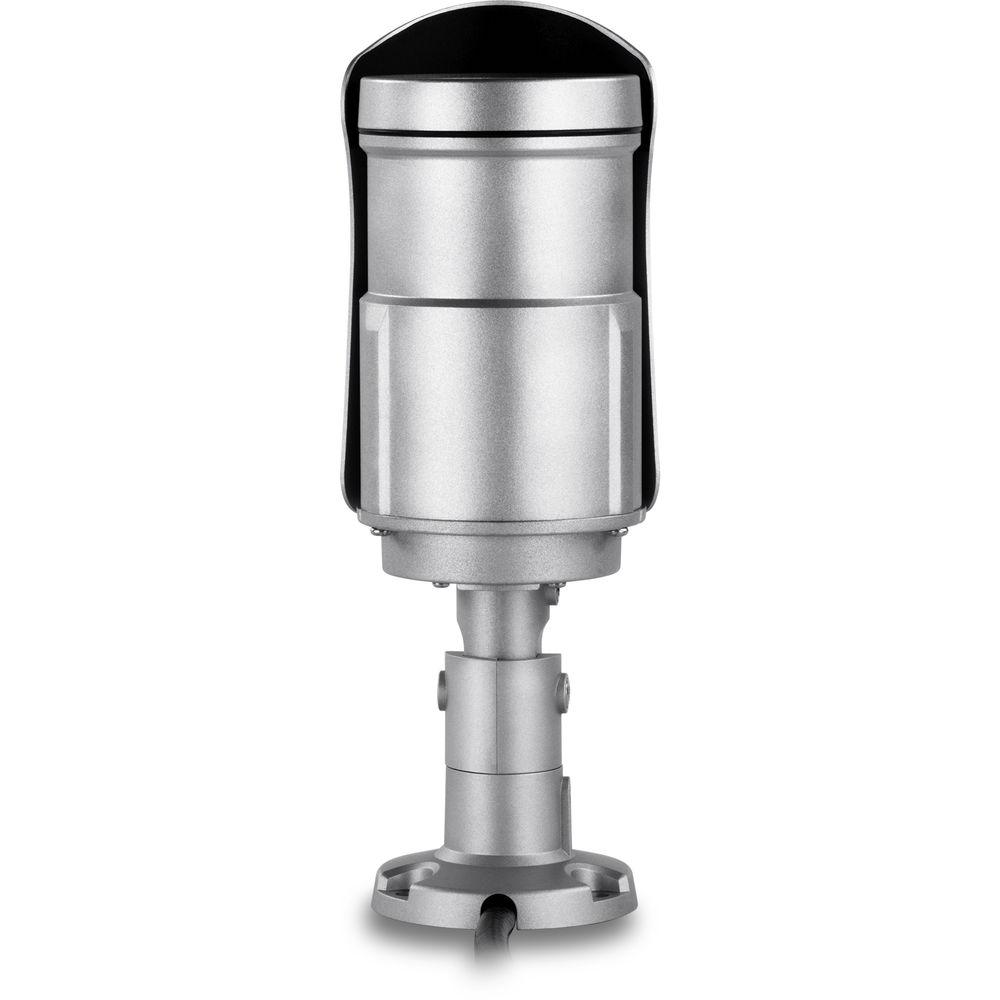

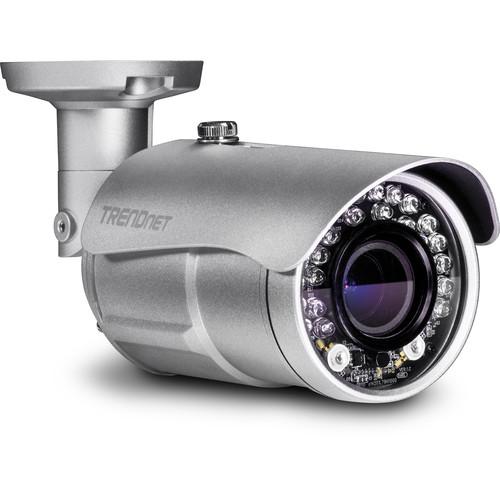

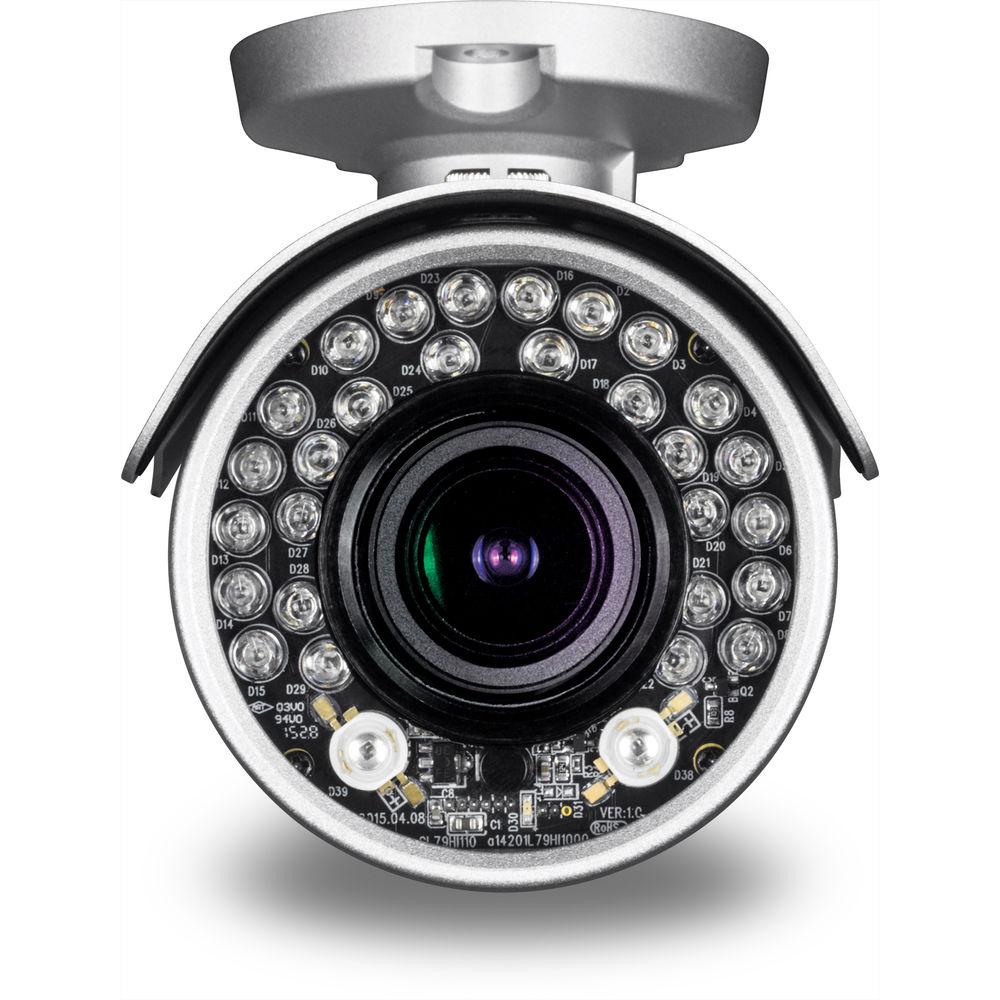

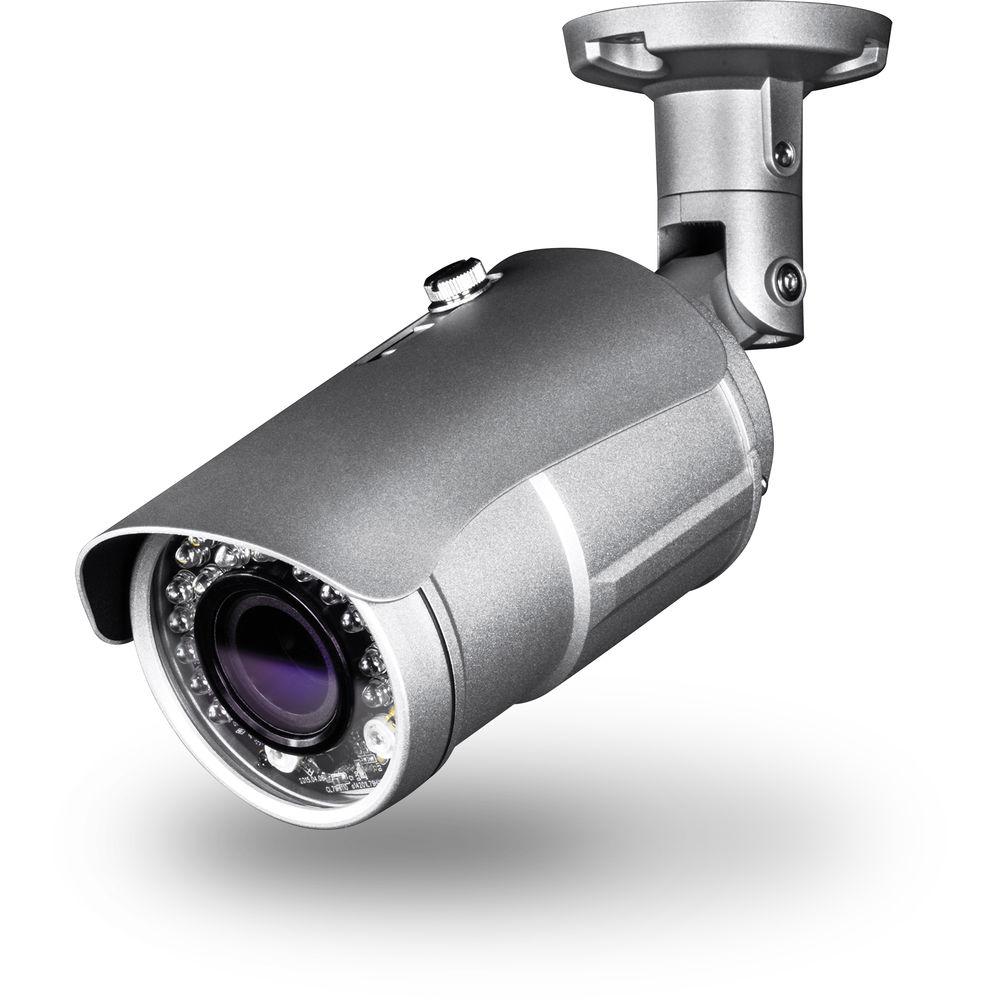

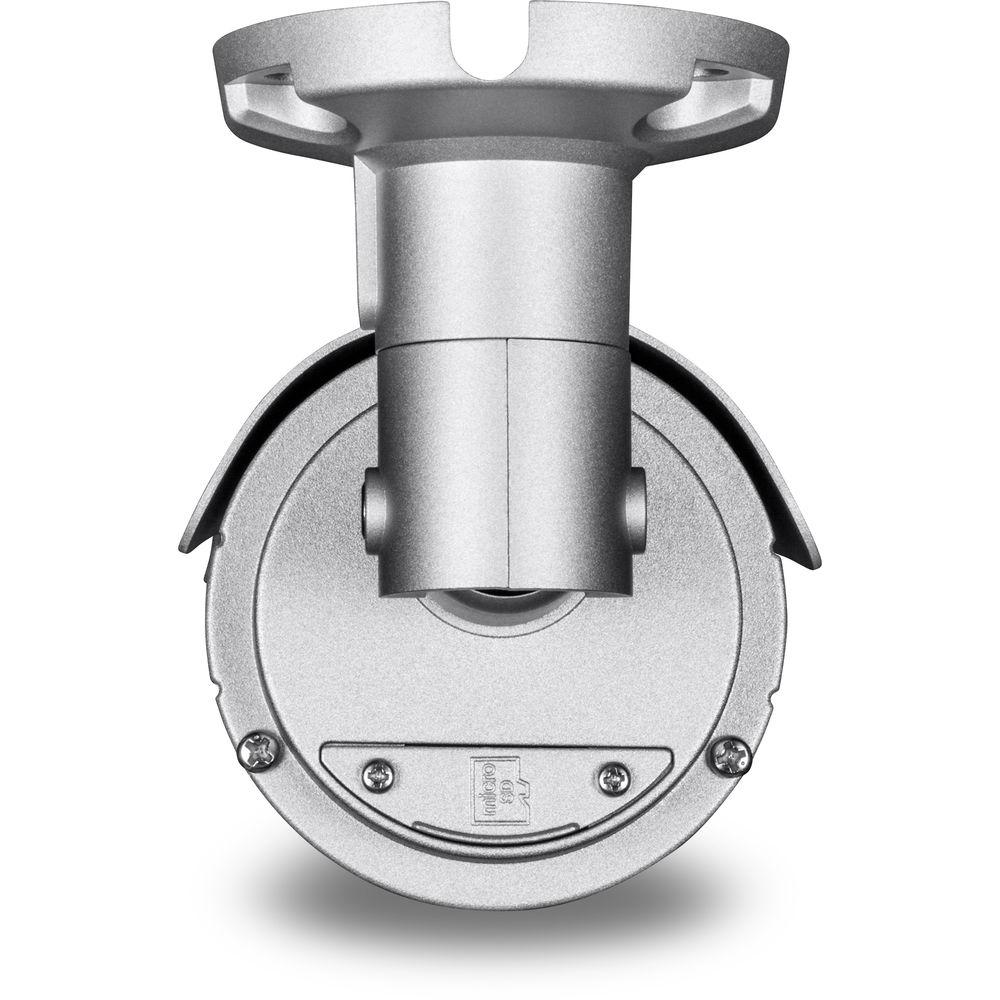

Product description The TV-IP344PI 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens from TRENDnet has a 1/3" CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. IR LEDs deliver a night vision range up to 100'. The 2.8-12mm motorized varifocal lens delivers a 103-36° horizontal field of view. Two-way audio is possible thanks to an audio input and output. A built-in microSD slot supports cards up to 64GB. microSD cards are available separately. Integrated PoE technology simplifies connectivity by transmitting data and power over one cable.
This camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance products. The TRENDnetVIEW app for iOS and Android enables remote viewing of live video and gives you the ability to take snapshots and zoom in. The camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - PoE or VDC power (power supply available separately)
- 4.2x optical and 4x digital zoom
- H.264 and MJPEG compression
- Image settings include brightness, contrast, hue, sharpness, digital wide dynamic range, 2D-DNR, shutter time adjustment, sense-up, saturation, automatic gain control, flip, mirror, 90° rotate, IR, day and night modes, and white balance
- Privacy masks for up to 3 areas you don't want recorded
- Video recording modes include scheduled, motion detection, sound detection (requires 3rd party microphone), and tamper detection
- Motion detection for up to 3 areas
- GPIO and grounding terminals
- Network disconnection fallback automatically saves to microSD card if connection to network is broken
- TRENDnetVIEW Pro software supports up to 32 cameras (available separately)
- Integrated adjustable mounting bracket tilts 180° and rotates 360°
- Standards include IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3af
- Time, date, and text overlay
- Compatible with Windows XP and above, Internet Explorer 8.0 and above, Android version 4.4 and above, and iOS version 8.2 and above
- IP66-rated enclosure that is suitable for outdoor use
UPC: 710931110661 In the Box TRENDnet TV-IP344PI 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens 5' / 1.5m Network Cable RJ45 Coupler Camera Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TV-IP344PI 4MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TV-IP344PI Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.2x
Digital: 4x | | Lens Field of View | Horizontal: 103 to 36°
Vertical: 56 to 19°
Diagonal: 117 to 40° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.031 Lux
B&W: 0.08 Lux | | | | Streaming Resolution | 2688 x 1520 at 30 fps (H.264)
2688 x 1520 at 30 fps (MJPEG)
640 x 480 at 15 fps (H.264) | | Supported Video Compression | H.264, MJPEG | | Automatic Gain Control | Yes | | | | Streaming | Two-Way | | Audio Formats | AMR, G.711 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | Bonjour, CIFS/SMB, DDNS, DHCP, FTP, HTTP, , IMS, IPv4/v6, LLTD, NTP, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion detection, sound detection, tamper detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows XP, Vista, 7, 8, 8.1, 10, Server 2003, Server 2008, Server 2012 | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power
1 x 2-Pin Terminal Block (Grounding)
1 x 4-Pin Terminal Block (GPIO) | | IR Illuminators | 850 nm | | IR Range | 98.43' / 30 m | | Video Management Software | TRENDnetVIEW Pro | | Supported Languages | English
French
German
Russian
Spanish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 8.64 W Input: 100-240 VAC, 50-60 Hz, 1 A | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions | H: 3.0 x W: 3.0 x L: 8.1" / H: 76.2 x W: 76.2 x L: 205.7 mm | | Weight | 1.5 lb / 680.4 g | | | | Package Weight | 2.66 lb | | Box Dimensions (LxWxH) | 10.85 x 7.95 x 4.5" |
