TRENDnet TV-IP345PI 4MP Outdoor Network Dome

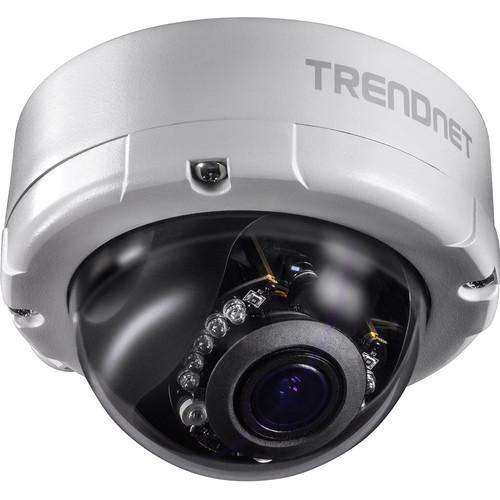

User Manual for TRENDnet TV-IP345PI 4MP Outdoor Network Dome Camera with Night Vision & 2.8-12mm Lens

• Product category: Wired IP Cameras TRENDnet
• Brand: TRENDnet
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for TRENDnet Wired IP Cameras

Product description

• PoE or VDC power (power supply available separately)

• 10/100M PoE port

• 4.2x optical and 4x digital zoom

• Manual pan and tilt

• 30cm to infinity focal depth

• H.264 and MJPEG compression

• Image settings include brightness, contrast, hue, sharpness, digital wide dynamic range, 2D-DNR, shutter time adjustment, sense-up, saturation, automatic gain control, flip, mirror, 90° rotate, IR, day and night modes, and white balance

• Privacy masks for up to 3 areas you don't want recorded

• Video recording modes include scheduled, motion detection, sound detection (requires 3rd party microphone), and tamper detection

• Email notifications

• Motion detection for up to 3 areas

• GPIO and grounding terminals

• Network disconnection fallback automatically saves to microSD card if connection to network is broken

• TRENDnetVIEW app for iOS & Android devices

• TRENDnetVIEW Pro software supports up to 32 cameras (available separately)

• Standards include IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3af

• Time, date, and text overlay

• Compatible with Windows XP and above, Internet Explorer 8.0 and above, Android version 4.4 and above, and iOS version 8.2 and above

• Up to 21 user accounts

• CE and FCC certified

• RoHS-compliant

• IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

TRENDnet TV-IP345PI Specs

Recording Media	microSD (Up to 64 GB)
Pan/Tilt	None
I/O Connections	1 x RJ45 1 x Power 1 x 2-Pin Terminal Block (Grounding) 1 x 4-Pin Terminal Block (GPIO)
IR Illuminators	850 nm
IR Range	66' / 20.12 m
Video Management Software	TRENDnetVIEW Pro
Supported Languages	English French German Russian Spanish
Internal Storage	None
External Storage Options	Local PC, NAS
Power Source	DC, PoE 802.3af (15 W)
Power Consumption	8.64 W Input: 100-240 VAC, 50-60 Hz, 1 A
Operating Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%
IP Rating	IP66
IK Rating	IK10
