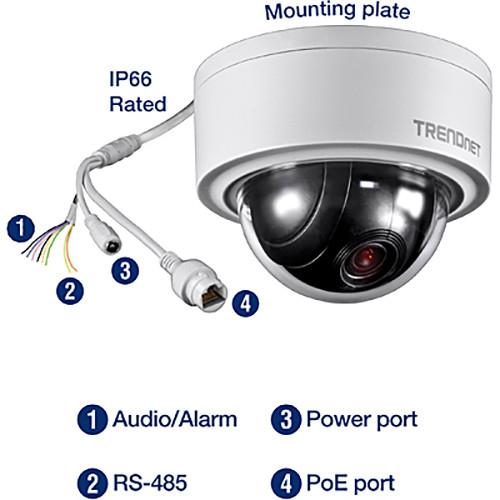

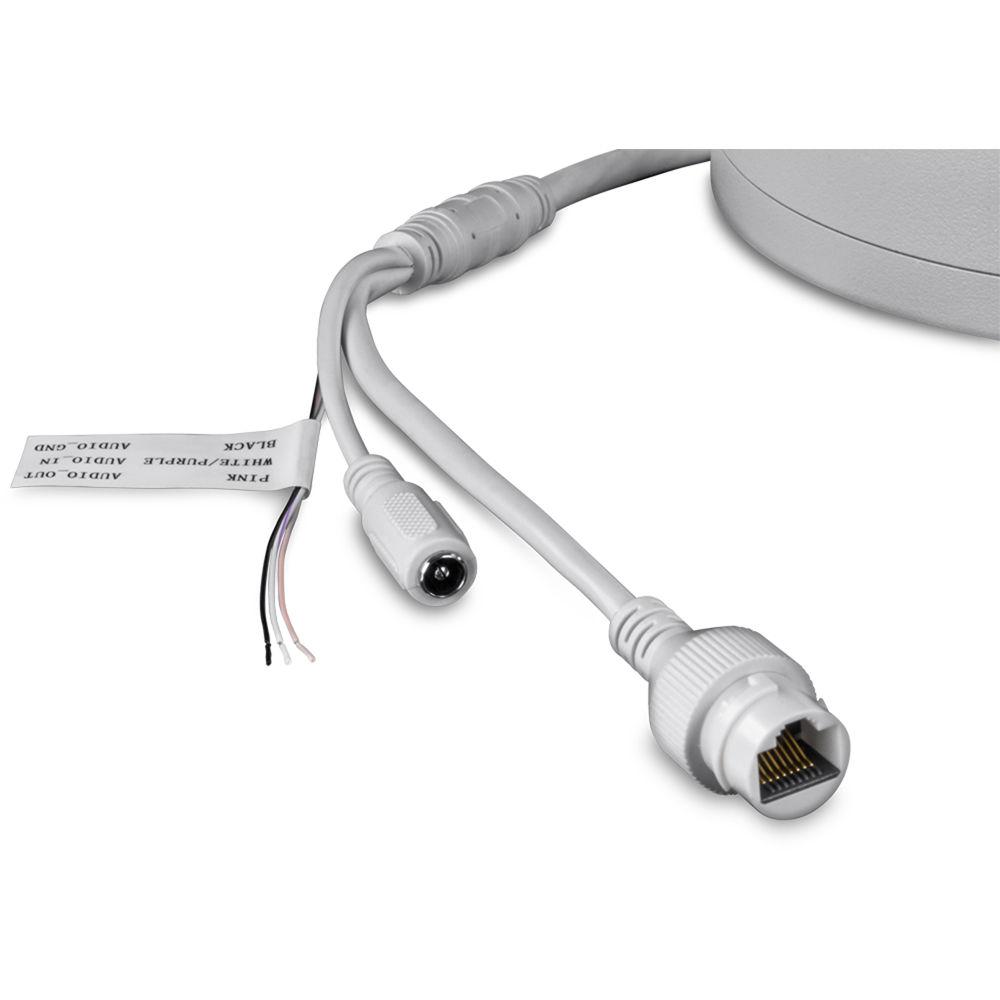

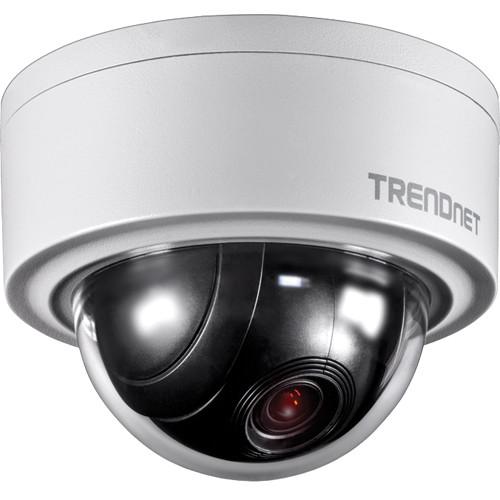

Product description The TV-IP420P 3MP Outdoor Motorized PTZ Network Dome Camera from TRENDnet uses a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 25 fps. An IR cut filter enables day and night switching. The 2.8-12mm varifocal lens has a 105 to 33.5° field of view. The camera features a pan range of 0 to 350°, a tilt range of 0 to 90°, and 4x optical zoom. Two-way audio is possible thanks to audio I/O wiring. An onboard memory card slot accepts microSD cards up to 128GB (available separately). Integrated PoE simplifies connectivity by enabling the transfer of power and data through a single cable.
This PTZ camera is compliant with ONVIF profiles S and G, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - PoE or VDC power (power supply available separately)
- H.264 and MJPEG video compression
- 4x optical and 16x digital zooms
- 3D zoom within the web interface (user defined)
- Auto and manual iris control
- Auto, semi-auto, and manual focus modes
- Time, date, and text overlay
- Display settings include brightness, contrast, saturation, limit gain, sharpness, focus mode, minimum focus, exposure mode, video standard, day/night switch, sensitivity, mirror, slow shutter, digital wide dynamic range, lens initialization, backlight compensation, white balance, digital noise reduction, noise reduction level, defog mode, zoom limit, highlight compensation, and electronic image stabilization (EIS)
- Scheduled recording includes continuous and motion detection
- Alert messages include storage full, storage error, and illegal login
- Standards include IEEE 802.1x, IEEE 802.3, IEEE 802.3u, and IEEE 802.3af
- Video storage to computer, NAS, CIFS/SMB share, NFS, microSD card, FTP server, or software
- Compatible with Internet Explorer 9.0 or higher, Safari 5.0 or higher, iOS, Android, Windows 10, 8.1, 8, 7, Vista, XP, Server 2003, Server 2008, and Server 2012
- TRENDnetVIEW Pro software supports up to 32 cameras (available separately)
- TRENDnetVIEW app enables remote viewing and gives you the ability to take snapshots
- TVS 4000V lightning, surge, and voltage transient protection
- PTZ Functions
-
- 0 to 350° pan range
- 0.1 to 60°/s manual pan speed
- 60°/s preset pan speed
- 0 to 90° tilt range
- 0.1 to 50°/s manual tilt speed
- 50°/s preset tilt speed
- 256 presets
- 8 patrols (up to 32 presets per patrol)
UPC: 710931110890 In the Box TRENDnet TV-IP420P 3MP Outdoor Motorized PTZ Network Dome Camera Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TV-IP420P 3MP Outdoor Motorized PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TV-IP420P Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.6 - f/2.7 | | Zoom | Optical: 4x
Digital: 16x | | Lens Field of View | Horizontal: 105 to 33.5° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Shutter Speed | 1/10,000 to 1 Seconds | | | | Streaming Resolution | 2048 x 1536 at 25 fps (H.264)
704 x 576 at 25 fps (MJPEG) | | Supported Video Compression | H.264, MJPEG | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering | | Supported Protocols | CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profiles S and G, PSIA | | Analytics | Motion Detection
Tamper Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, Vista, 7, 8, 8.1, 10, Server 2003, Server 2008, Server 2012 | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Manual Pan: 350° at 60°/s
Manual Tilt: 90° (0 to 90°) at 50°/s | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x 9-Pin Serial (RS-485) | | Video Management Software | TRENDnetVIEW Pro Software
TRENDnet IPVIEW App | | Supported Languages | English
French
German
Russian
Spanish | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 8 W | | Operating Temperature | -22 to 149°F / -30 to 65°C | | Operating Humidity | 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
