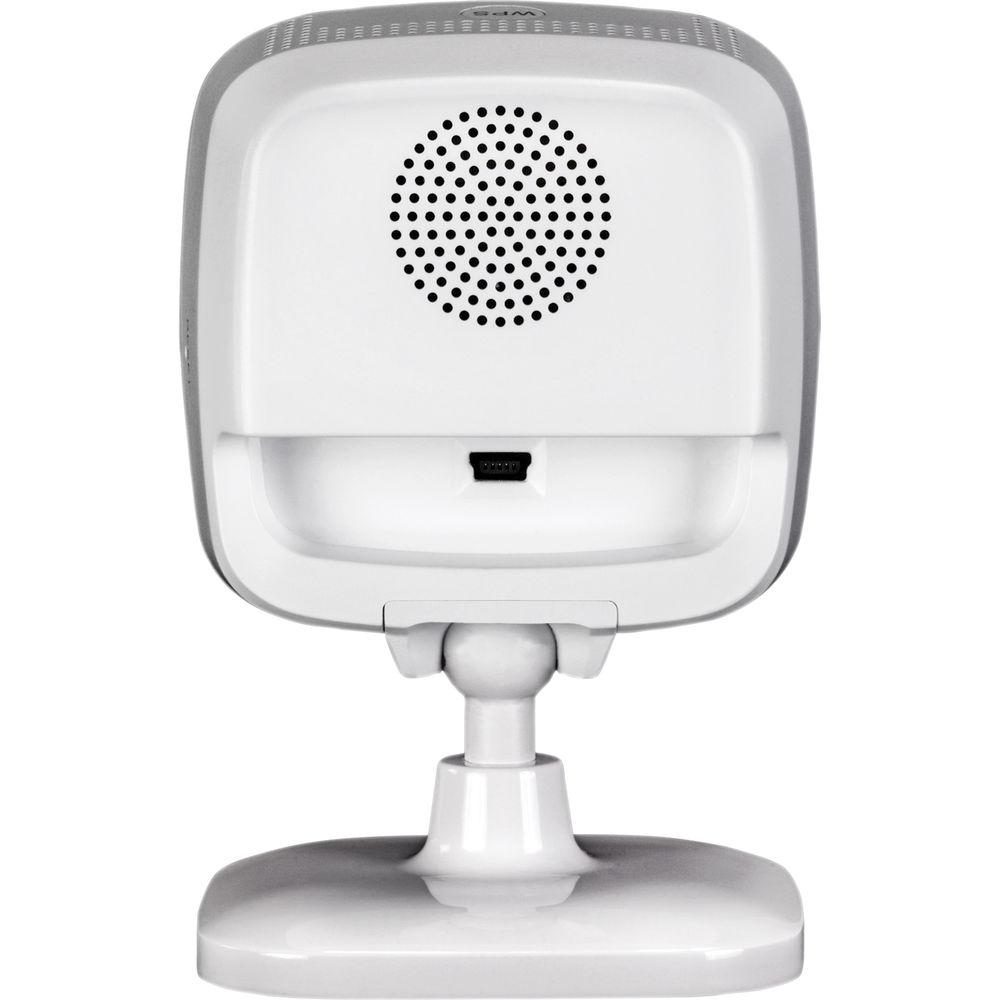

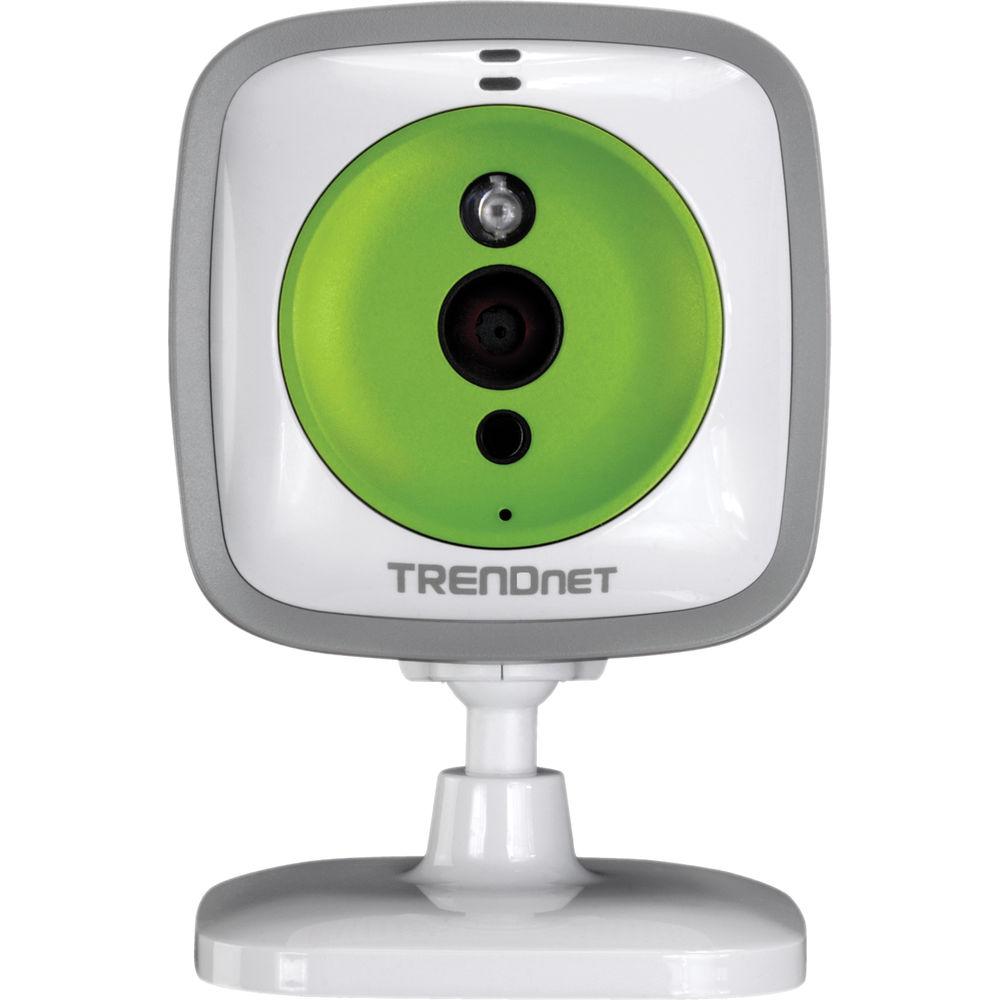

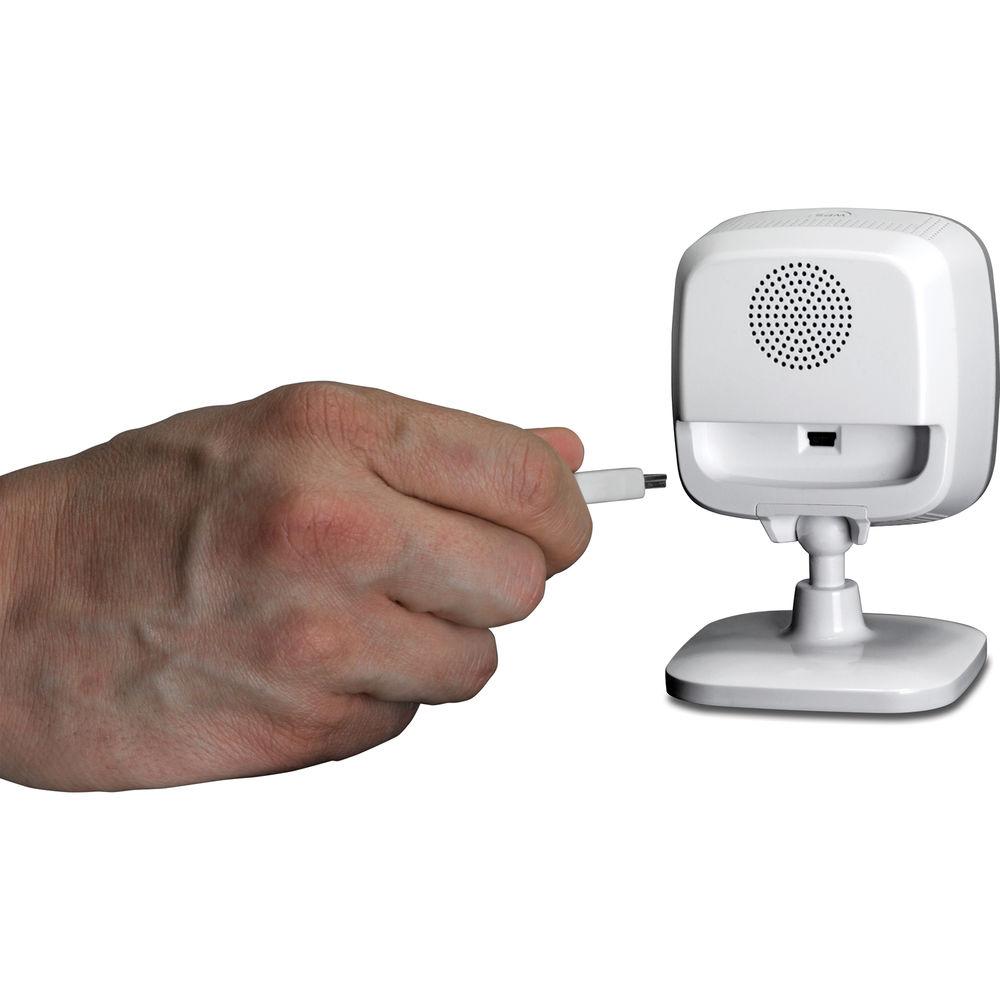

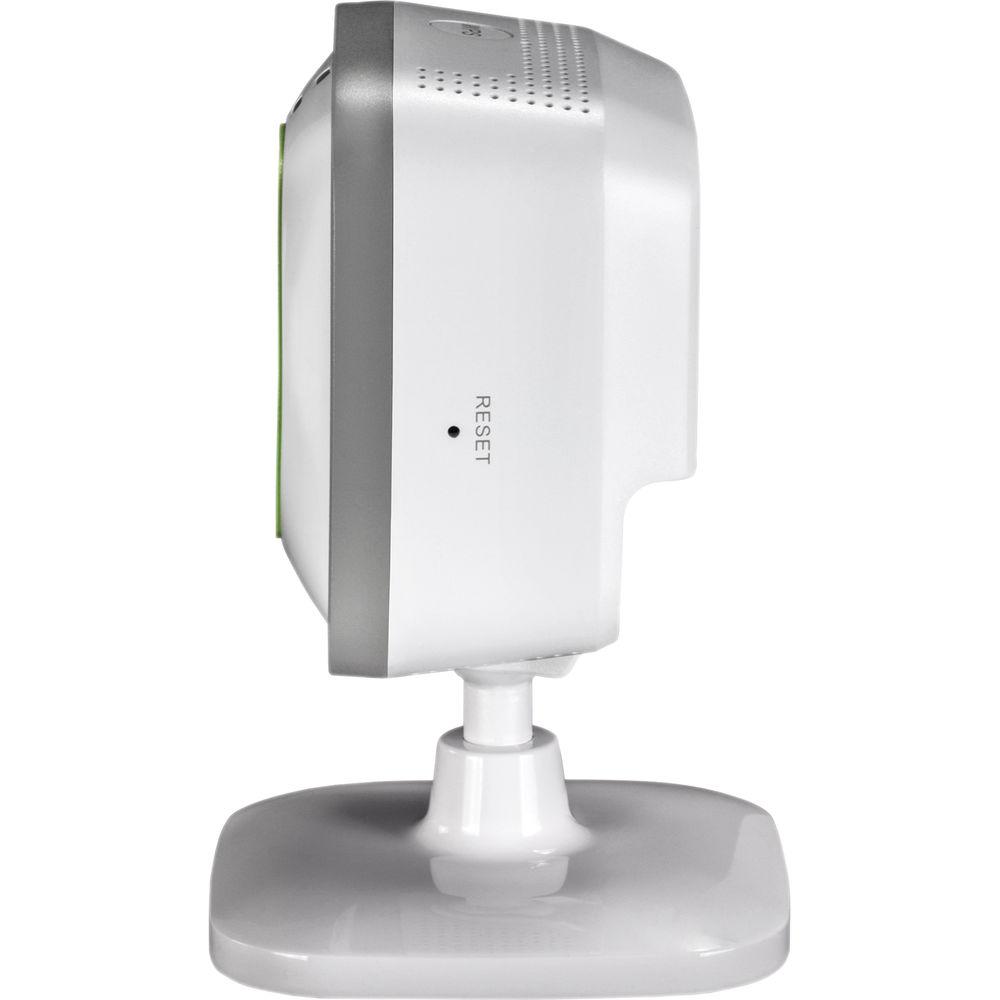

User Manual for TRENDnet TV-IP743SIC Wi-Fi Baby Cam Click to enlarge the picture
Contents of the user manual for the TRENDnet TV-IP743SIC Wi-Fi Baby Cam
- Product category: Wireless Cameras TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Wireless Cameras
 |
User manual for the TRENDnet TV-IP743SIC Wi-Fi Baby Cam contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description Monitor your baby from another room, over WiFi or via the internet with the Trendnet TV-IP743SIC Wi-Fi Baby Cam. The camera connects to the internet via your Wi-Fi network, and streams to Trendnet's free cloud service that allows you to see, hear, and talk through the camera in real time. You set the camera up using the built-in web browser interface, and the cloud service allows you to easily connect to the camera with a minimum of IP configuration. The camera features a fixed 3.6mm lens with a 4x digital zoom.
You can play five soothing classical music lullaby themes to help your child fall asleep. The camera incorporates an invisible 940nm IR LED that allows you to see an image up to 16 feet away without using a visible light that can disturb your sleeping child. The camera's built-in speaker and microphone allow you to hear what is happening in the room and soothe your child with the sound of your voice. The camera is compatible with iOS and Android devices via an optional free app, and you can set the camera to send alerts based on motion and sound detection. With its flexible mounting stand, the camera can be mounted on a flat or vertical surface such as a tabletop or a wall. - Wi-Fi
- The camera connects to your Wi-Fi network and streams the video to the cloud. You can access the live video/audio feed using the Trendnet cloud service.
- IR
- An IR LED emitter allows you to see an image up to 16 feet away from the camera, even in complete darkness.
- Two-Way Talk
- The camera features a built-in mic and speaker, so you can carry on a conversation with whomever is near the camera. This allows you to see what your family is doing and talk with them, while you are away from home.
- Control
-
- You can schedule your camera to automatically turn on and off at specified times during the day or week.
- You can set up event alerts that take a snapshot and alert you via email or your mobile device when a motion event happens
- Recording
- The camera can simultaneously stream four different resolutions of video, and you can use a computer connected to your network to record the video.
- Music
- The camera can play 5 classical music tunes:
- Brahms Lullaby
- Moonlight Sonata
- Nocturne Opus No. 9
- Piano Sonatas No. 11
- Prelude and Fugue
UPC: 710931110302 In the Box TRENDnet TV-IP743SIC Wi-Fi Baby Cam Brushed Aluminum Base Hardware for Wall Mounting USB to Micro-USB Cable USB Power Adapter Limited 1-Year Warranty for Parts Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TV-IP743SIC Wi-Fi Baby Cam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TV-IP743SIC Specs | | | Sensor | 1/5" CMOS | | Minimum Illumination | IR On: 0 Lux
IR Off: 1 Lux | | Lens | Focal Length: 3.6 mm, f/2.8
Focus Range: 7.9" / 20 cm | | Field of View | Horizontal: 45° Vertical: 35° Horizontal: 55° | | Night Vision | IR Wavelength: 940 nm
IR Distance: 16' / 5 m (depending on IR reflectivity of the scene) | | | | Video Resolution | H.264: 640 x 480 up to 30 fps
MPEG4: 640 x 480 up to 30 fps
MJPEG: 640 x 480 up to 30 fps | | Audio | Speaker & microphone | | Wireless | Wireless (802.11b/g/n) | | Encryption | WEP (40-bit, 128-bit) WPA (TKIP, AES) WPA2 (TKIP, AES) | | System Requirements | Computer (for setup)
High-speed Internet: DSL, Cable, FiOS
Web Browser: Internet Explorer 9+, Firefox 13+, Safari 7.0.3+, Google Chrome 24.0+ | | Network Protocol | - IPv4, UDP, TCP, ICMP
- DHCP, NTP, DNS, DDNS, SMTP, FTP
- SAMBA, 3GPP
- HTTP
- UPnP, Bonjoutr
- LLTD, RTSP, RTP, RTCP
| | Language Support | English, French, German, Russian, and Spanish | | Power Adapter | Input: 100 to 240 VAC 50/60 Hz 0.2 A
Output: 5 VDC 1 A
Consumption: 5 W (Max) | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | Max: 85% non-condensing | | Certifications | CE
FCC | | Dimensions | 2.8 x 2.6 x 3.5" / 70 x 65 x 88 mm | | Weight | 3.6 oz (102 g) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 8.7 x 6.1 x 3.2" |
