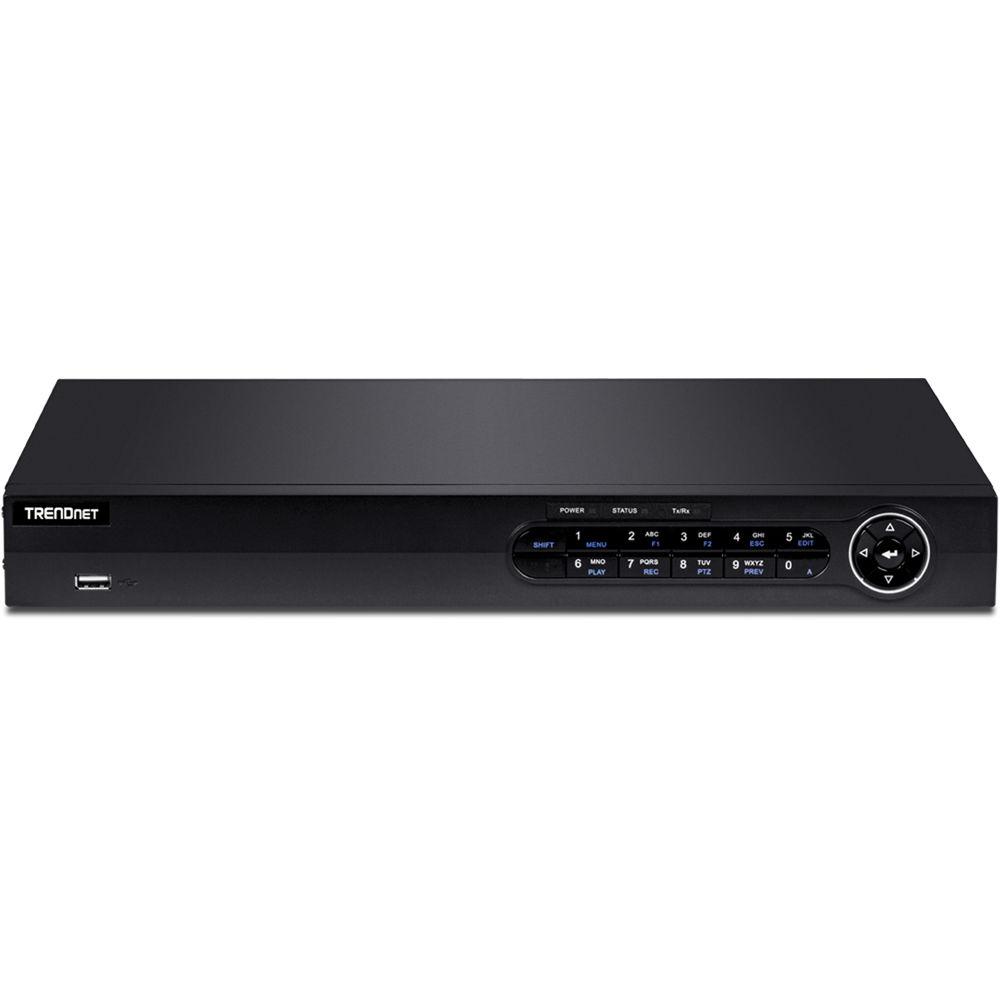

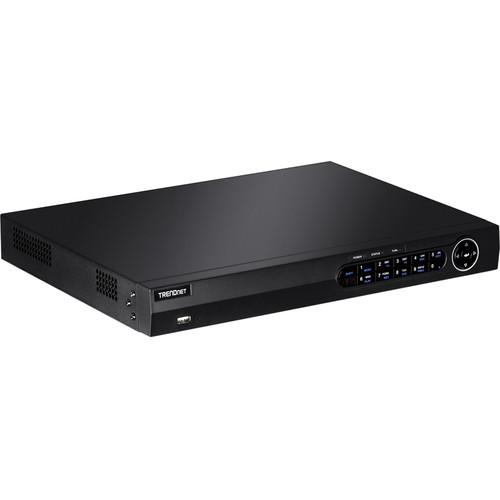

Product description Record from and manage up to 8 cameras with the TV-NVR408 8-Channel 1080p NVR (No HDD) from TRENDnet. This NVR offers concurrent 1080p recording resolution for all channels, along with up to 4K UHD recording resolution for a single channel. It has two SATA II ports that each support up to 6TB HDDs or SSDs, for a maximum of 12TB (HDDs/SSDs available separately). H.265 and H.264 video compressions ensure high-quality recording and playback.
This NVR supports up to 32 user accounts and is equipped with an RCA audio I/O. HDMI and VGA ports enable video output to an external monitor (available separately) at up to 4K UHD resolution. ONVIF compliance with version 2.2 provides interoperability with ONVIF IP cameras. - Plug-and-play operation with TRENDnet PoE cameras (available separately)
- Concurrent 1080p recording resolution for all channels
- Recording resolution up to 4K UHD for a single channel
- Offers over a month of continuous 1080p video recording with 12TB of storage (available separately) installed
- Firmware upgrades, import/export configuration files and logs, export recorded video files, and search/playback videos directly from USB external storage
- Live view enables multiple camera viewing options with auto-scan function
- Define screen layout and channel viewing sequence local live view settings
- Continuous and motion detection scheduled recording with optional holiday exceptions
- Display settings include brightness, contrast, saturation, PTZ, motion detection setting, video tamper, and video loss
- Alert messages include storage full, storage error, network disconnected, IP conflict, illegal login, recording exceptions, and PoE power overload
- Traffic chart and statistics for network management
- Hardware standards include IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, and IEEE 802.3at
- TRENDnetVIEW app enables remote viewing and gives you the ability to take snapshots & zoom
- LED indicators for power, storage, and network
- CE, FCC, and UL certified
UPC: 710931111217 In the Box TRENDnet TV-NVR408 8-Channel 1080p NVR (No HDD) 5' Power Cord 5' Network Cable 6' HDMI Cable Optical Mouse SATA Data/Power Cables Rackmount Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet TV-NVR408 8-Channel 1080p NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TV-NVR408 Specs | Video Input | H.265 and H.264 Video Formats
Up to 8 Cameras | | Video Output | HDMI up to 3840 x 2160 at 30 Hz
VGA up to 1920 x 1080 at 60 Hz | | Audio | Line Input with RCA Connector (2.0 V p-p, 1 kOhm)
Line Output with RCA Connector | | Recording | Up to 8 MP Resolution
8-Channel Simultaneous Recording up to 1080p at 30 fps
2 x 3.5" SATA II Interfaces for HDD or SSD up to 6 TB Storage for Each Disk | | Playback | H.265, H.264, MPEG4
Playback Resolutions: 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
One Channel at 8 MP, Four Channels at 1080p | | Hardware Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af

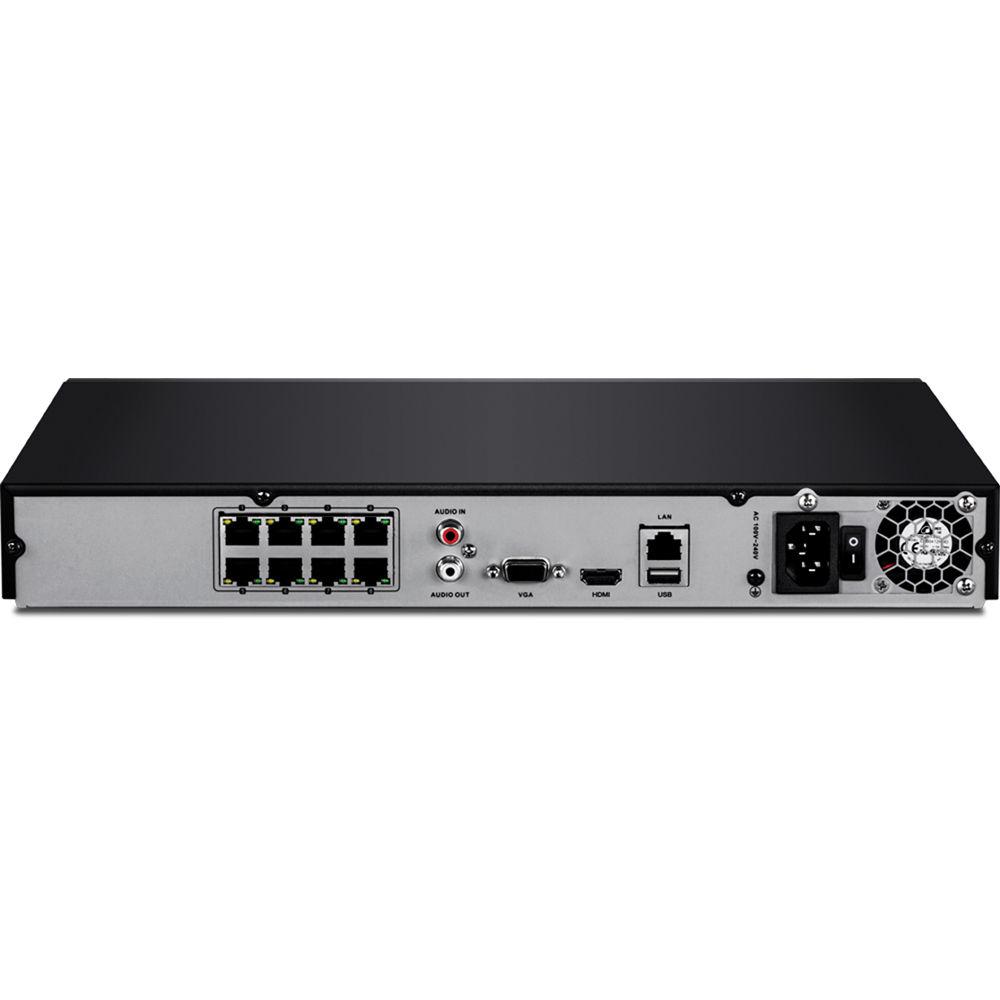

IEEE 802.3at | | Device Interface | 1 x GbE Port
8 x 10/100 PoE+ Camera Network Ports
2 x USB 2.0
1 x HDMI
1 x VGA
Analog Audio I/O
Power Port
Power Switch
LED Indicators (Power, Storage, and Network) | | PoE Ports | PoE 802.3at (Maximum 30 W per Port)
Total PoE Power Budget: 80 W
Plug-and-Play Operation with TRENDnet PoE Cameras (Available Seperately) | | Network Protocols | IPv4, IPv6, UDP, TCP, ICMP, SSL, TLS, ONVIF v2.2, DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP v2, HTTP, UPnP, RTSP, RTP, RTCP | | Compatible Mobile Operating Systems | iOS, Android | | Maximum User Accounts | 32 | | OSD | Yes | | Display Settings | Brightness, Contrast, Saturation, PTZ, Motion Detection Setting, Video Tamper, Video Loss | | Alerts | Storage Full, Storage Error, Network Disconnected, IP Conflict, Illegal Login, Recording Exceptions, PoE Power Overload | | Power Input | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Main Board: 10 W Maximum
Fully Loaded with HDD and PoE: 180 W Maximum | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | Maximum 90%, Non-Condensing | | Certifications | CE, FCC, UL 60950 | | Dimensions | 15 x 12 x 1.8" / 380 x 310 x 45 mm | | Weight | 7.3 lb / 3.3 kg | | | | Package Weight | 8.01 lb | | Box Dimensions (LxWxH) | 18.4 x 15.5 x 5.2" |
