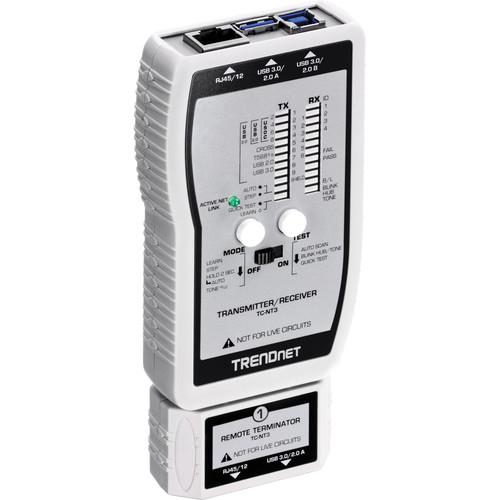

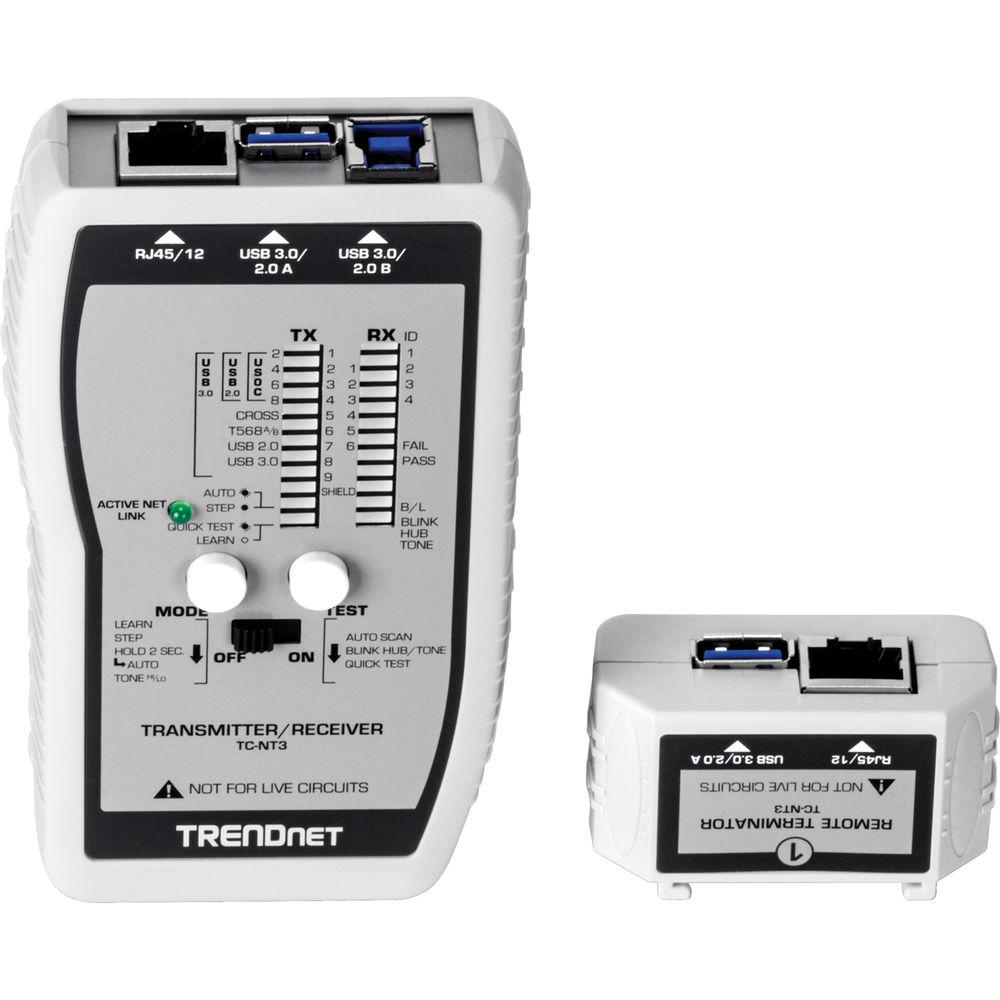

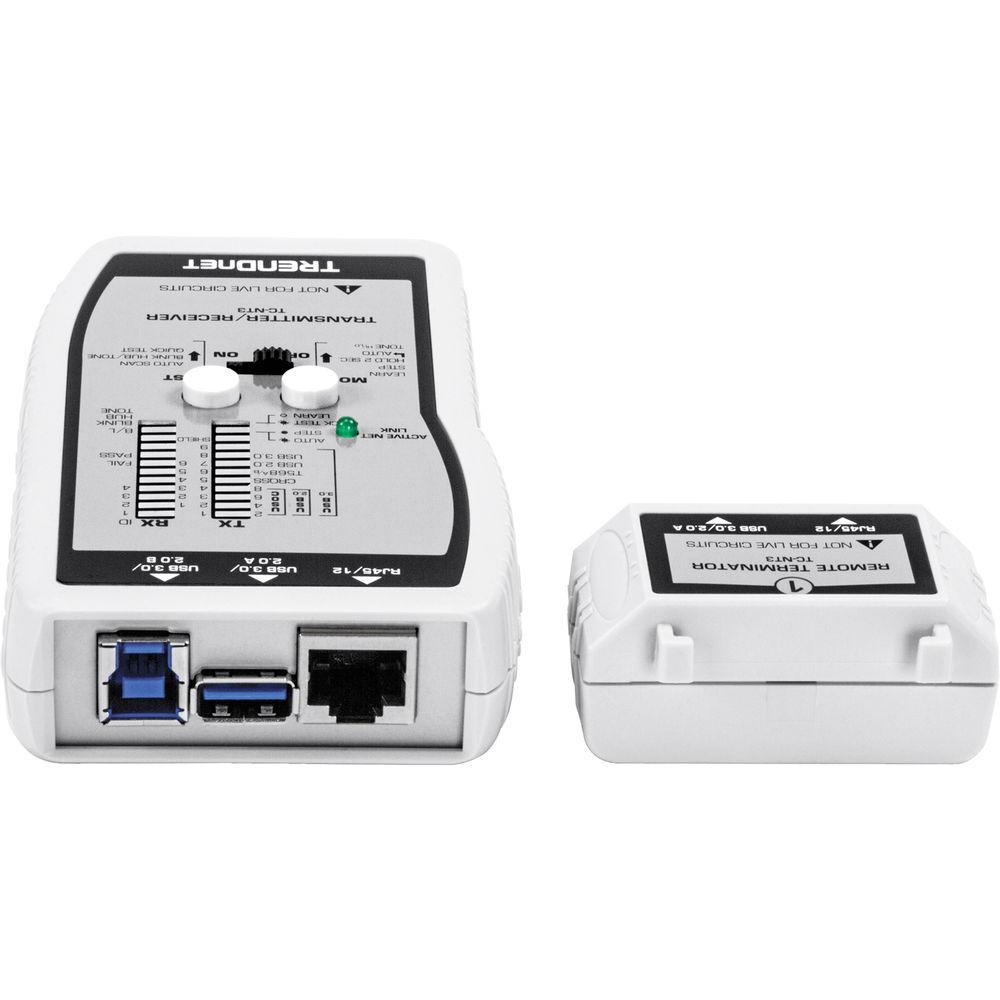

Product description The VDV and USB Cable Tester from TRENDnet is a comprehensive cable tester for network professionals that accurately tests a variety of voice, data, video and USB cables. The unit identifies proper, severed, short circuit, and cross connected pins for cable distances of up to 1,000 ft. Quick Test mode issues a pass/fail for large test batches and all the components fit into a convenient travel case. - Comprehensive cable tester for network professionals
- Tests voice, data, video and USB cables
- Accurately test pin configurations for cable lengths up to 1,000 ft (300 m)
- Identifies severed, short circuit, and cross connected pins
- Quick pass/fail for large test quantities
- Blinking Hub/Switch Mode identifies connected hub/switch port

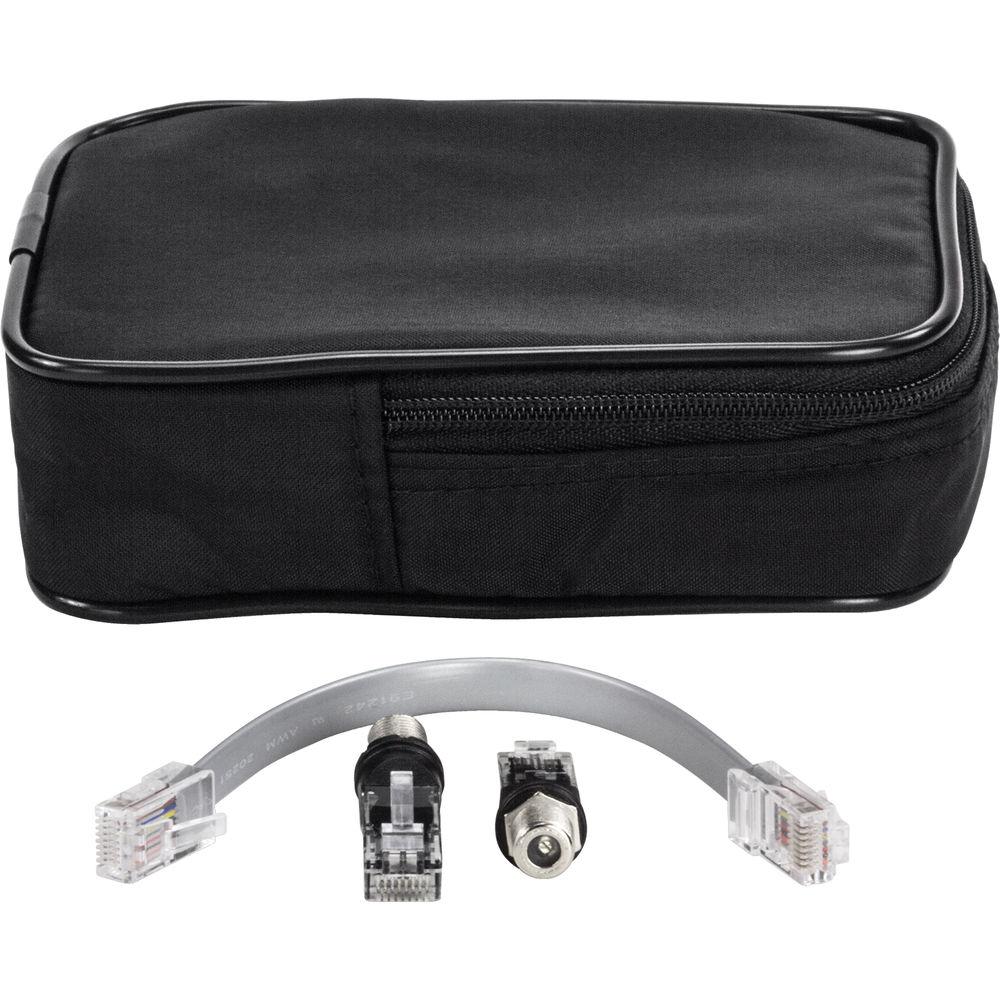

UPC: 710931401400 In the Box TRENDnet VDV and USB Cable Tester 2 x RJ45-to-F Adapter 6" (15 cm) Network Patch Cable Carry Pouch One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet VDV and USB Cable Tester in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TC-NT3 Specs | Test Pin Configuration | RJ45 EIA, TIA-568A/568B, and crossover cables
RJ9, RJ11, RJ12, RJ14, RJ25, RJ45, and RJ61
USOC 2, 4, 6, and 8
Coax Video-BNC and CATV-F
USB 3.0, USB 2.0 | | Transmitter Unit Interface | 1 x RJ port
1 x USB 3.0/2.0 Type-A port
1 x USB 3.0/2.0 Type-B port
Test button
Mode button
On/off button
LED indicators
Battery compartment
Receiver unit attachment port | | Remote Unit Interface | 1 x RJ port
1 x USB 3.0/2.0 Type-A port | | Compatible Cables | Cat 8, 7, 6, 6e, 6a, 5, 5e, 4, 3, 3e
Coax Video-BNC and CATV-F cable (with included RJ45 to F adapters)
RJ9, RJ11, RJ12, RJ14, RJ25, and RJ61 cables
USOC 2, 4, 6, and 8
USB 3.0 A to B
USB 2.0 A to B | | Tone Frequency | 600 to 1,000 Hz | | Other Features | Tests grounding of shielded (screened) cables
Identifies proper, severed, short circuit, and cross connected pins
Continuous scan mode is design to accommodate testing with cable ends in different locations
Manual scan is well suited for loop back cable testing
Designed to quickly test large cable quantities, Quick Test Mode identifies a given cable type and then immediately issues a Pass/Fail for the same cable type
Blinking Hub/Switch Mode identifies connected hub/switch port
Compatible with TRENDnet's TC-TP1, Network Probe, to trace cables using two selectable tones
Tests cables lengths of up to 1,000 ft (300 m) | | Operating Temperature | 32 to 122°F (0 to 50°C)
Maximum 95% non-condensing | | Power Requirements | Transmitter: 9 VDC battery (not included)
Remote Unit: No power needed | | Certification | CE | | Dimensions | Transmitter: 4.6 x 2.6 x 1.1" (117 x 67 x 27 mm) Remote Unit: 2.2 x 1.2 x 1.1" (57 x 30 x 27 mm) | | Weight | Transmitter: 5.1 oz (144 g) Remote Unit: 0.9 oz (26 g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 6.6 x 4.8 x 2.2" |
