User Manual for TRENDnet Wi-Fi Light Bulb with Covert 720p Wi-Fi Fisheye Camera Click to enlarge the picture
Contents of the user manual for the TRENDnet Wi-Fi Light Bulb with Covert
- Product category: Hidden Cameras TRENDnet
- Brand: TRENDnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for TRENDnet Hidden Cameras
 |
User manual for the TRENDnet Wi-Fi Light Bulb with Covert contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any TRENDnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official TRENDnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a TRENDnet product will considerably shorten its lifespan!
|
Product description - TRENDnets ReadyView app
- TRENDnet TWC-L10 Installation video with ReadyView App for Android
- TRENDnet Indoor HD WiFi Light Bulb Surveillance Camera - TWC-L10

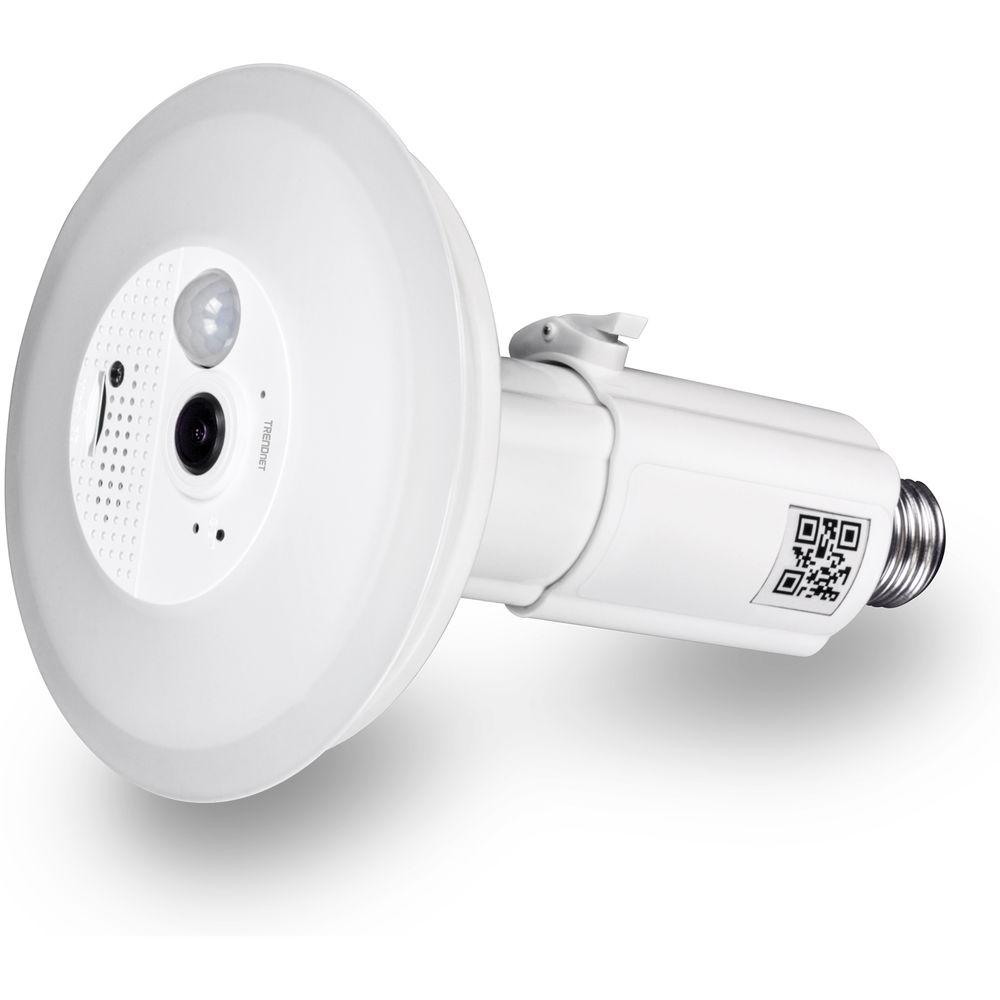

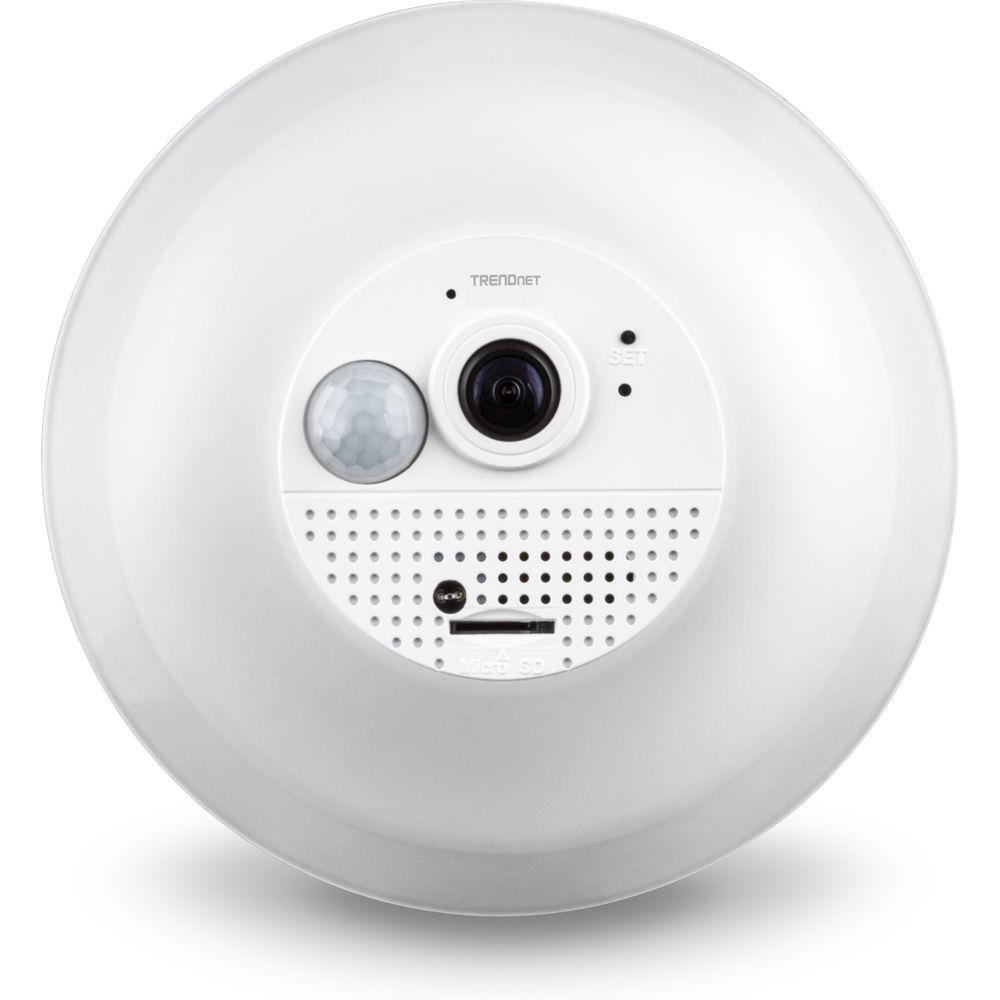

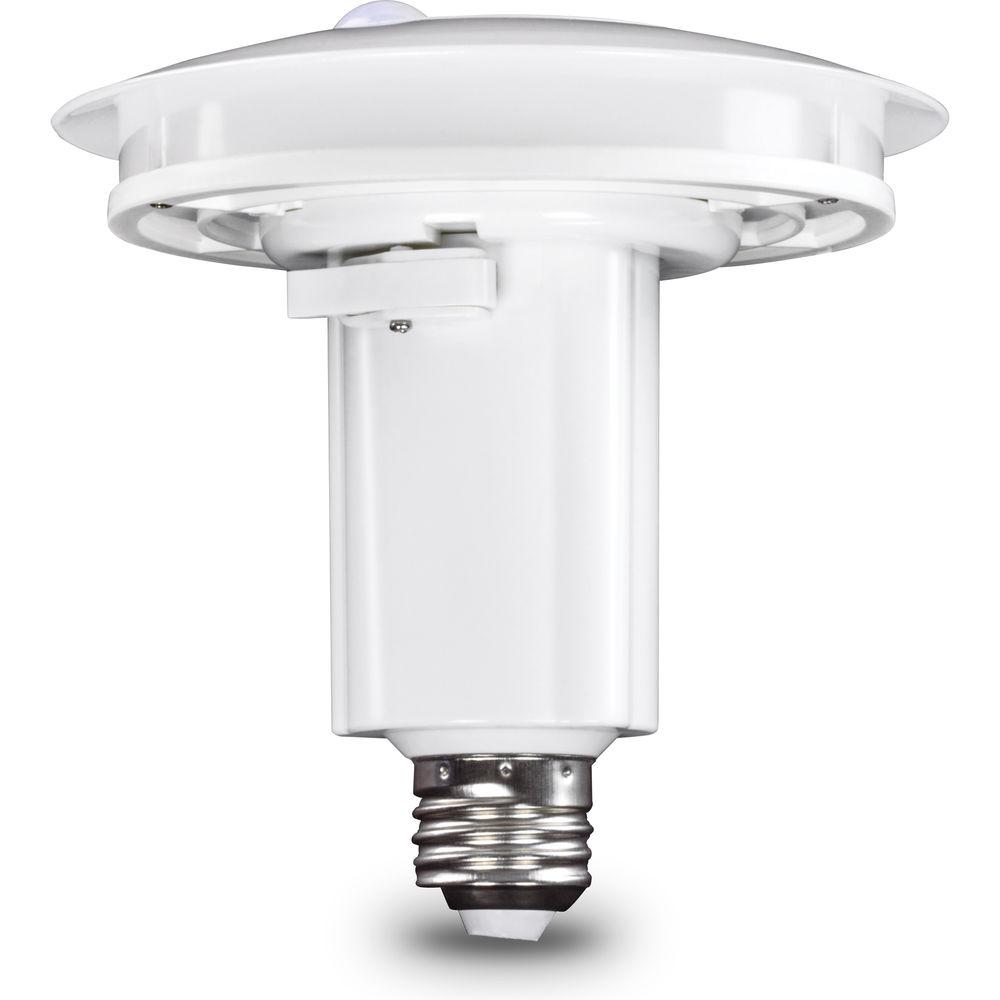

Discreetly monitor your home or business with the Wi-Fi Light Bulb with Covert 720p Wi-Fi Fisheye Camera from TRENDnet. This covert camera captures 1280 x 720 resolution video at 30 fps. It's equipped with a 185° diagonal field of view and a PIR motion detection sensor with a range up to 13.1'. Two-way audio is possible thanks to a built-in microphone and speaker. With a light output of 360 lumens and a 3000K warm white color temperature, this device looks and functions like a regular light bulb. Free apps available for iOS and Android mobile devices enable you to control the light bulb functionality remotely as well as the video feed from the camera. In addition, you'll be able to get event notifications when activity is detected via the app or email. An integrated microSD slot supports cards up to 64GB. microSD cards are available for purchase separately. - Looks and functions like a real light bulb

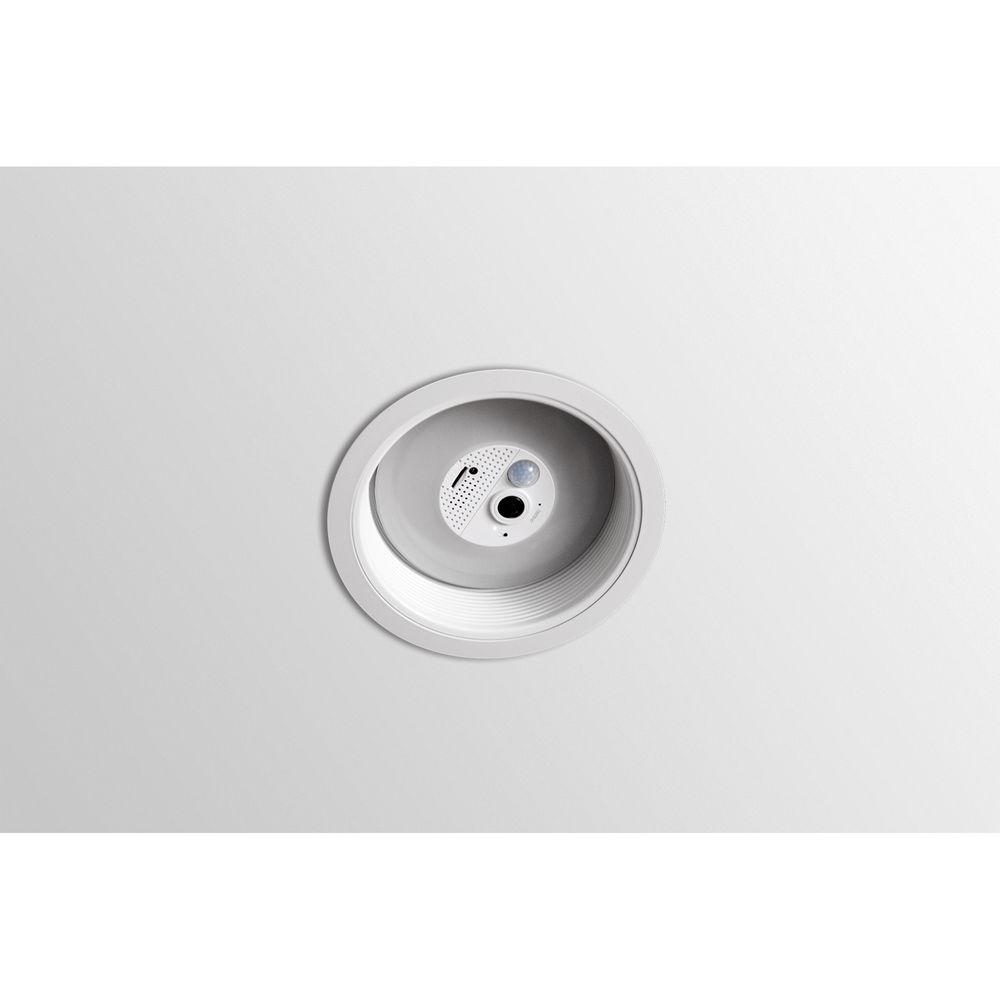

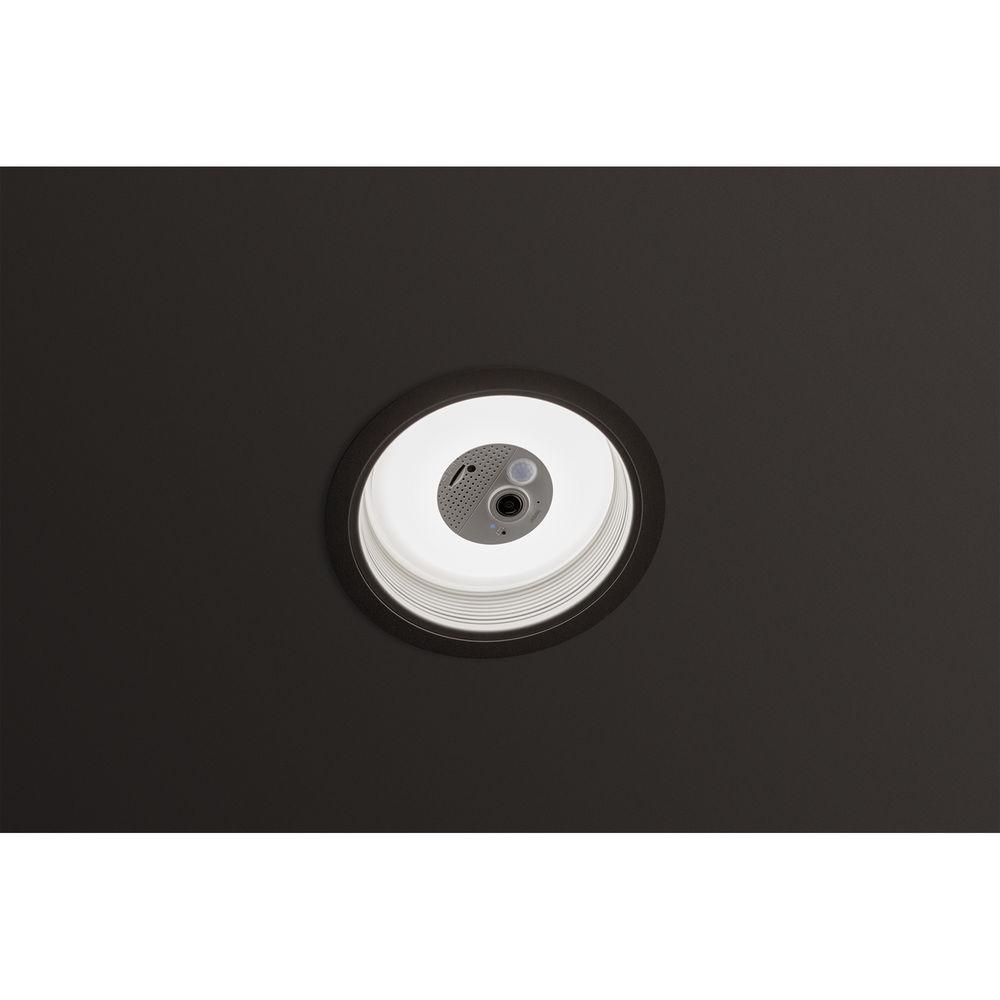

- Fits into most standard light sockets
- Remote access to control light bulb and access camera functions via free app for iOS/Android devices
- Records video directly to your mobile device, or to a microSD card up 64GB (microSD cards available separately)

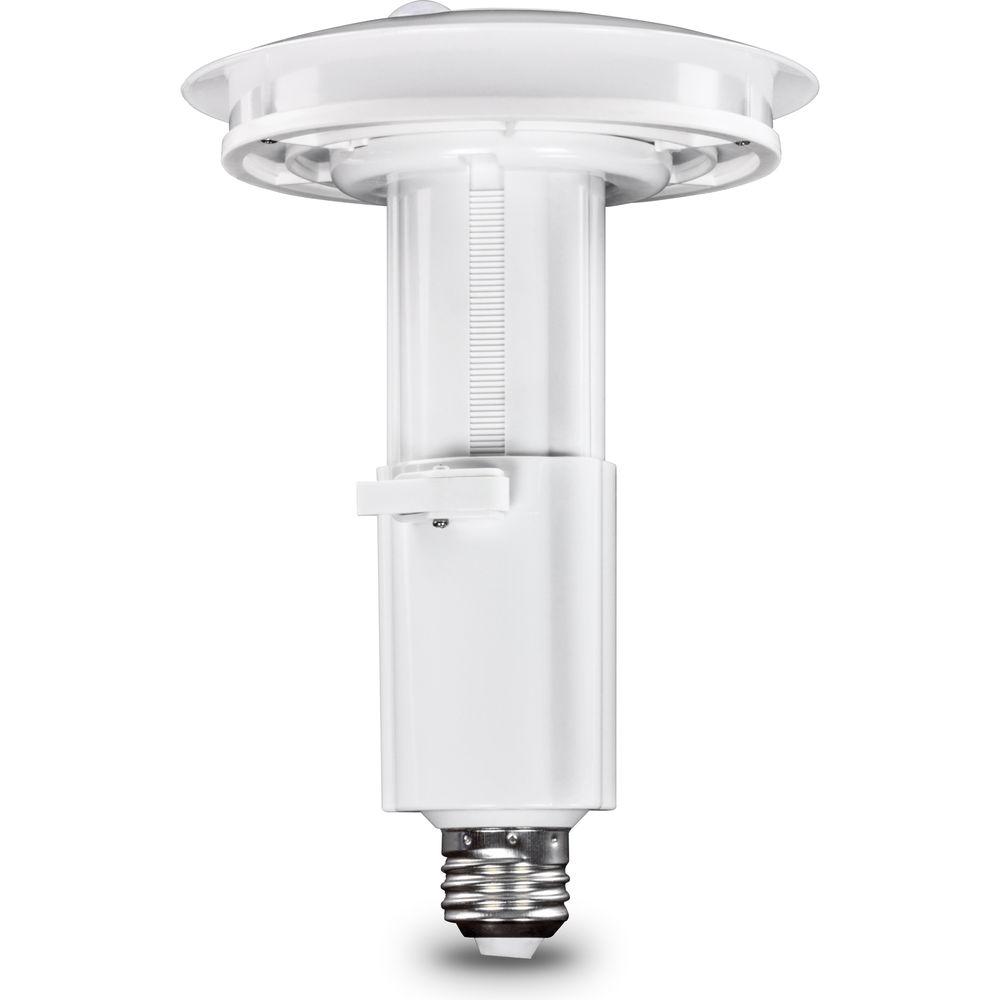

- Telescopic arm extends from 4 to 6.25"
- Takes still photos in addition to 720p video
- Advanced playback enables in-camera video review functionality
UPC: 710931110340 In the Box TRENDnet Wi-Fi Light Bulb with Covert 720p Wi-Fi Fisheye Camera Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the TRENDnet Wi-Fi Light Bulb with Covert 720p Wi-Fi Fisheye Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTRENDnet TWC-L10 Specs | Image Sensor | 1/4" CMOS | | Resolution | 1280 x 720 | | Lens | 0.95mm, f/2.0 | | Field of View | Diagonal: 185°
Fisheye Overview: 360° | | Arm | Telescopic arm extension from 4 to 6.25" / 10 to 15 cm | | Video Compression | H.264 | | Digital Zoom | 1.8x | | Two-Way Audio | Built-in microphone and speaker | | Motion Detection | Yes | | PIR Range | 13.1' / 4 m | | Playback | Yes | | Storage | Supports microSD cards up to 64 GB | | Cloud Access | P2P | | Light Output | 360 lumens (40 W equivalent) | | Color Temperature | 3000K warm white | | Reset Button | Yes | | LED Indicator | Yes | | Event Notification | Email, app | | Mobile Applications (iOS/Android) | Yes | | Wi-Fi Connectivity | Yes | | Network Protocols | IPv4, UDP, TCP | | Network Standards | IEEE 802.3
IEEE 802.3u
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n | | LED Bulb | 6 W
Lumens: 360 lumens
Incandescent Equivalent: 40 W | | Power | 100-220 V | | Max Power Consumption | 9 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity (Non-Condensing) | 90% max | | Dimensions | 5.1 x 5.1 x 5.5" / 130 x 130 x 139 mm | | Weight | 7 oz / 200 g | | | | Package Weight | 0.79 lb | | Box Dimensions (LxWxH) | 5.95 x 5.45 x 5.4" |
