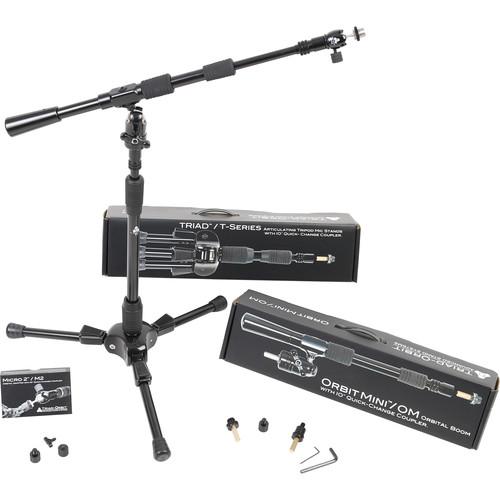

User Manual for Triad-Orbit Short Tripod Stand System with T1 OM M2 Click to enlarge the picture
Contents of the user manual for the Triad-Orbit Short Tripod Stand System with
- Product category: Mic Stands & Boom Arms Triad-Orbit
- Brand: Triad-Orbit
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Triad-Orbit Mic Stands & Boom Arms
|
User manual for the Triad-Orbit Short Tripod Stand System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Triad-Orbit product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Triad-Orbit user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Triad-Orbit product will considerably shorten its lifespan!
|
Product description Designed for surgically precise mic placement, the Triad-Orbit Short Tripod Stand System with T1 / OM / M2 includes a T1 Short Tripod, an OM Orbit Mini short single-arm orbital boom, and a Micro 2 M2 short stem orbital mic adapter. Ideal for low-profile placement of small-diaphragm microphones on drums and amps, this stand delivers a wide range of motions combined with smooth, quiet, and stable operation. - T1 Short Tripod The T1 Short Tripod from Triad-Orbit is designed to accommodate applications that call for low mic placements such as on drums, guitar amps, and more.
Each leg of the stand's base has four ratcheted positions that provide up to 65° range of movement. This allows the T1 to stand on uneven surfaces and allows for stacking, which makes storage easier.
The T1 is also equipped with an IO quick-change coupling system to mate with IO-equipped hardware. This is great for quickly changing microphones and booms without having to unscrew anything. -
- Max. Footprint: 18.5"
- Stand Height: 17 - 29.5"
- Weight: 9.5 lb
UPC: 813985003016 - OM Orbit Mini - Short Single-Arm Orbital Boom The OM Orbit Mini from Triad-Orbit is the smaller version of the Orbit 1 orbital boom arm and is the companion boom for the optional Triad Mini Stand. The Orbit Mini provides flexible placement in tight spaces and back-line applications. All orbital booms utilize a proprietary, stainless-steel ball swivel mechanism to deliver a smooth, quiet and stable range of motion for surgically precise mic placement. The Orbit Mini is also equipped with the IO quick-change coupler hex to mate with IO-equipped Triad stands. This is great for quickly changing or moving microphones without having to unscrew anything. The boom also utilizes an industrial-grade clutch in lieu of knob and thumbscrew to secure the point of adjustment. The knurled metal clutch barrel is coated to provide a comfortable ergonomic grip that yields more torque. With no protruding parts, the boom is designed to transport and store with ease.
-
- Boom Arm Range: 12.2 to 21.7"
- Range of Motion: 360° x 190°
- Weight: 4.3 lbs
UPC: 813985003269 - Micro 2 M2 Short Stem Orbital Mic Adapter The Micro 2 M2 Short Stem Orbital Mic Adapter from Triad uses Triad's Compass Point ball swivel housing to provide accurate and secure mic placement, and is designed to reduce set up time. The M2 is IO connector equipped for compatibility with Triad's stands and Orbit booms. UPC: 813985003078
In the Box Bundle Items T1 Short Tripod uzfsfevezb OM Orbit Mini - Short Single-Arm Orbital Boom Micro 2 M2 Short Stem Orbital Mic Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Triad-Orbit Short Tripod Stand System with T1 OM M2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - T1 Short Tripod
| | | Height | 17 to 29.5" / 43.2 to 74.9 cm | | Base Type | Tripod | | Base Dimensions | 18.5 x 18.5" / 47 x 47 cm | | | | Box Dimensions (LxWxH) | 35.5 x 5.5 x 4.0" | - OM Orbit Mini - Short Single-Arm Orbital Boom
| | | Length | 12.2 to 21.7" / 31 to 55 cm | | Range of Motion | 360 x 190° | | | | Box Dimensions (LxWxH) | 21.3 x 5.9 x 3.4" | - Micro 2 M2 Short Stem Orbital Mic Adapter
| | | Box Dimensions (LxWxH) | 5.15 x 3.35 x 1.55" |
