User Manual for Trident Audio Series 80B Dual Microphone Preamplifer and Equalizer Click to enlarge the picture
Contents of the user manual for the Trident Audio Series 80B Dual Microphone
- Product category: Channel Strips Trident Audio
- Brand: Trident Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trident Audio Channel Strips
 |
User manual for the Trident Audio Series 80B Dual Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trident Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trident Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trident Audio product will considerably shorten its lifespan!
|

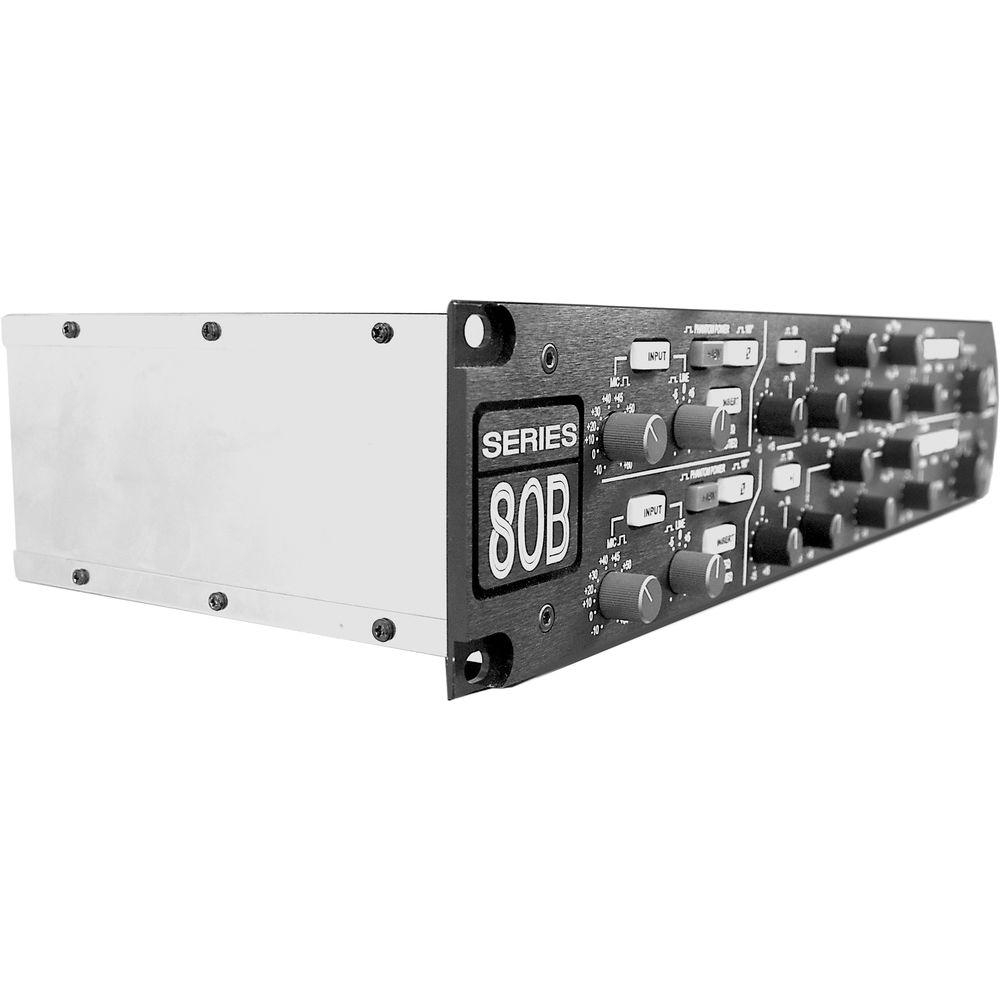

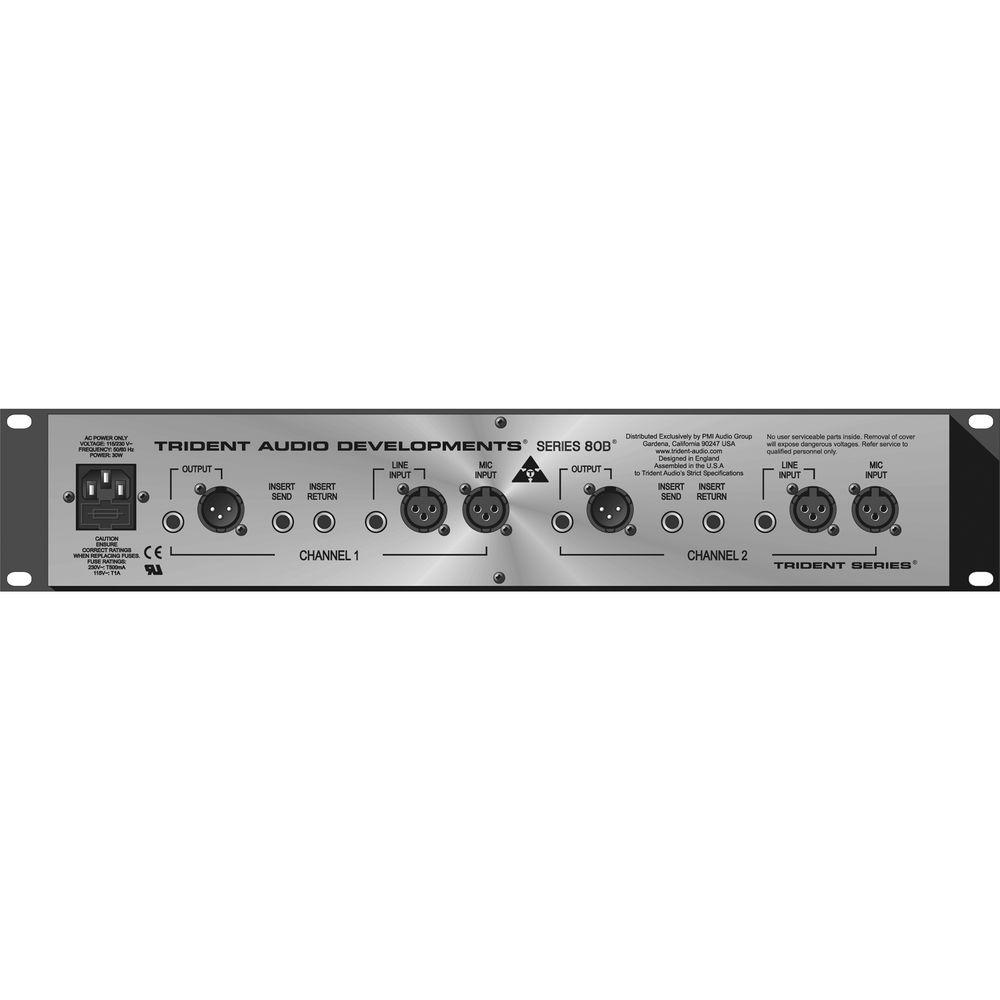

Product description The Series 80B Dual Microphone Preamplifer and Equalizer from Trident Audio is a 2-channel, rack-mountable version of the Series 80B console. Comprising two independent channels, each with a microphone/line amplifier and four-band equalizer, it is designed to process incoming signals from a microphone or line-level instrument and output to a recording device such as a digital audio workstation or analog multi-track tape recorder. In keeping with the functionality of the Trident Series 80B console, each channel strip of this rack unit features insert points, phase reverse (which operates on both microphone and line inputs), and an output level control with peak signal indication. All inputs and outputs are balanced so that maximum signal integrity and high output levels are assured with minimum distortion. The Series 80B rack incorporates a classic 4-band equalizer, which is identical to that employed in the Trident Series 80B console. It consists of frequency-switchable, high- and low-pass shelving sections, coupled with two swept low and high mid-range bands and a switchable 50 Hz, 12 dB per octave filter. In the Box Trident Audio Series 80B Dual Microphone Preamplifer and Equalizer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trident Audio Series 80B Dual Microphone Preamplifer and Equalizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrident Audio 80B Specs | Input Impedance | Microphone: 1.2 kOhms transformer balanced
Line: 15 kOhms electronically balanced | | Output Impedance | Maximum 100 Ohms electronically balanced | | Gain | Microphone: -15 to +60 dB
Line: -15 to +10 dB | | Noise | Microphone: -128 dBu ref 150 Ohms (20 Hz to 20 kHz)
Line: -85 dBu (EQ In, 20 Hz to 20 kHz) | | Maximum Level | Mic Input: +24 dBu at all frequencies
Line Input: +24 dBu at all frequencies | | Distortion | Mic Input: <0.05% T.H.D. (-50 dBu input, +4 dBu output)
Line Input: <0.05% T.H.D. (+4 dBu input, +4 dBu output) | | Frequency Response | Mic Input: ±1 dB 20 Hz to 20 kHz
Line Input: ±1 dB 20 Hz to 20 kHz | | Nominal Operating Level | +4 dBu | | LED | Peak Threshold: +10 dBu | | Dimensions | 24.5 x 15.5 x 5.5" (62.2 x 39.4 x 13.9 cm) | | Weight | 11.4 lb (5.2 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
