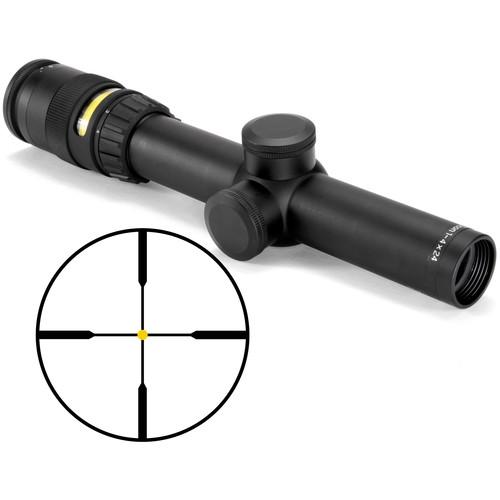

User Manual for Trijicon 1-4x24 AccuPoint Riflescope with Amber-Dot Duplex Reticle Click to enlarge the picture
Contents of the user manual for the Trijicon 1-4x24 AccuPoint Riflescope with Amber-Dot
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 1-4x24 AccuPoint Riflescope with Amber-Dot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

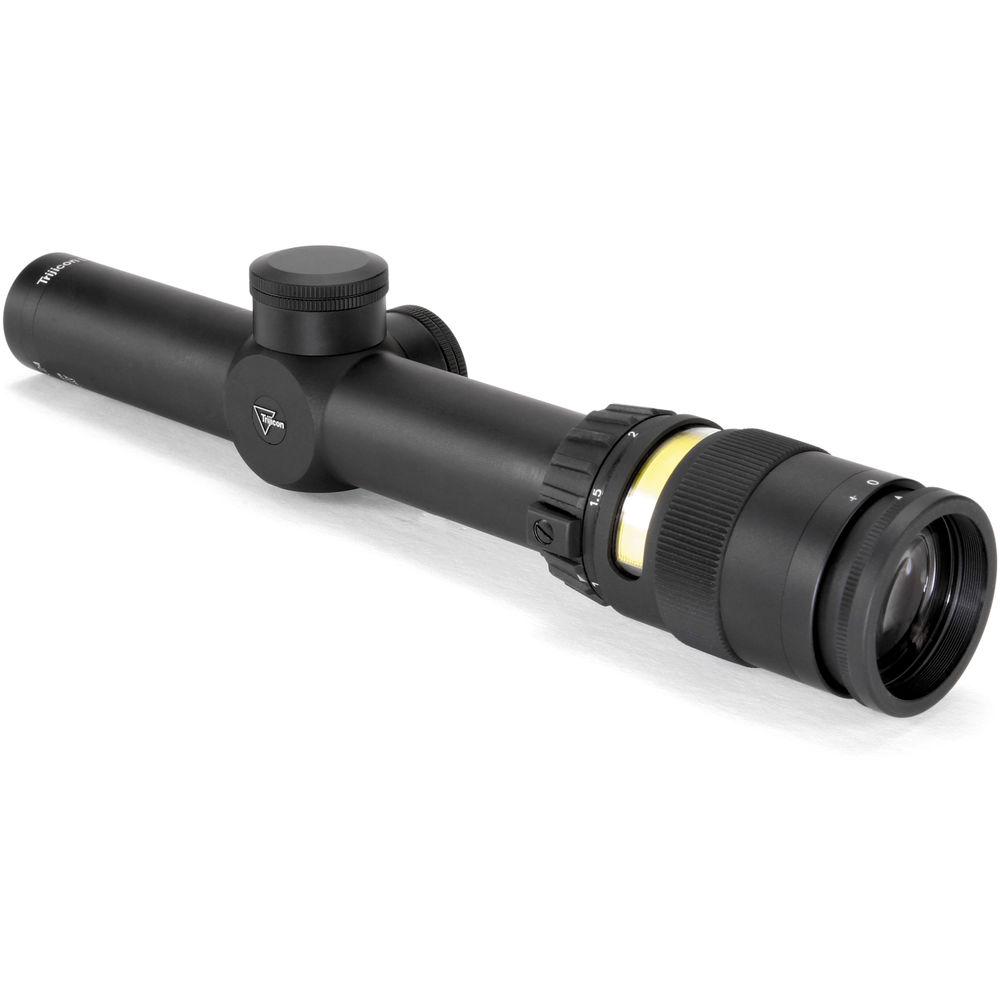

Product description The 1-4x24 AccuPoint Riflescope from Trijicon is a versatile zoom scope that performs well in full daylight and low-light conditions. It features a duplex crosshair reticle with a tritium-illuminated amber center aiming dot. Ideal for medium distances, or for larger game, the thinner central hairs won't obscure your target, while the amber dot provides a vivid aiming point. 1/4 MOA per click shot correction ensures precise adjustments to get you on-target, and the ±45 MOA windage/elevation range can lets you compensate for most locations and conditions. Made of 6061-T6 aluminum, the housing has a Type III hard anodized finish that is scratch and corrosion resistant. - Optical Performance
-
- 1-4x magnification
- 24mm objective lens
- 3.2" eye relief constant through zoom range

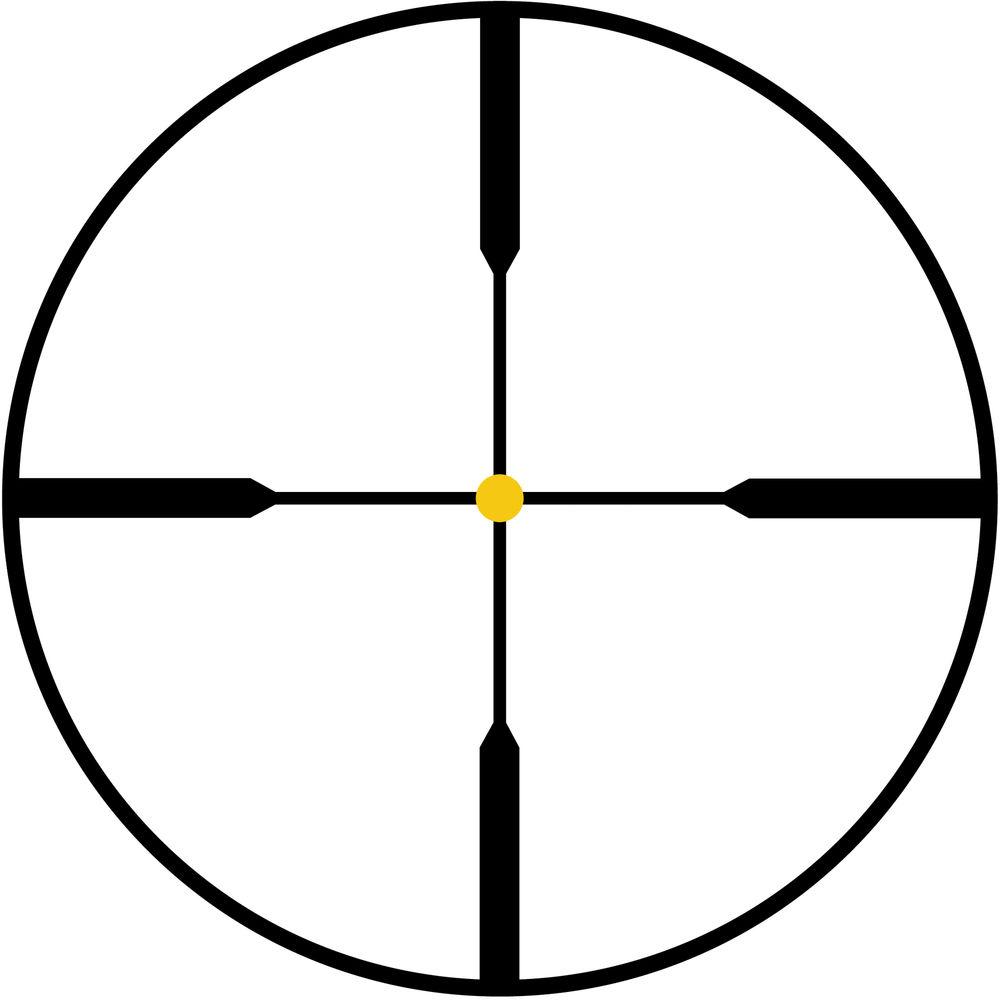

- Duplex crosshair reticle with amber aiming point
- Tritium-phosphor/fiber optic aiming-dot illumination
- Use and Handling
-
- Battery-free reticle illumination
- 1/4 MOA impact point adjustments
- Low-profile, finger-adjustable windage and elevation turrets
- Easy focus eyepiece for fast reticle focusing
- Construction Details
-
- 6061-T6 aluminum alloy housing
- Type III hard coat anodizing
- 14.4 oz weight
UPC: 719307400368 In the Box Trijicon 1-4x24 AccuPoint Riflescope with Amber-Dot Duplex Reticle LensPen - TA56 Trijicon Logo Sticker Front Lens Cap Rear Lens Cap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1-4x24 AccuPoint Riflescope with Amber-Dot Duplex Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR24-C-200070 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 97.5' @ 100 yd / 32.4 m @ 100 m
4x: 24.2' @ 100 yd / 8.1 m @ 100 m | | Exit Pupil Diameter | 1x: 17.5 mm
4x: 5.1 mm | | Eye Relief | 3.2" / 81 mm | | | | Reticle Type | Duplex Crosshair-Dot Reticle | | Illumination | Illuminated | | Illumination Type | Tritium | | Illuminated Color | Amber | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment |
