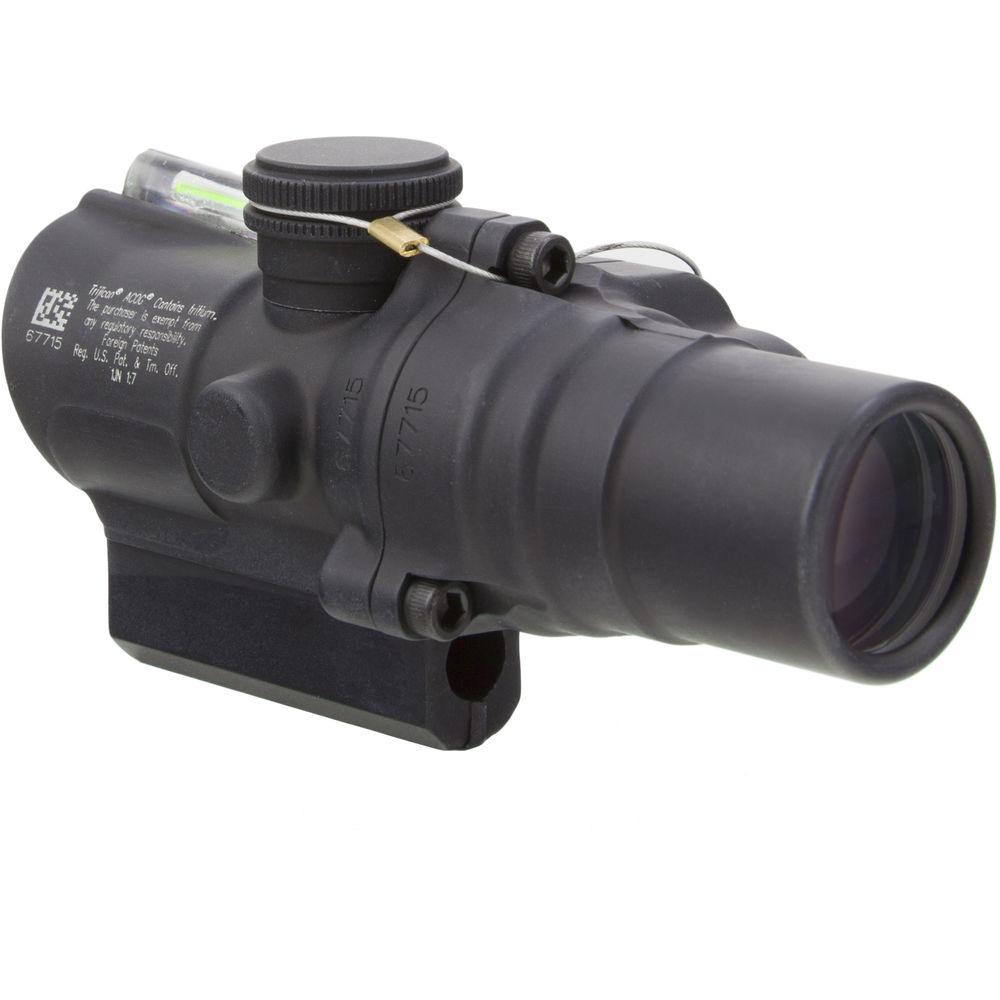

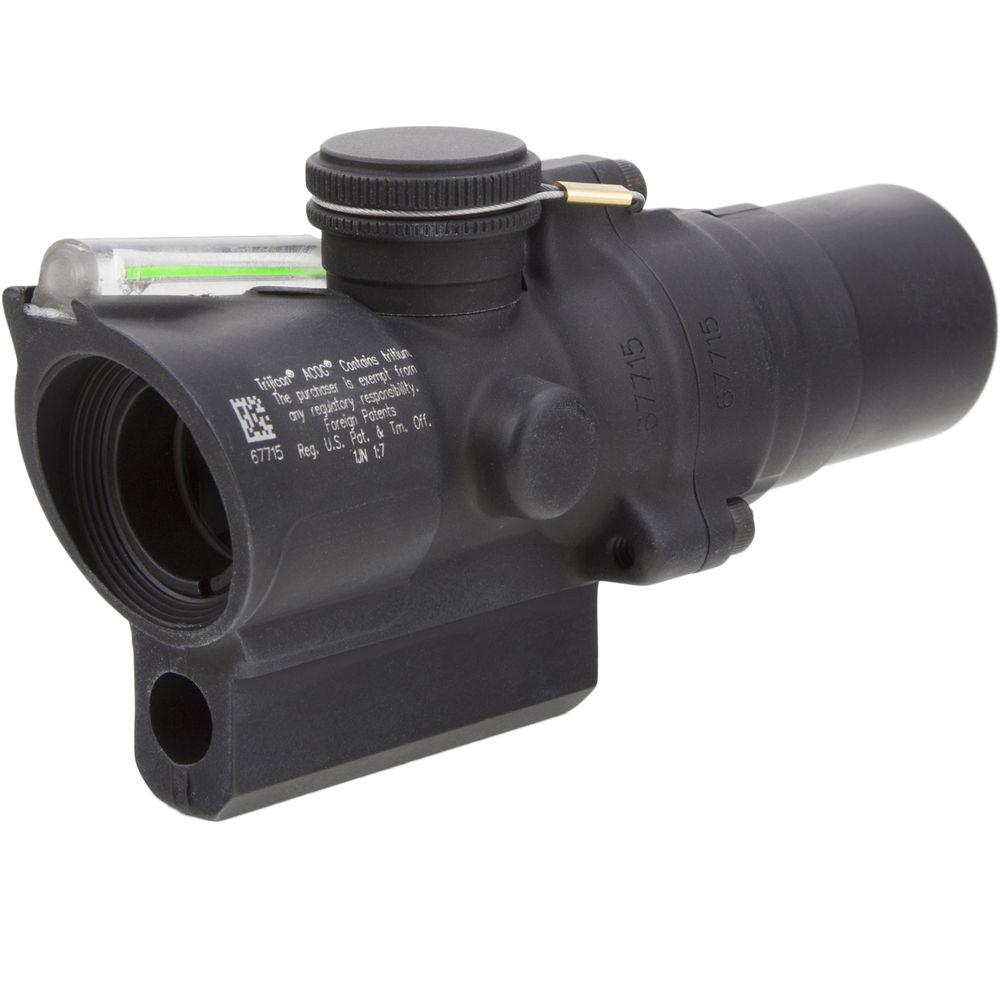

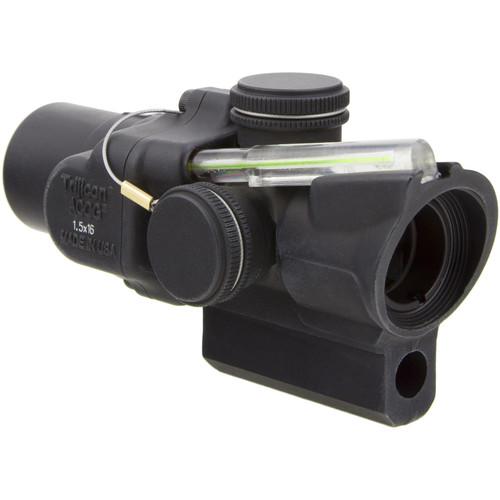

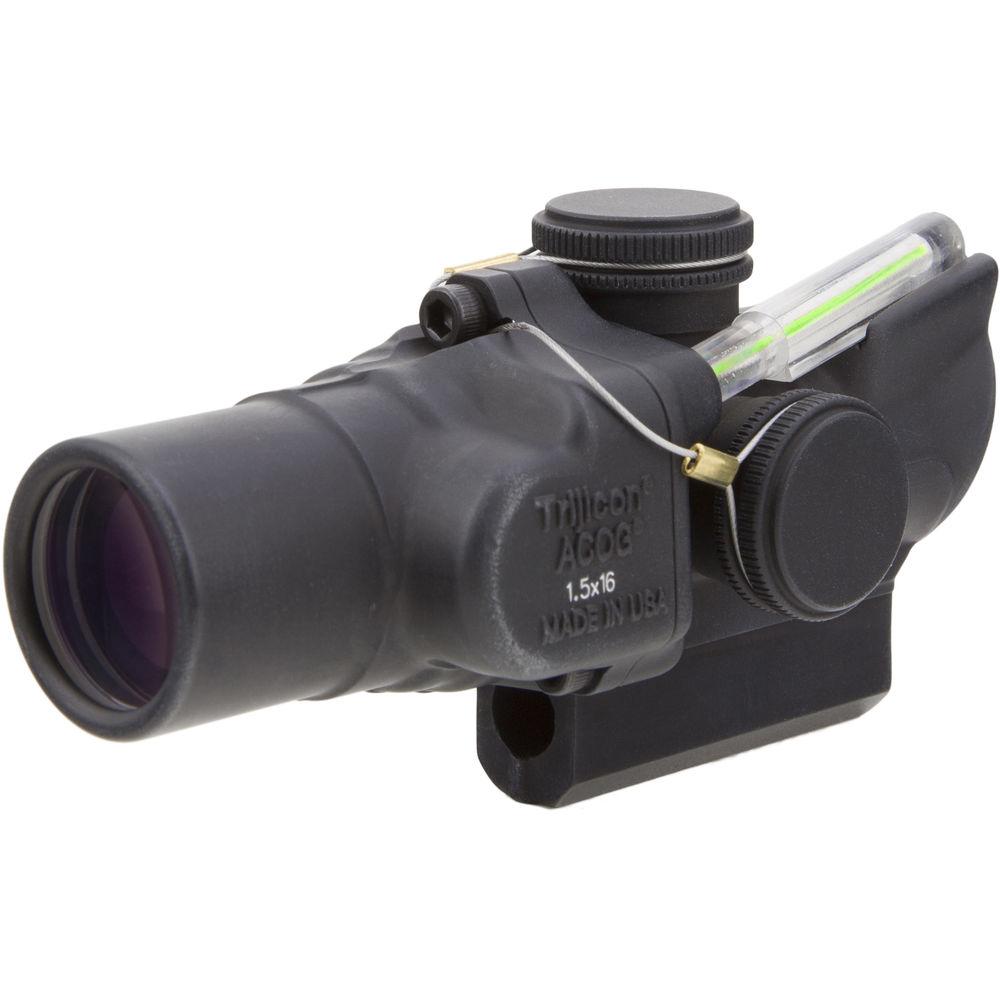

Product description Trijicon's 1.5x16S TA44 ACOG Riflescope with M16/AR-15 Mount features tactical hand-adjustable windage and elevation turrets, and a battery-free illuminated reticle to create a versatile weapon sight that is well-suited for use in a wide range of situations and conditions. This Advanced Combat Optical Gunsight (ACOG) sight was designed for use with the both-eyes-open Bindon Aiming Concept for superior sense of balance and a wider field-of-view, and is outfitted with a 2 MOA green ring-dot reticle that enables fast sighting and tracking for CQB operations and precise shot placement at distance. Anti-reflection broadband fully multicoated optics maximizes light transmission to provide bright and clear views with limited distortion. The TA44's relatively low magnification translates to a generous 7.4° angular view and 39' linear field of view at 100yd, when using it as a conventional optic, but Trijicon designed the ACOG around the both-eyes-open Bindon Aiming Concept for CQB operations and fast target acquisition and tracking.Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that focuses, channels, and filters available light to illuminate the reticle. Using ambient light ensures that the reticle brightness will be appropriate for the conditions without any adjustment by the user. The reticle's aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. Complementing the ACOG's optical and illumination systems is a nitrogen-filled, 7075-T6 aluminum housing with a corrosion and scratch-resistant matte black anodized finish that provides the durability needed for reliable performance in a wide range of conditions. - Optical Performance
-
- 1.5 low magnification
- 16mm objective lens
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections, and distortion
- 39' field of view at 100 yd
- 7.4° actual angle of view
- Reticle Details
-

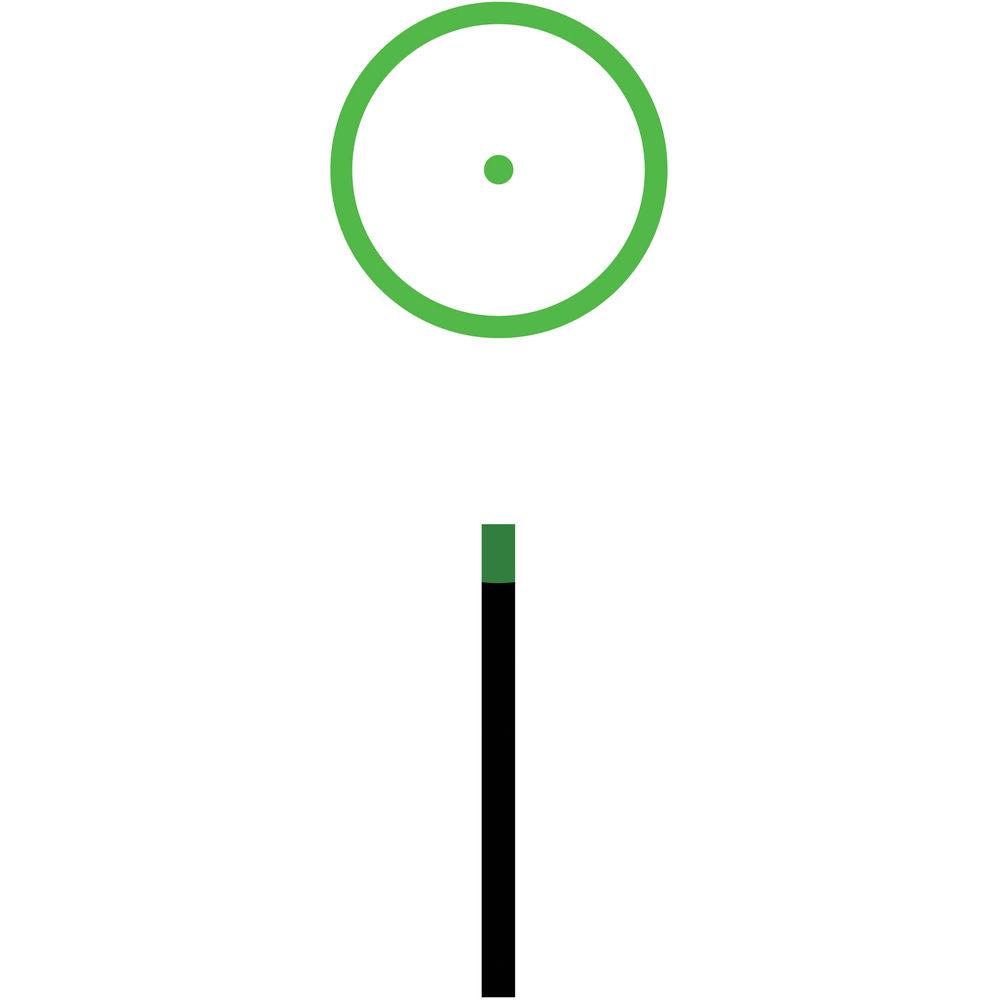

- Dual-illuminated 2 MOA green ring-dot reticle
- Post with illuminated tip on lower vertical axis
- 2 MOA diameter circle draws the eye to the target with an illuminated center aiming dot
- Dual illumination system: Battery-free tritium and fiber-optics
- Tritium isotope: Interacts with a phosphors membrane to create illumination for the reticle in low or no light
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Use and Handling
-
- 1/2 MOA per click impact point correction
- ±40 MOA windage/elevation adjustment range
- Tactical tool-free adjustment turrets
- Designed for use with the both-eyes-open Bindon Aiming Concept for superior sense of balance and a wider field-of-view
- 2.4" eye relief
- 10.7mm exit pupil
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- M16 carry-handle mount: Designed for M16/AR-15 platforms - screw and washer set included
- Shock-resistant: Tested to withstand recoils on weapons from .22 LRs up to .50 BMGs
- Lightweight: Weighs just 5.1 oz
- Made in the USA
UPC: 719307309456 In the Box Trijicon 1.5x16S TA44-C ACOG Riflescope (2 MOA Green Ring-Dot Reticle, M16/AR-15 Mount) Screw & Washer Set for ACOG (Matte Black) ACOG Scopecoat LensPen - TA56 Trijicon Sticker Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1.5x16S TA44-C ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA44-C-400140 Specs | | | Reticle | 2 MOA Circle-Dot | | Reticle Color | Green | | Eye Relief | 61 mm | | | | Magnification | 1.5 x | | Objective Lens Diameter | 16 mm | | Field of View | 39 @ 100 yd13 @ m | | Exit Pupil Diameter | 10.7 mm | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment |
