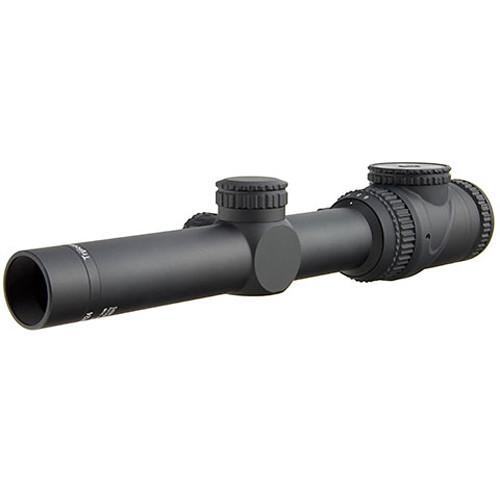

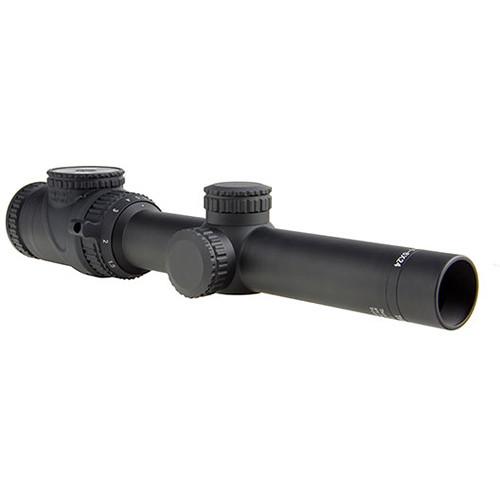

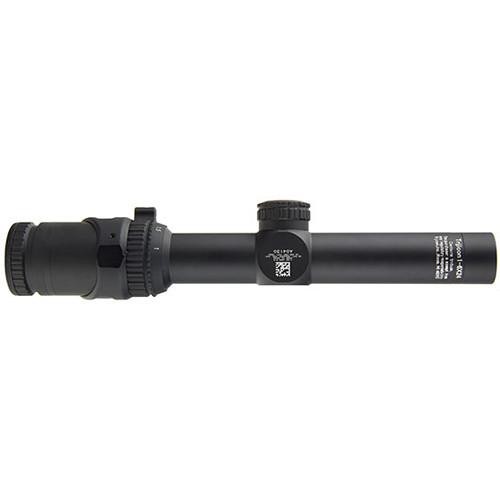

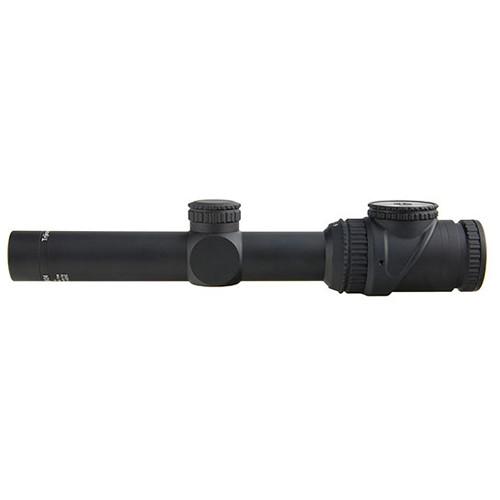

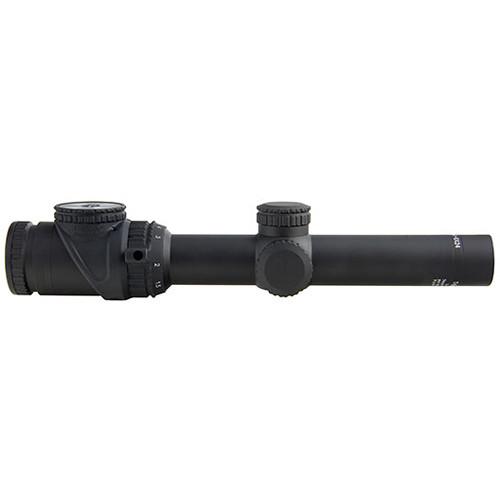

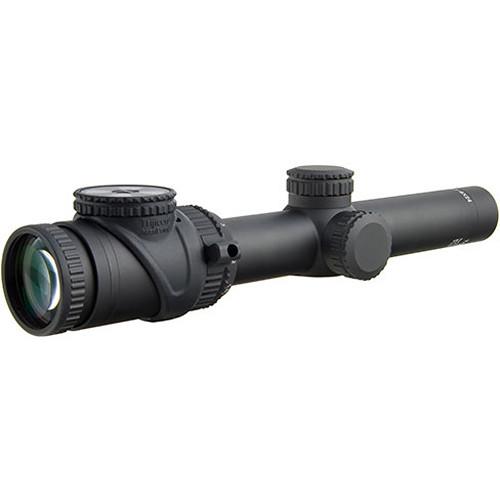

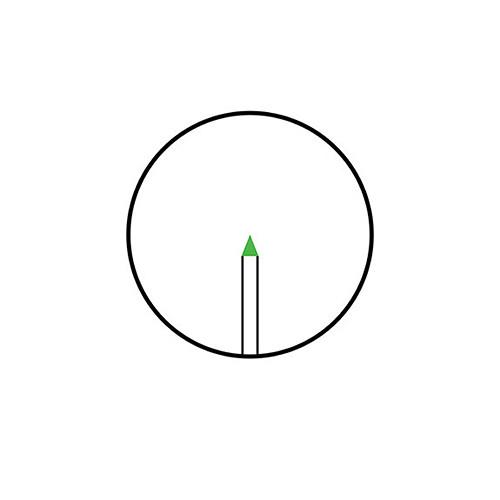

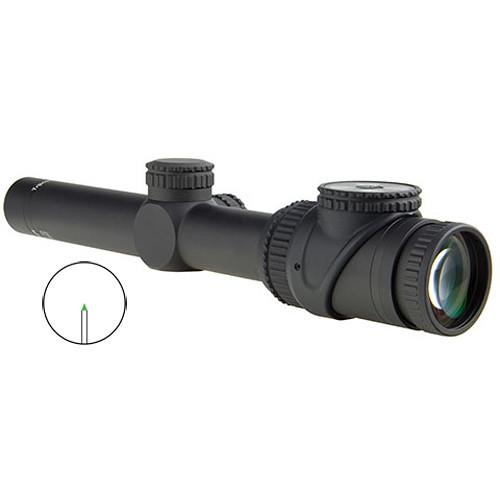

Product description Trijicon engineered the 1-6x24 AccuPoint Riflescope as a riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high-quality optical glass and polished for low-distortion performance. To empower you with laser precision when making your shots, the optic is enhanced with the Green Triangle Post Illuminated Reticle. It offers one wide and hollow tapered post with a solid illuminated triangular tip that is 2.8 MOA wide and high. The illumination offers a fiber optic day illumination option with variable brightness and a tritium lamp for illumination at night. The reticle is specifically designed for using the Bindon Aiming Concept (BAC). The technique allows you to engage fast moving targets with both eyes open and to make accurate target acquisitions.
The housing is engineered from durable aluminum and coated with a hard anodized finish. It features a 30mm maintube, and lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled easy-focus eyepiece features a long 3.9" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 9.8') performance that will withstand extreme conditions for years of service. - Green Triangle Post Reticle
-
- 2nd focal plane
- One wide hollow vertical post
- Illuminated solid triangular tip
- Width and height of the tip are 2.8 MOA
- Daytime fiber optic day illumination with variable brightness
- Night tritium lamp night illumination
- Does not project forward any light
- Optical Performance
-
- Multi-coated optics
- Low-distortion optical system
- Magnification: 1-6x
- 24mm objective lens
- Linear field of view: 117.5 - 18.8' at 100 yards
- Long eye relief of 3.9"
- Use and Handling
-
- 1/4 MOA impact point correction
- 110 MOA windage and elevation adjustments
- Construction Details
-
- 30mm single-piece tube
- High-quality aluminum housing
- Capped finger-operated turrets
- Easy-focus eyepiece with zoom lever
- Fogproof, nitrogen-filled
- Waterproof to 9.8'
- Shock-resistant
In the Box Trijicon 1-6x24 AccuPoint Riflescope (Green Triangle Post Reticle, Matte Black) - Trijicon Logo Sticker
- LensPen - TA56
- 2 x Lens Caps
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1-6x24 AccuPoint Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR25-C-200092 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 117.5' @ 100 yd / 39.2 m @ 100 m
6x: 18.8' @ 100 yd / 6.3 m @ 100 m | | Exit Pupil Diameter | 1x: 12 mm
6x: 4.1 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | Triangle Post Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | | | Water Resistance | Waterproof to 9.8' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11" / 279.4 mm | | Weight | 19.2 oz / 544.3 g |
