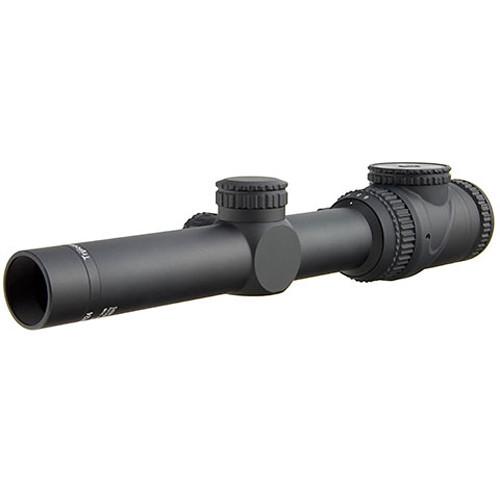

User Manual for Trijicon 1-6x24 AccuPoint Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 1-6x24 AccuPoint Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 1-6x24 AccuPoint Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

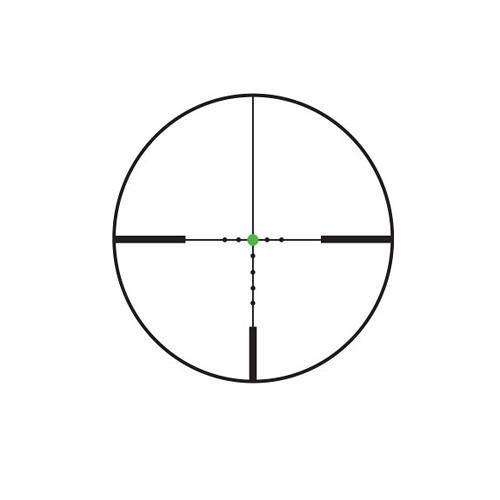

Product description Trijicon engineered the 1-6x24 AccuPoint Riflescope as a riflescope that can serve as a standard of durability and performance for both tactical and hunting riflescopes of its class. The optics feature multi-coatings that deliver clear and crisp images with a great level of detail. The optical elements are carefully designed and cut from high-quality optical glass and polished for low-distortion performance. To empower you with laser precision when making your shots, the optic is enhanced with the Green MOA-Dot Illuminated Reticle. It offers three posts, fine illuminated center dot, and 10 x 10 MOA crosshair with 1.25 MOA thick round tick marks. The center dot features fiber optic day illumination with variable brightness and a tritium lamp for illumination at night.

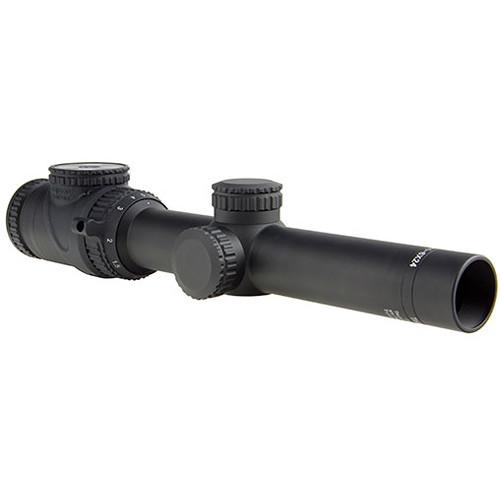

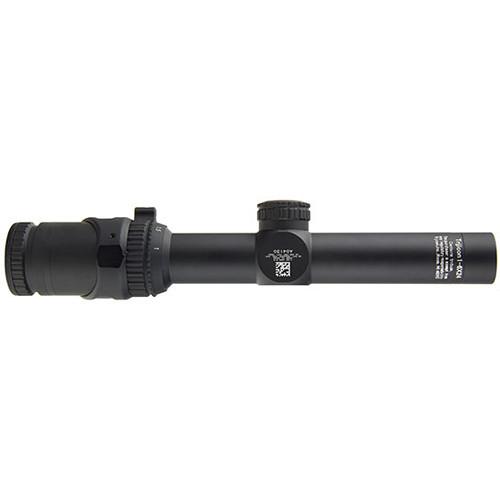

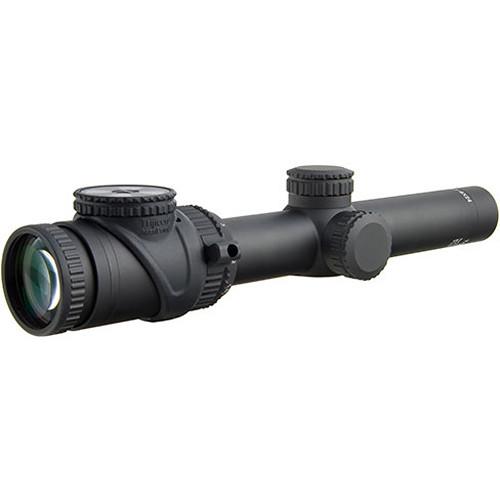

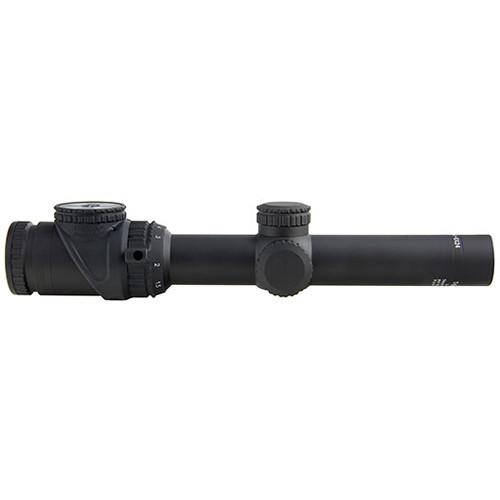

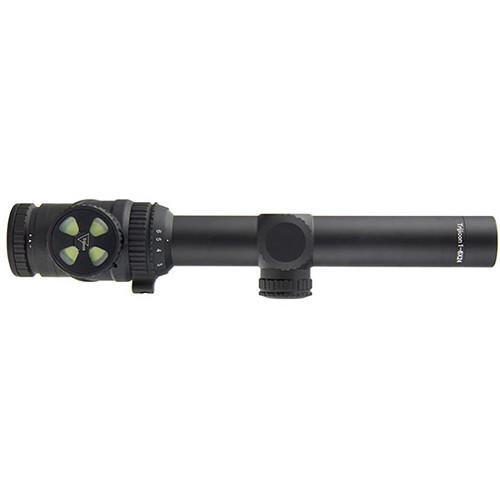

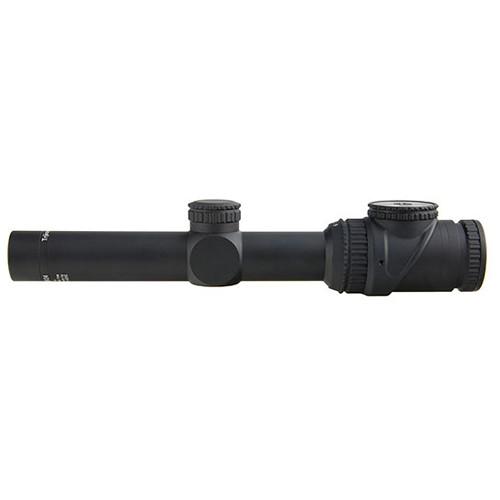

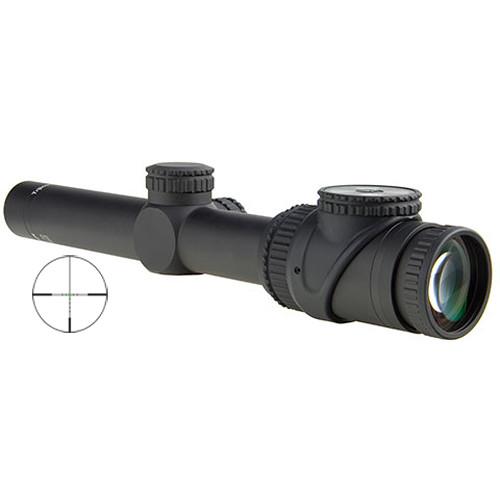

The housing is engineered from durable aluminum and coated with a hard anodized finish. It features a 30mm maintube, and lockable and resettable adjustment turrets with push-pull caps. The push-pull caps allow for easy finger-operated adjustments and have fine numerical scales for accurate visual references. The knurled easy-focus eyepiece features a long 3.9" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 9.8') performance that will withstand extreme conditions for years of service. - Green MOA-Dot Crosshair Reticle
-
- 2nd focal plane
- 0.33 MOA thick crosshair
- 1.25 MOA round tick marks
- Tick marks are spaced at 1 MOA intervals
- Three posts are 2 MOA thick
- 0.6 MOA illuminated center dot
- The crosshair is 10 x 10 MOA
- Daytime fiber optic illumination with variable brightness
- Nighttime tritium lamp night illumination
- Does not project forward any light
- Optical Performance
-
- Multi-coated optics
- Low-distortion optical system
- Magnification: 1-6x
- 24mm objective lens
- Linear field of view: 117.5 - 18.8' at 100 yards
- Long eye relief of 3.9"
- Use and Handling
-
- 1/4 MOA impact point correction
- 110 MOA windage and elevation adjustments
- Construction Details
-
- 30mm single-piece tube
- High-quality aluminum housing
- Capped finger-operated turrets
- Easy-focus eyepiece with zoom lever
- Fogproof, nitrogen-filled
- Waterproof to 9.8'
- Shock-resistant
In the Box Trijicon 1-6x24 AccuPoint Riflescope (Green MOA-Dot Crosshair Reticle, Matte Black) - Trijicon Logo Sticker
- LensPen - TA56
- 2 x Lens Caps
- Limited Lifetime Warranty
- Limited 15-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1-6x24 AccuPoint Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TR25-C-200089 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 117.5' @ 100 yd / 39.2 m @ 100 m
6x: 18.8' @ 100 yd / 6.3 m @ 100 m | | Exit Pupil Diameter | 1x: 12 mm
6x: 4.1 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | MOA Dot Crosshair Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | | | Water Resistance | Waterproof to 9.8' / 3 m | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11" / 279.4 mm | | Weight | 19.2 oz / 544.3 g |
