Product description Dominate the battlefield with Trijicon's 1-6x24 Variable Combat Optical Gunsight (VCOG). This battle-ready optic will dramatically increase the success rate of your mission while withstanding the most hostile environments and adverse weather conditions. It is built as a ruggedized riflescope for close quarter and variable combat, with an optical system that is optimized for the cause. Featuring a 1-6x zoom magnification, a 24mm objective lens, and high-quality optical glass, the fully multi-coated optical system is designed to improve light transmission, reduce image distortion, and deliver the best possible visibility in any situation. For engaging targets quickly and accurately, this gun sight is equipped with a brilliant Horseshoe Dot .223/77 illuminated reticle that is located in the first focal plane. It offers an LED-based illumination system with a variable brightness and has an ID at the bottom of the crosshair. To help you manage wind drifts and ballistics, the scope has 90 MOA windage and elevation adjustments with a 1/2 MOA impact point correction.
Forged from a single piece of 7075-T6 aluminum alloy, the maintube is exceptionally durable, fogproof, and waterproof (submersible to 66'). It features a hard anodizing finish, oversized knurled adjustments, and eyepiece with a long zoom lever to provide a slip-free operation. Another highlight is a keyway pad for a rotation-free mounting of secondary RMR sights. The built-in Picatinny thumbscrew mount provides unparalleled strength and durability to the overall construction and quality of attachment. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security. - Optical Performance
-
- Fully multi-coated optics
- Low-distortion and high transmission glass
- 1-6x zoom magnification
- 24mm objective lens diameter
- Angular field of view range is 18 - 3°

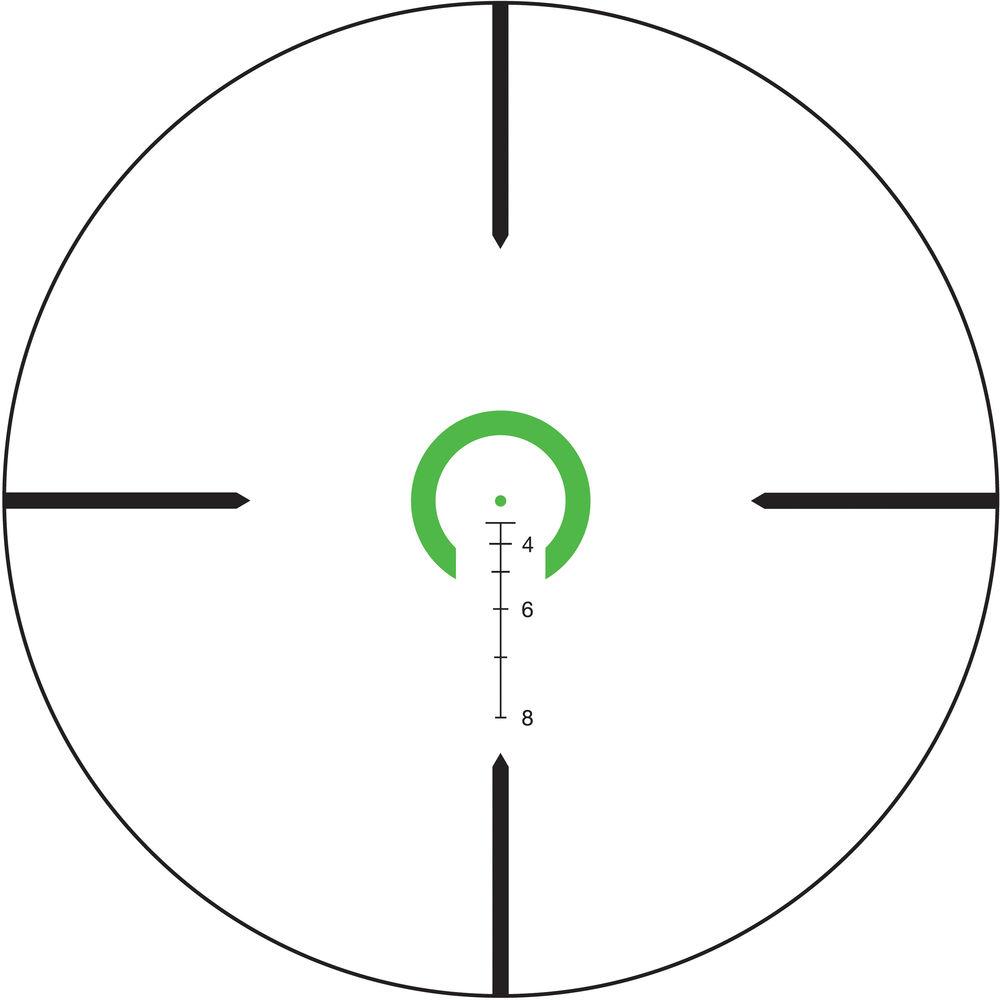

- Green Horseshoe Dot .223/77 Reticle
-
- 1st focal plane
- LED illumination system
- Six brightness levels
- Reticle ID is located at the bottom of reticle
- Powered by one standard AA battery
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 90 MOA windage and elevation adjustment
- 4" fixed eye relief
- Exit Pupil: 10.4 - 3.8mm
- Construction Details
-
- 7075-T6 aluminum alloy
- Forged, single-piece maintube
- Hard anodizing finish
- Keyway indentation serves as an anti-rotation landing zone for RMR mounts
- Capped finger-operated windage and elevation adjustments
- Wide, low-profile knobs caps provide an easy-grip
- Fogproof, shock resistant, waterproof, submersible to 66'
- Laser etched serial number on the battery compartment for identification
- Thumbscrew Picatinny mount is compatible with Picatinny rails
- Built-in mount construction increases durability
UPC: 719307320659 In the Box Trijicon 1-6x24 VCOG Riflescope (Green Horseshoe Dot .223/77 Reticle, Thumbscrew Mount) - Lithium AA Battery
- ACOG Picatinny Rail Adapter
- LensPen - TA56
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1-6x24 VCOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon VC16-C-1600043 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 95' @ 100 yd / 31.6 m @ 100 m
6x: 16' @ 100 yd / 5.3 m @ 100 m | | Exit Pupil Diameter | 1x: 10.4 mm
6x: 3.8 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | .223/77 Horshoe-Dot Reticle (First Focal Plane) | | Illumination Type | LED | | Illuminated Color | Green | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 90 MOA | | Elevation Adjustment | 90 MOA | | | | Water Resistance | Waterproof to 66' / 20 m | | | | Battery | 1 x AA | | Battery Runtime | 1400 Hours | | Dimensions | Length: 10.1" / 24.7 cm
Width: 2.5" / 6.4 cm
Height: 2.7" / 6.9 cm | | Weight | 23.2 oz / 657.7 g (without Battery, without Mount) |
