Trijicon 1-6x24 VCOG Riflescope

Search your instruction manual in PDF to download

User Manual for Trijicon 1-6x24 VCOG Riflescope

Click to enlarge the picture
Trijicon 1-6x24 VCOG Riflescope Contents of the user manual for the Trijicon 1-6x24 VCOG Riflescope
  • Product category: Riflescopes Trijicon
  • Brand: Trijicon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Trijicon Riflescopes

Trijicon 1-6x24 VCOG Riflescope Trijicon 1-6x24 VCOG Riflescope Trijicon 1-6x24 VCOG Riflescope Trijicon 1-6x24 VCOG Riflescope Trijicon 1-6x24 VCOG Riflescope
User manual for the Trijicon 1-6x24 VCOG Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Trijicon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!



Product description

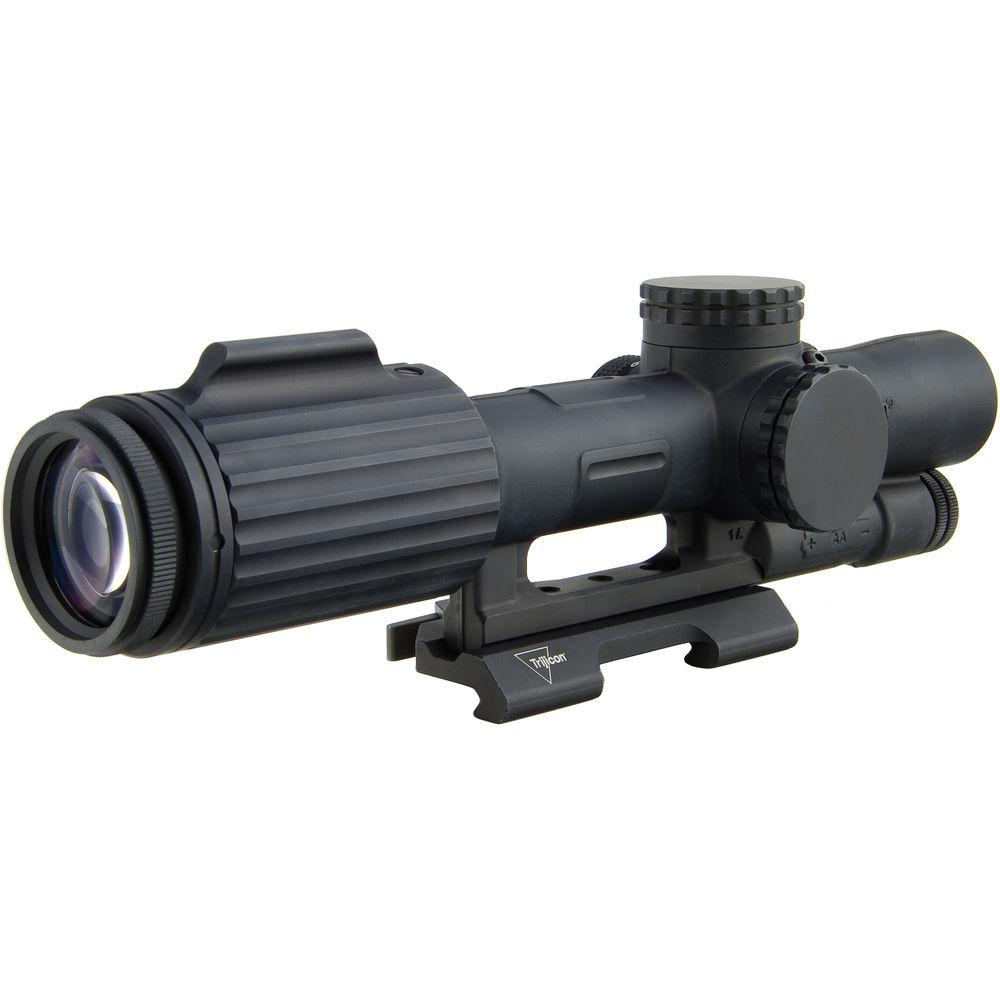

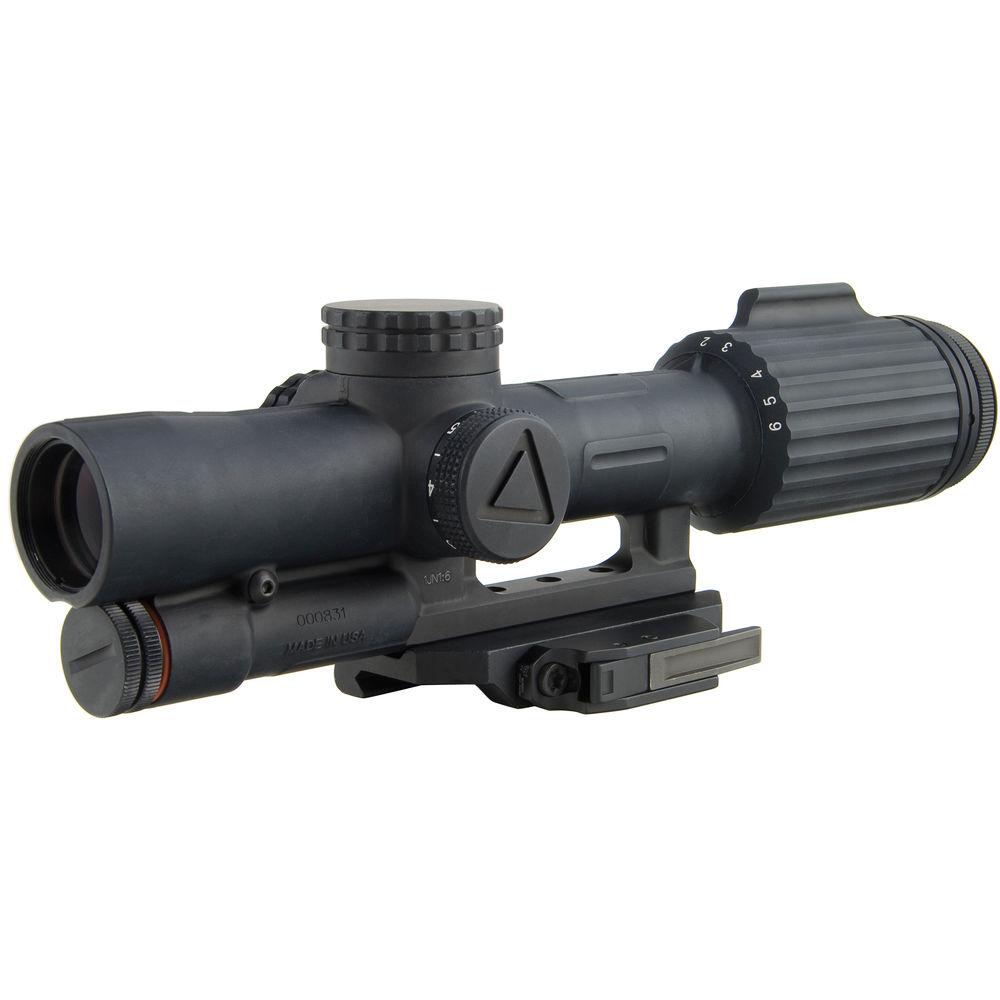

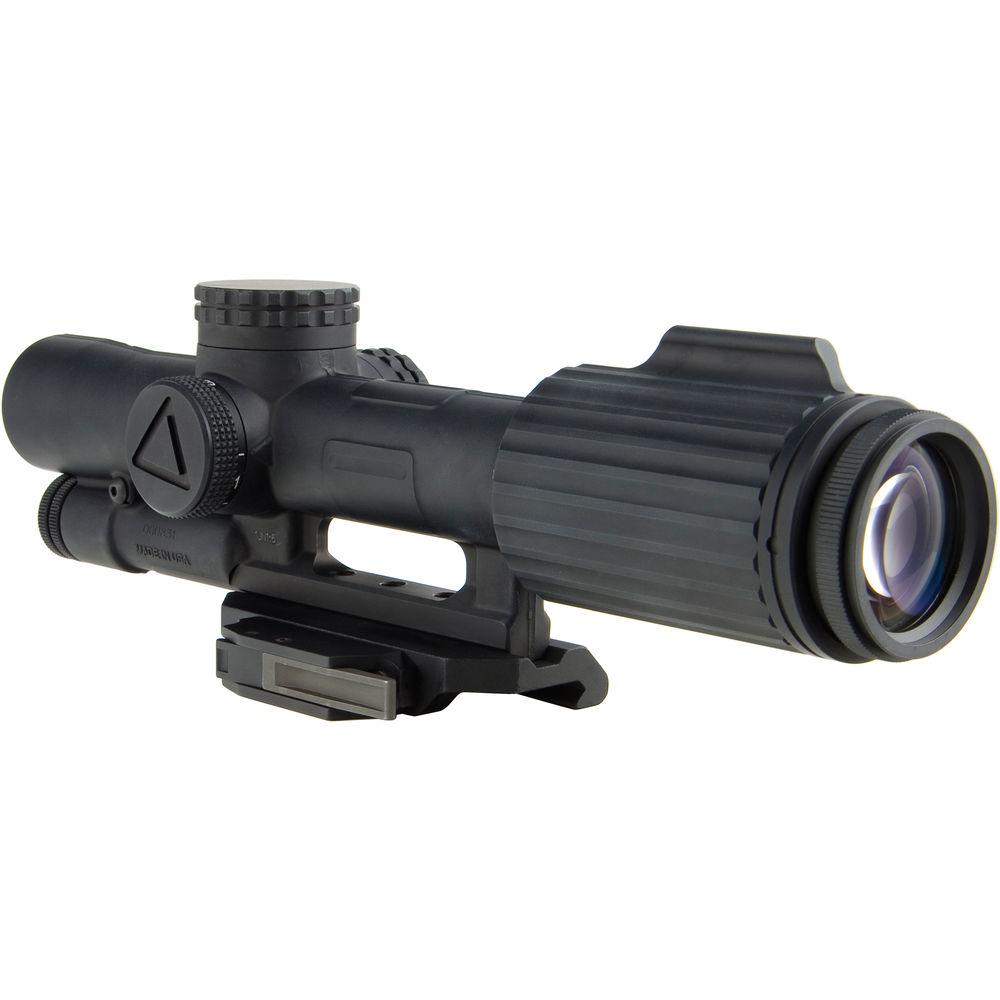

Dominate the battlefield with Trijicon's 1-6x24 Variable Combat Optical Gunsight (VCOG). This battle-ready optic will dramatically increase the success rate of your mission while withstanding the most hostile environments and adverse weather conditions. It is built as a ruggedized riflescope for close quarter and variable combat, with an optical system that is optimized for the cause. Featuring a 1-6x zoom magnification, a 24mm objective lens, and high-quality optical glass, the fully multi-coated optical system is designed to improve light transmission, reduce image distortion, and deliver the best possible visibility in any situation. For engaging targets quickly and accurately, this gun sight is equipped with a brilliant Segmented Circle 300 BLK illuminated reticle that is located in the first focal plane. It offers an LED-based illumination system with a variable brightness and has an ID at the bottom of the crosshair. To help you manage wind drifts and ballistics, the scope has 90 MOA windage and elevation adjustments with a 1/2 MOA impact point correction.

Forged from a single piece of 7075-T6 aluminum alloy, the maintube is exceptionally durable, fogproof, and waterproof (submersible to 66'). It features a hard anodizing finish, oversized knurled adjustments, and eyepiece with a long zoom lever to provide a slip-free operation. Another highlight is a keyway pad for a rotation-free mounting of secondary RMR sights. The built-in Picatinny quick release mount provides unparalleled strength and durability to the overall construction and quality of attachment. Note: Export of this device described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Directorate of Defense Trade Controls, as prescribed in the International Traffic in Arms Regulations (ITAR), Title 22, Code of Federal Regulations, Parts 120-130, and/or by the U.S. Department of Commerce Bureau of Industry Security, as prescribed in the Export Administration Regulations (EAR), Title 15, Code of Federal Regulations, Parts 730-780. For further information contact the Directorate of Defense Trade Controls and/or the Bureau of Industry Security.
    Optical Performance
    • Fully multi-coated optics
    • Low-distortion and high transmission glass
    • 1-6x zoom magnification
    • 24mm objective lens diameter
    • Angular field of view range is 18 - 3°

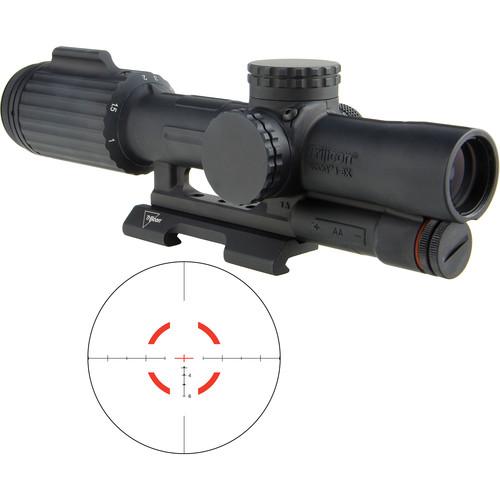

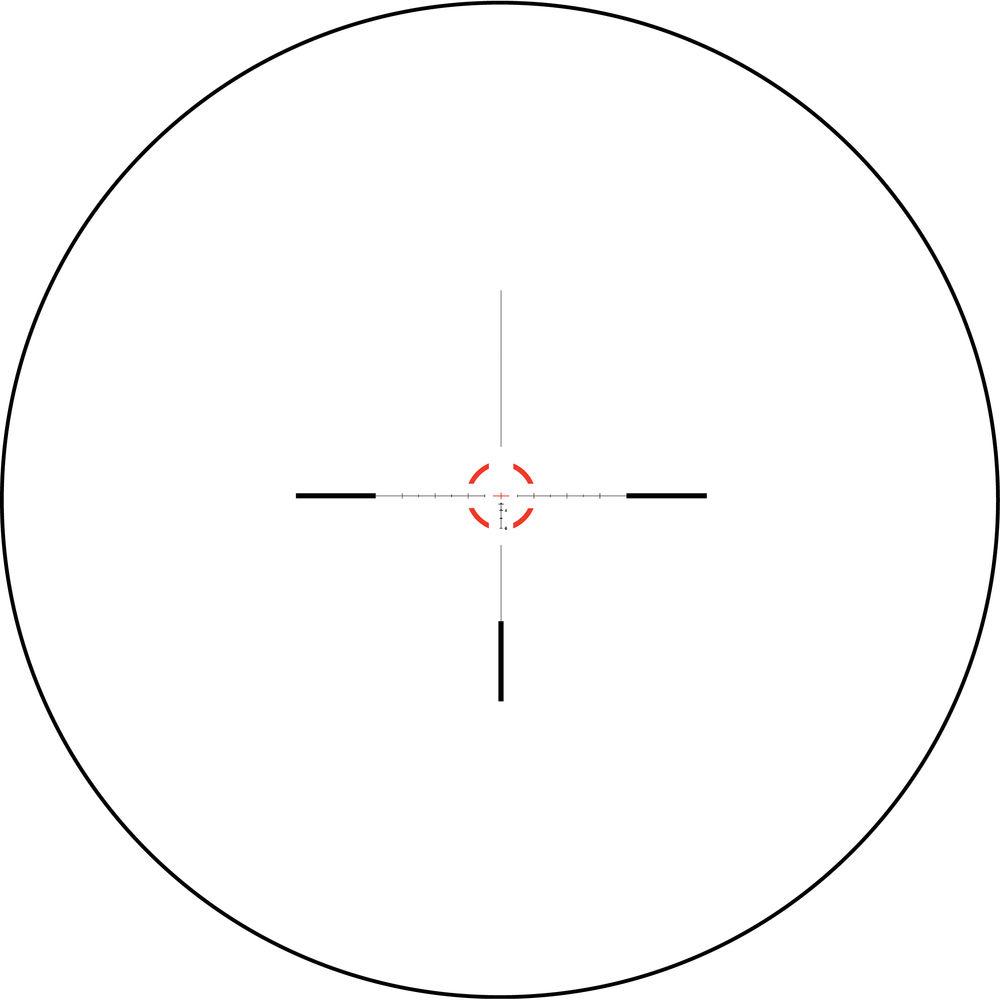

      Red Segmented Circle 300 BLK Reticle
      • 1st focal plane
      • LED illumination system
      • Six brightness levels
      • Reticle ID is located at the bottom of reticle
      • Powered by one standard AA battery
        Use and Handling
        • 1/2 MOA per click impact point correction
        • 90 MOA windage and elevation adjustment
        • 4" fixed eye relief
        • Exit Pupil: 10.4 - 3.8mm
          Construction Details
          • 7075-T6 aluminum alloy
          • Forged, single-piece maintube
          • Hard anodizing finish
          • Keyway indentation serves as an anti-rotation landing zone for RMR mounts
          • Capped finger-operated windage and elevation adjustments
          • Wide, low-profile knobs caps provide an easy-grip
          • Fogproof, shock resistant, waterproof, submersible to 66'
          • Laser etched serial number on the battery compartment for identification
          • Quick release mount is compatible with Picatinny rails
          • Built-in mount construction increases durability
        UPC: 719307320130 In the Box Trijicon 1-6x24 VCOG Riflescope (Red Segmented Circle 300 BLK Reticle, Quick Release Mount)
      • Lithium AA Battery
      • Quick Release Mount for ACOG, Reflex, and VCOG Sights (Matte Black)
      • LensPen - TA56
      • Limited Lifetime Warranty
      • Limited 5-Year Warranty
