User Manual for Trijicon 1-8x28 AccuPower Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 1-8x28 AccuPower Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 1-8x28 AccuPower Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

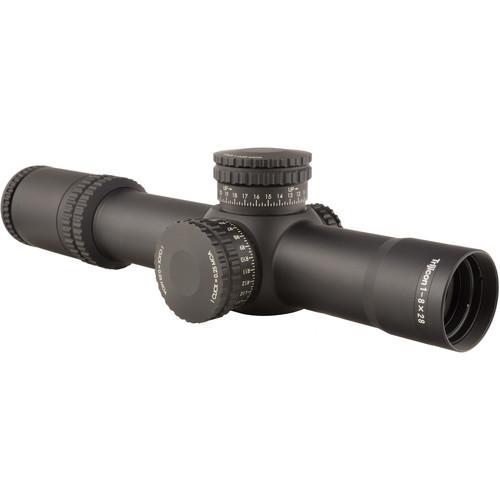

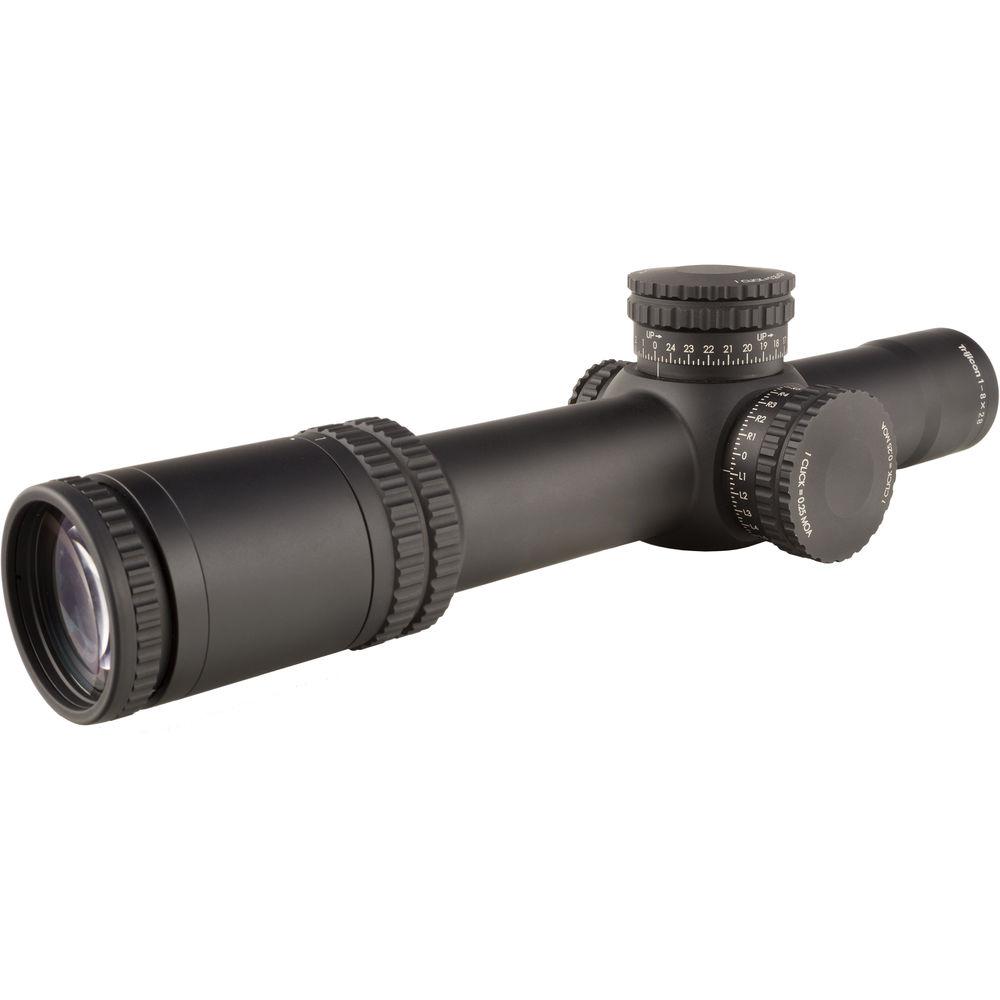

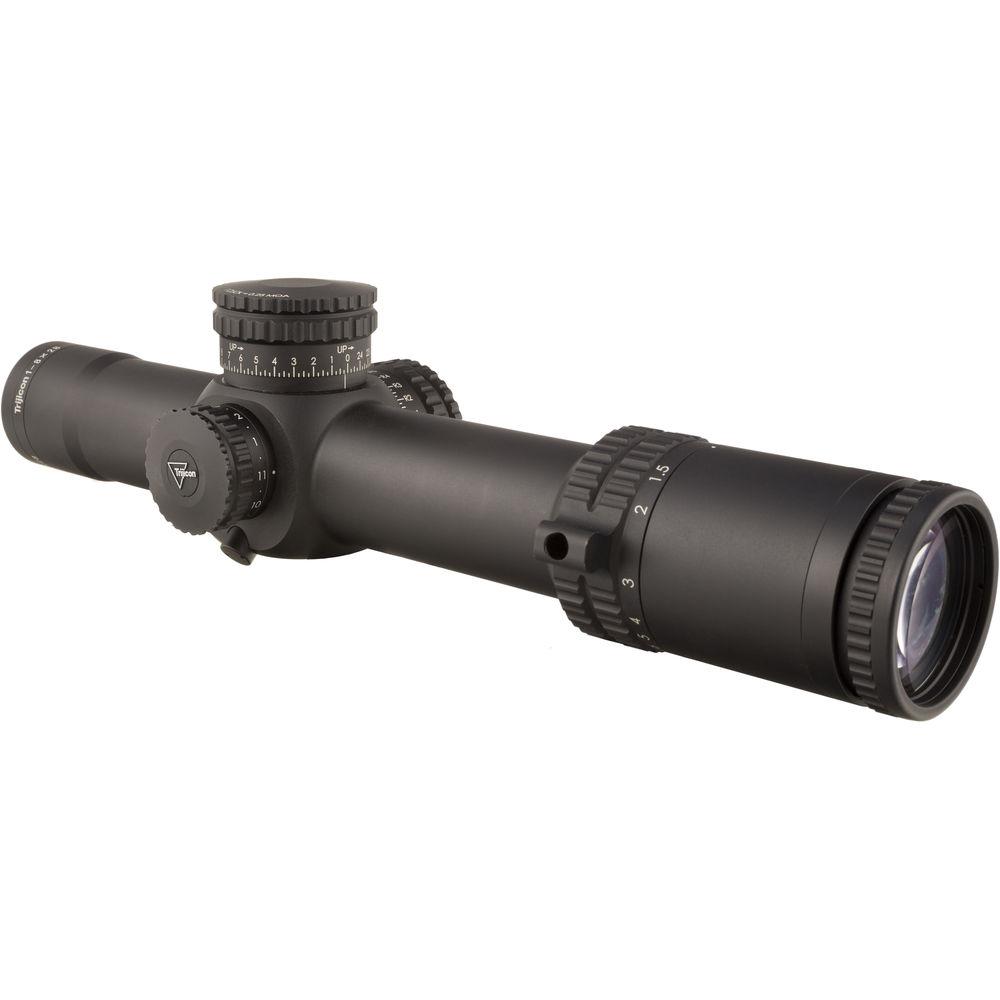

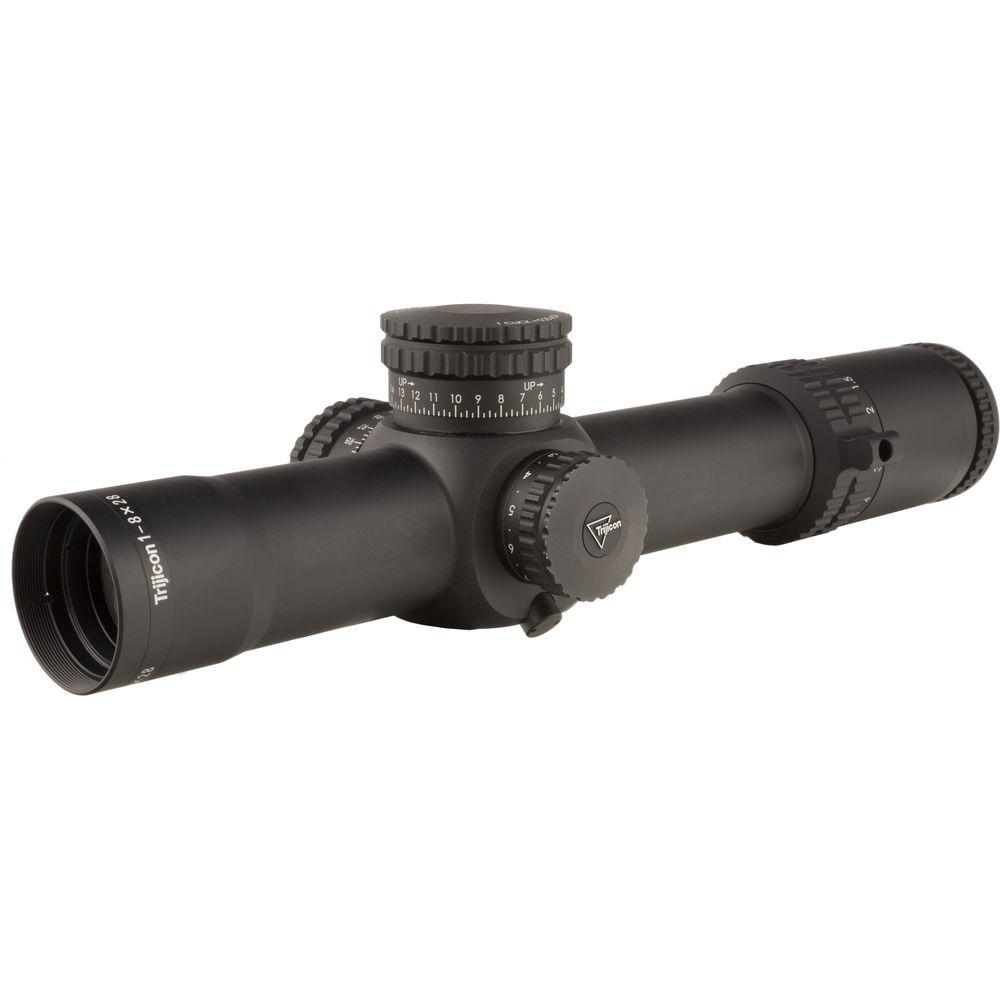

Product description Dominate the battlefield with Trijicons' AccuPower 1-8x28 Riflescope. It is a battle-ready optic that serves as a standard of performance and durability for both tactical and hunting applications. Its 1-8x optical system features a 28mm objective lens that delivers a forgiving exit pupil and a true 1.0x magnification for aiming with both eyes open. While the full multi-coatings produce clear and crisp images with a great level of detail, the high-quality optical glass gives low-distortion images. To empower you with the ability to use the scope to its fullest capacity, its first focal plane contains a brilliant green MOA Segmented Circle Crosshair reticle. The reticle is designed with multiple platforms in mind and takes into account various calibers, ammunition weights, and barrel lengths. Its pattern offers fine MOA-based features, a milling crosshair, and a green LED-illuminated segmented target circle and center dot. Ideal for applying the Bindon Aiming Concept (BAC), it allows you to engage fast moving targets with both eyes open at a 1.0x zoom to improve accuracy. Moreover, its power-efficient LED-based illumination system has a runtime that exceeds 31 hours on the included CR-2032 battery and provides "off" positions between each brightness level setting.
The housing is engineered from durable 6061-T6 aluminum and coated with a hard anodized finish. It features a 34mm maintube, lockable and resettable windage and elevation turrets (that can be turned without any tools), and a knurled and easy-to-focus eyepiece with a 4" eye relief. The overall design incorporates a fogproof and waterproof (submersible to 10') performance that will withstand extreme conditions for years of service. - Optical Performance
-
- Fully multi-coated optics
- Low-distortion optical glass lenses
- 1-8x optical system
- 28mm objective diameter delivers a true 1x magnification, necessary for aiming with both eyes open
- Linear field of view: 109.2 - 13.1' at 100 yards
- Reticle
-

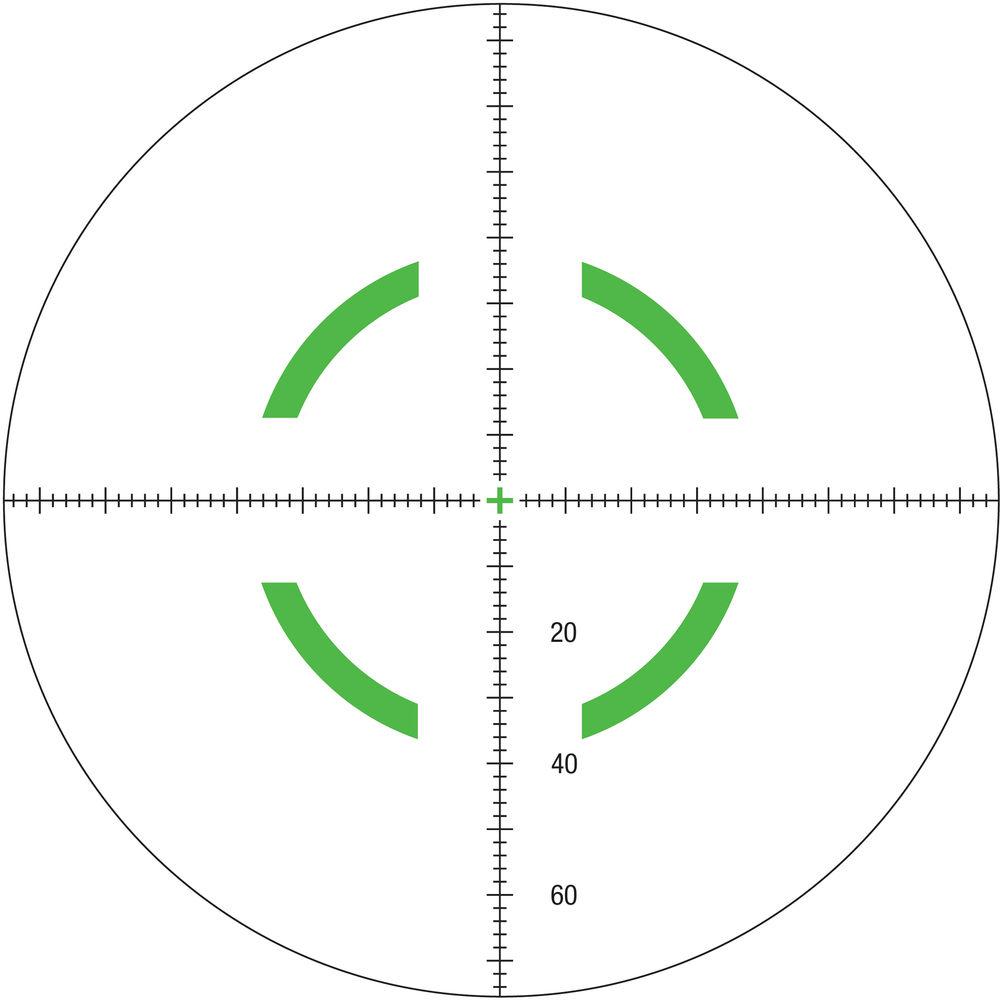

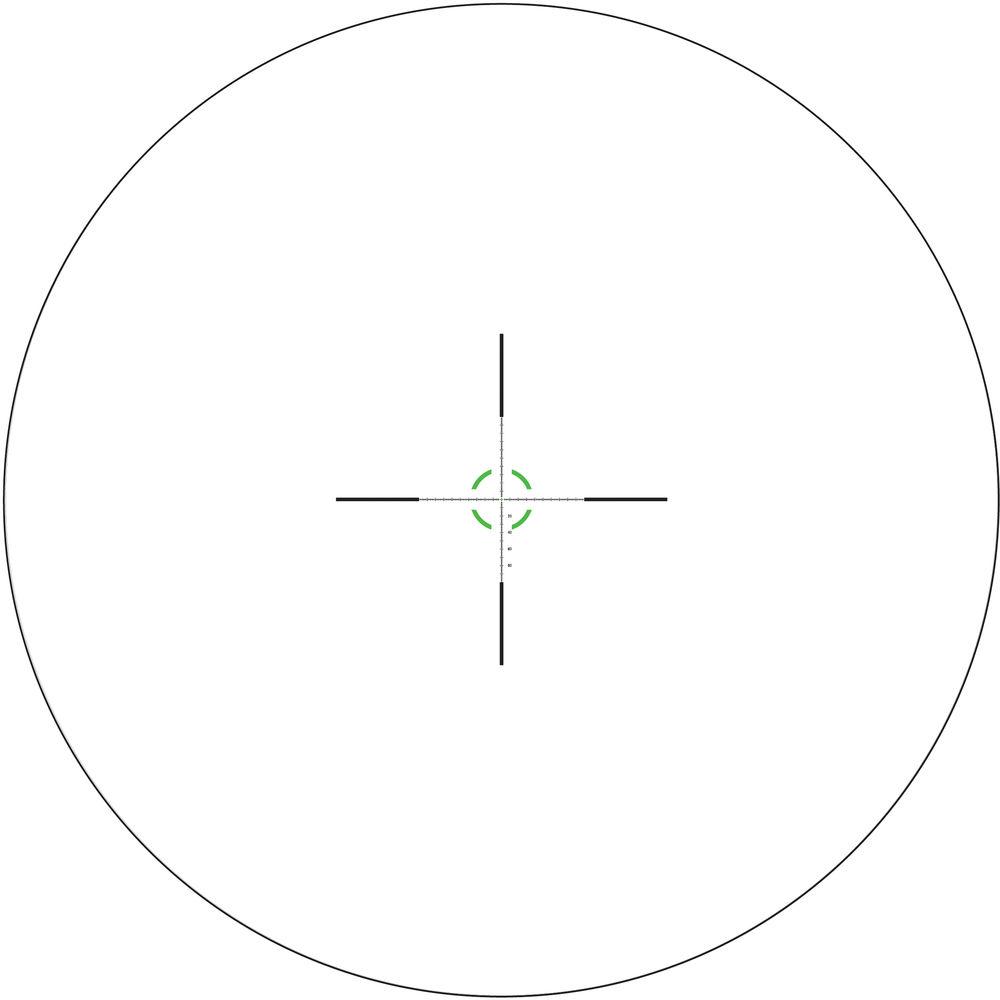

- 1st focal plane MOA Segmented Circle Crosshair reticle
- Green LED illumination with variable brightness
- "Off" position between brightness settings
- Compatible with Trijicon's Bindon Aiming Concept (BAC) for aiming with both eyes open
- Designed for multi-platform use with various calibers, ammunition weights, and barrel lengths
- Use and Handling
-
- 1/4 MOA impact point correction
- 100 MOA windage and elevation adjustments
- Long eye relief of 4.0"
- Exit pupil: 11.8 - 3.5 mm
- Construction Details
-
- 34mm single-piece tube
- 6061-T6 aluminum housing
- Black hard anodized finish
- Capped oversized finger-operated turrets with graduations
- Push-pull lockable turret caps
- Easy-focus eyepiece with a zoom lever
- Fogproof, waterproof, and shock-resistant
UPC: 719307402430 In the Box Trijicon 1-8x28 AccuPower Riflescope (Green MOA Segmented Circle Crosshair LED-Illuminated Reticle, Matte Black) - CR-2032 Lithium Battery
- 2 x Lens Caps
- Trijicon Logo Sticker (PR15)
- Lens Cloth
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1-8x28 AccuPower Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon RS27-C-1900027 Specs | | | Magnification | 1 to 8x | | Objective Lens Diameter | 28 mm | | Field of View | 1x: 109.2' @ 100 yd / 36.4 m @ 100 m
8x: 13.1' @ 100 yd / 4.4 m @ 100 m | | Exit Pupil Diameter | 1x: 11.8 mm
8x: 3.5 mm | | Eye Relief | 4" / 101.6 mm | | | | Reticle Type | MOA Segmented Circle Crosshair Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | No | | | | Water Resistance | Waterproof to 10' / 3 m | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Battery Runtime | 31 Hours (Maximum) | | Dimensions | Length: 10.8" / 27.4 cm
Width: 3.1" / 7.8 cm
Height: 2.7" / 6.9 cm | | Weight | 25 oz / 708.7 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 15.9 x 5.4 x 3.8" |
