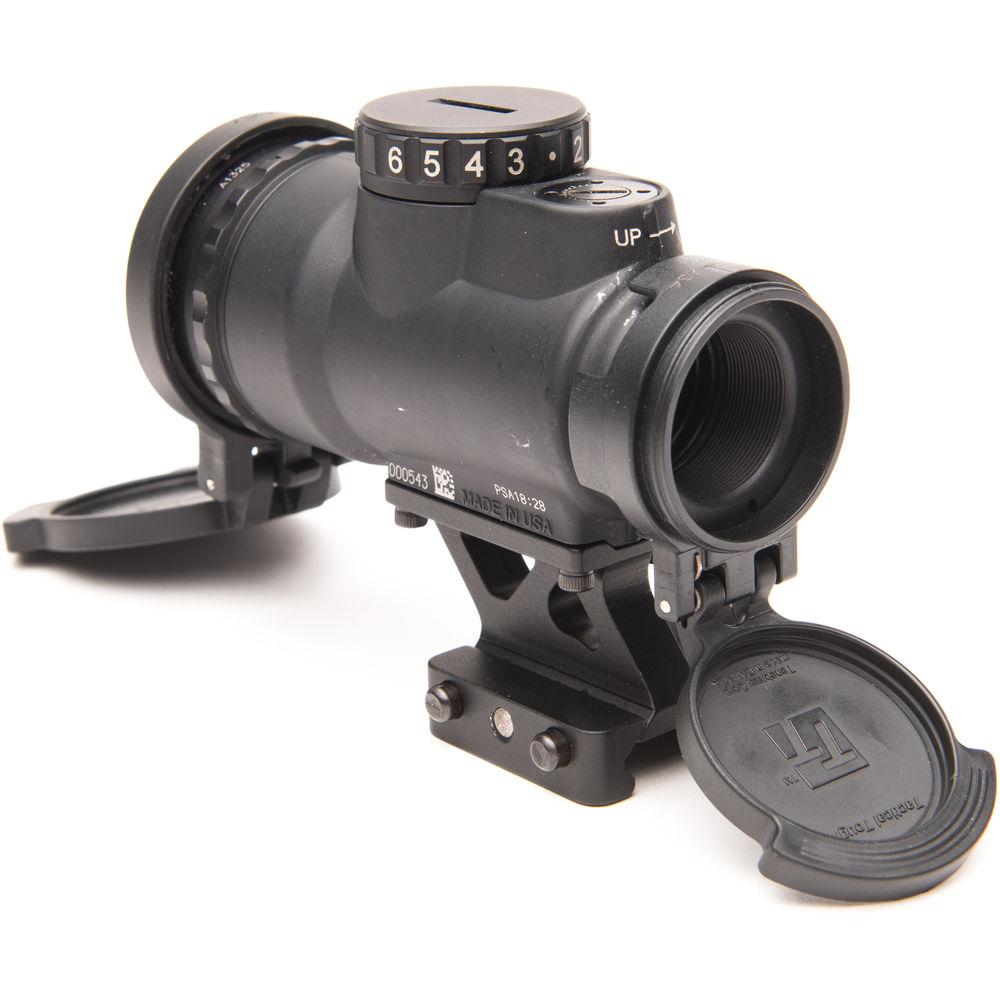

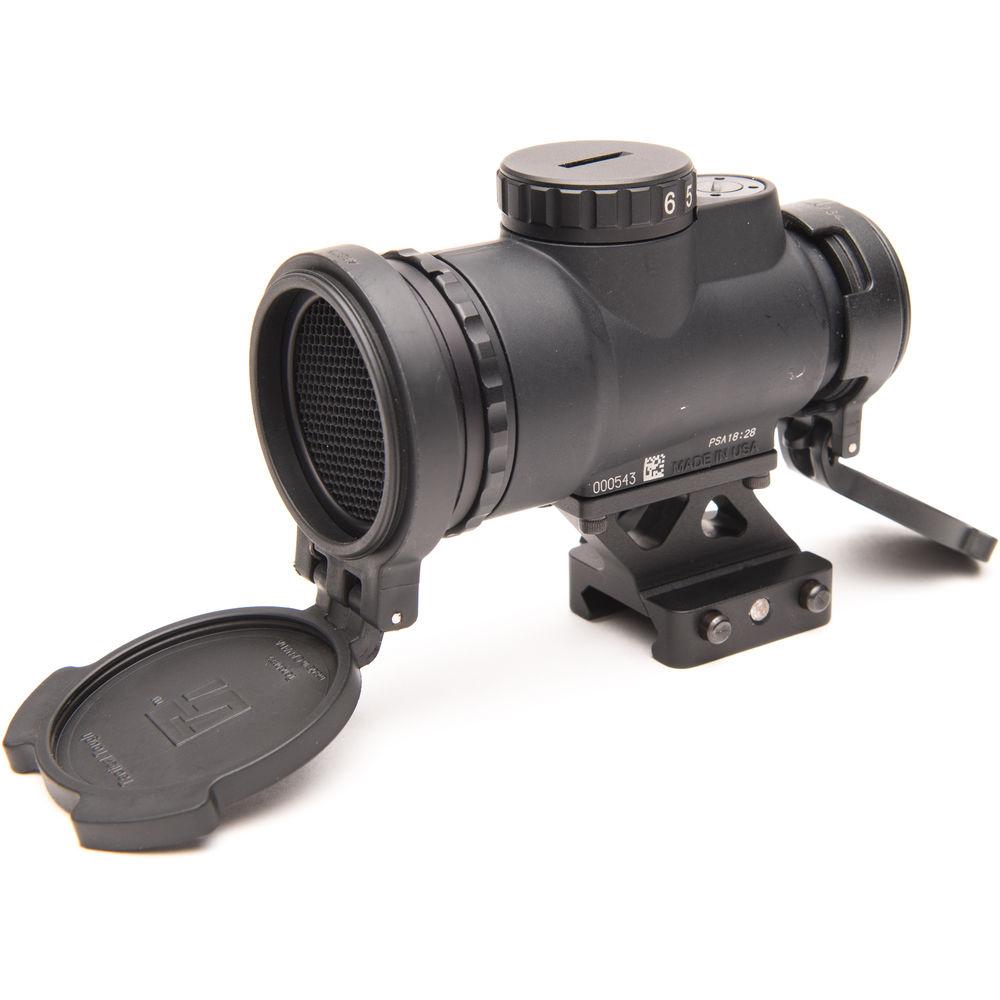

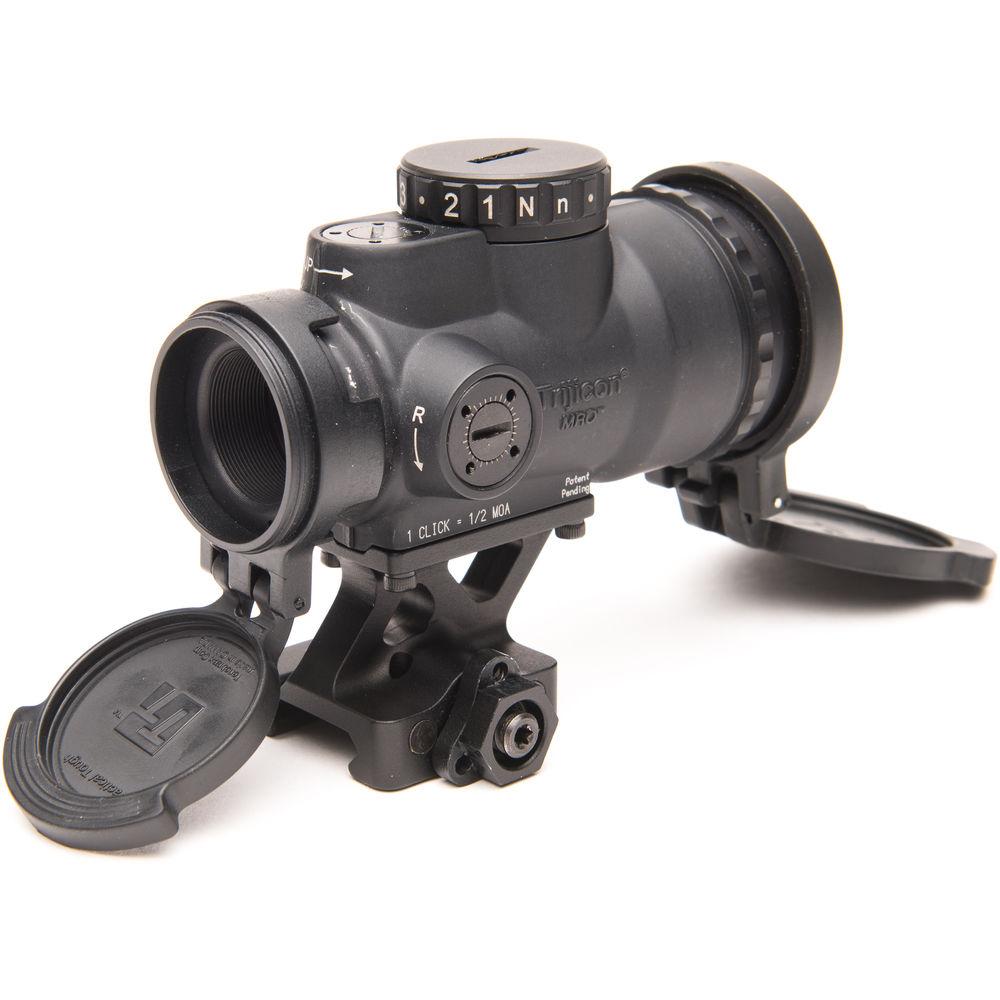

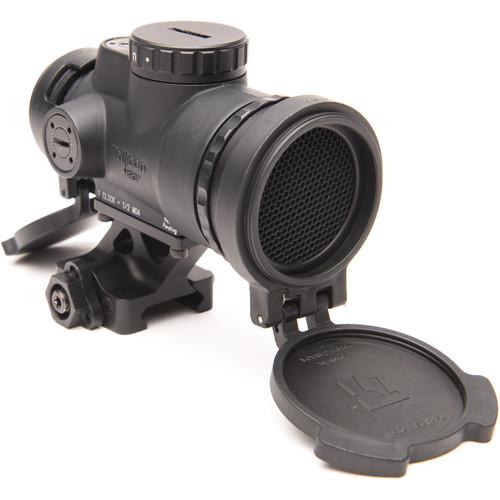

User Manual for Trijicon 1x25 MRO Patrol Reflex Sight Click to enlarge the picture
Contents of the user manual for the Trijicon 1x25 MRO Patrol Reflex Sight
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon 1x25 MRO Patrol Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description Get an upper hand in any critical situation using the Trijicon 1x25 MRO Reflex Sight. It is a compact and lightweight optic for fast, intuitive target acquisition with rifles, carbines, and shotguns. It offers a Tenebraex anti-reflection device that drastically reduces glint from your objective lens and makes you virtually undetectable. Its brilliant 2 MOA Red Dot reticle provides the ability of instant alignment with your target, while the multi-coated optics deliver clear and bright views. The reticle also offers an adjustable brightness to accommodate for most lighting conditions or personal preference, and has "off" positions between its brightness settings. To help you compensate for winds and ballistics, the sight offers windage and elevation adjustments of 70 MOA and a 1/2 MOA impact point correction.
The housing is crafted from a 7075-T6 aluminum alloy and has a scratch and corrosion-resistant anodized finish. It is fogproof, waterproof, and submersible to 100' and will withstand the roughest of conditions. Also included with the MRO are two flip-up lens covers and a 1/3 co-witness quick release mount. - Optical Performance
-
- 1x magnification
- 25mm objective diameter
- Anti-reflection multi-coated optics
- Virtually unlimited field of view when used with both eyes open
- Anti-reflection killflash device
- Reticle
-

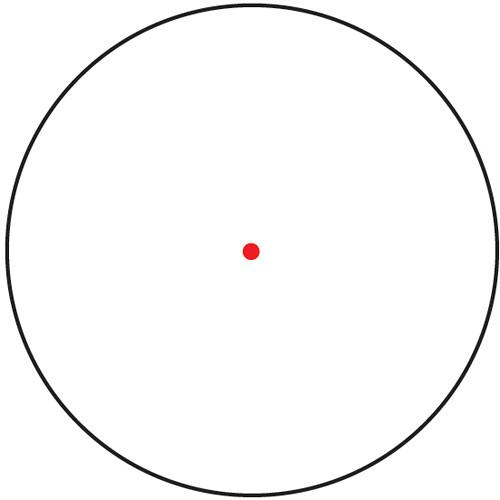

- 2 MOA Red Dot reticle
- Illuminated with 8 Brightness Settings: 2 night vision, 5 day settings, 1 super-bright
- "Off" positions between each intensity for quick repeatability
- Top control dial for ambidextrous use
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 70 MOA windage and elevation adjustment range
- Flush adjustment dials for reduced snag-points
- Brightness dial knob is located on top for ambidextrous use
- Unlimited eye relief
- Parallax-free
- Construction Details
-
- Lightweight and durable 7075-T6 aluminum alloy housing
- Corrosion and scratch-resistant hard anodized housing
- Fully protected adjusters maintain zero
- Flip-up lens caps
- 1/3 co-witness quick release mount
- Weight: 5.1 oz
UPC: 719307630505 In the Box Trijicon 1x25 MRO Patrol Reflex Sight (2 MOA Red Dot Reticle, 1/3 Co-Witness QR Mount) - 2 x Flip-Up Lens Caps
- Tenebraex ARD
- MRO Quick Release 1/3 Co-Witness Mount (Matte Black)
- Lens Cloth
- Trijicon Logo Sticker
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1x25 MRO Patrol Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon MRO-C-2200018 Specs | Magnification | 1x | | Objective Lens Diameter | 25mm | | Field of View | Unlimited, with both eyes open | | Mounting System | Picatinny rail | | Impact Point Correction | 1/2 MOA | | Maximum Windage/Elevation Adjustment | 70 MOA | | Weatherproofing | Waterproof, submersible to 100' / 30.5 m | | Battery / Runtime | 1 x CR-2032 battery / 5 years of continuous operation on day setting 3, 5, or 8 at 70°F (21°C) | | Dimensions | 4.1 x 2.0 x 1.7" / 10.4 x 5.1 x 4.3 cm, without mount | | Weight | 5.1 oz / 144.6 g, with battery, without mount | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.5 x 5.9 x 5.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
