User Manual for Trijicon 1x25 MRO Reflex Sight Click to enlarge the picture
Contents of the user manual for the Trijicon 1x25 MRO Reflex Sight
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon 1x25 MRO Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

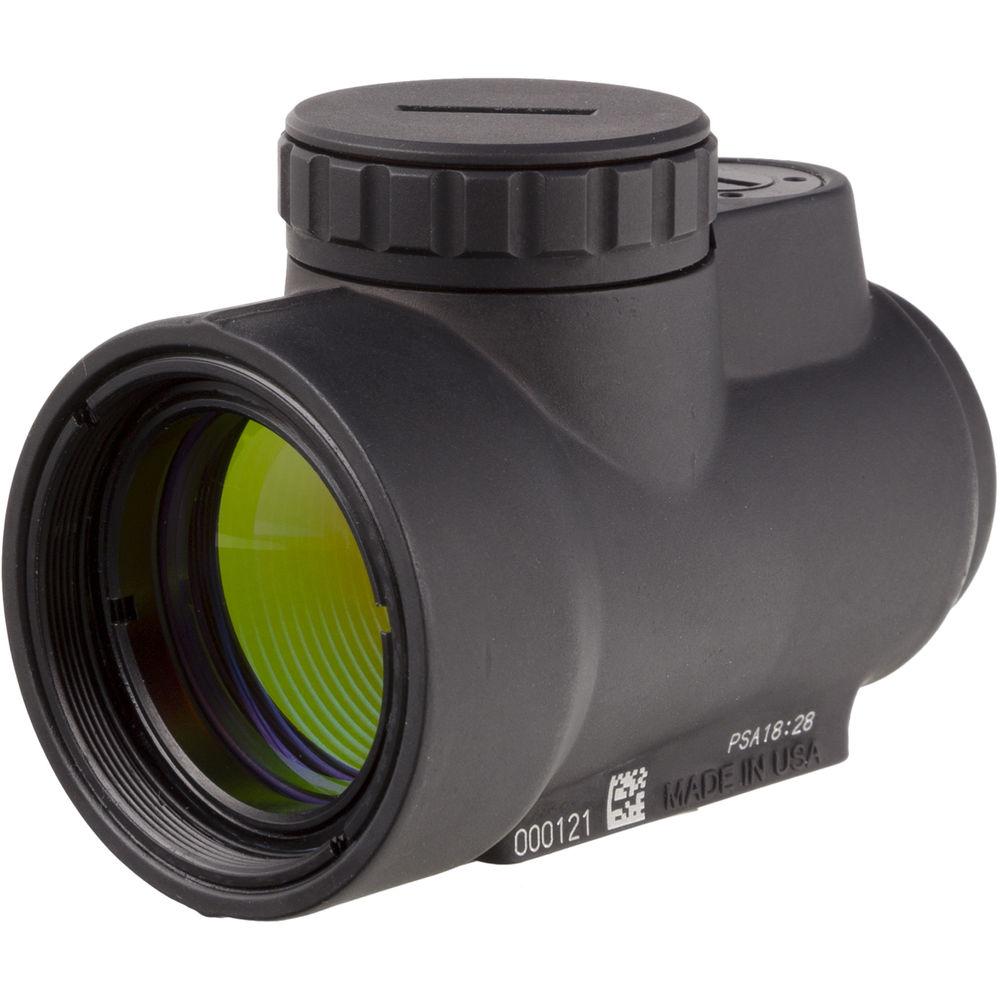

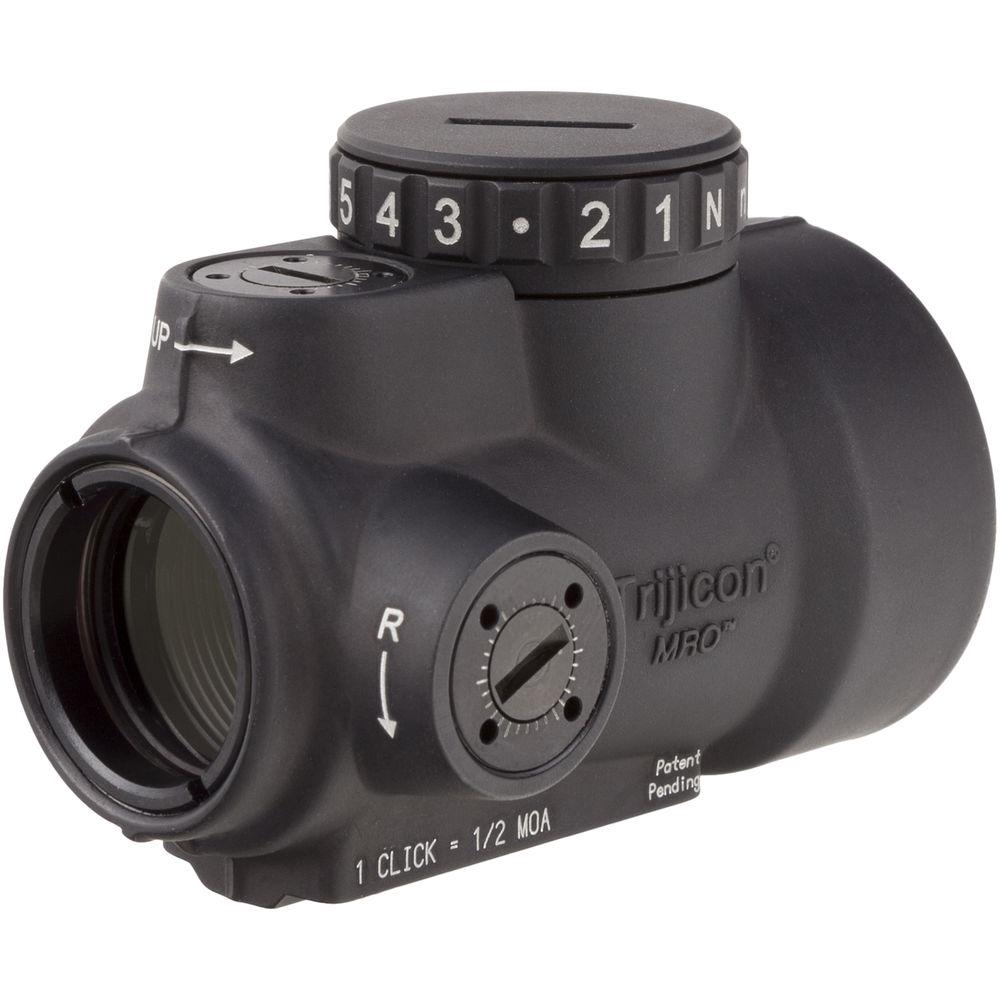

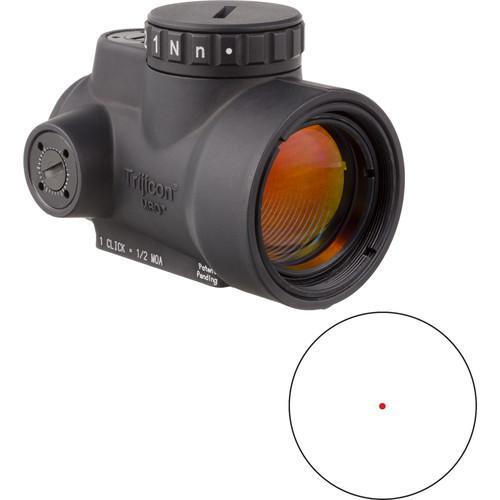

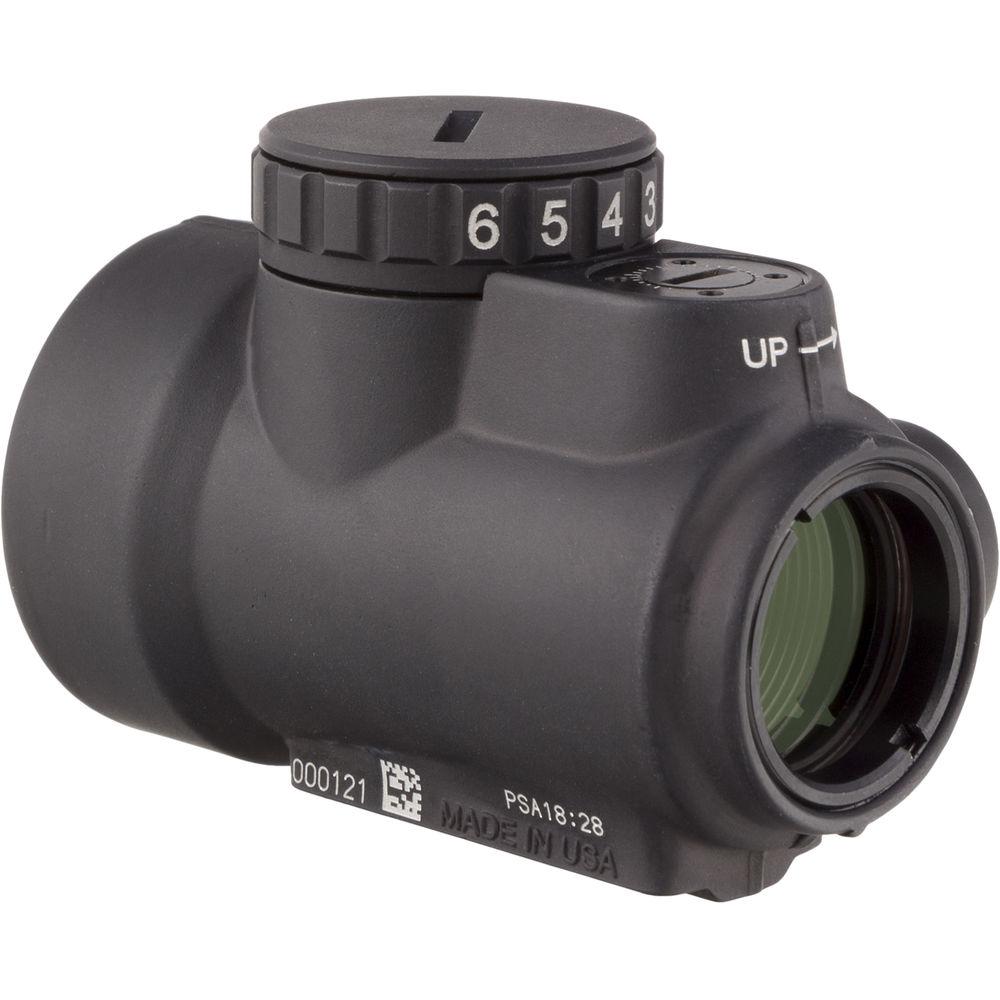

Product description Get an upper hand in any critical situation using Trijicon's 1x25 MRO Reflex Sight. This compact and lightweight optic, designed for fast and intuitive target acquisitions, will fit rifles, carbines, and shotguns. Its brilliant 2 MOA Red Dot reticle enables you to align with your target instantly and adjust brightness in most lighting conditions. It offers two night vision brightness settings, five daylight settings, and one super-bright setting. The multi-coated optics deliver low image distortion with clear and bright views and feature a canted objective lens that reduces glare, glint, and overall size of the device. To help you compensate for wind and ballistics, the sight offers windage and elevation adjustments of 70 MOA and a 1/2 MOA impact point correction.
Forged from durable and lightweight 7075-T6 aluminum alloy, the housing will protect the optics from impact, moisture, temperature fluctuations, and even water submersions to 150'. Its hard anodized finish resists scratches and abrasions, and protected windage and elevation turrets maintain zero despite rough handling. - Optical Performance
-
- 1x magnification
- 25mm objective diameter
- Anti-reflection multi-coated optics
- High-quality optical glass and processing produce low-distortion images
- Canted objective lens reduces glare and size of the device
- Unlimited eye relief
- Parallax-free
- Reticle
-

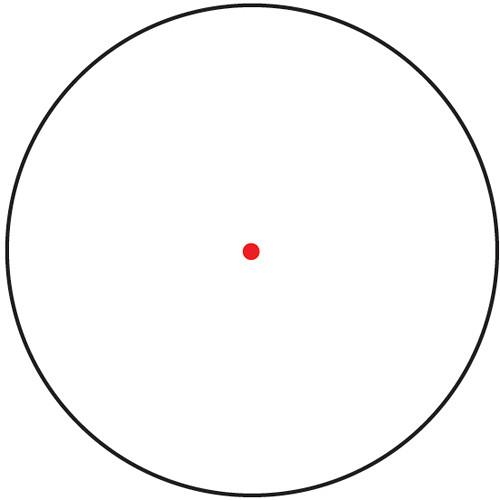

- 2 MOA Red Dot reticle
- Eight brightness settings: two for night vision settings, five daylight settings, and one super-bright setting
- "Off" positions between each intensity for quick repeatability
- Use and Handling
-
- 1/2 MOA impact point correction
- 70 MOA windage and elevation adjustment range
- Brightness dial knob is located on top for ambidextrous use
- Construction Details
-
- 7075-T6 forged aluminum housing
- Corrosion- and scratch-resistant hard-anodized housing
- Fully protected turrets maintain zero
- Requires a mounting adapter
In the Box Trijicon 1x25 MRO Reflex Sight (2 MOA Red Dot Reticle, No Mount) - CR2032 Battery
- Lens Cloth
- Trijicon Logo Sticker
- Limited Lifetime Warranty
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1x25 MRO Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon MRO-C-2200003 Specs | Reticle | Red Dot reticle | | Magnification | 1x | | Objective Lens Diameter | 25mm | | Clear Aperture | 0.8" / 20.4 mm | | Field of View | Unlimited, with both eyes open | | Eye Relief | Unlimited | | Parallax Correction | Parallax-free | | Impact Point Correction | 1/2 MOA | | Windage/Elevation Adjustment | 70 MOA | | Weatherproofing | Waterproof, submersible to 150' / 45.0 m | | Battery / Runtime | 1 x CR2032 battery / 5 years of continuous operation on day setting 3, 5, or 8 at 70°F (21°C) | | Dimensions | 2.6 x 2.0 x 1.7" / 66.0 x 50.8 x 43.2 mm | | Weight | 4.1 oz / 116.2 g (with battery but no mount) |
