User Manual for Trijicon 1x25 MRO Reflex Sight with Full Co-Witness Mount Click to enlarge the picture
Contents of the user manual for the Trijicon 1x25 MRO Reflex Sight with Full
- Product category: Red Dot/Holographic Sights Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Red Dot/Holographic Sights
 |
User manual for the Trijicon 1x25 MRO Reflex Sight with Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

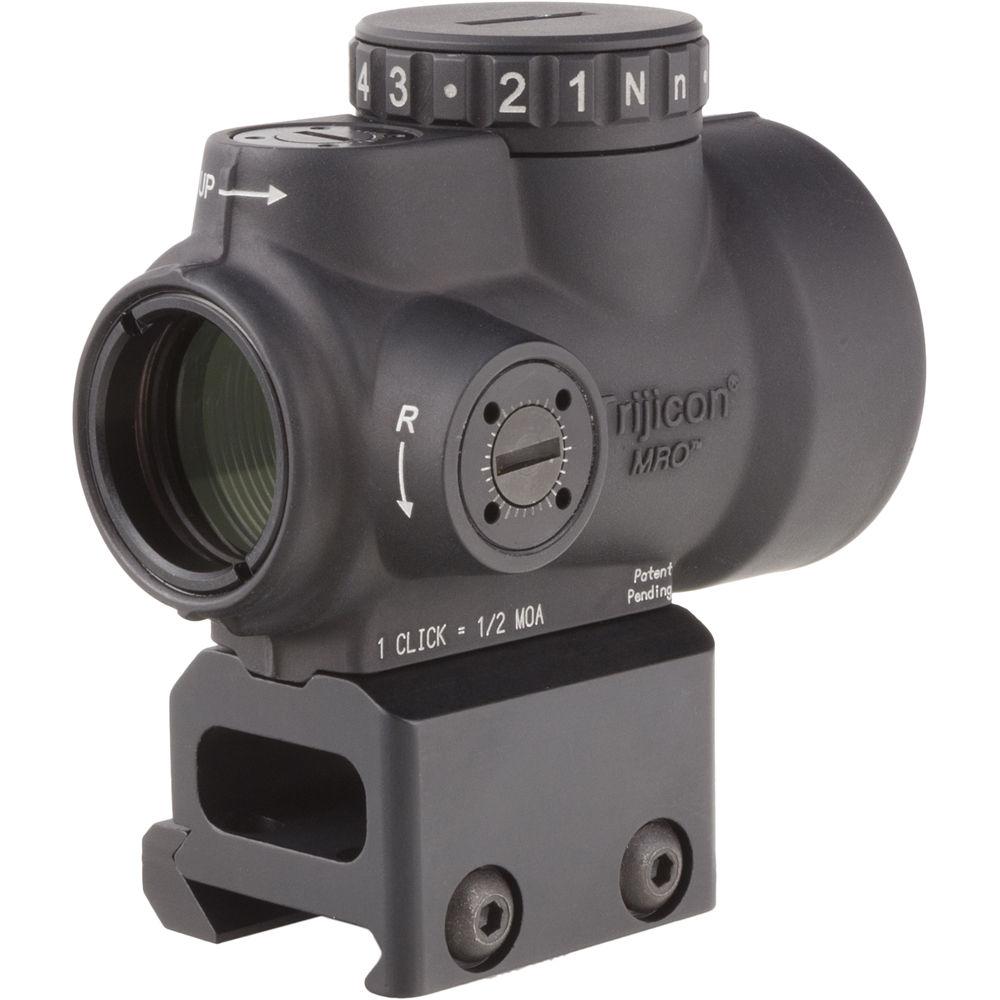

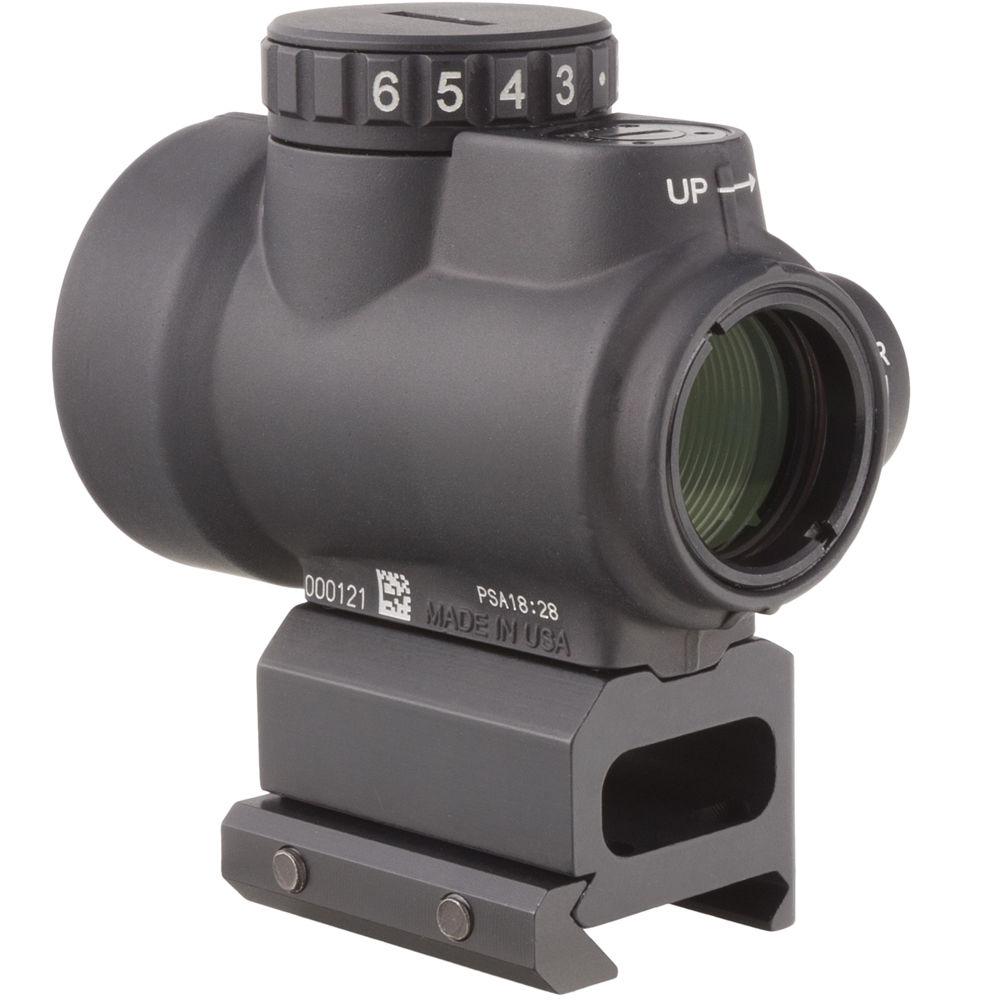

Product description Intended for use on rifles, carbines, and shotguns to provide fast target acquisition and tracking, the Trijicon 1x25 MRO Reflex Sight is an ideal compact and lightweight optic for just about any long gun. Weighing a mere 4.1oz and measuring just 2.6" long the "Miniature Rifle Optic" features optical glass elements and broadband multicoatings to ensure the dot stays crisp and clean in all weather, with a simple 2 MOA illuminated red dot reticle. Eight brightness levels allow users to precisely choose the appropriate intensity for the lighting conditions, and between each level is an "off" position to quickly move from off to a preferred level without having to cycle through outputs.To get users on-target faster the MRO has 1/2 MOA impact point correction with a 70 MOA windage and elevation adjustment range to compensate for most wind and terrain conditions. The housing is made of a 7075-T6 aluminum alloy with a scratch and corrosion resistant anodized finish to withstand rough use in the field. O-rings seal the nitrogen-filled housing for fogproof performance in extreme temperatures, and allows it to be submerged to a depth of up to 100 feet. Employing energy efficient electronics, the MRO runs on a single Cr2032 battery and has a continuous runtime of up to 5 years on the medium intensity setting. This version of the MRO includes an adapter to mount the sight on Picatinny rails, and sets it off the rail 1.538" to the optical axis for fully co-witnessing with the front iron sight. - Optical Performance
-
- 1x magnification
- 25mm objective
- 20.4mm clear aperture
- Anti-reflection broadband multicoated optics
- Virtually unlimited field of view when used with both eyes open
- Reticle
-

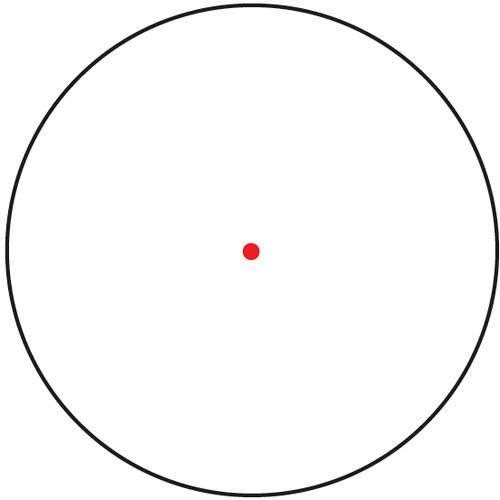

- 2 MOA red dot reticle
- Illuminated with 8 brightness settings
- "Off" positions between each intensity for quick repeatability
- Top control dial for ambidextrous use
- Use and Handling
-
- 1/2 MOA per click impact point correction
- 70 MOA windage and elevation adjustment range
- Flush adjustment dials for reduced snag-points
- Unlimited eye relief
- Parallax-free
- Construction Details
-
- Lightweight and durable 7075-T6 aluminum alloy housing
- Corrosion and scratch-resistant anodized housing
- Nitrogen-filled, water and fogproof. Submersible to 100' (30m)
- Runs on one CR2032 battery
- Five-year continuous runtime on setting #3
- Includes adapter to mount sight on Picatinny rails. Sets sight off rail 1.538" to optical axis for fully co-witnessing with front iron sight
- Weighs just 4.1oz with battery
- Made in the USA
In the Box Trijicon 1x25 MRO Reflex Sight with Full Co-Witness Mount (Red Dot Reticle) Lens Cloth Trijicon Logo Sticker MRO Full Co-Witness Mount Adapter (Matte Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 1x25 MRO Reflex Sight with Full Co-Witness Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon 2200005 Specs | | | Power Source | 1 x CR2032 | | Runtime | 5 Years | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 25 mm | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Dimensions | L: 2.6 x W: 2.0 x H: 1.7" / L: 6.6 x W: 5.1 x H: 4.3 cm | | Weight | 4.1 oz / 116.2 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 6.535 x 5.984 x 4.961" |
