User Manual for Trijicon 2x20 TA47 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 2x20 TA47 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 2x20 TA47 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

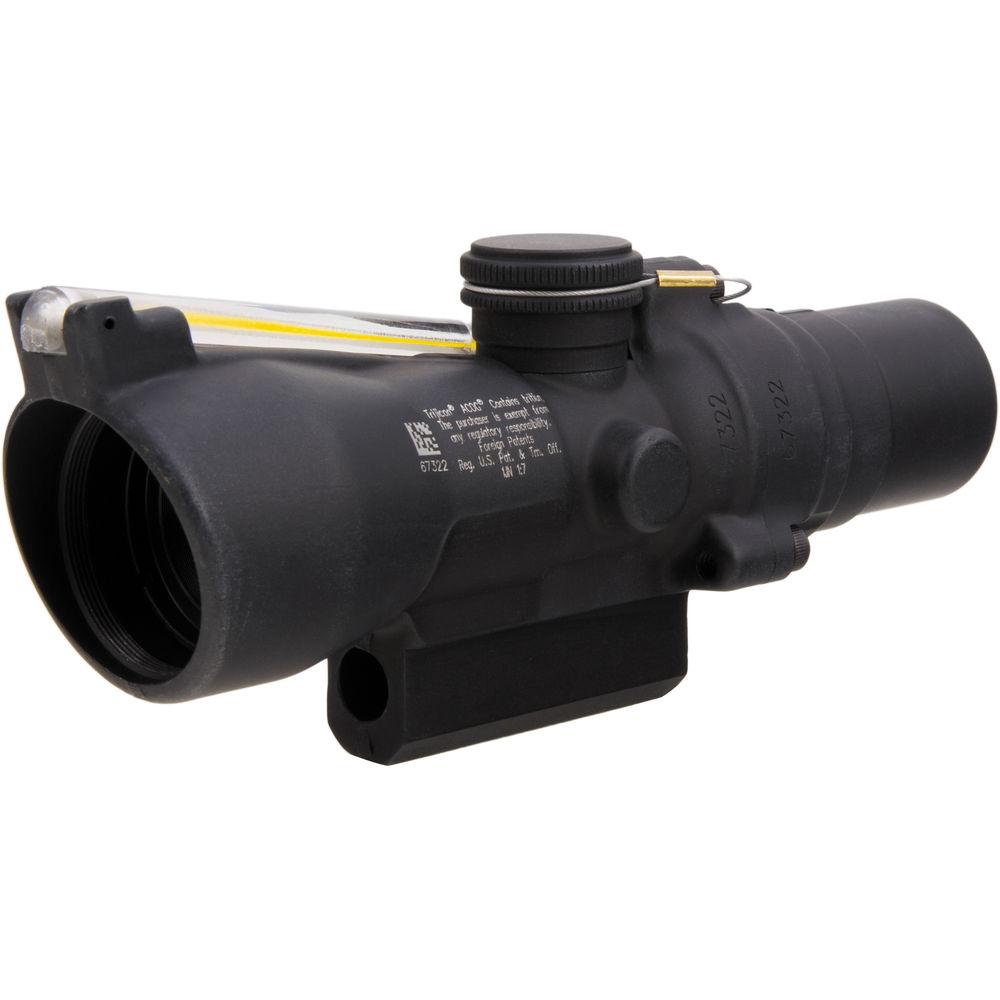

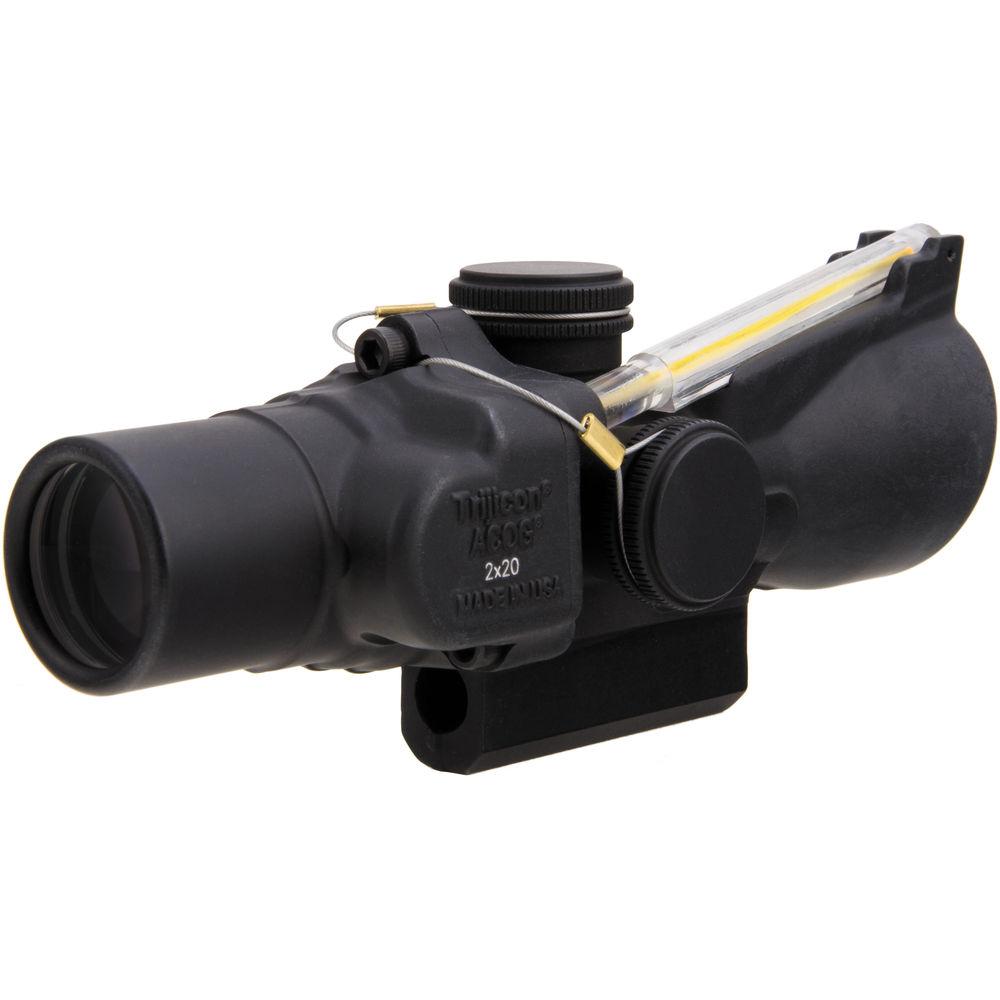

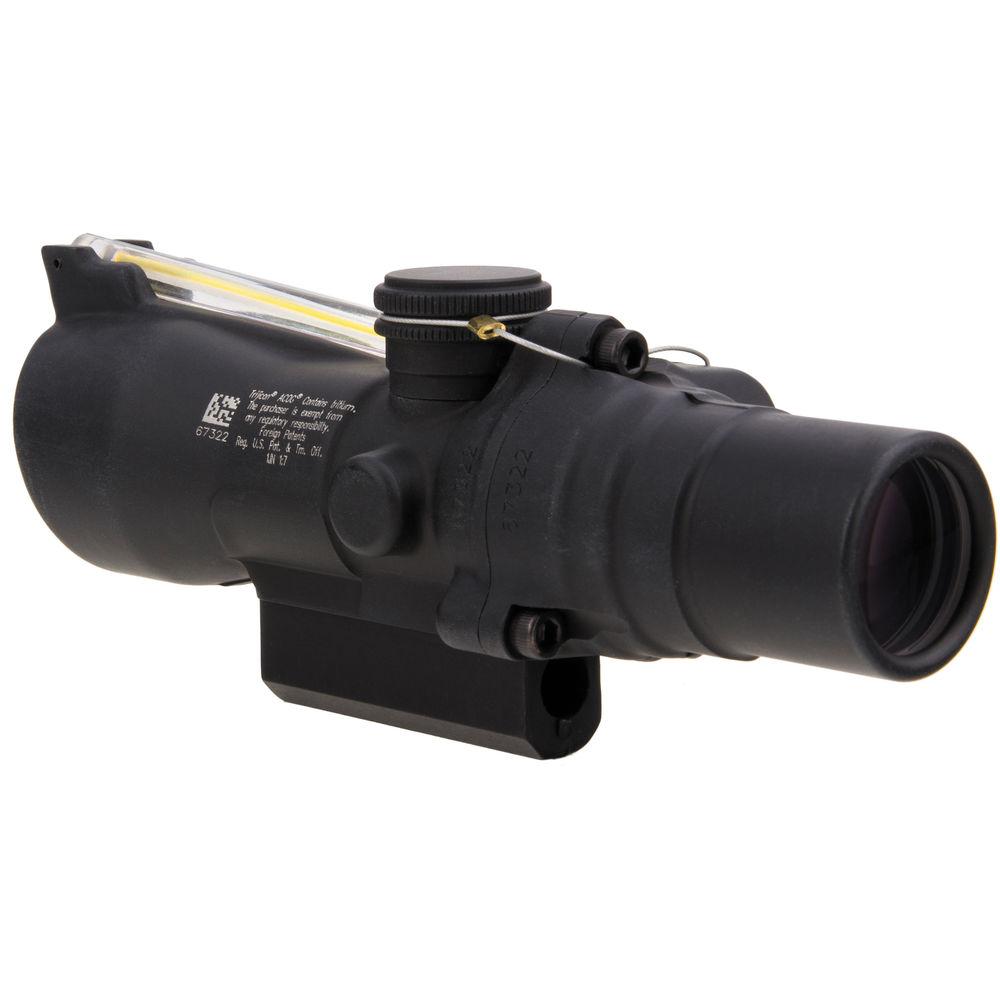

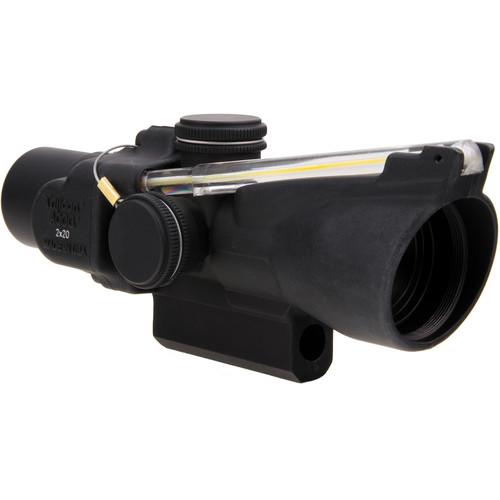

Product description This step-up from the smaller TA44, the Trijicon 2x20 TA47 ACOG Riflescope maintains a compact form-factor but with an extra 0.5x magnification and larger objective to allow users the ability to identify and detect targets to as much as 215yd (200m). Its compact design makes this an ideal optic for smaller platforms such as UZI, H&K, or MP-5 9mm sub-machine guns.The TA47 features tactical hand-adjustable windage and elevation turrets, and a battery-free illuminated reticle to create a versatile weapon sight that is well-suited for use in a wide range of situations and conditions. This Advanced Combat Optical Gunsight (ACOG) sight was designed for use with the both-eyes-open Bindon Aiming Concept for superior sense of balance and a wider field-of-view, and is outfitted with an 9.2 MOA amber triangle reticle that enables fast sighting and tracking for CQB operations and precise shot placement at distance. Anti-reflection broadband fully multicoated optics maximizes light transmission to provide bright and clear views with limited distortion.Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that focuses, channels, and filters available light to illuminate the reticle. Using ambient light ensures that the reticle brightness will be appropriate for the conditions without any adjustment by the user. The reticle's aiming point can be adjusted in 1/2 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. Complementing the ACOG's optical and illumination systems is a nitrogen-filled, 7075-T6 aluminum housing with a corrosion and scratch-resistant matte black anodized finish that provides the durability needed for reliable performance in a wide range of conditions. - Optical Performance
-
- 2x low magnification
- 20mm objective lens
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections, and distortion
- 29' field of view at 100 yd
- 5.6° actual angle of view
- Reticle Details
-

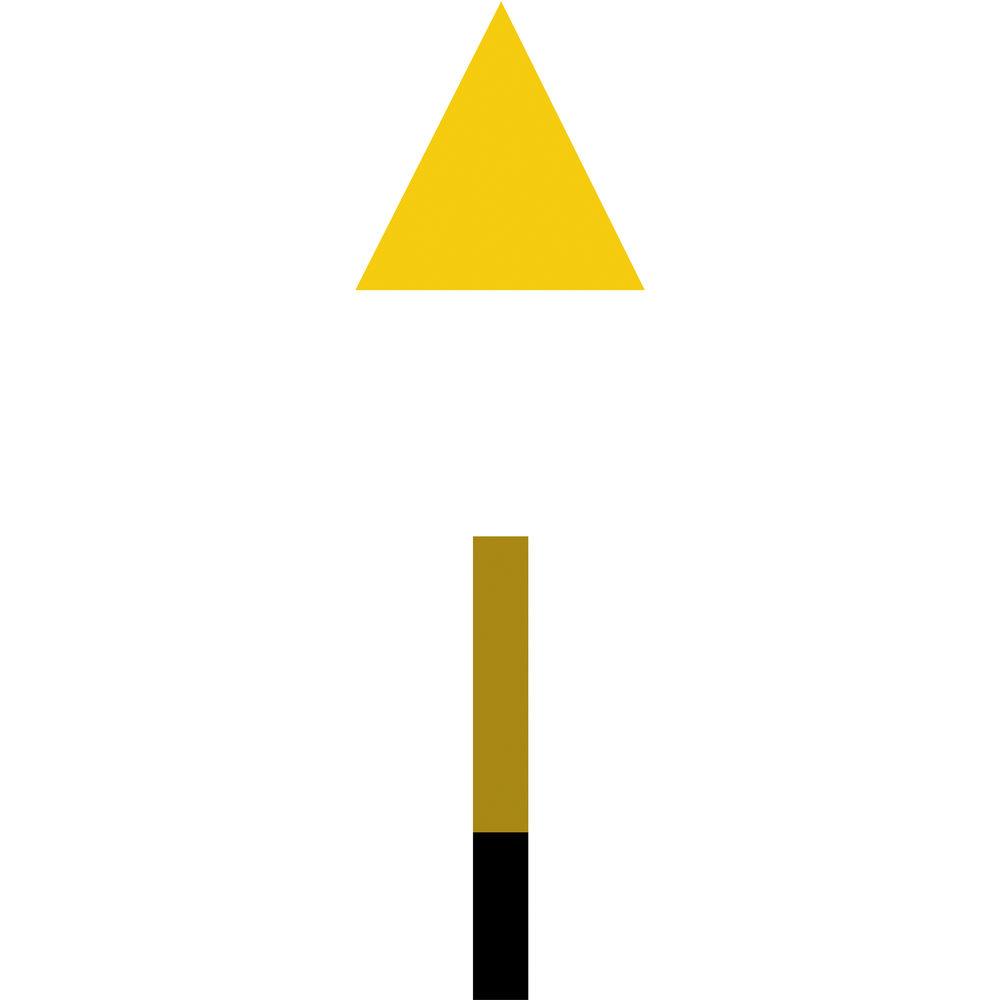

- Dual-illuminated 9.2 MOA amber triangle reticle
- Center aiming triangle
- Partially illuminated post on lower vertical axis
- Dual illumination system: Battery-free tritium and fiber-optics
- Tritium isotope: Interacts with a phosphors membrane to create illumination for the reticle in low or no light
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Use and Handling
-
- 1/2 MOA per click impact point correction
- ±40 MOA windage/elevation adjustment range
- Tactical tool-free adjustment turrets
- Designed for use with the both-eyes-open Bindon Aiming Concept for superior sense of balance and a wider field-of-view
- 2.1" eye relief
- 10mm exit pupil
- Construction Details
-
- 7075-T6 aluminum alloy housing
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- M16 carry-handle mount: Designed for M16/AR-15 platforms - screw and washer set included
- Shock-resistant: Tested to withstand recoils on weapons from .22 LRs up to .50 BMGs
- Lightweight: Weighs just 6.4 oz
- Made in the USA
UPC: 719307309500 In the Box Trijicon 2x20 TA47 ACOG Riflescope (9.2 MOA Amber Triangle Reticle) Screw & Washer Set for ACOG (Matte Black) ACOG Scopecoat LensPen - TA56 Trijicon Sticker Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 2x20 TA47 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA47-C-400146 Specs | | | Magnification | 2x | | Objective Lens Diameter | 20 mm | | Field of View | 29.3' @ 100 yd / 9.7 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.1" / 53 mm | | | | Reticle Type | 9.2 MOA Triangle Reticle | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Amber | | | | Mounting | M16 / AR-15 Carry-Handle Mount | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment |
