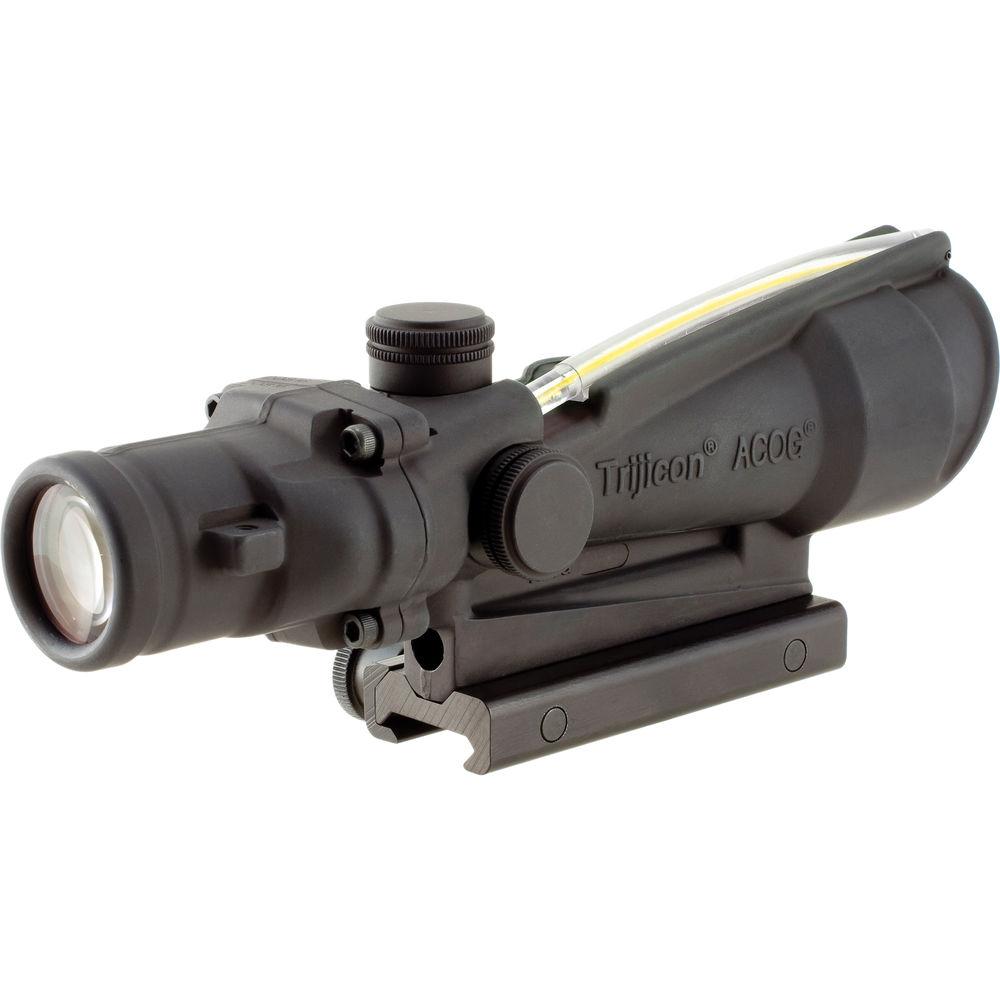

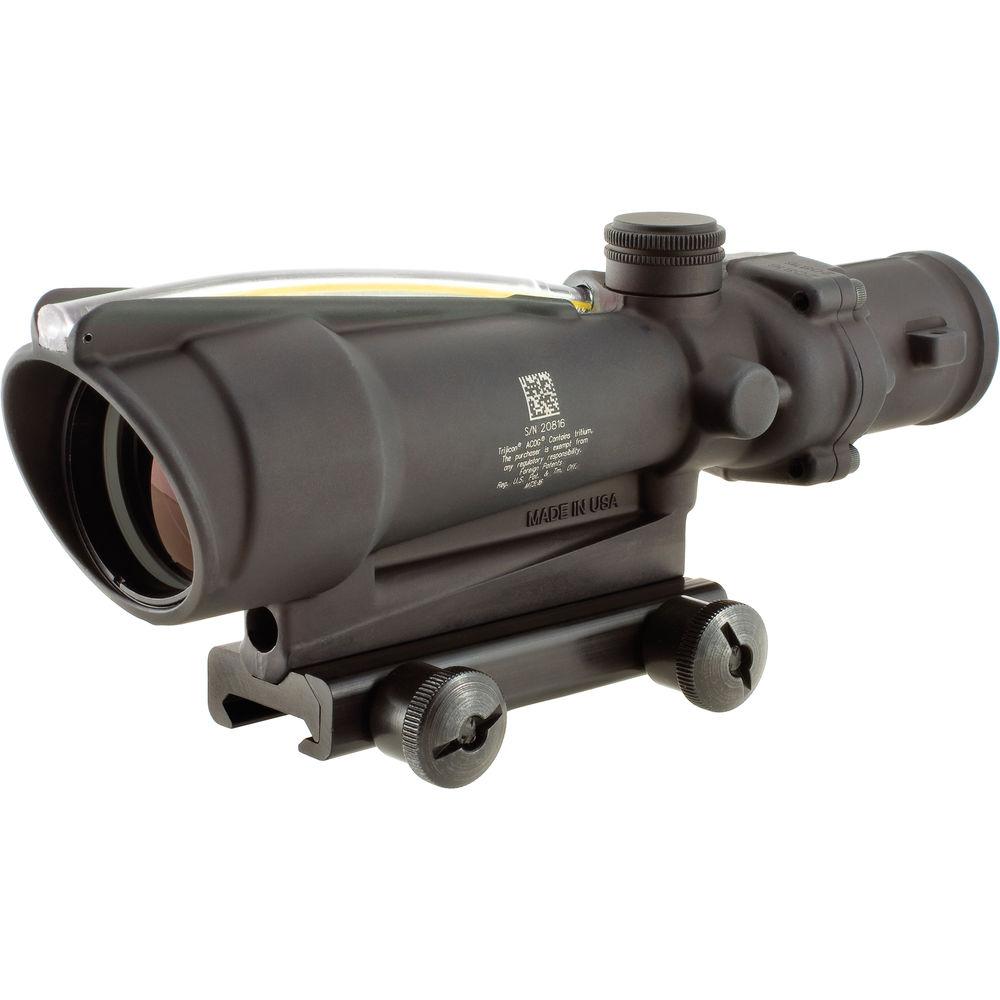

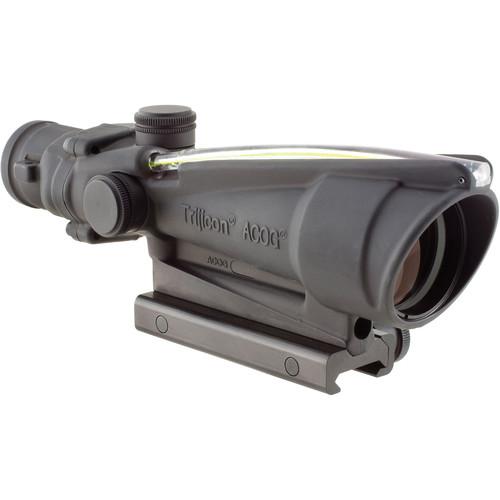

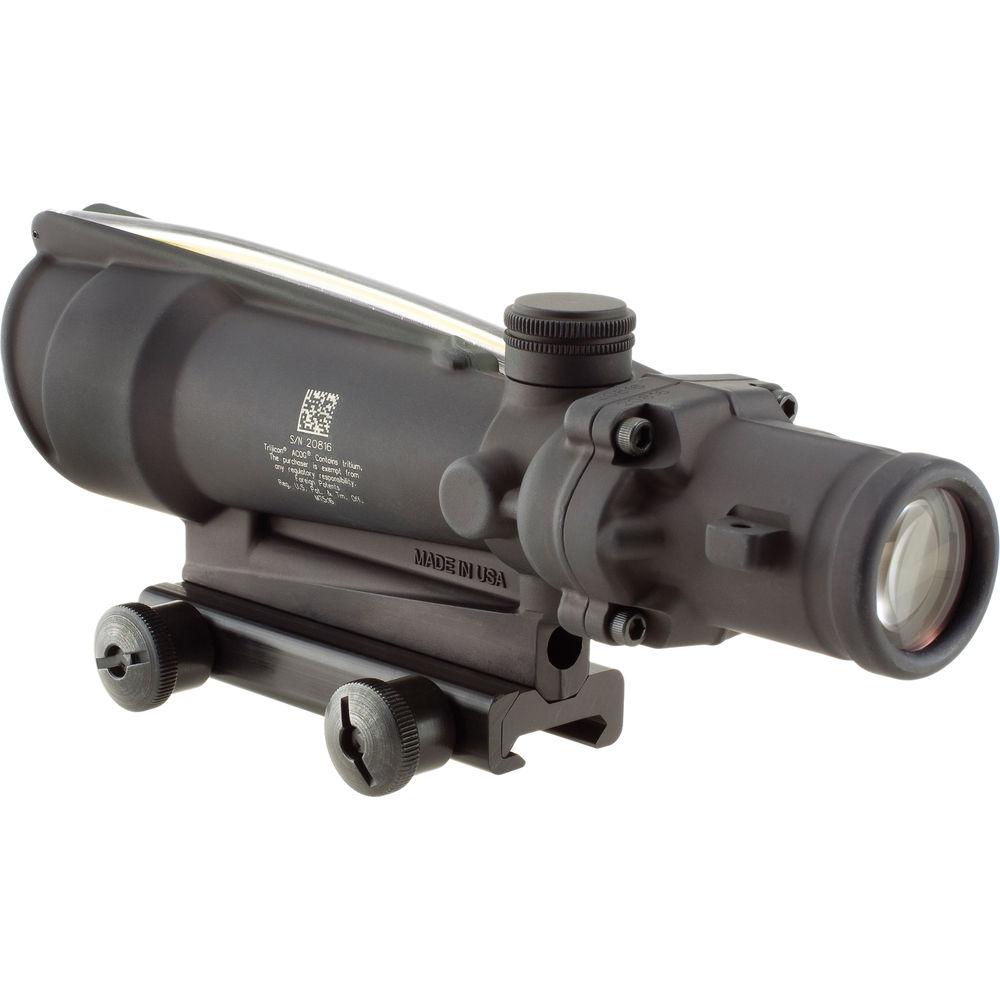

User Manual for Trijicon 3.5x35 ACOG Dual-Illuminated Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 3.5x35 ACOG Dual-Illuminated Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3.5x35 ACOG Dual-Illuminated Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|
Product description The 3.5x35 ACOG Dual-Illuminated Riflescope from Trijicon features a battery-free illuminated ballistic reticle and a durable waterproof housing to create a versatile weapon sight that is well-suited for use in a wide range of weather and lighting conditions. This Advanced Combat Optical Gunsight (ACOG) sight is outfitted with a amber crosshair reticle that has bullet drop compensation stadia on the lower vertical hair that are specifically calibrated for 300 Blackout caliber ballistics. Anti-reflection broadband fully multicoated optics maximizes light transmission to provide bright and clear views with limited distortion.Trijicon's battery-free dual-illumination reticle system employs a tritium phosphor lamp for low-light and night targeting, as well as a fiber optic illumination that automatically adjusts reticle brightness when operating in daylight. The reticle’s aiming point can be adjusted in 1/3 MOA increments, and an internal adjustment mechanism allows the ACOG to reliably hold zero. The ACOG is outfitted with a TA51 mount that has two thumbscrews for clamp-on attachment to a Picatinny rail. Complementing the ACOG's optical system and caliber-specific ballistic reticle is a nitrogen-filled, aluminum housing with a scratch and corrosion-resistant hard-anodized matte-black finish that provides the durability needed for reliable performance in a wide range of shooting conditions. - Optical Performance
-
- 3.5x magnification
- 35mm diameter objective
- Fully multicoated optics
- Broadband lens coating
- 5.5° angle of view
- 2.4" eye relief
- Reticle
-
- Amber Crosshair dual-illuminated reticle
- Ballistic drop compensation (BDC) reticle for 300 Blackout caliber
- The supersonic BDC (out to 600 yds.) has been merged with the subsonic BDC (out to 200 yds.) to provide one set of aiming points for both types of ammunition
- The reticle drops are based on an average of commonly available off-the-shelf subsonic and supersonic ammunition from a 16" barrel
- This BDC reticle is not limited to one or two specific bullets: a majority of commonly available ammunition will fall within the 2 MOA diamond aiming points
- The 2 MOA diamonds offer a balance of speed and versatility based on the unique performance of the 300 Blackout caliber
- The drops in MOA for each aiming point are provided for users who wish to develop their own handloads for use on firearms with a barrel of 16" or shorter, or for those who wish to deviate from the recommended zero distances
- Battery-free illumination uses fiber optics or tritium
- Fiber optics: Focuses, channels, and filters ambient light to illuminate the reticle
- Tritium isotope: Interacts with a phosphors membrane in the system to create illumination for the reticle
- Use and Handling
-
- 1/3 MOA impact point adjustments
- Includes TA51 mount for AR-style flattop rail
- Construction Details
-
- Nitrogen-filled for fogproof and waterproof performance
- Waterproof to 328' (100m)
- 7075-T6 aluminum alloy housing
- Matte black scratch and corrosion-resistant hard anodized finish
- 14.0 oz weight (without mount)
- Made in the USA
UPC: 719307308329 In the Box Trijicon 3.5x35 ACOG Dual-Illuminated Riflescope (Matte Black, 300 Blackout Amber Crosshair) ACOG Picatinny Rail Adapter ACOG Scopecoat LensPen - TA56 ACOG External Adjuster Caps & Lanyard Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Dual-Illuminated Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA11-C-100415 Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 28.9' @ 100 yd / 10.5 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | 300 Blackout BDC Crosshair Reticle | | Illuminated Color | Amber | | | | Mounting | Picatinny / Weaver | | Impact Point Correction | 1/3 MOA per Click | | | | Battery | None | | Dimensions | Length: 8" / 20 cm
Height: 2.3" / 6 cm (with Mount)
Width: 2" / 5 cm | | Weight | 14 oz / 397 g |
