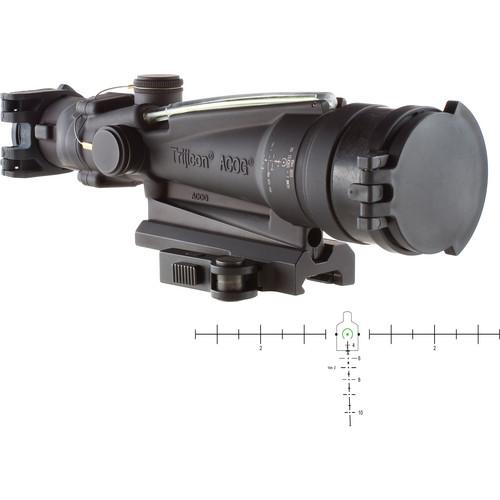

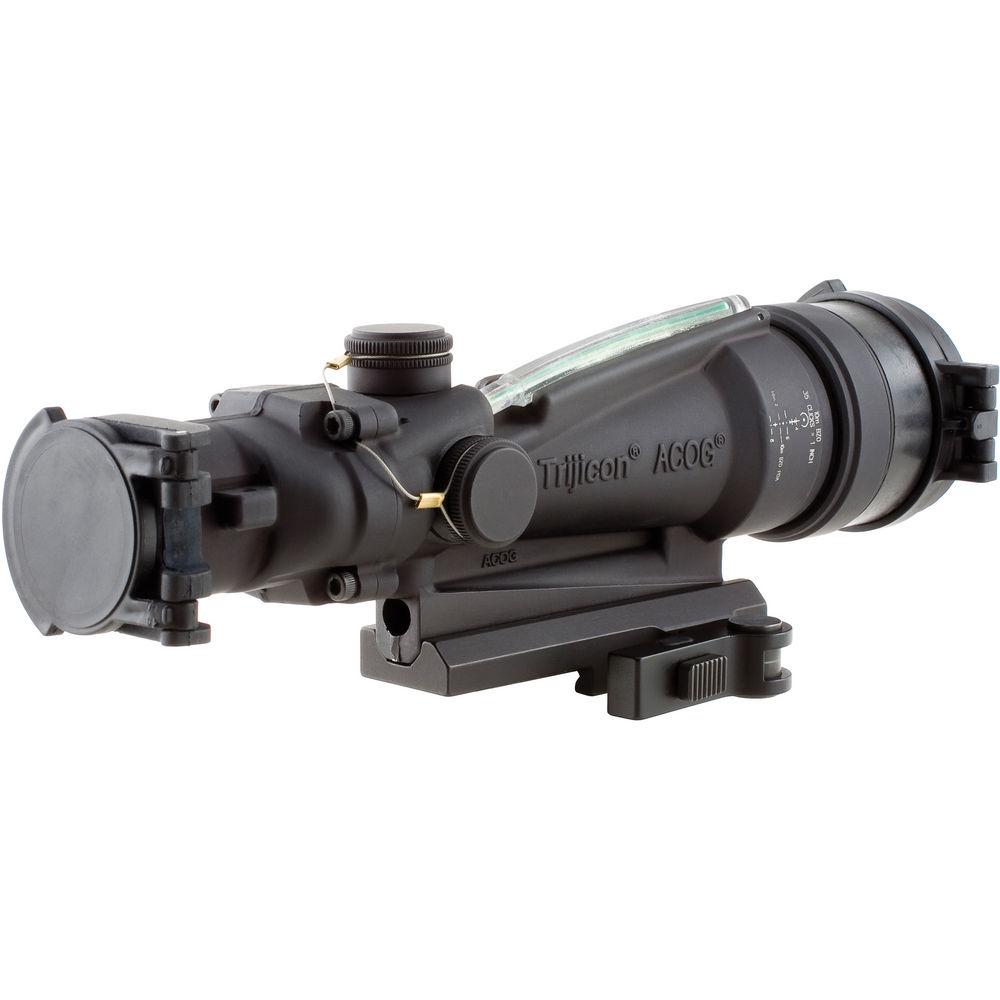

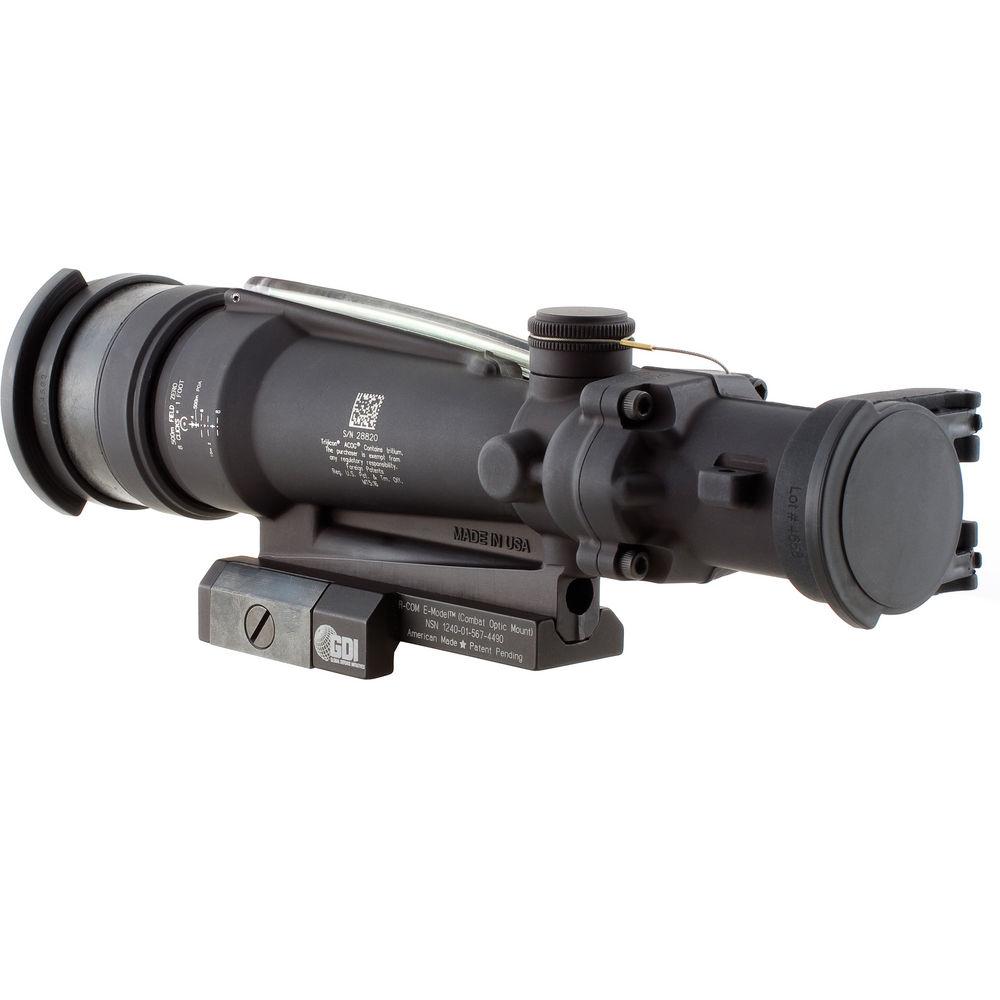

Product description The 3.5x35 ACOG Machine Gun Optic Riflescope (Matte Black) from Trijicon combines enhanced long-range capability with short-range target acquisition using the Bindon Aiming Concept. The large objective yields excellent twilight performance; a significant factor when light is lean and the target is camouflaged. The combination of a large exit pupil and Trijicon's proprietary reticle illumination system makes for quite a formidable sighting system. The target may choose to run; but hiding - now that could prove to be quite difficult. This ACOG is configured with a GDI Mount with Dual Auto-Locking Quick Detach Levers and threaded Bosses that accept an optional Trijicon RMR. It has a dual illuminated green dot horseshoe reticle calibrated for M249 and M855 ammunition out to 1000 meters. The dual illumination system empowers the self-luminous tritium to light up the aiming point in total darkness while the fiber-optic self-adjusts the reticle brightness during daylight. - Optical Performance
-
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Fiber Optic Illumination Adjuster allows manual control over daylight reticle glow
- Construction Details
-
- Housing: forged 7075-T6 aircraft aluminum alloy provides added strength and durability
- Waterproof: nitrogen purged and fully sealed for all-weather reliability. Submersible to 500 ft / 150 m with adjuster caps on or 50 ft / 15 m without adjuster caps on
- Threaded bosses on the eyepiece housing provides the option to incorporate the Trijicon RMR (not included)
- Use and Handling
-
- Anti-reflection device, ARD, and protective flip caps add enhanced protection to the scope
- 500 m zero and 10 m BZO zeroing instructions are laser etched on the left and right sides for added convenience
- Mount: GDI AW6 Dual Auto-Locking Quick Detach (ALQD) Levers compatible with MIL-STD-1913 rail
- BAC: The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target

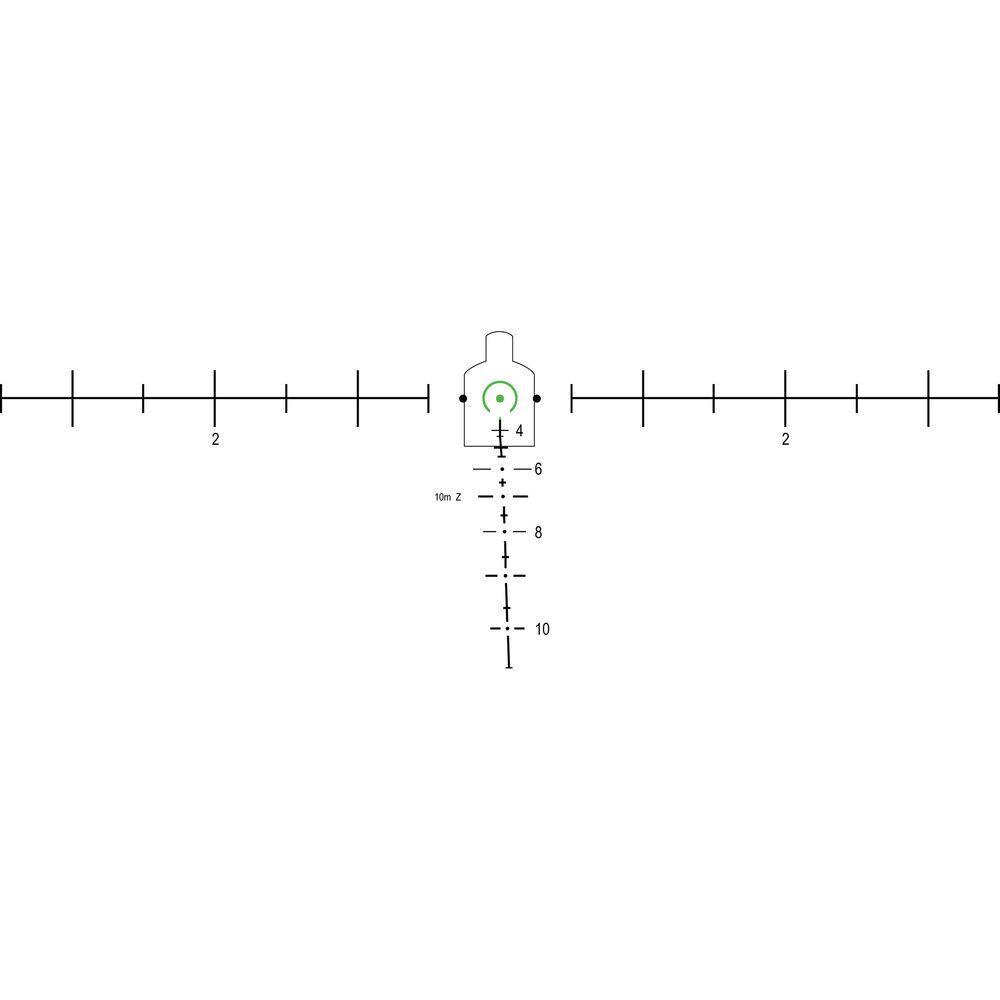

- Green dot horseshoe reticle: calibrated for M249 and M855 ammunition to incorporate spin drift of the round at extended distances- an illuminated dot indicates the exact point of aim. Stadia at 3 and 9 o'clock offer a horizontal target reference system of 50 Mils of off-points for moving targets. The 6 o'clock stadia features hold-over hash-marks for distances from 100 m up to 1000 m. Integrated 10m Z qualification BZO aiming point built into the reticle
- Dual illumination: 24/7/365 - battery-free tritium/fiber-optic technology provides the horseshoe and dot with a highly-visible green glow
In the Box Trijicon 3.5x35 ACOG Machine Gun Optic Riflescope (Matte Black) Tenebraex Flip-Up Lens Cover yqqqbubwutrqsctwxyxu LensPen - TA56 Tenebraex killFLASH Anti Reflection Device for 6x48 ACOG MOLLE Brown Pouch GDI R-COM E-Model Mount Limited Lifetime Warranty Limited 15-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Machine Gun Optic Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA11MGO-M249 Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 28.9' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | M249 and M855 Horshoe-Dot Reticle | | Illumination | Illuminated | | Illumination Type | Fiber Optic, Tritium | | Illuminated Color | Green | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof to 500' / 150 m | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 8.7" / 22.1 cm | | Weight | 14 oz / 397 g (with Mount) |
