User Manual for Trijicon 3.5x35 ACOG Riflescope Click to enlarge the picture
Contents of the user manual for the Trijicon 3.5x35 ACOG Riflescope
- Product category: Riflescopes Trijicon
- Brand: Trijicon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Trijicon Riflescopes
 |
User manual for the Trijicon 3.5x35 ACOG Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Trijicon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Trijicon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Trijicon product will considerably shorten its lifespan!
|

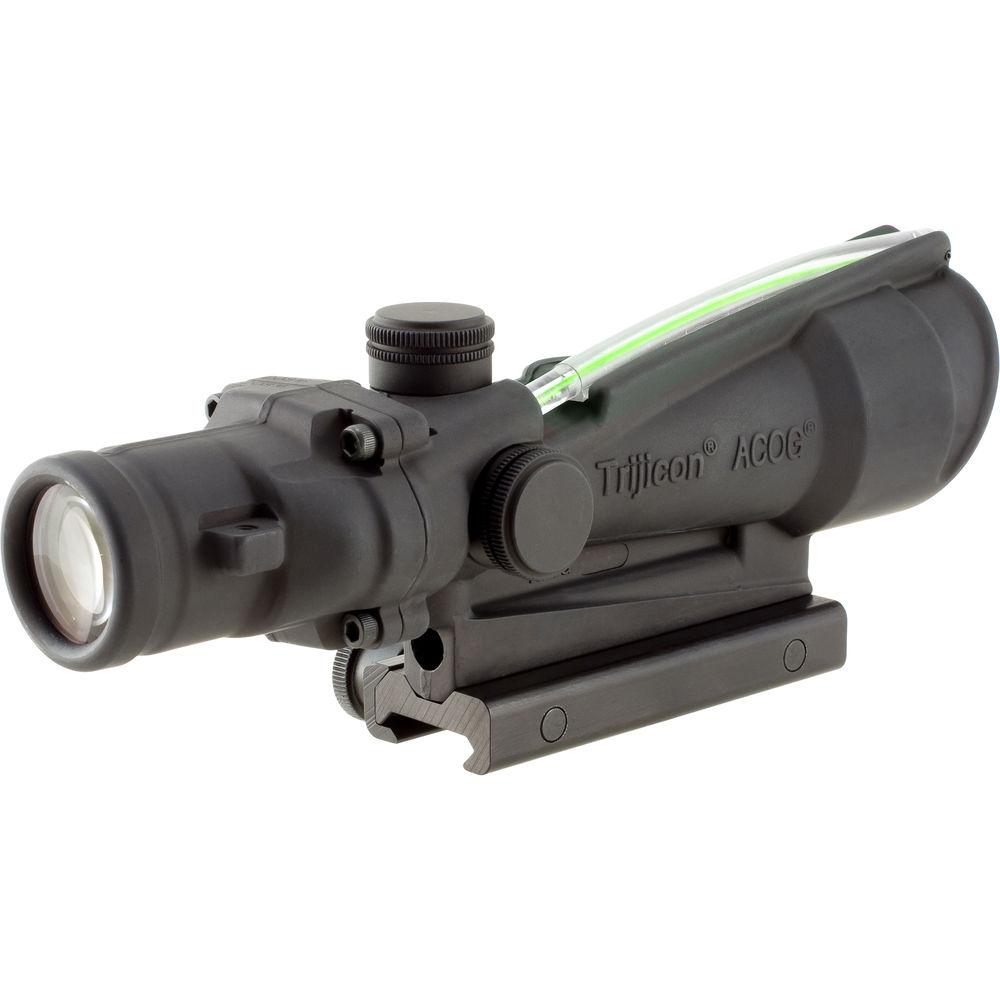

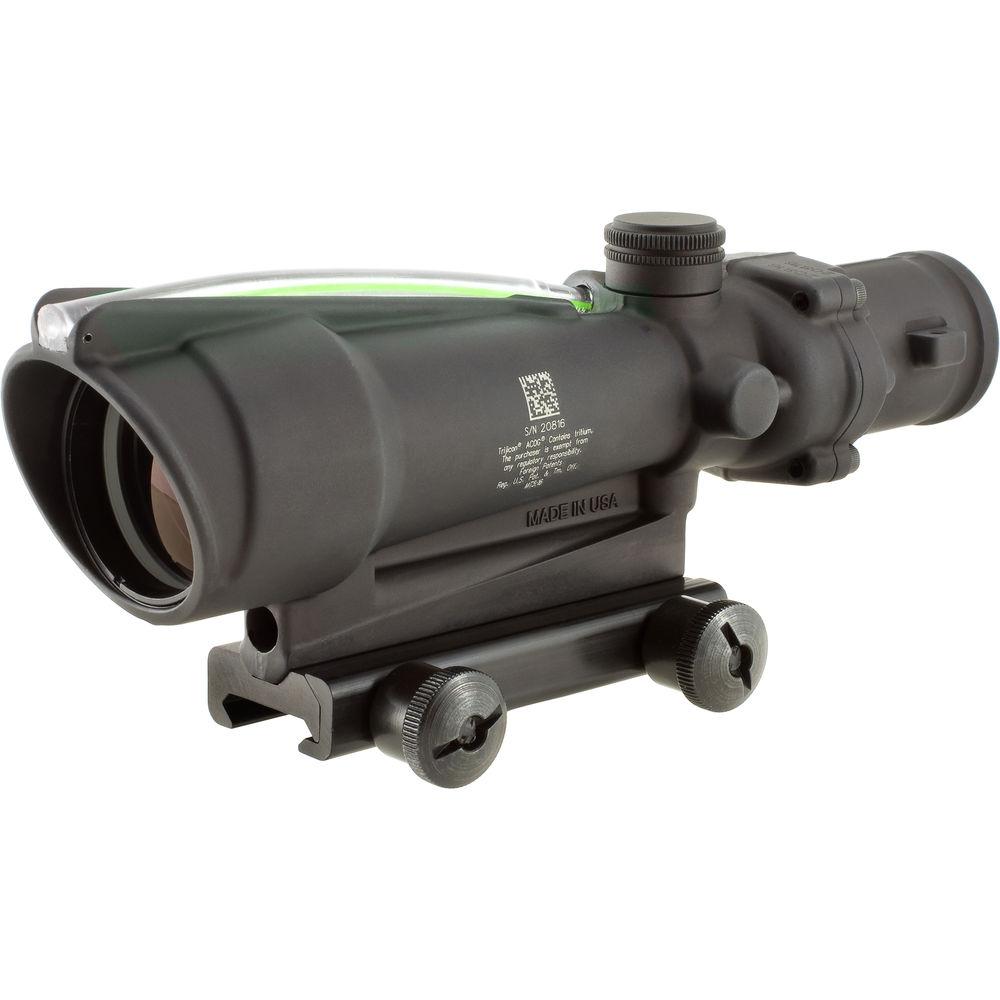

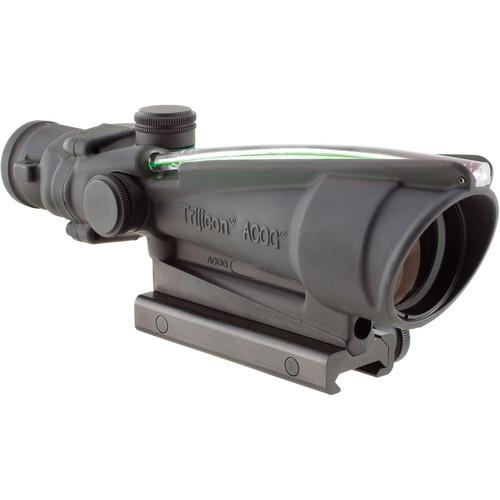

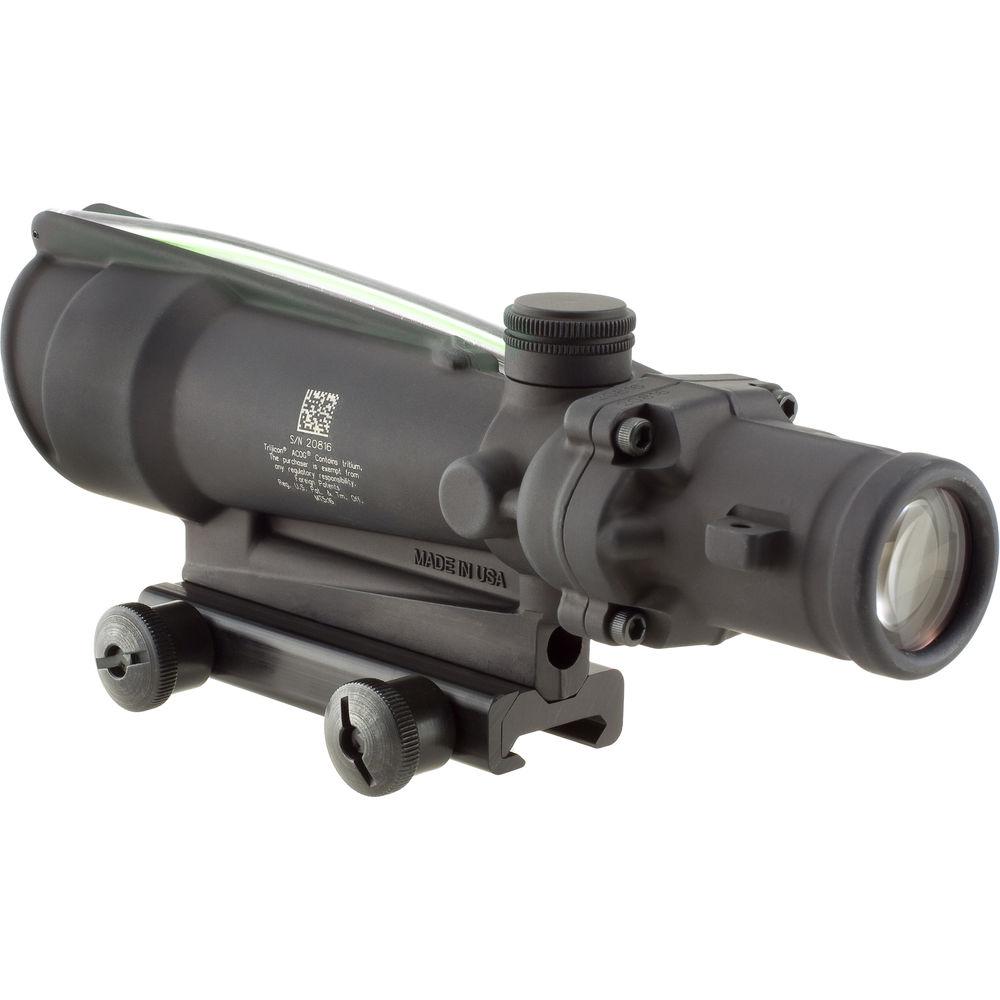

Product description The 3.5x35 ACOG from Trijicon sits at a moderate height on top of the receiver. While delivering a mid-range 3.5x magnification, the efficient 35 mm objective produces a bright, crisp, and clear sight picture. Trijicon's proprietary tritium/fiber optic technology ensures that the reticle remains highly-visible 24/7/365. Combining the obvious assets of a generous FOV, bright reticle, and moderate magnification ensures the operator's ability to engage targets with confidence and outstanding fire-control capability. Any target - moving or otherwise - will be easier to acquire, lock on to, and hit successfully with the first shot. This ACOG is configured with a Picatinny flat-top mount, and a dual illuminated green horseshoe with dot reticle that's calibrated for 5.56x45/.223. - Optical Performance
-
- Broad-band multicoated lenses enhance clarity and increase light transmission by minimizing flare, glare, reflections
- Construction Details
-
- Housing: forged 7075-T6 aircraft aluminum alloy
- Waterproof: nitrogen purged and fully sealed for all-weather reliability
- Use and Handling
-
- Picatinny flat-top mount: compatible with Mil-Std 1913 Picatinny rails, features two Colt-style thumbscrews
- BAC: The Bindon Aiming Concept was devised by Trijicon's founder, Glyn Bindon. The BAC method of aiming with both eyes open ensures a far superior sense of balance, and a wider field-of-view. Combining these benefits with a magnified Trijicon sight gives you a considerable advantage over your target

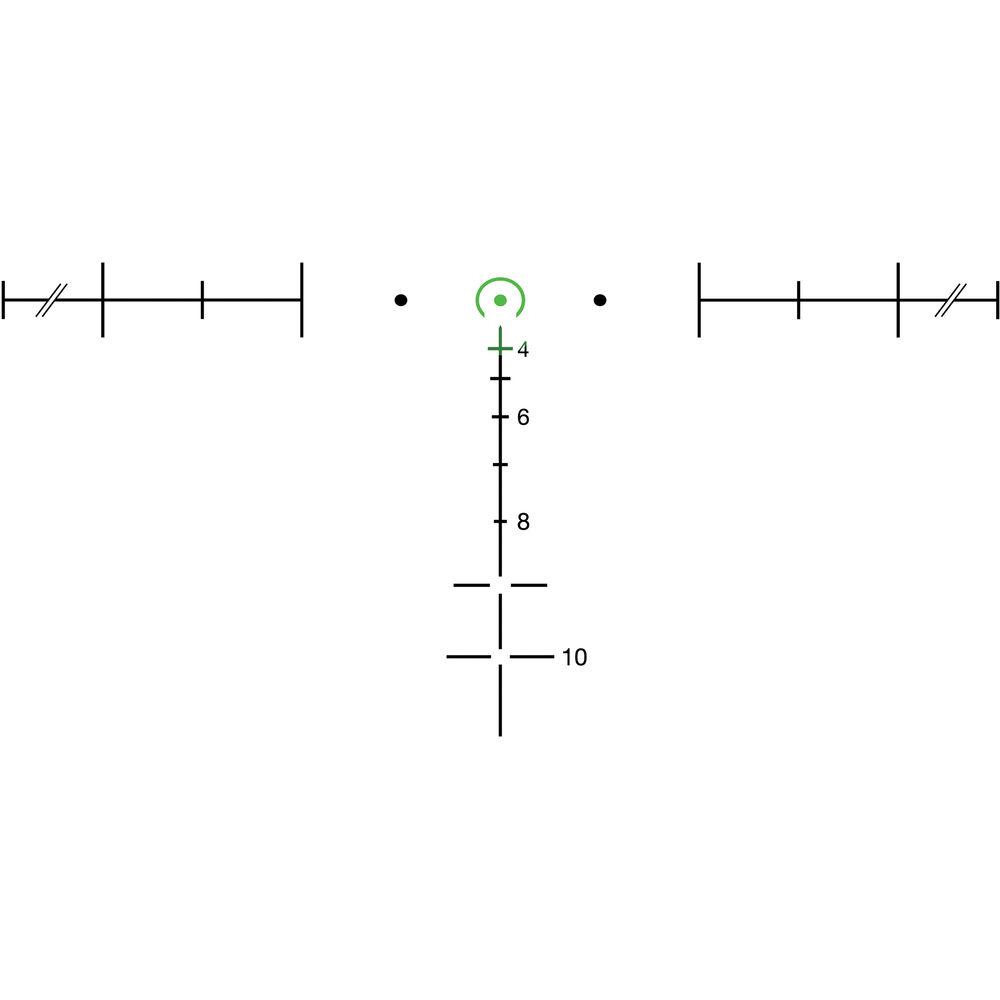

- Green horseshoe with dot reticle: calibrated for 5.56x45/.223 - an illuminated green horseshoe focuses the eye on the target, it surrounds an illuminated green dot that indicates the exact point of aim. Thin stadia at 3 and 9 o'clock offer hold-off hash-marks for moving targets. The extended stadia at 6 o'clock features hold-over hash-marks for distances up to 1000 m
- Dual illumination: 24/7/365 - battery-free tritium/fiber-optic technology provides the horseshoe and dot with a highly-visible green glow
UPC: 719307303454 In the Box Trijicon 3.5x35 ACOG Riflescope (Matte Black) ACOG Picatinny Rail Adapter fxbyevqw ACOG Scopecoat LensPen - TA56 Weatherproof Logo Sticker Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Trijicon 3.5x35 ACOG Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersTrijicon TA11H-G Specs | | | Magnification | 3.5x | | Objective Lens Diameter | 35 mm | | Field of View | 28.9' @ 100 yd / 9.6 m @ 100 m | | Exit Pupil Diameter | 10 mm | | Eye Relief | 2.4" / 61 mm | | | | Reticle Type | 5.56x45 / .223 Horseshoe-Dot Reticle | | Illumination | Illuminated | | Illuminated Color | Green | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 40 MOA | | Elevation Adjustment | 40 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Battery | None | | Dimensions | Length: 8.7" / 22.1 cm | | Weight | 14 oz / 397 g (without Mount) | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 10.4 x 8.9 x 4.8" |
